NATIONAL 110 UE 1,500HP SCR DRILLING RIG w/AVAILABLE 500-TON TOP DRIVE*
(Listing No. D-140)
Click on Above Images for Larger Viewing
$11,400,000
NATIONAL 110 UE 1,500 HP SCR DRILLING RIG
w/AVAILABLE 500-TON TOP DRIVE*
*500-Ton Top Drive Available - Make Offer!
DRAWWORKS
National 110-UE S/N T-723 (REBUILT)
Drum Grooved for 1 3/8” wire line.
Make up and Brake out cathead.
Drawworks is complete with:
2 Nos. DC Motors: GE -752 RIS &
5GE752AR1B
1 No. Crown-o-matic
1 No. Driller’s Console
1 No. Elmagco 6023 Eddy Current Brake
Ser. # 7943 W
Inputs volts: 250V DC
Amps: 40
RPM: 600
Torque: 55500 lbs-ft
Baylor Control Panel: PWM-20
1 No. Brake cooling system (with water tank equipped with
1 No. of 3X4 Mission Centrifugal pump driven by Electric Motor)
MAST
Lee C. Moore - Ser. #T3768 (RECERTIFIED)
Height 142’ X 30’.
Hook load 1200 klbs / at 12 lines.
Gross nominal load capacity 1,600,000 lbs.
1 No. Mast top section #01 O.D.S
1 No. Mast top section #2 D.S.
1 No. Mast middle section #1 D.S.
1 No. Mast middle section #2 O.D.S
1 No. Mast bottom section #1 D.S.
1 No. Mast bottom section # 2 O.D.S.
Complete with:
1 No. Deadline anchor
1 No. Monkey board
1 No. Stabbing board
Two lines stand pipe
Bull line for rig up 2 – 7/8” dia.

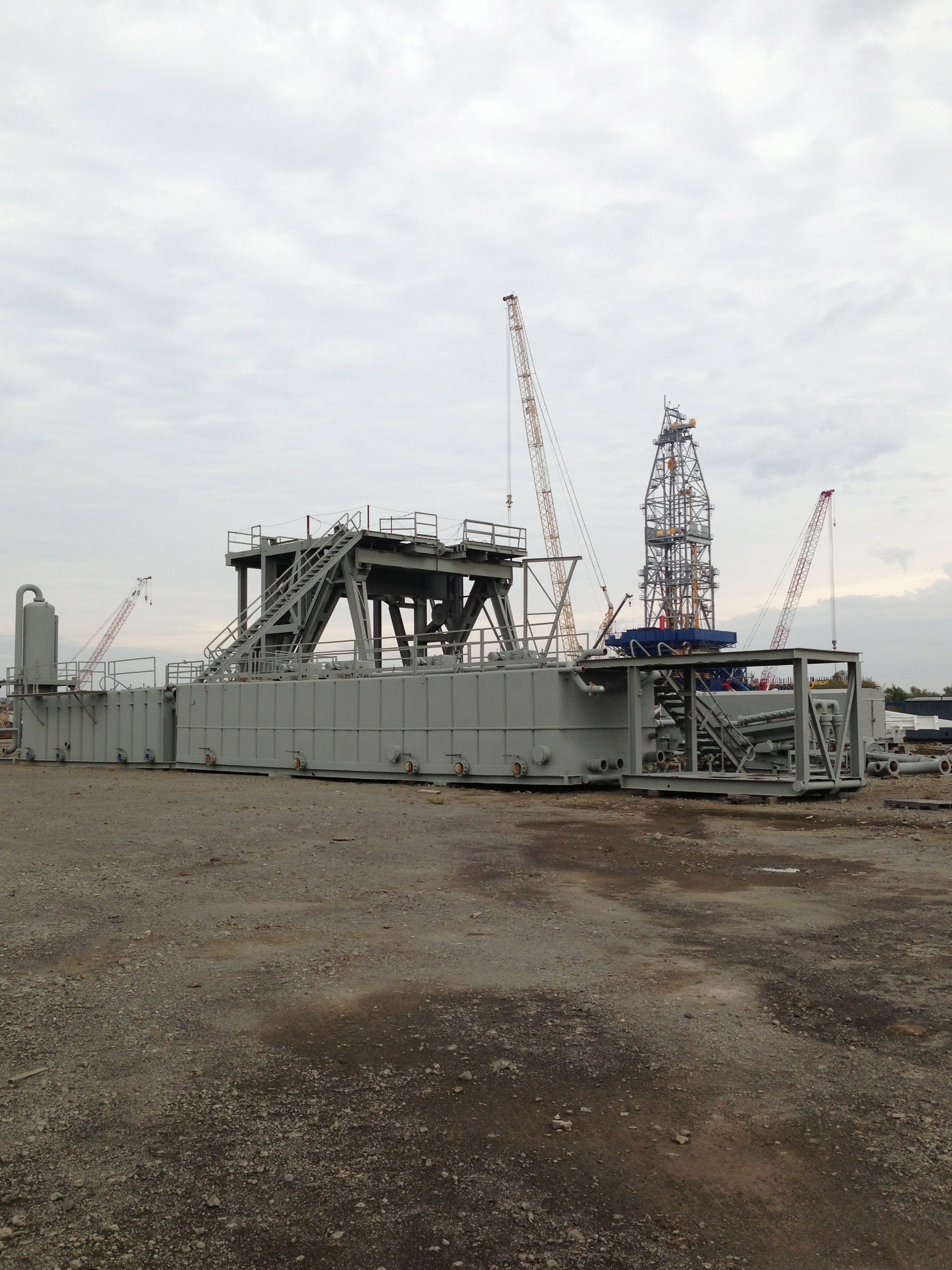

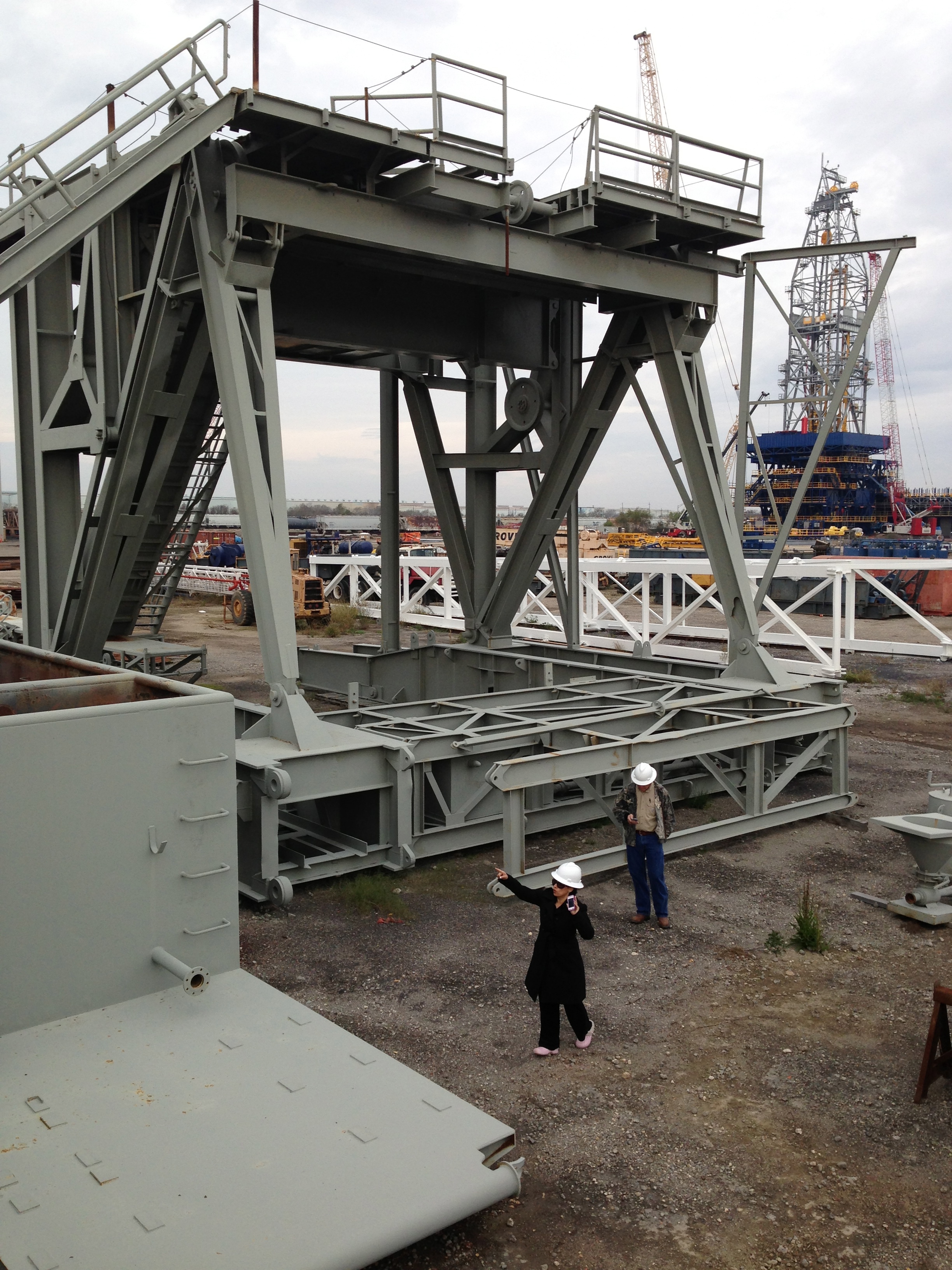

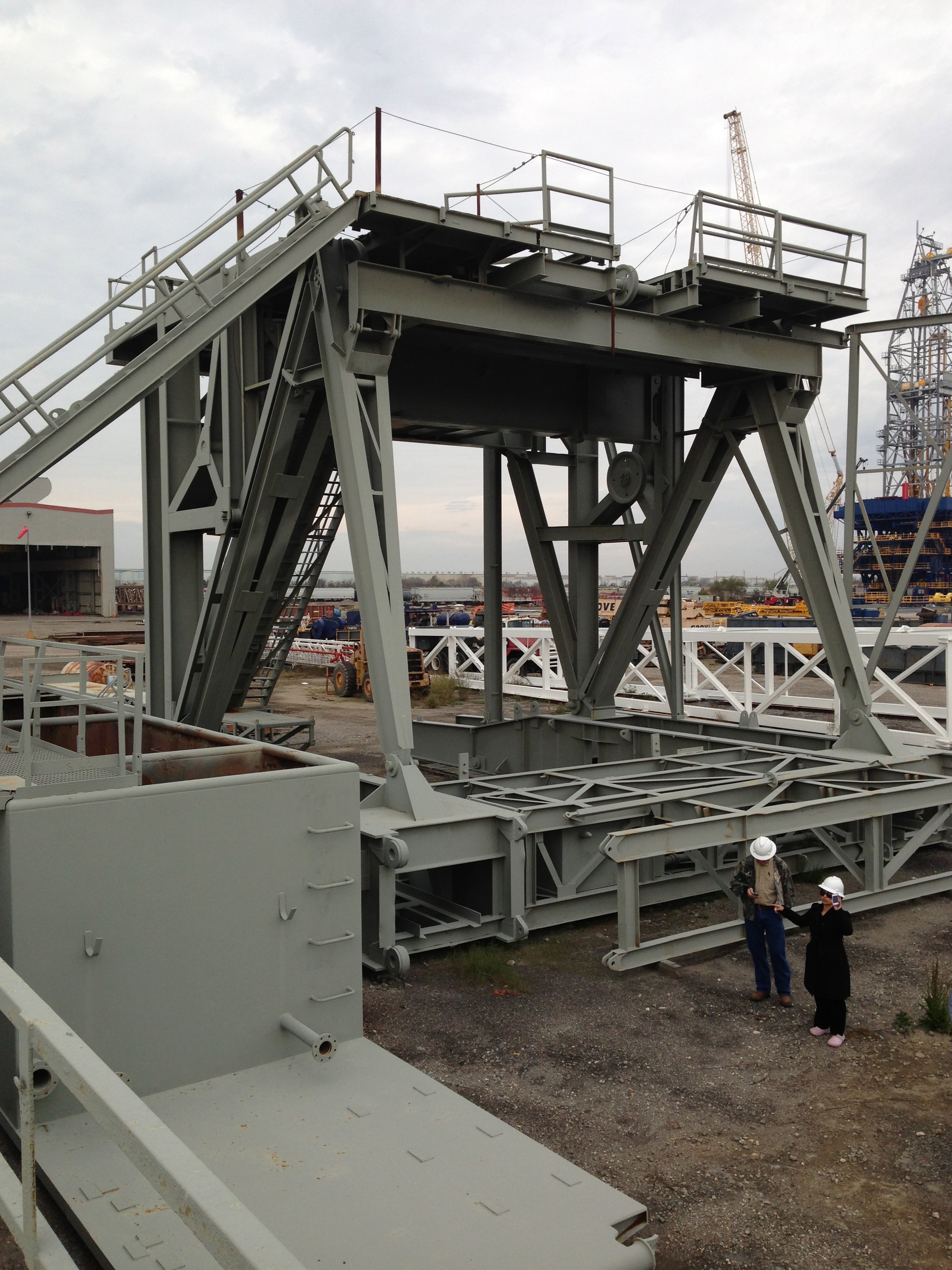

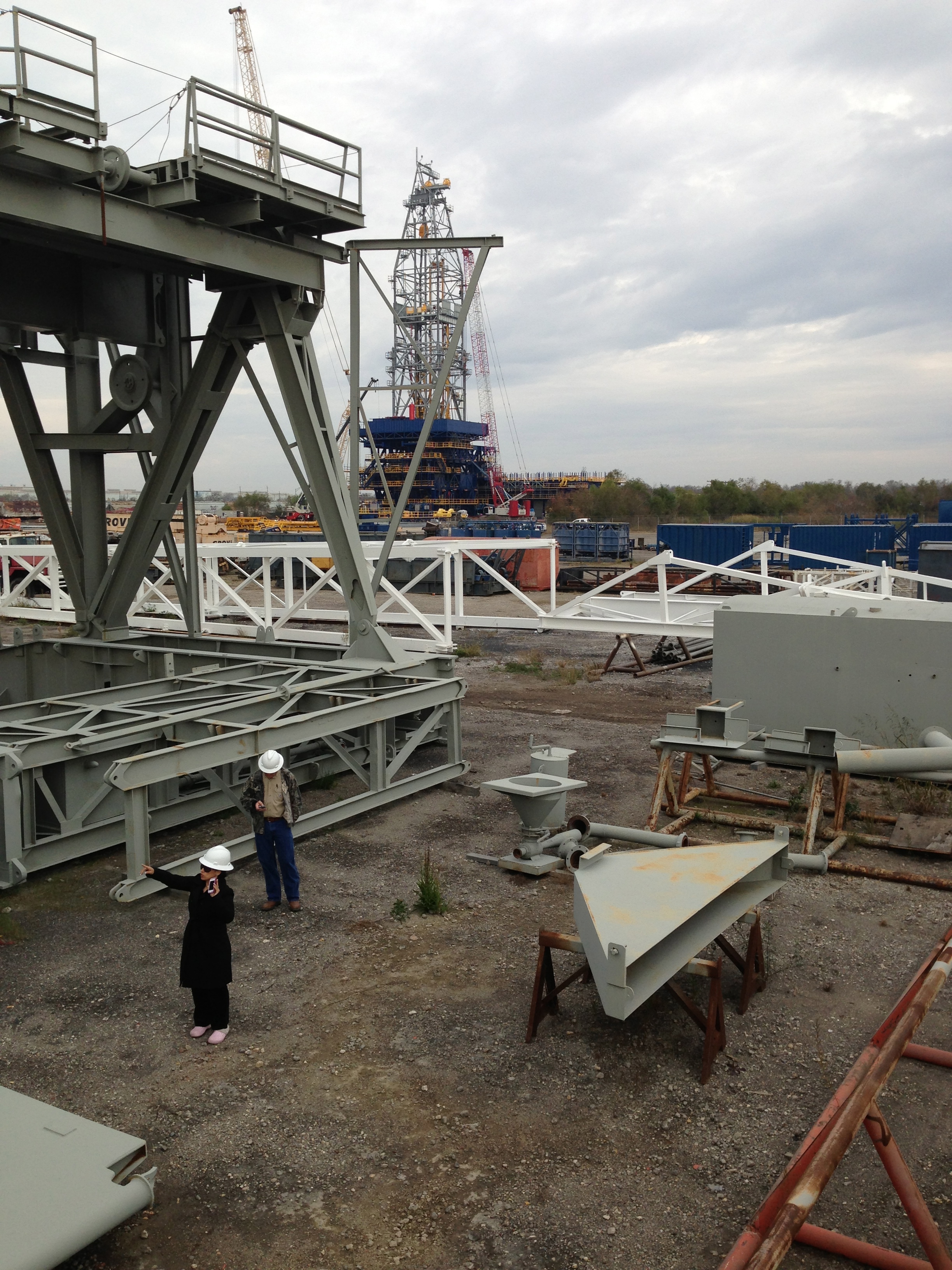

SUBSTRUCTURE
Lee C. Moore (RECERTIFIED)
Set back capacity 700 klbs. Height to rotary beams 24 feet.
Drill floor height 30 feet.
1 No sub base bottom box structure #01
1 No sub base bottom box structure #02
1 No sub base floor #01
1 No sub base floor #02
1 No bottom box driller side
1 No bottom box off driller side
Complete with:
1 No. V-door complete
1 No. Catwalk
1 Set skidding gear

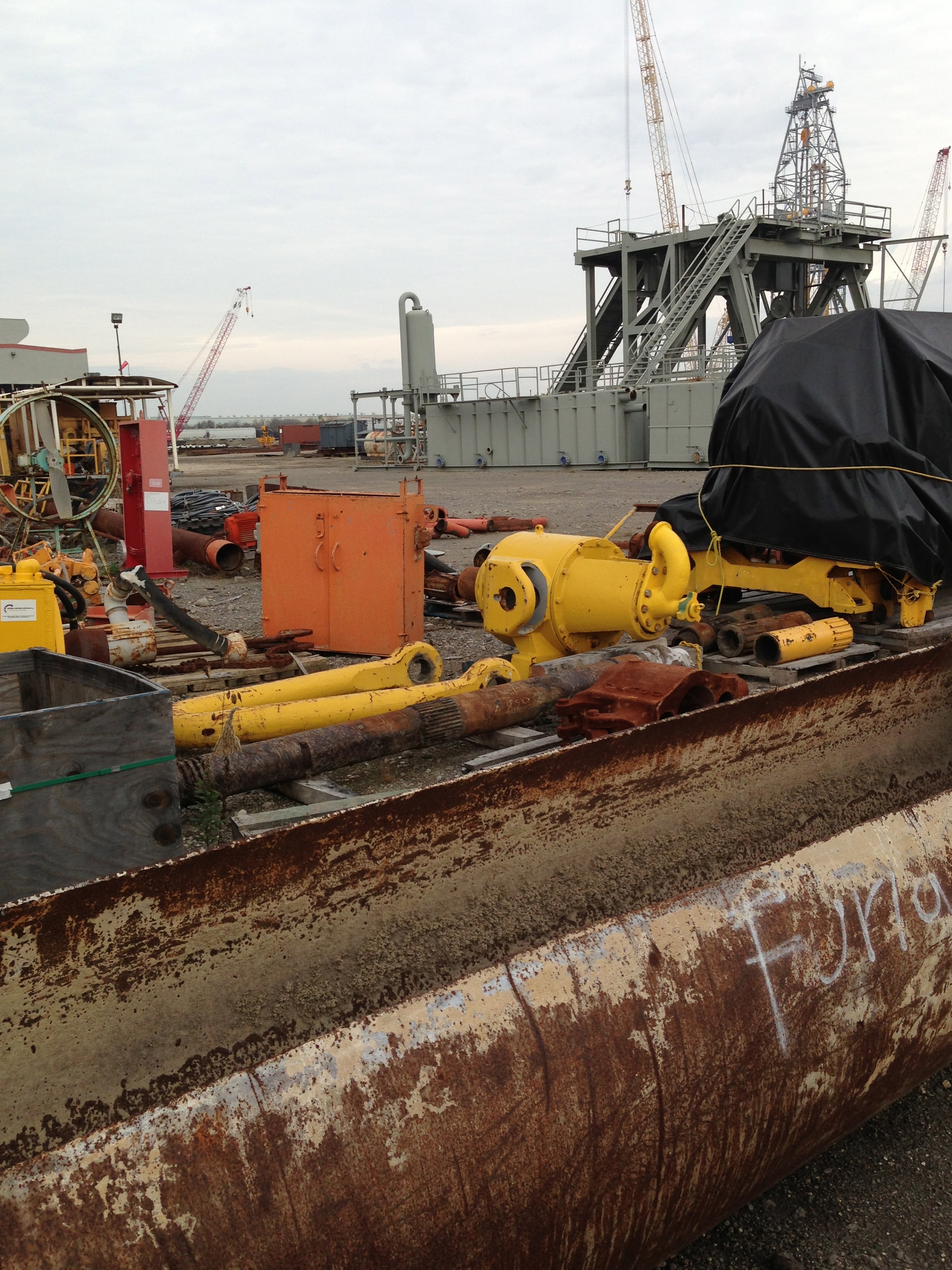

1 No. Hydraulic jack up unit
(Engine driven high pressure pump unit with hoses.)
POWER PACKAGE W/SCR
Cat D398 Engine GE Generators (NEEDS REBUILT)
1 No. Cat D-398 engine coupled with Kato Generators feeding into SCR/MCC house.
Each engine is equipped with heavy-duty desert radiator.
Specifications as below:
Engine: Make # Caterpillar
Model # Cat D398 PCTA
Generator: Make # Caterpillar
KW Const.: 800
KVA: 1000
600 V, 60Hz, 3ph,
Cat D399TA (LOW HOURS AND DYNOED BY CAT)
3 No. Cat 399TA engine coupled to Kato alternator KW 1030 volts 600

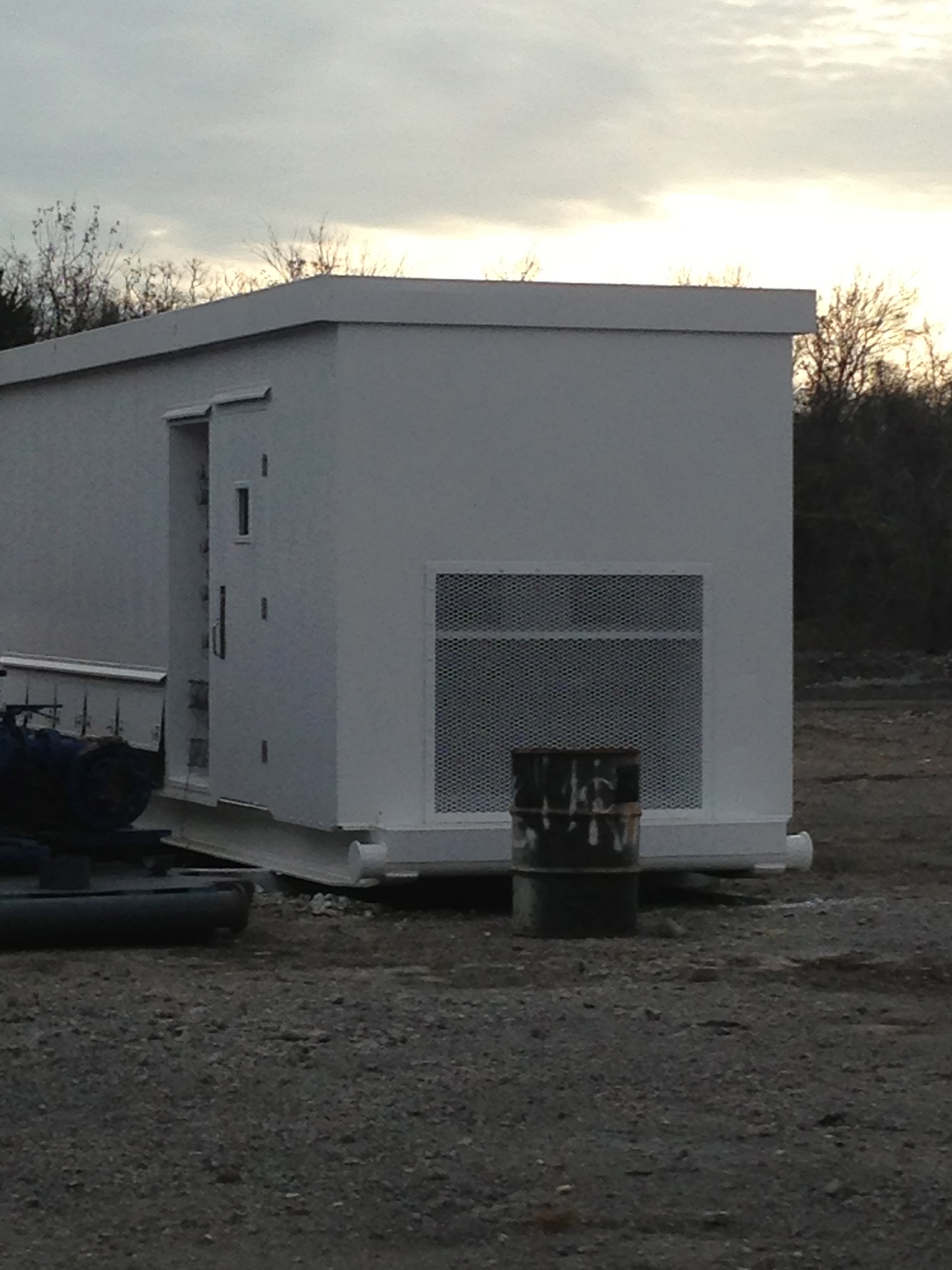

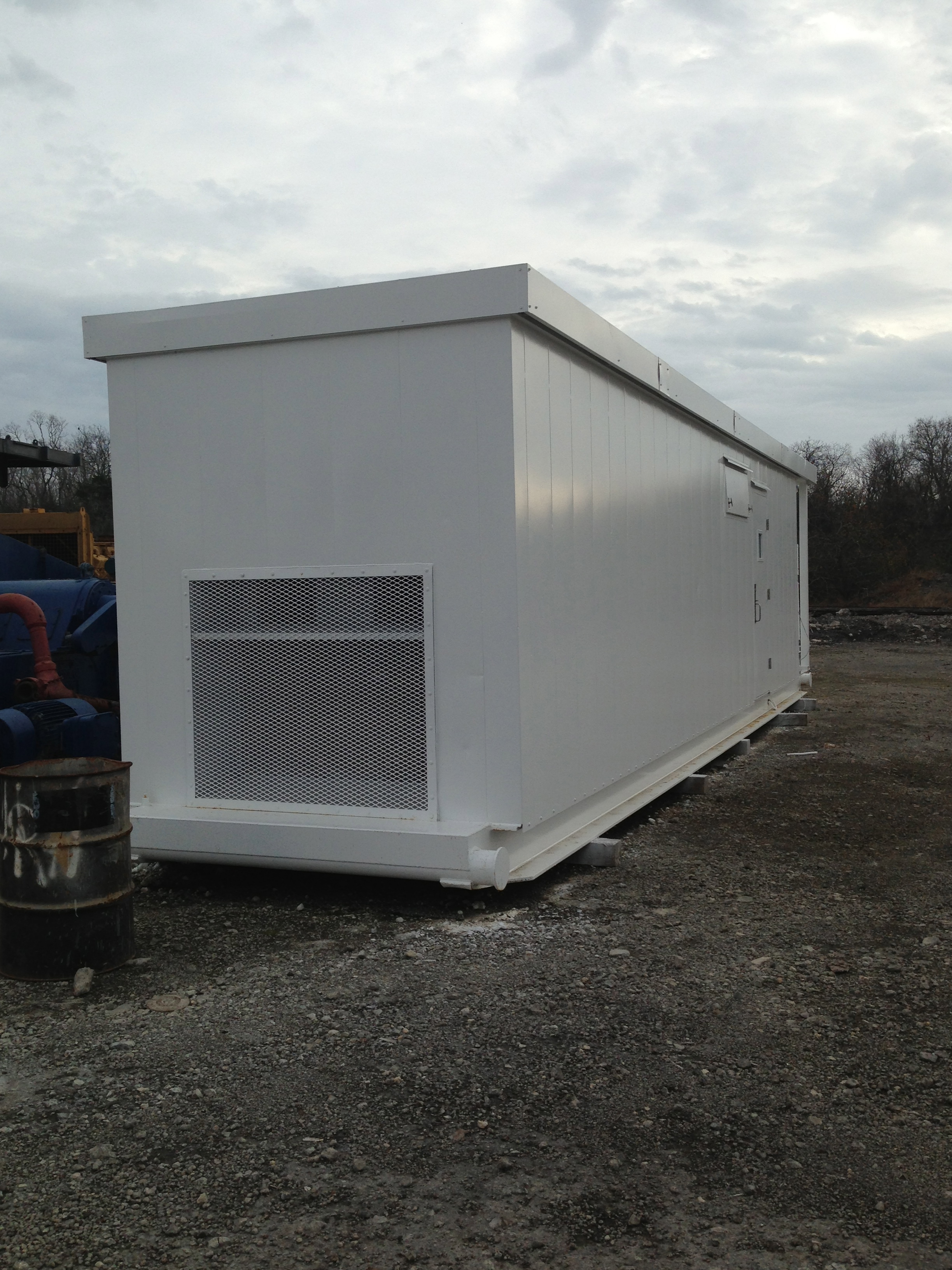

IPS SCR SYSTEM (COMPLETELY UPGRADED)
4-Bay SCR System complete with MCC panel and air-conditioning unit
SCR Specifications as below:
Make: Integrated Power Systems
SR: 422400
Dwg Index No. # 008-001720
Rated AC Volts: 600 V AC, 3ph, 60Hz
TRANSFORMERS
AC Amps: 4000 Amps
Rated DC Volts: 750 V DC
DC Amps: 1500 Amps
Equipped with following transformers to meet auxiliary demands.
a) Transformer 10 KVA
600 V – 240 V
b) Transformer 112.5 KVA
600 V – 208 / 120 V
Make: : MGM Transformer Co.
c) Transformer 750 KVA
600 V – 480 V
Make: MGM Transformer Co.
All this installed on trailers with hydraulic jacking system
MUD PUMPS

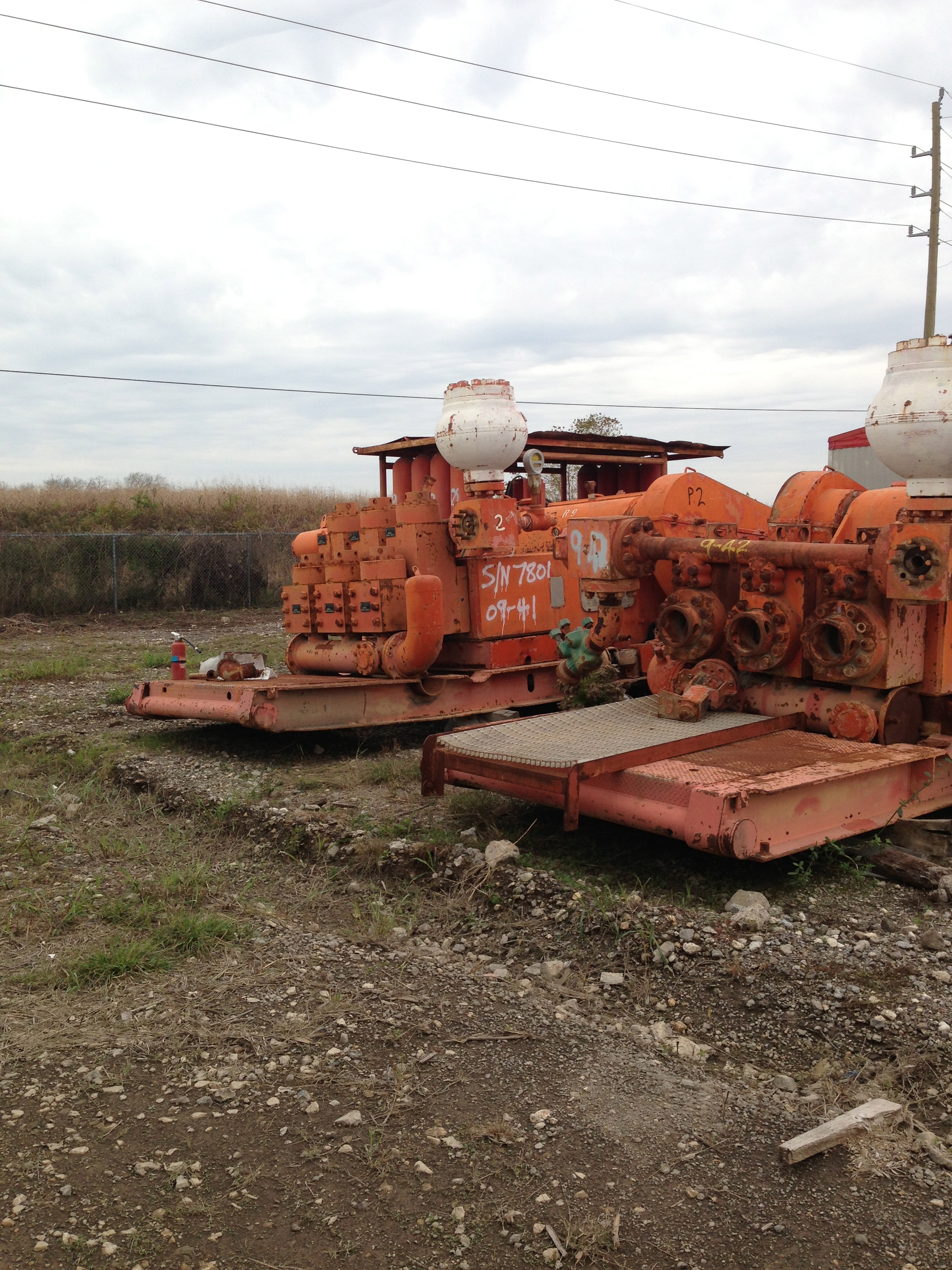

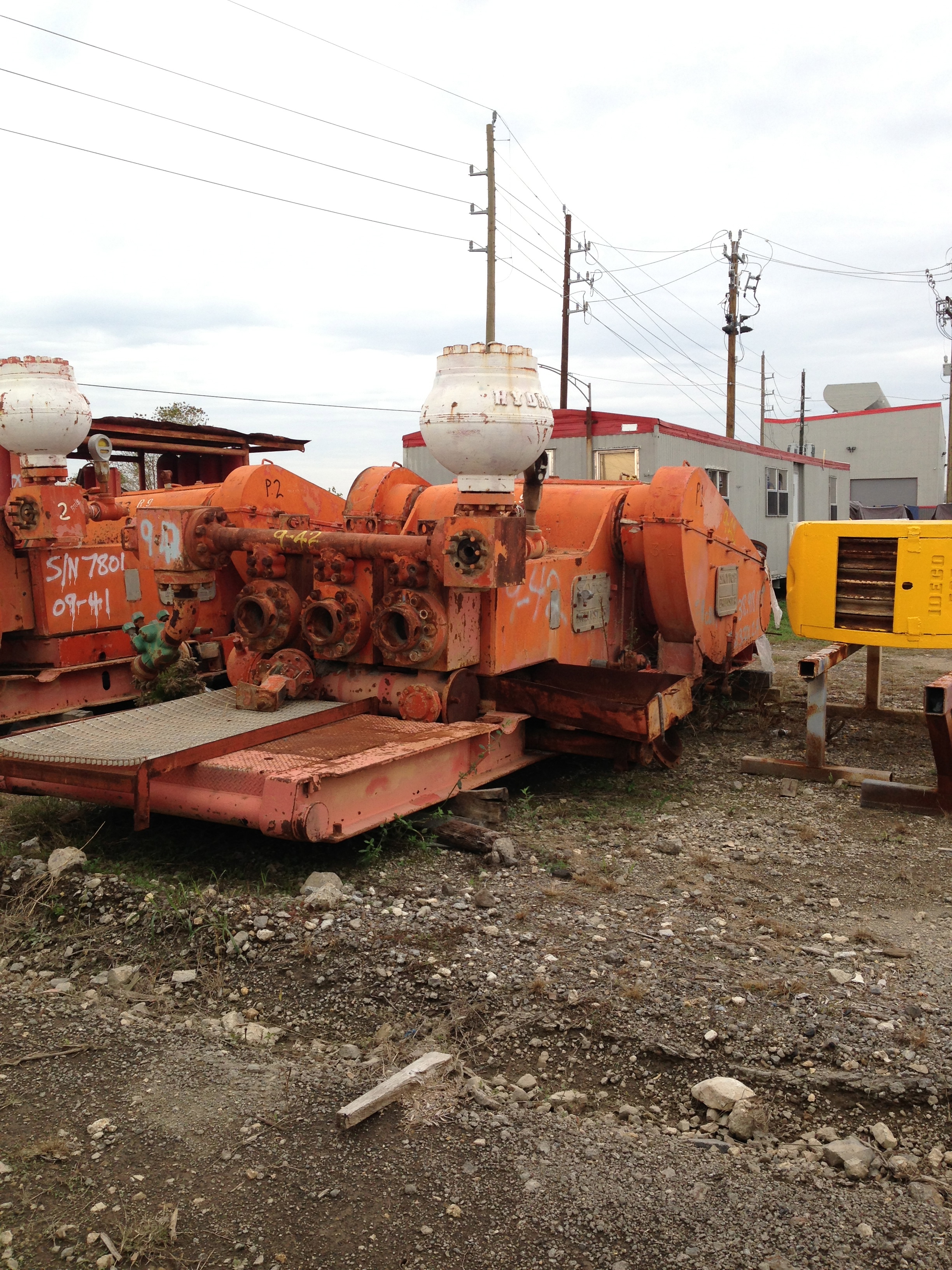

Skytop Brewster Model # B-1300T
Specifications:
Input rating: 1300HP
Max Speed: 120
Crankcase oil cap: 110 Gal
Piston lune: 80 gal
(1) MP-1: Skytop, Ser. # B13-7802
Equipped with:
a) DC Motors - 2 Nos.
5GE752AR1A
5GE752AR1B
b) Blower motors 10HP - 2 Nos.
c) Supercharger pump - 1 No.
d) Liner cooling pump - 1 No.
Halco 1 C 1.5c
Model # S1602500144
With 5hp motor
e) Lube oil gear pump - 1 No.
(belt driven)
f) Pulsation Dampner - 1 No.
Hydril
20 Gal, 5000 psi
g) Pressure relief Valve - 1 No.
Retsco Reset relief valve
1500 – 5000 psi
3” Type – B
(2) MP-2 : Skytop, Ser. # B13 – 7801
Equipped with:
a) DC Motors - 2 Nos.
5GE752AR1A
5GE752AR1B
b) Blower Motors 10 HP - 2 Nos.
c) Supercharger pump - 1 No.
d) Liner cooling pump - 1 No.
Halco 1X1.5c
Model # S1602500144
With 5hp motor
e) Lube oil gear pump - 1 No.
(belt driven)
f) Pulsation Damper - 1 No.
Hydril 20 Gal, 5000 psi
g) Pressure relief Valve - 1 No.
Oteco Shear pin type
P/N # 30550

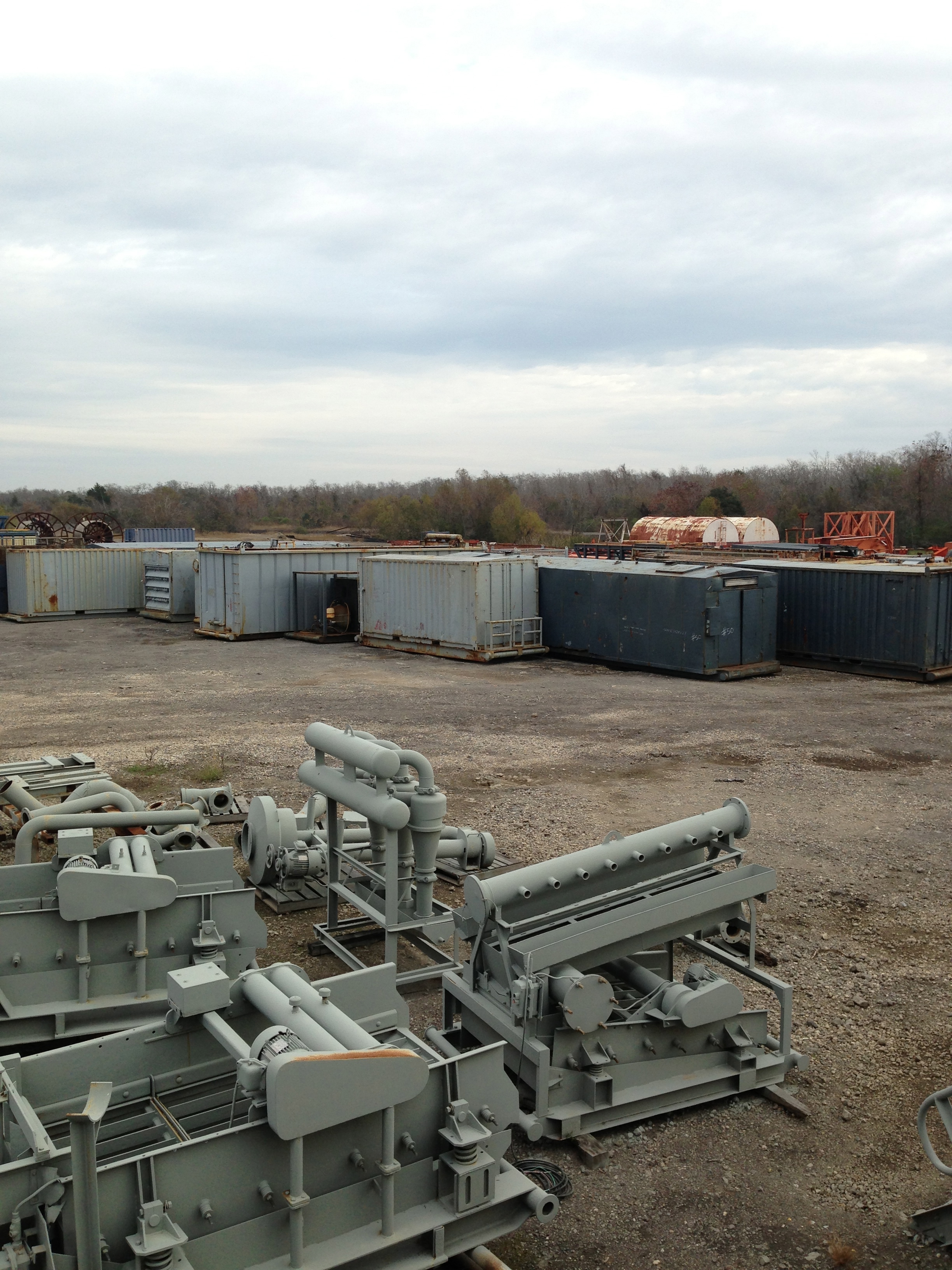

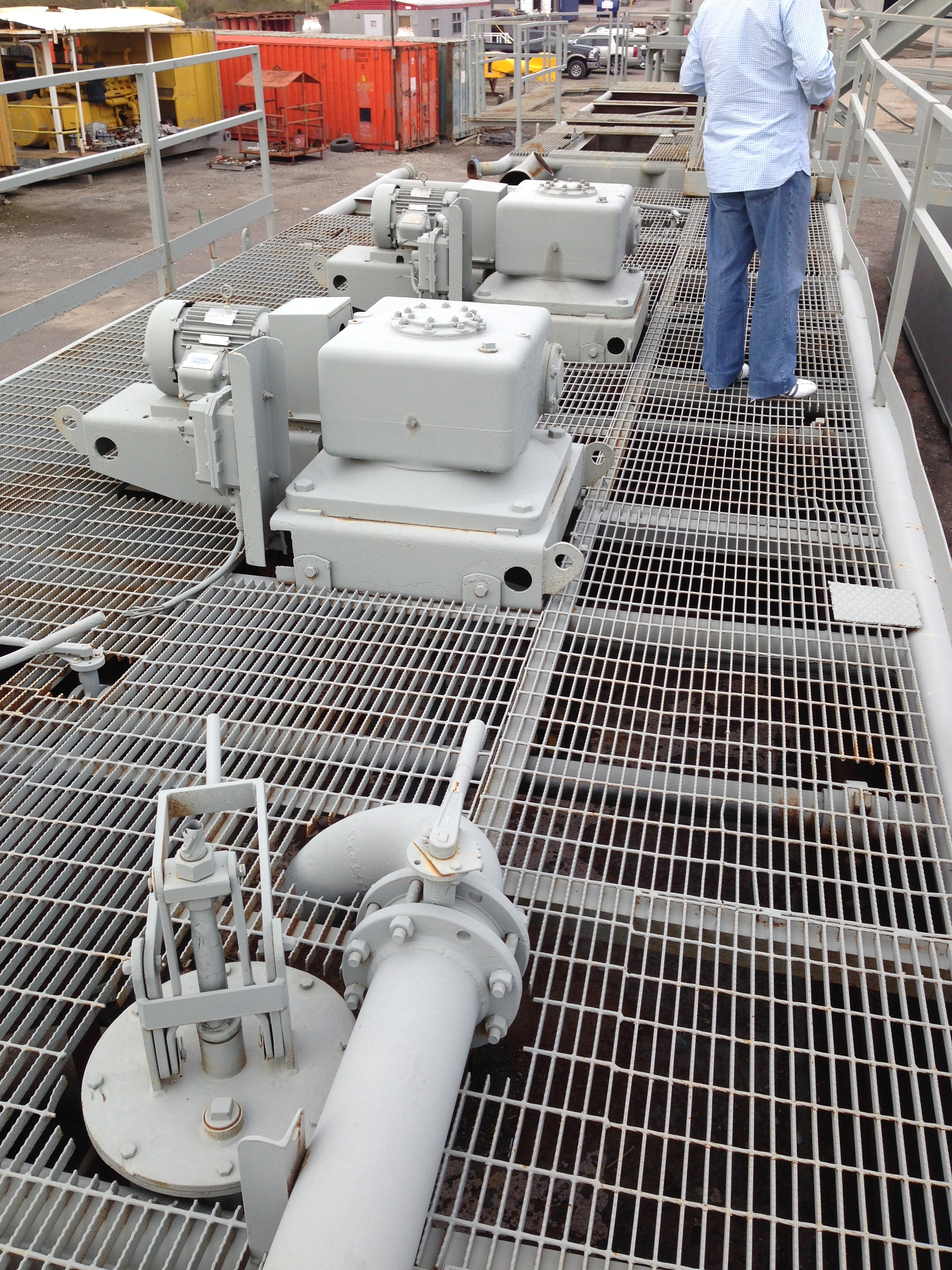

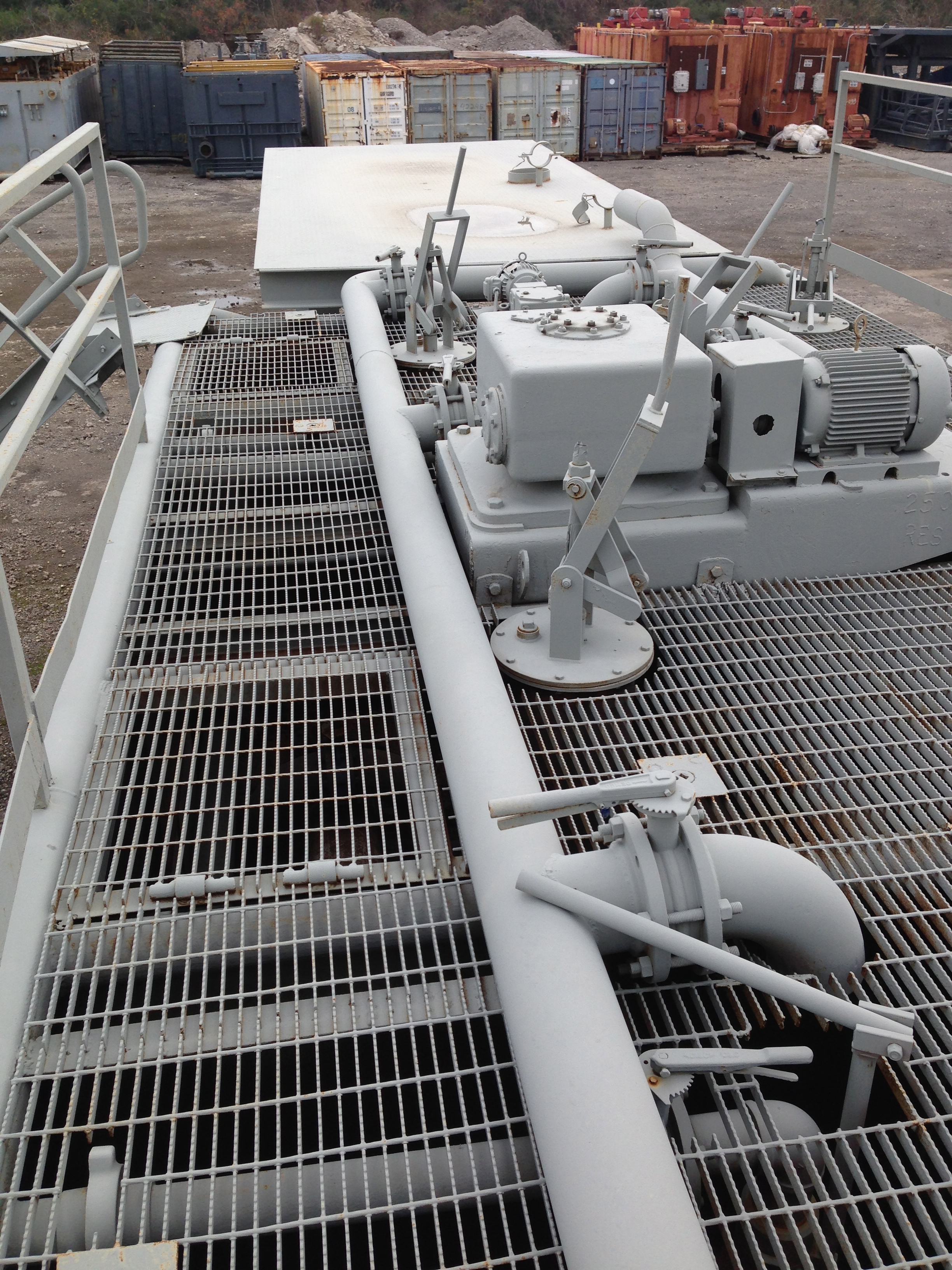

MUD SYSTEMS
Mud System comprises of following tanks:
(A)Shaker Tank
With following compartments:
1) Trip Tank -72 bbls
2) Sand Trap - 177 bbls
3) Degasser Tank -108 bbls
4) Desander Tank -101 bbls
Tank equipped with following :

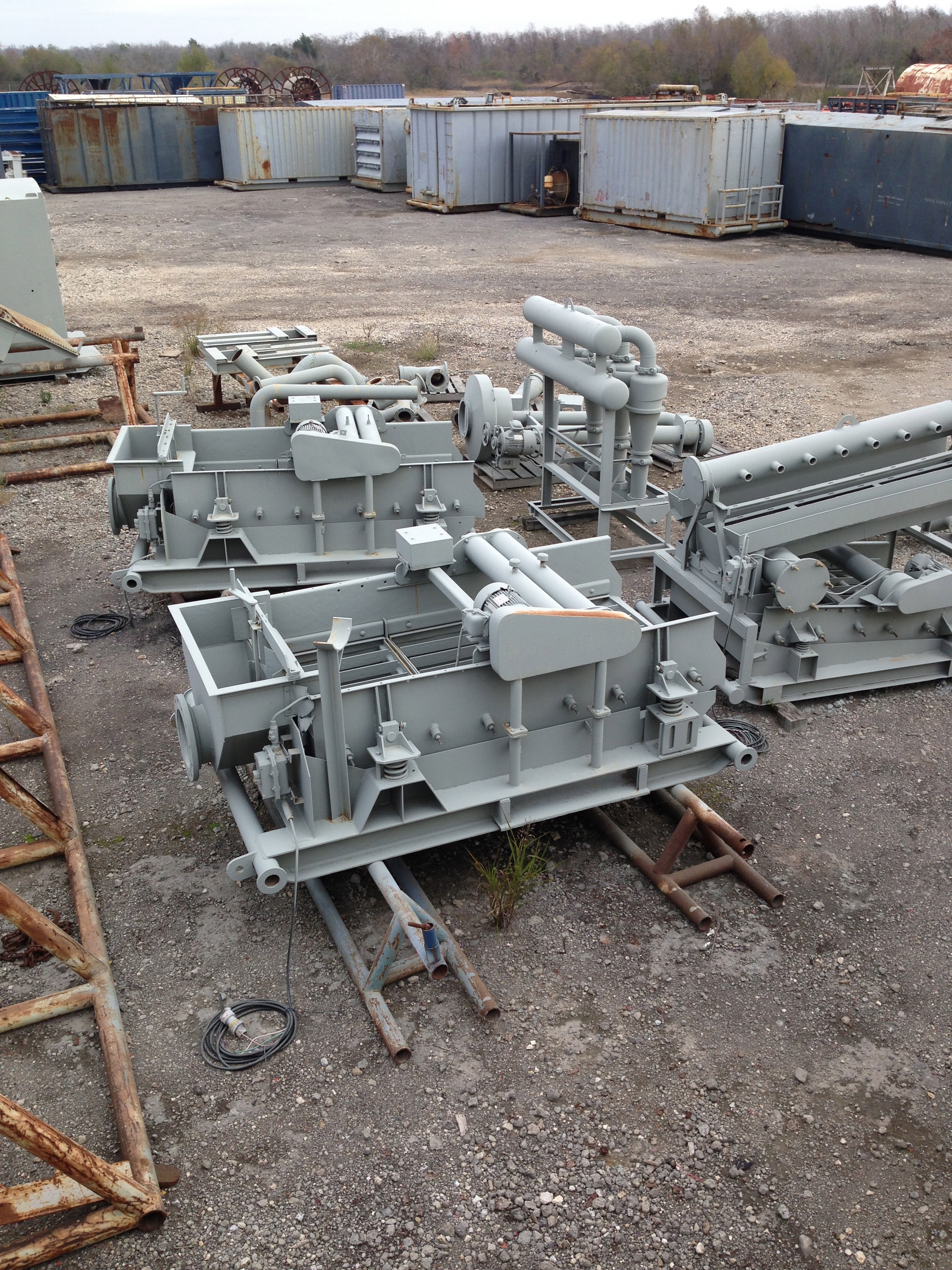

a) Shalesshaker - 2 Nos.
Tri-flo SS148MT
b) Degasser - 1 No.
SEE-FLO Type
Make : Drilco
With 10HP motor
B1) Poorboy degraser
c) Desander - 1 No.
Tri-flo, 3 Cone 10”
Model : 1500 – 3,
1500 gpm
d) Desander pump - 1 No.
6X8 Mission with
100 HP Motor
e) Trip Tank Pump - 1 No.
(B) Suction Tank
With following compartments
1) Mud Cleaner tank - 186 bbls
2) Suction – 1 - 425 bbls
3) Suction – 2 - 211 bbls
4) Suction – 3 - 220 bbls
5) Slug pit - 102 bbls
Tank equipped with following :
a) Mud Cleaner - 1 No.
Tri-flo, 16 Cone 4”
b) Agitator 10 HP - 4 Nos.
c) Agitator 5 HP - 1 No.
d) Pit level sensors - 2 Nos.
e) Desilter Pump - 1 No.
C) Reserve Tank No. 1
With following compartments:
1) Reserve – A 265 bbls
2) Reserve – B 270 bbls
Tank equipped with following :
a) Agitator 10 hp - 2 Nos.
b) Centrifugal pump - 1 No.
5 X 6R Mission with
75 HP Motor
c) Pit Level Sensor - 1 No.
(D) Reserve Tank No. #2
With following compartments
1) Reserve – A 265 bbls
2) Reserve – B - 270 bbls
Tank equipped with following :
a) Agitator 10 hp - 2 Nos.
b) Centrifugal pump - 2 No.
5 X 6R Mission with
75 HP Motor
(E) Hopper Skid
Equipped with following:
a) Hopper - 2 Nos.
Make : Tri-flo
b) Centrifugal Pump - 2 Nos.
6X8R Mission
with 100 hp motor
1 No. Water Tank
Tank equipped with following :
a) Centrifugal pump - 1 No.
3X4R Demco 178 pump
with 25hp motor
Rated rpm : 807,
Disch. Pressure : 125 psi

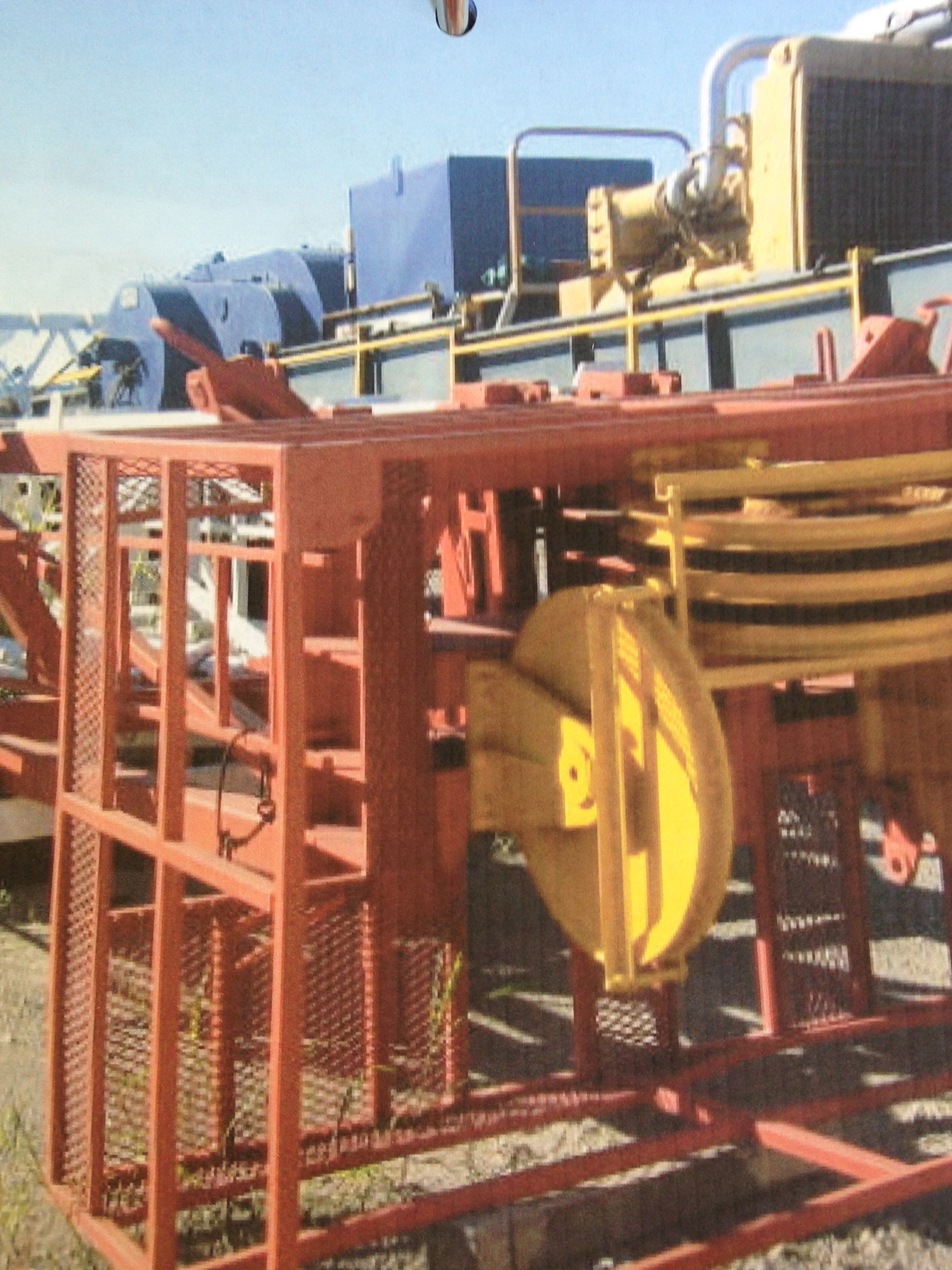

CROWN
Lee C. Moore (REBUILT)
7 X 60” Diameter sheaves. 1 X 60” diameter fast line.

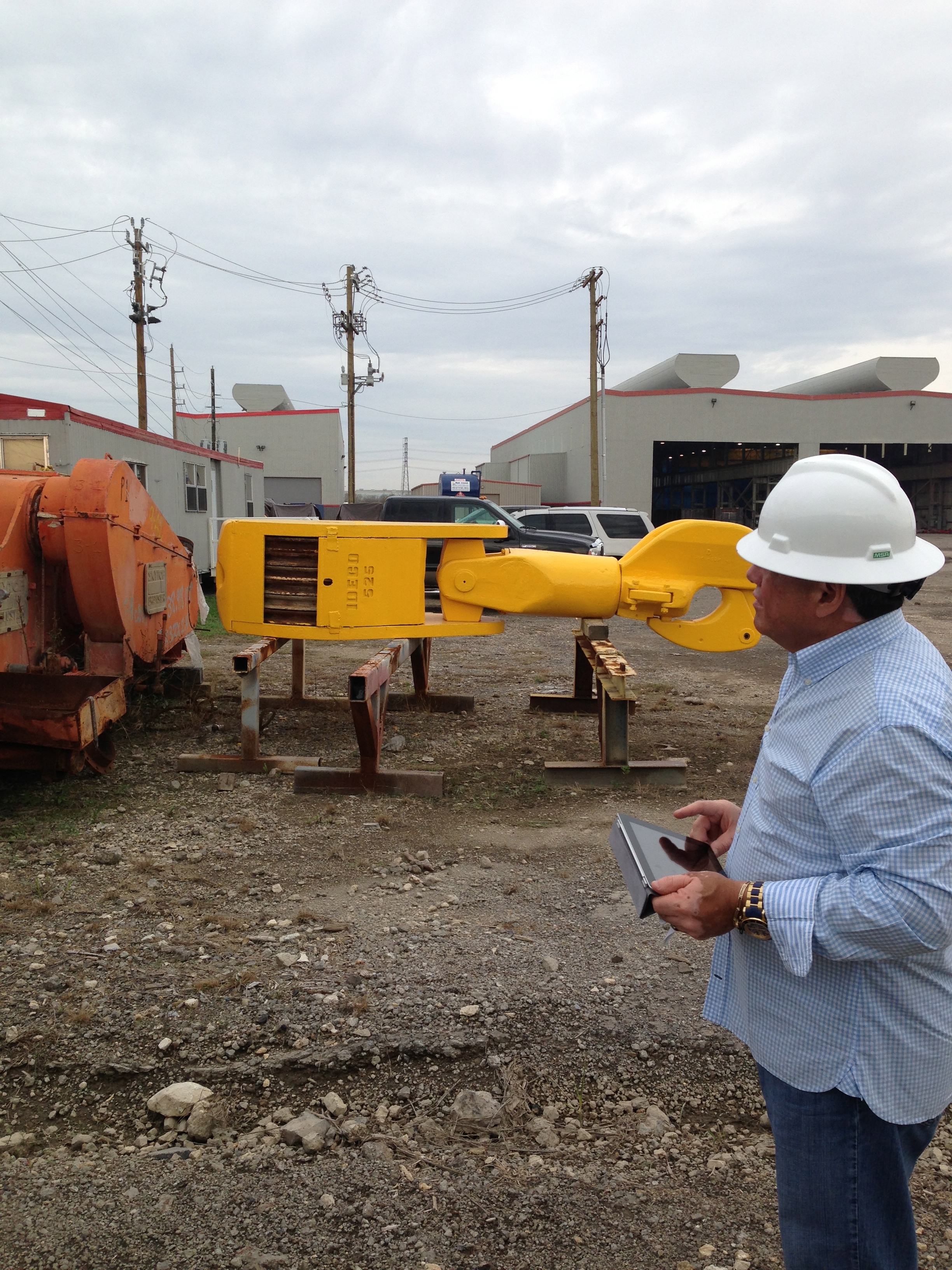

TRAVELLING BLOCK
IDECO-525 Unitized Traveling Hook Block 500 Ton (AVAILABLE)
SWIVEL
Ideco – Truline TL – 500 (AVAILABLE)
500-ton capacity
ROTARY TABLE
Ideco 275 – K (INTERNALLY INSPECTED)
Ideco 27 ½“ with independent drive % transmission
Complete with:
a) 1 No. DC Motor : make # GE 752AR1S
b) 1 No. Transmission : Oilwell
c) 1 No. oil pump with 2 hp motor
AIR TANKS
Air Receiver tanks with relief valve
- One tank under Engine – 1 skid
(Max. WP : 200 psi, 120 Gal cap.)
- Two tanks under sub structure
(with 1” safety valve, model: S3W-LR,
set at 150 psi)
WIRELINE UNIT
Mathey
Model # RET
SR # 563
Hydraulic driven wire line unit
CHOKE AND KILL MANIFOLD
3 1/16 10,000 lb.
To be assembled
SPARE PARTS
2 Containers filled with premium spare parts for international market

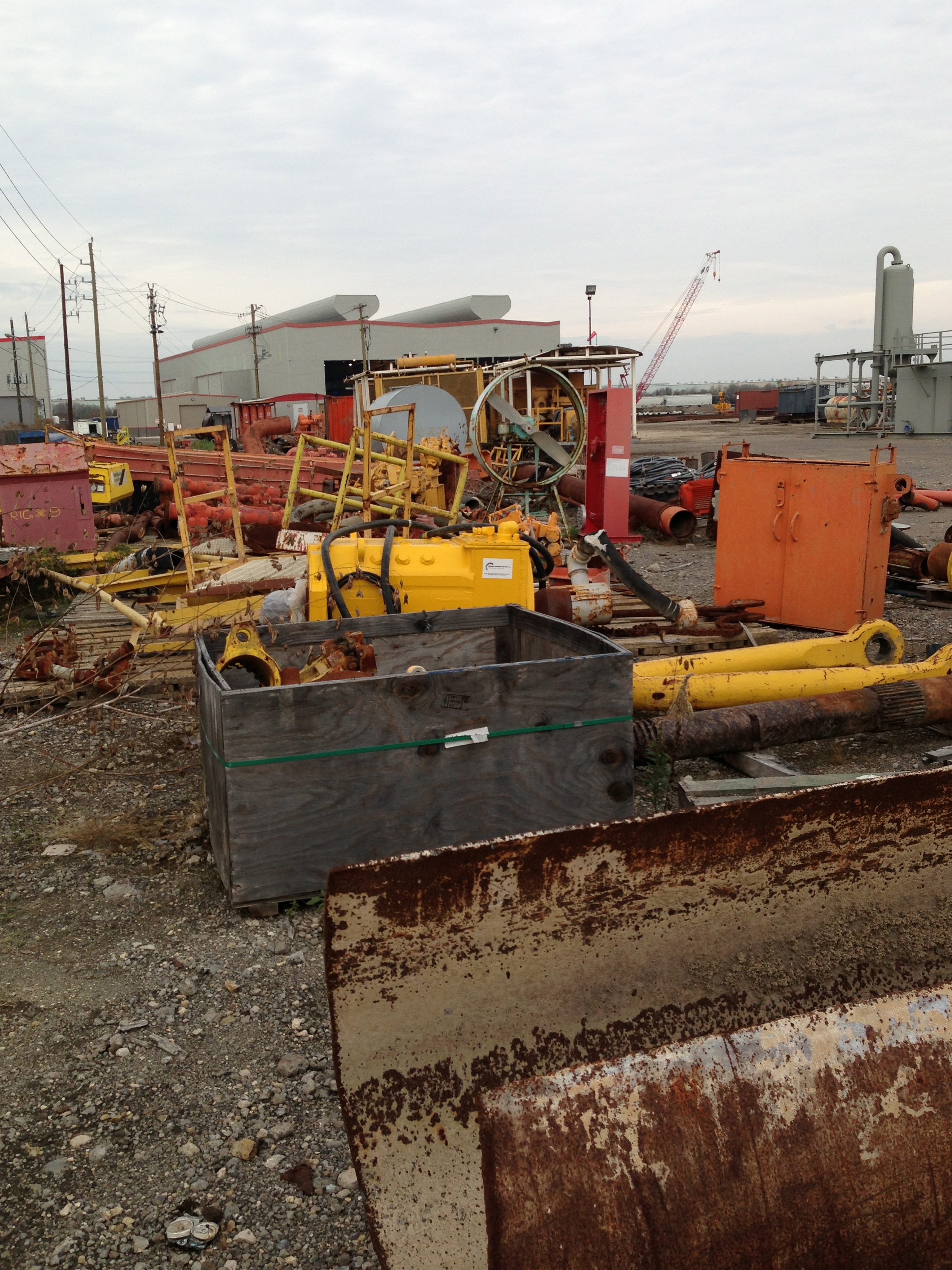

EXTRA EQUIPMENT AVAILABLE
- 500 Bbl. Fuel Tank
- Water Tank
- Misc. Handling Tools
- Varco TDS 3 Ht Top Drive with Certs
- 16,000 Ft of 5” S135 Drill Pipe with CAT 4 Inspection
- Also Available – Extra Equipment that buyer may want or need (to be negotiated)
|
