OILWELL - 2000 DRILLING RIG

(As-Is) CALL FOR REFURBISH QUOTATIONS!

Drawworks:

Oilwell E-2000 (2000hp) – with Elmago 7838 Auxiliary Electric Brake. Powered by Two (2) G.E. 752 -1000 HP Electric Motors,   Drillers Console,  Grooved for 1 ½” wire-line,  Single Drum.  Make-up and Breakout Catheads by Texas Western. SCR Console.

Substructure:

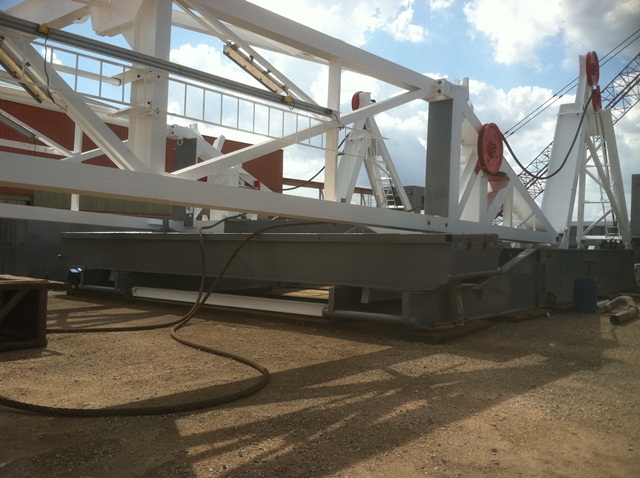

Substructure – Lee C. Moore Swing-Up With Elevator, 32’ Floor Height, Rated 800,000# Setback Sub Skids (2) 5’ H X 60’ long.

Mast:

 Lee C. Moore, 142’ Beam Leg, 1,300,000# SHL. Seven (7) 60” Sheaves with (1) 60” Fast-line Sheave.  Boom Pole, Derrick Shoes, Stand Pipe Manifold. Derrick Ladder.

Engines:

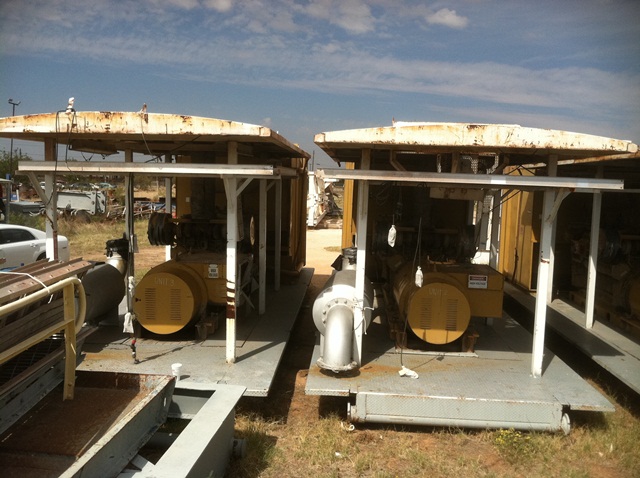

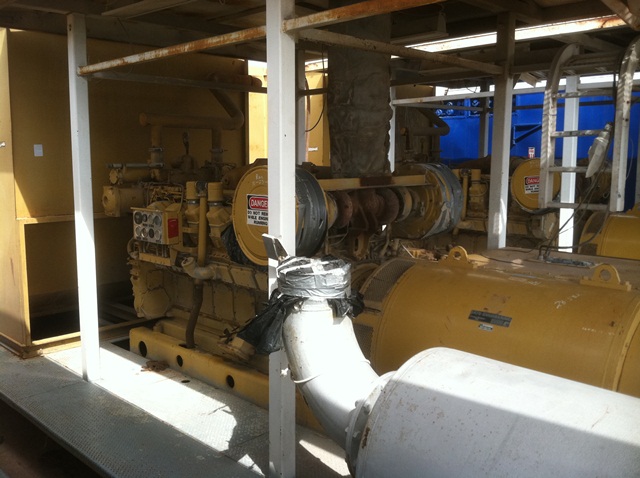

Three (3) Caterpillar 3512 Diesel Engines with Cat 1050 KW Generators. All above mounted in Engine Sheds

SCR:

Ross Hill 1400 Series 4 X 4 SCR. All Mounted in 10’ W X 36 ‘Long Control House. A/C Unit with Transformers.

Mud System:

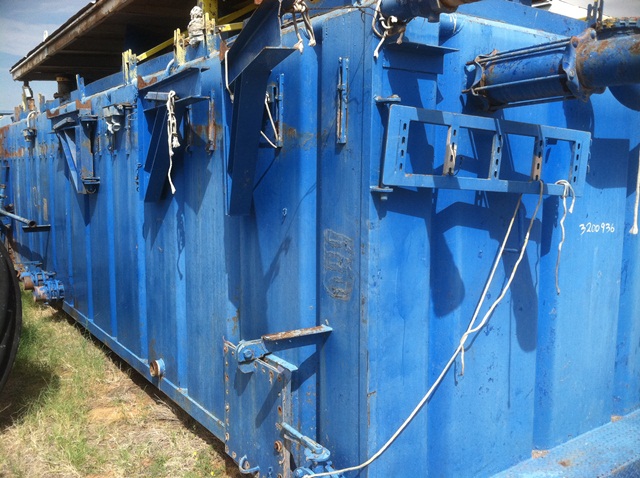

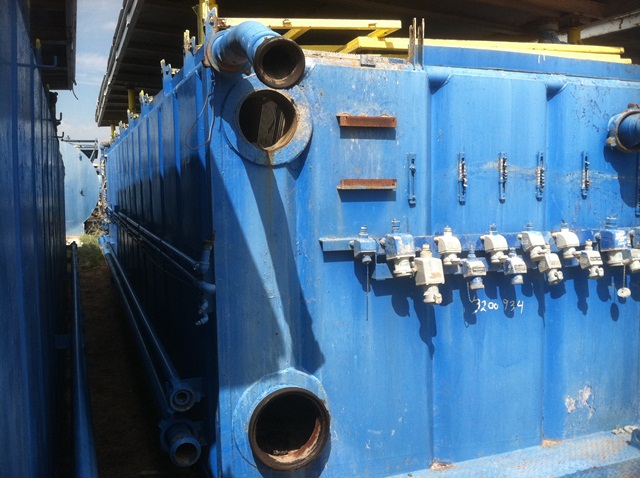

Three Tank Mud System. 10 ft. X  X 40 ft. L X  8 ft. H. 1500 Bbl Capacity

Three Derrick Shale Shakers

Mud Mixers – Harrisburg

Mud Mixing Unit

Mud Gas Separator

Swaco Degasser on one skid

Desander / Desilter – Brandt

Brandt Mud Mixers – 8 -10 hp Brandt Agitators

Trip Tank with two Centrifical pumps

Mud Pumps:

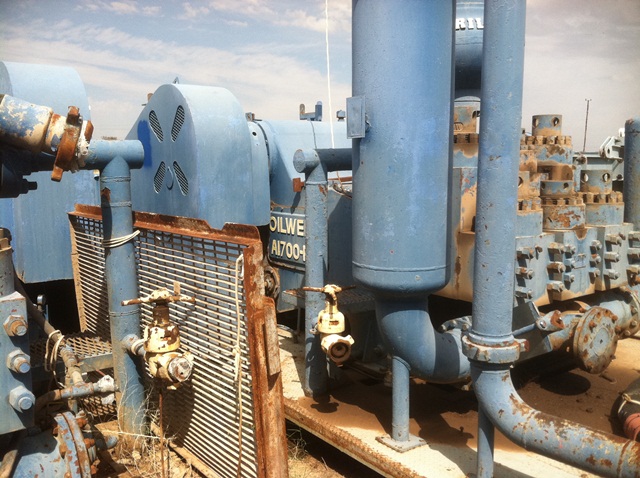

Mud Pumps –Two Gardner Denver PZ-11’s  (1600 HP each) powered by Two G.E. 752 1000 hp Electric Motors. 6 X 8 Charge pumps, belts, belt guard. Master skidded.

Rotary Table:

Rotary Table – Oilwell B275 27” x 53” w Master Bushing

BLOCK/HOOK: OILWELL 650 TON

SWIVEL: NATIONAL P-500 TON

Accumulator:

Accumulator – Koomey type 80 – mounted on skid with storage box, accumulator is covered 9’ x 37’ skid 7-Station.

Choke Manifold:

Choke Manifold 4 1/16”

Blowout Preventors

One (1)13 5/8” Schaffer Single Ram Preventor 5000 #

One (2) 13 5/8” Schaffer Double Ram Preventor 5000 #

One (1) GK Hydrill Annular 5000#

One (1) 5000# Mud Cross

Houses:

Top Dog House – Knowledge Box. Tool Benches w/ Koomey type 80, NDP Control attached

Bottom Change  House w/ 16 Lockers / Parts House

Tanks:

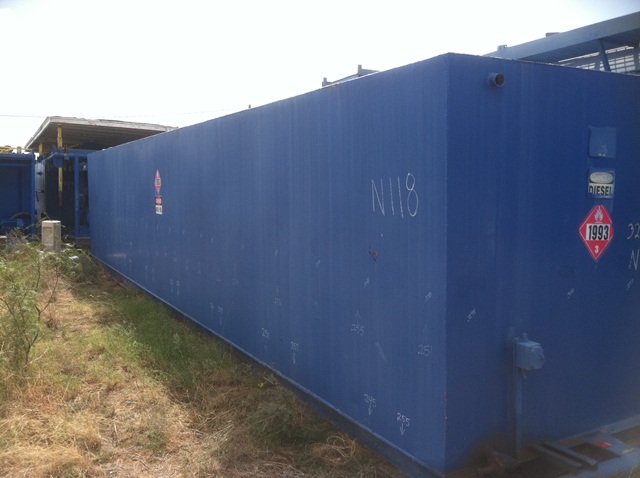

Diesel Tank 10,000 Gal.

Water Tank 500 Bbl’s 10’ x 37’ skidded – Double life pump with electric motor, mission pump with Electric Motor.

Water tank J/J Steel 500 Bbl’s

Auxilliary Equipment

Pipe Racks Three(3 sets) 18” tall

V-Door Ramp with stairs

Water Pump with Compressor

Wireline unit Mathey .002

Air Hoist & Winch – Ingersole Rand

Shaker Manifold – 12” pipe with outlets and hydraulic gates

Hydraulic unit – 100 HP max min 75 – hoses & hydraulic lines

Cat walk Two Piece 18” H x 50’ long

Martin Decker weight indicator

Elevator Links. 500 ton

Drill pipe elevators

Drill pipe Slips

Drill Collar Elebvators

Manual Tongs Type DB with 3 ½” – 10 ¾” jaws

Pipe Racks
