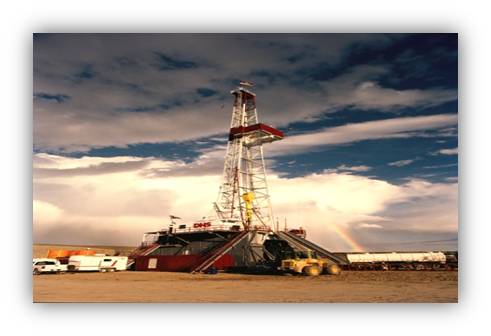

GARDNER-DENVER 1100, 1,500HP DRILLING RIG
Click on Above Images for Larger Viewing
MINIMUM OFFER $2,850,000
RIG NO. 1
PART OF A 15 RIG PACKAGE
CALL FOR DETAILS (800) 952-1973
Draw-works Gardner-Denver 1100 with 481 Parmac hydromatic brake powered by (3) - CAT D-3508 engines with National C-300-64 torque converters – 1500hp
Substructure & Mast Pyramid 147 mast, 980,000 GNC. 1 3/8” line, Pyramid 24’x 60 step down substructure
Generators (2) - 455 KW AC generators powered by (2) CAT C-15 (turbo charged diesel engines)
Mud Pumps (1) Chinese 1600hp triplex mud pumps driven by a 3512 CAT engine (Baoji), (1) Gardner Denver PZ11 triplex pump driven by 3512 CAT engine
Rotating & Traveling Equipment Oilwell rotary table - 37.5“, B-YC450Z blocks - 500 ton with BJ 5500 hook, National P-500 swivel, 5¼“x 46‘ kelly, Varco HD pin drive bushings
Blowout Prevention 11” Annular BOP - 10,000 psi, 11” Cameron type U double gate ram BOP - 10,000 psi, 11” Cameron type U single gate ram BOP - 10,000 psi, Koomey Model 160-gallon automatic accumulator, 6-station air actuated remote control panel 4” & 3” 10,000 psi, complete manifold with gauges and manual chokes
Doghouse, Water, Fuel & Mud Tanks Heated doghouse (1) - fuel tank – 12,000 gal, (1) - water tank – 500bbl, (3) 10’ x 8’ x 52’ mud tanks complete with (5) –
5” x 6” electrical driven centrifugal pumps manifolded to low pressure system with electrically driven mud agitators, mud guns – 1400bbl capacity, (2) - Swaco linear mongoose shakers, Mission desander 2 -10" cones, Mission desilter 12 - 4” cones
Handling Tools/Auxiliary Equipment BJ type SDD tongs, Pilot 2 automatic driller sure shot, 14º A-1 survey instrument, M.D.Totco type 100 weight indicator
Drill Pipe & Drill Collars 20,000’ 5” OD 19.50# drill pipe E, G & S, (21) 6¼“ x 2¼“ x 30’ slick drill collars, (2) 8” x 30’ drill collars, (3) 9’ drill collars |
