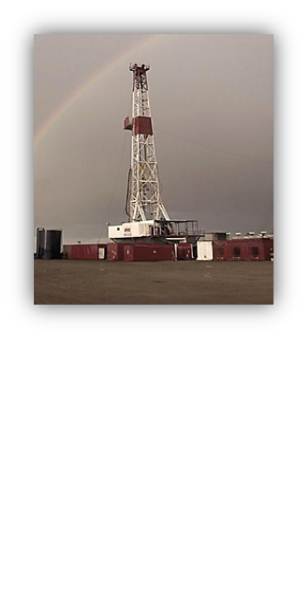

OIME 500, 750HP SCR DRILLING RIG
Click on Above Images for Larger Viewing
MINIMUM OFFER $1,500,000
RIG NO. 18
PART OF A 15 RIG PACKAGE
CALL FOR DETAILS (800) 952-1973
Rig 18-11,000' Capacity with 4.5" Drill pipe
Draw-works Oime HH500 Electric, Driven by 752 traction motor, 750HP with Parmac 341 brake
Substructure & Mast Branham 131’ mast, 385,000 HL. 1 1/8” line, Pyramid box on box substructure 19’ H
Generators SCR System IDM 4 bay, (3) CAT D-3508 generator set 800 KW
Mud Pumps (1) American PZ-9, driven by (1) 752 traction motor triplex, (1) Gardner Denver PZ-9, driven by (1) 752 traction motor triplex
Rotating & Traveling Equipment Chinese rotary table 17 ½”, YGG 225 TFI, National P-300, BJ type B tongs, 5 ¼” X 40’ hex kelly – Varco drive bushings
Blowout Prevention 13 “ annular BOP – 5000 PSI, 13” double gate ram BOP – 5000 PSI, model 180 gallon automatic accumulator , 5 station air activated remote control panel, 3” 5000 PSI complete manifold with gauges and chokes
Doghouse, Water & Mud Tanks Heated doghouse, (1) fuel tank gallon, (1) water tank – 400 bbl, (2) tank mud system 850 bbl with (4) 5” x 6” pumps with low pressure system, (3) agitators, (2) Swaco linear mongoose shakers, National (2) cone desander, National (12) cone desilter
Handling Tools/Auxiliary Equipment Pilot ll automatic driller, Sure Shot 7º A-1 survey instrument, Martin-Decker type D weight indicator
Drill Pipe & Drill Collars 11,000’ 4 1/2” 16.60# grade G drill pipe, (21) 6 1/4“ x 2¼“ x 30’ slick drill collars, (2) 8” drill collars |
