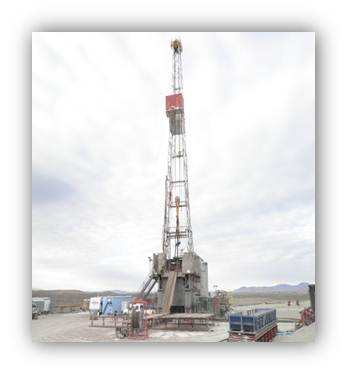

NATIONAL OILWELL 76, 1000HP DRILLING RIG
Click on Above Images for Larger Viewing

RIG NO. 19

PART OF A 15 RIG PACKAGE

CALL FOR DETAILS (800) 952-1973

RIG 19 – 12,000’ Capacity with 4 ½” Drill Pipe

Draw-works  Oilwell 76 single drum 1000 HP driven by (2) CAT C-18 engines with 46” hydromatic

Substructure & Mast  Lee C Moore 136’ Cantilever mast, 488,000# HL, 1 ¼” line with Crown–O-Matic, enclosed box substructure 15’ 5” H, 600,000# HL

Generators (2) 365 KW generator sets powered by CAT D3406, (1) Gardner Denver 1260 CFM screw type air compressor powered by 30 HP electric motor

Mud Pumps (2) 3NB1000C Chinese triples mud pumps driven by (2) 3508 CAT diesel motors

Rotating & Traveling Equipment  27 ½” X 54” rotary table, Emsco 250 ton block and hook, National PC-225, 300 ton swivel, 5¼“ x 42‘  kelly, Varco HD pin drive bushings

Blowout Prevention  Shaffer Spherical, Townsend 5000# double gate, Burnsco 88-gallon automatic accumulator, 5-station air actuated remote control panel, 2” X 3” 5000# complete manifold with gauges and chokes

Doghouse, Water & Mud Tanks Heated top doghouse fuel tank – 10,000 gal, water tank - 513 bbl, (2) tank mud system 600 bbl with (4) 5” x 6” centrifugal pumps with low pressure system with (4) agitators in each, (1) 50 bbl pill tank, (2) Swaco ALS linear shakers, National (2) cone desander, National (10) cone desilter

Handling Tools/Auxiliary Equipment 5 ¼” hex kelly, 46' Pilot ll Automatic driller, Sure Shot 7º A-1 survey instrument, Martin-Decker type E weight indicator

Drill Pipe & Drill Collars  10,000’ 4 ½” 16.60# grade G drill pipe, 4 ½” XH, (12) 6 ½” x 2¼“ x 30’ slick drill collars, 4 ½” XH, (2) 8” drill collars
