HONGHUA FMAC, 1300HP AC DRILLING RIG

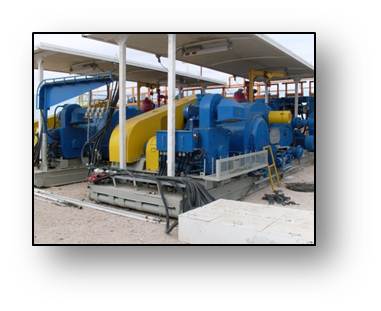

Click on Above Images for Larger Viewing
MINIMUM OFFER $2,000,000
RIG NO. 24
PART OF A 15 RIG PACKAGE
CALL FOR DETAILS (800) 952-1973
Rig 24-13,000' Capacity with 4.5" Drill pipe
Draw-works JC 40 DB with 238DBBS Eaton air-cooled disc brake powered by (1) 1000 kw AC traction motor
Substructure & Mast JJ225/42-KS1 138’ mast, 500,000# hook load, 1 1/8” line, hydraulic raising substructure=DZ225/6. 7-S1, height 22’ H; 500,000# set back load, hydraulic raising

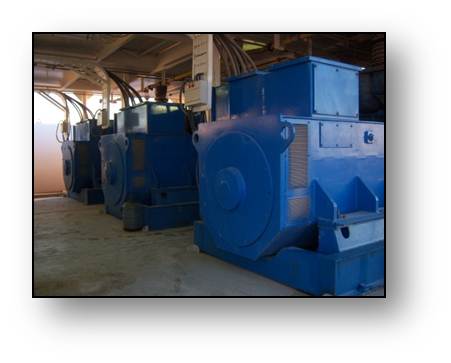

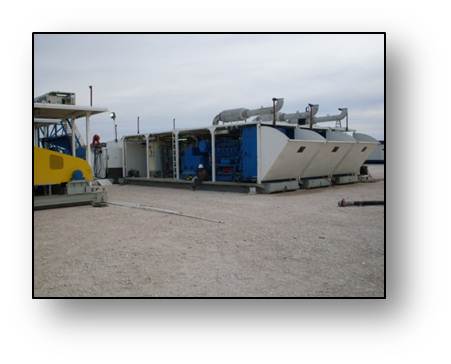

Generators (3)1000GF4- 1000 KW;600 volt;60 Hz; AC generators powered by (3) chinese CAT 3512 diesel engines, (1) Volvo auxiliary gen set 400kw 480v 60 Hz only for pre start.

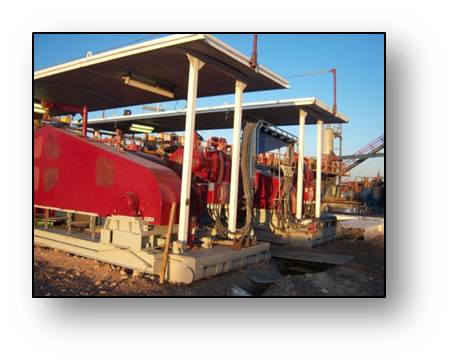

Pumps (2) HHF-1300 HP; powered by (1 each) 1000 kw AC traction motors, max output 720GPM (7” liners) max psi 4517
Rotating & Traveling Equipment Model ZP275 27 1/2” rotary table
Blowout Prevention 13” 5,000 lb. annular BOP, 13” 5,000 lb. double gate BOP, pressure control unit FKQ 7206 automatic accumulator, 5-station air actuated remote control panel, 4” & 3” 5,000 lb complete manifold with gauges and manual chokes.

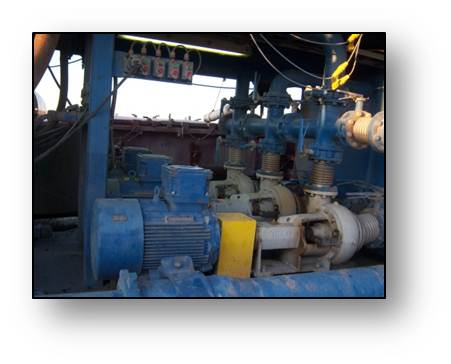

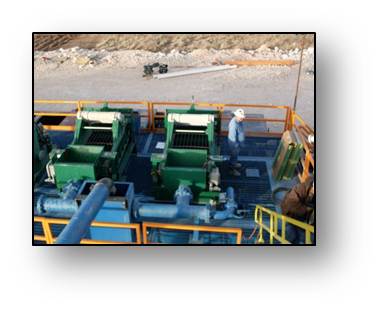

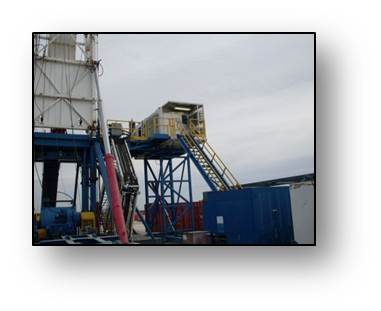

Doghouse, Water & Mud Tanks Heated doghouse (3) 9’8” x 8’ 9” x 41’ mud tanks complete with (6) - 6” x 8” electrical driven centrifugal pumps manifolded to low pressure system with (8) electrically driven mud agitators, (10) mud guns – 1566 bbl capacity, (2) derrick 500B shakers (1) - degasser vacu-flo 1200, (1) ZQJ250 x 2 desander, (1)-ZQJ100 x 10 desilter, (1)-LW450 x 1000 centrifuge (1) hopper
Handling Tools/Auxiliary Equipment BJ 48” type B tongs, Sure Shot 7º A-1 survey instrument, M.D.Totco type D weighti indicator
Drill Pipe & Drill Collars 13,000’ 4 1/2” OD 16.60# drill pipe, (21) 6¼“ x 2¼” x 30’ slick drill collars, (2) 8” x 30’ drill collars |
