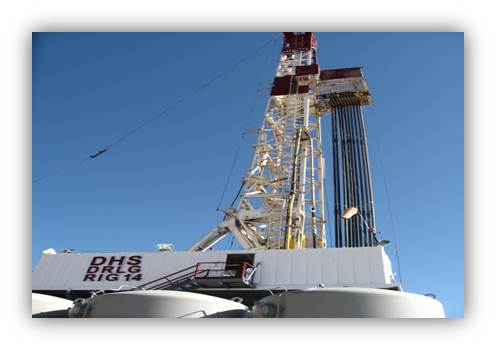

Rig 14-14,000' Capacity with 5" Drill pipe

Draw-works  Gardner-Denver 700 with 481 Parmac hydromatic brake powered by (2) - CAT C-15 engines with National 195-80 torque converters – 800 hp

Substructure & Mast  Pyramid 131’ mast, 550,000# GNC, 1 ¼” line, Pyramid 25’ H substructure

Generators (2)- 425 KW AC generators powered by (2) Detroit Series 60 diesel engines

 Mud Pumps (2) 1000 HP Weatherford triplex powered by 3508 CAT engines.

Rotating & Traveling Equipment  National 27 ½” rotary table,  Ideco 500 ton block BJ hook, Gardner Denver SW300-ton swivel, 5¼“ x 42‘  kelly, Varco HD pin drive bushings

 Blowout Prevention  13 5/8” 5,000 lb. annular BOP, 13 5/8” 5,000 lb. double gate BOP, Koomey Model 80-gallon automatic accumulator, 5-station air actuated remote control panel, 4” & 3” 5,000 lb. complete manifold with gauges and chokes

Doghouse, Water & Mud Tanks Heated doghouse, (2) 10’ x 6’ x 40’  mud tanks complete with (4) - 5” x 6” electrical driven centrifugal pumps manifolded to low pressure system with electrically driven mud agitators, mud guns – 650 bbl capacity, (1) water tank – 500 bbl, 12,000 gallon fuel tank

Handling Tools/ Auxiliary Equipment BJ 48” type B tongs, Pilot ll automatic driller, Sure Shot 14º A-1 survey instrument, M.D.Totco type D weight indicator
