FRANKS 658 WORKOVER RIG/PULLING UNIT
(Listing No. D-203)
Click on Above Images for Larger Viewing
$275,000
Franks 658 Workover Rig/ Pulling/Service Unit
(Listing No. D-203)

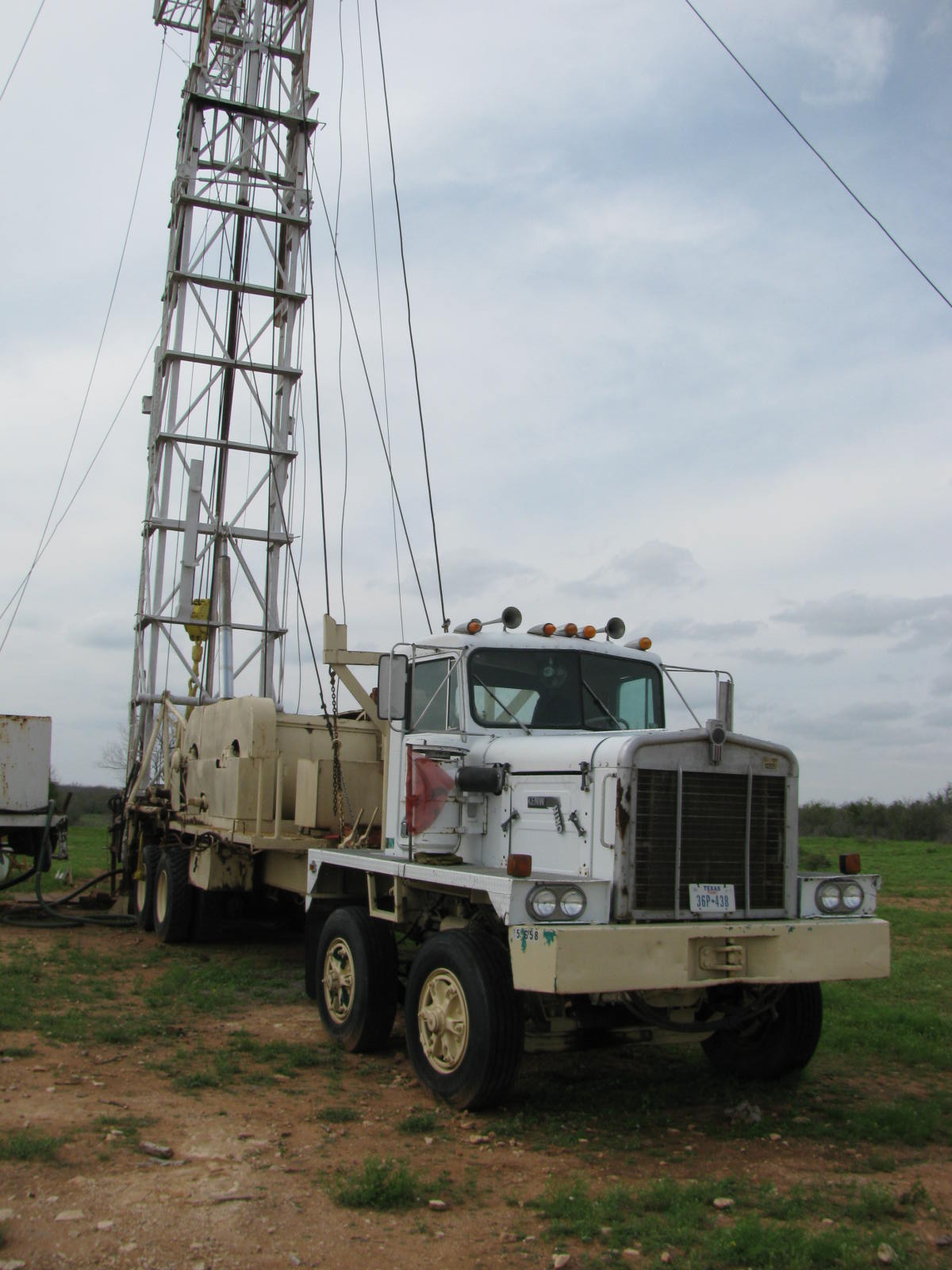

Mounted on 1982 Kenworth C500 4axle truck w/ 475 Cummins. Rig is driven through power tower.

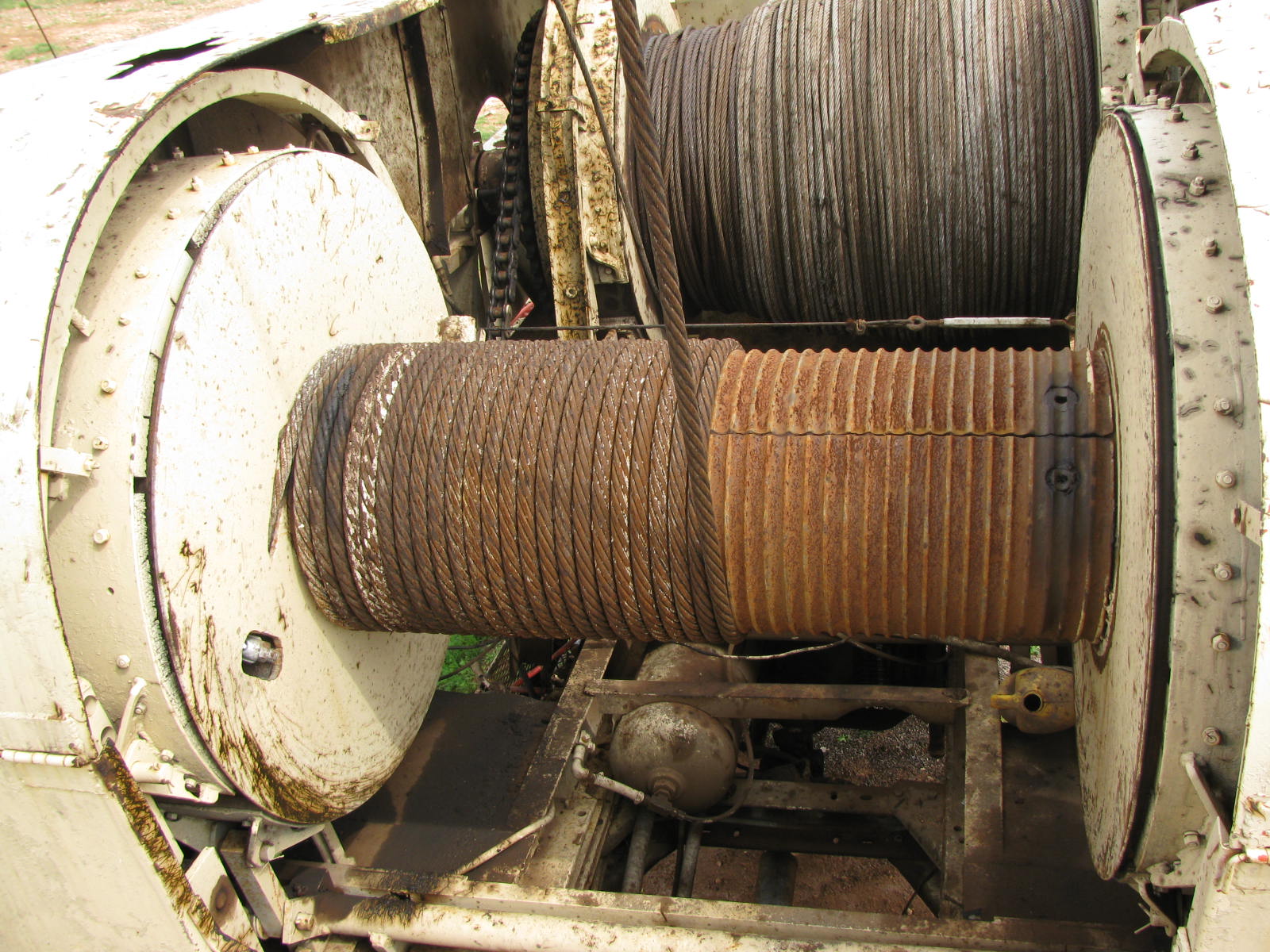

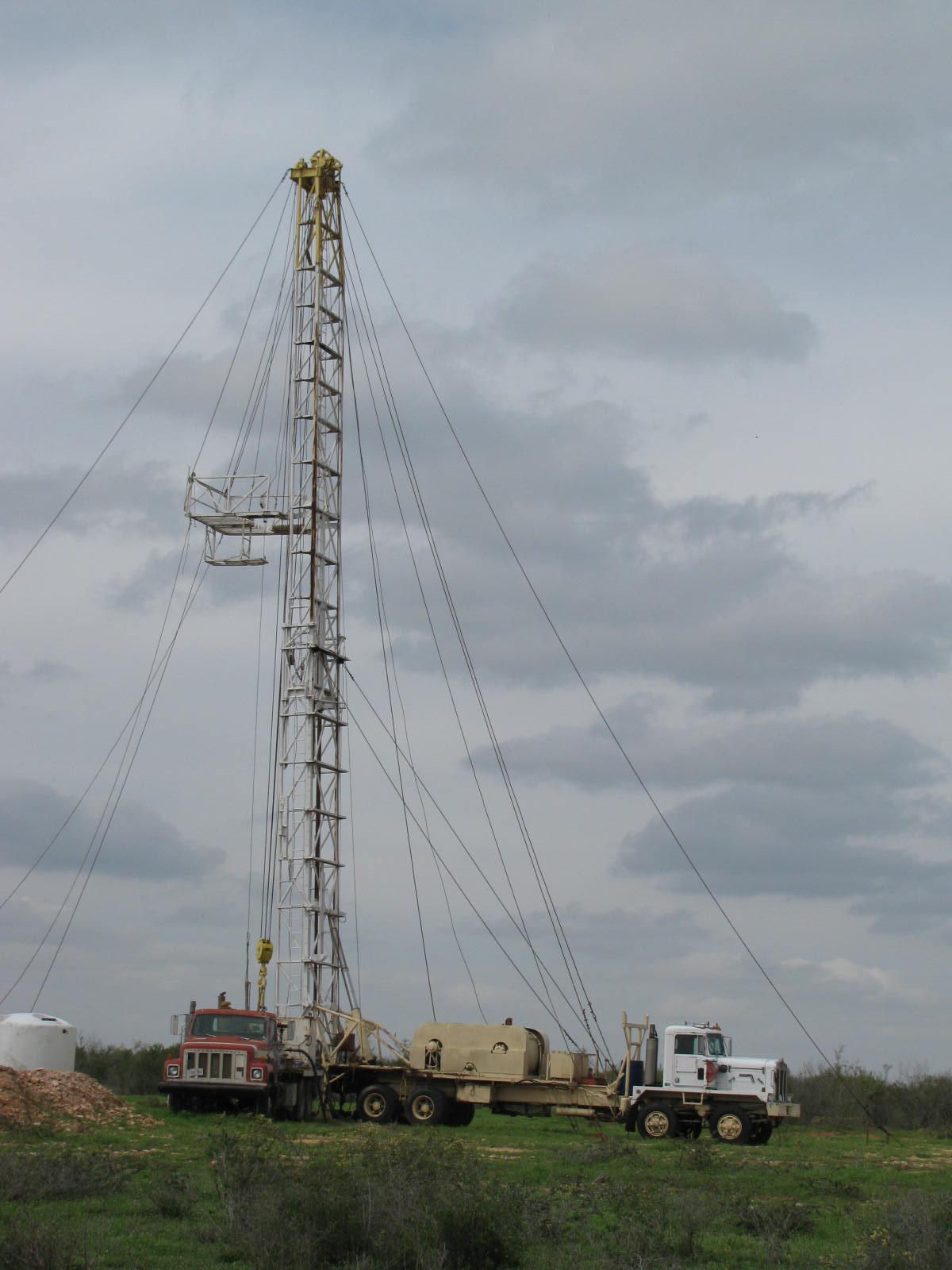

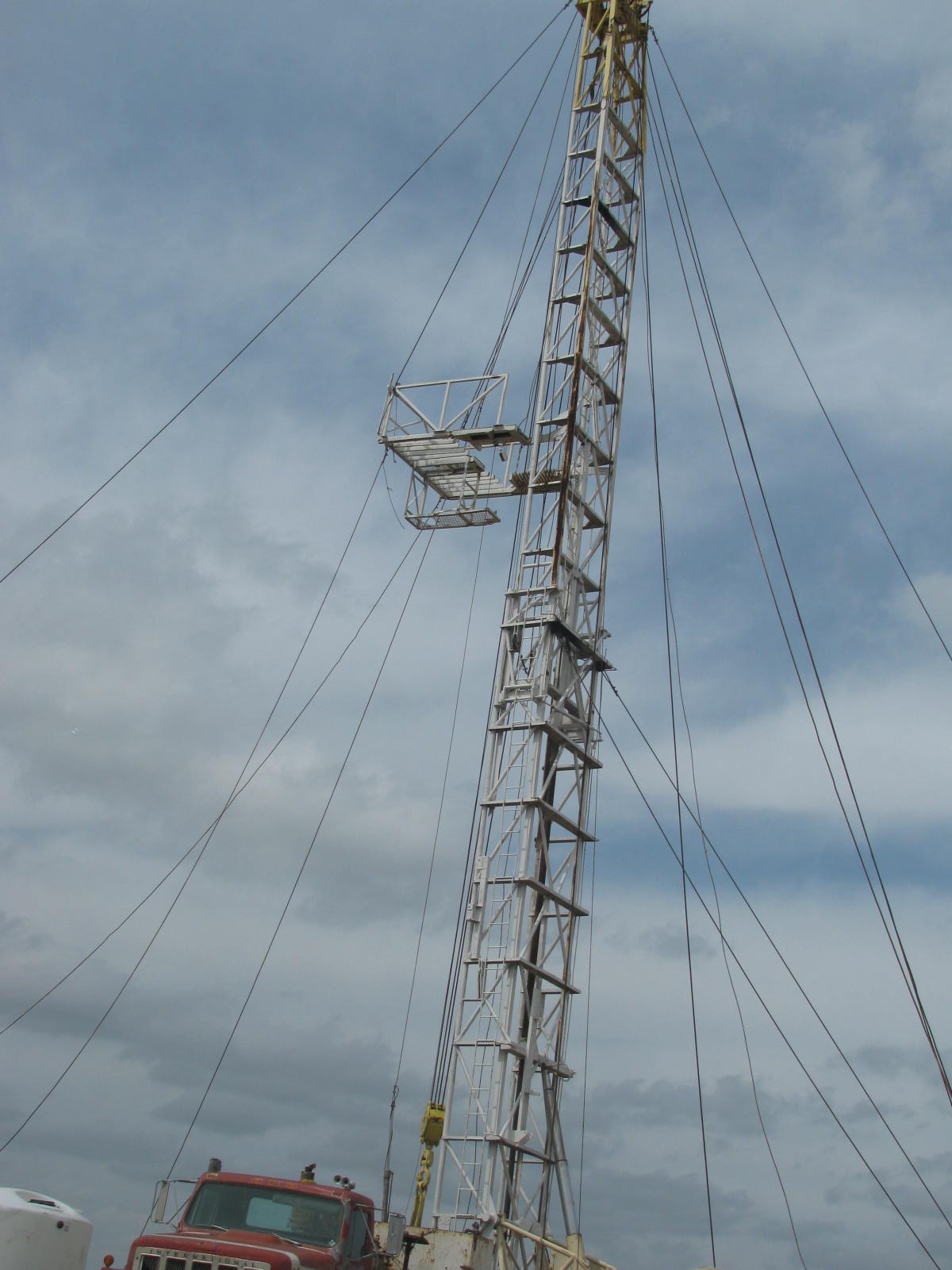

87' Skytop derrick 250,000# w. tubing board to stand double 30's, rod basket air transfer hoist Hydraulic erect and telescope Double Drum drawworks w/ air over grease clutches.
approx 7-8000' 9/16 line, swabbed 1 well since new
4 lines on working drum
Foster 58 Power tongs
200 ton Cavin Air slips
Oil Saver w/ pump
2 sheave 40 ton traveling block
2-100 ton 60'' elevator links
1- 50 ton rod hook
1-100 ton 2 3/8 double latch tubing elevators
1-100 ton 2 7/8 double latch tubing elevators
2- 3/4" rod elevators
1-48" Rigid pipe wrench
1-36" Rigid pipe wrench
2 3/8"-5" Swabs w/ jars and sinker bar
This rig is currently located in Waxahachie, TX. Some equipment is in Nowata, Oklahoma.
|
