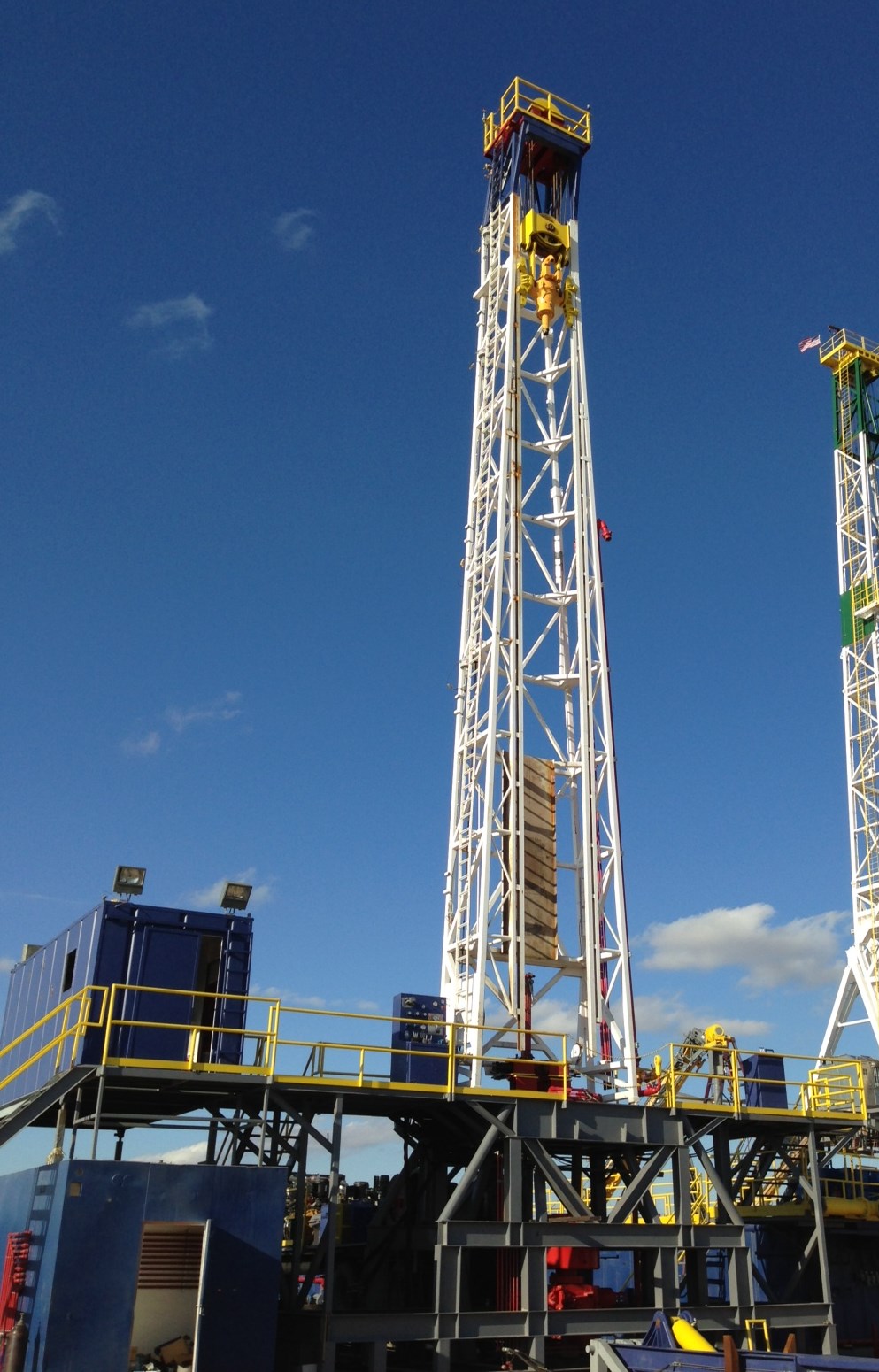

2013 GT-120, 1200HP DRILLING RIG PACKAGE
(Listing No. D-206)
Click on Above Images for Larger Viewing
$6,500,000
Make: GT-120
Type: 1200 HP Super Single
Drawworks
GT-120 (1200HP) Water Cooled, with Dual 46” Brakebands and a Kobelt 40” Disk Brake, 1-1/8” Drill Line.

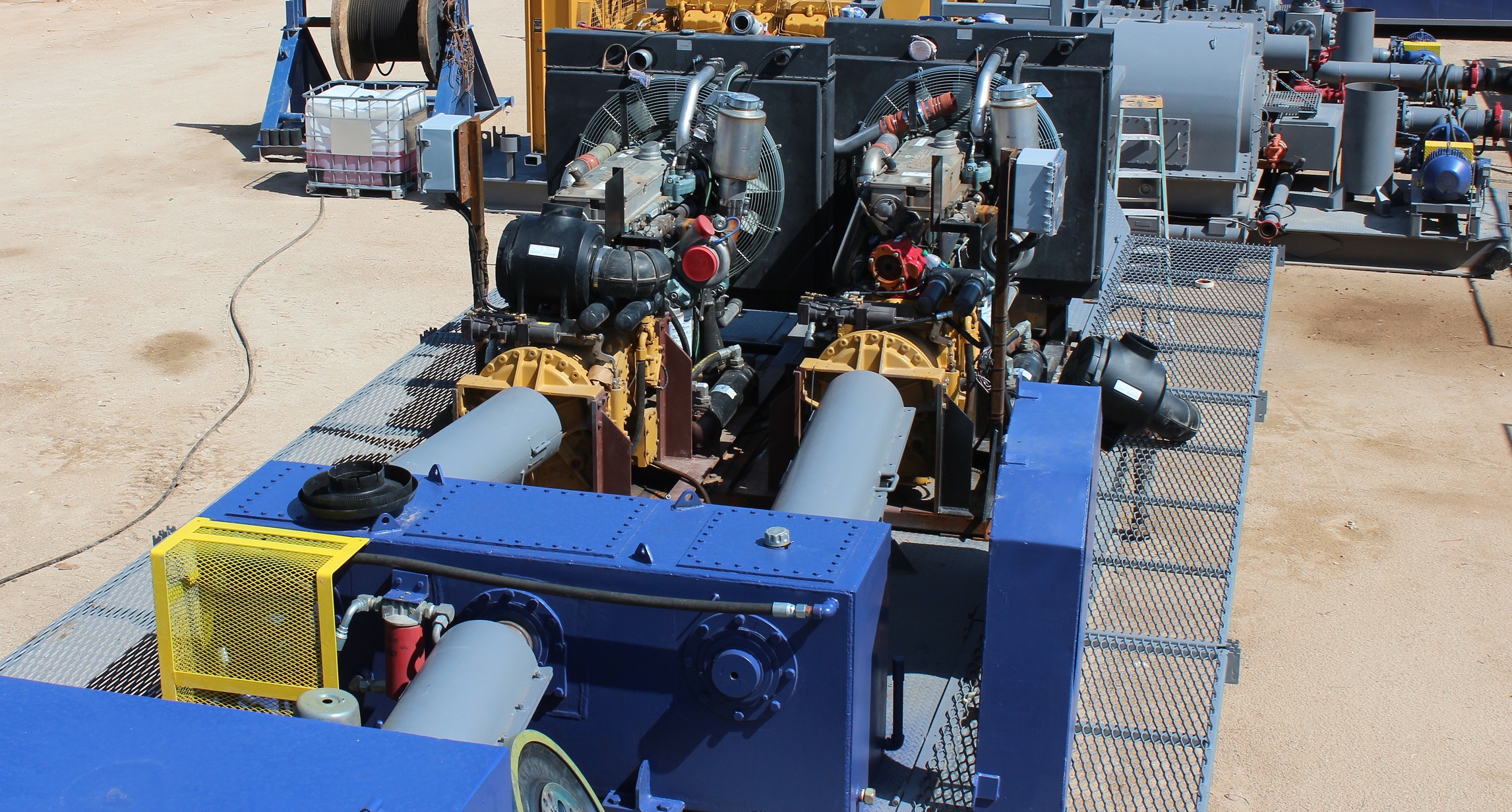

Drawworks Power
(2)- Detroit Series 60 Engines (625 HP each) with Two Allison 5860 Transmissions. Mounted on 43’- 3 Axle Trailer along with Drawworks, Air Tanks, and Carrier for Derrick. Trailer backs in on Mudboat with Hydraulic Leveling.

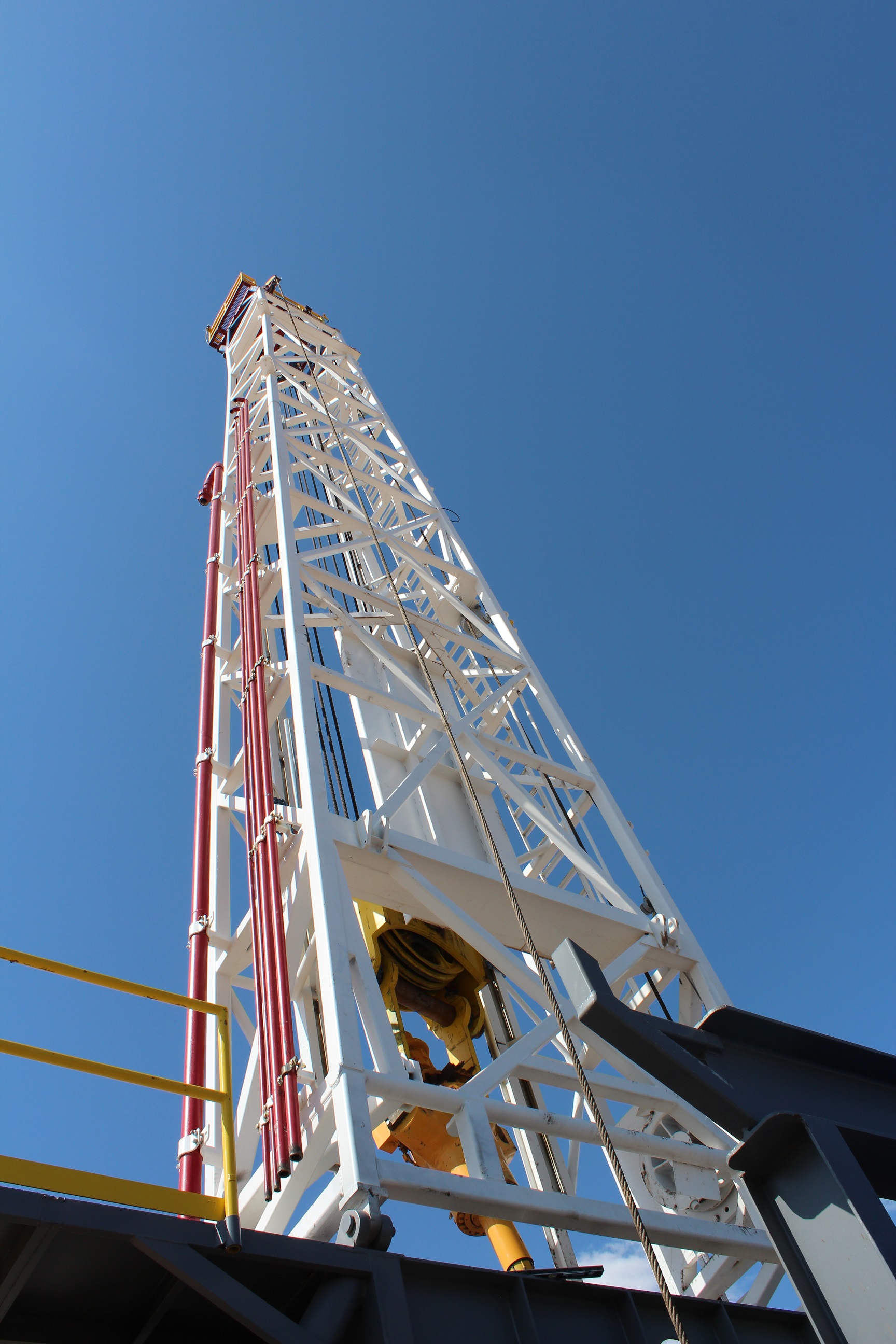

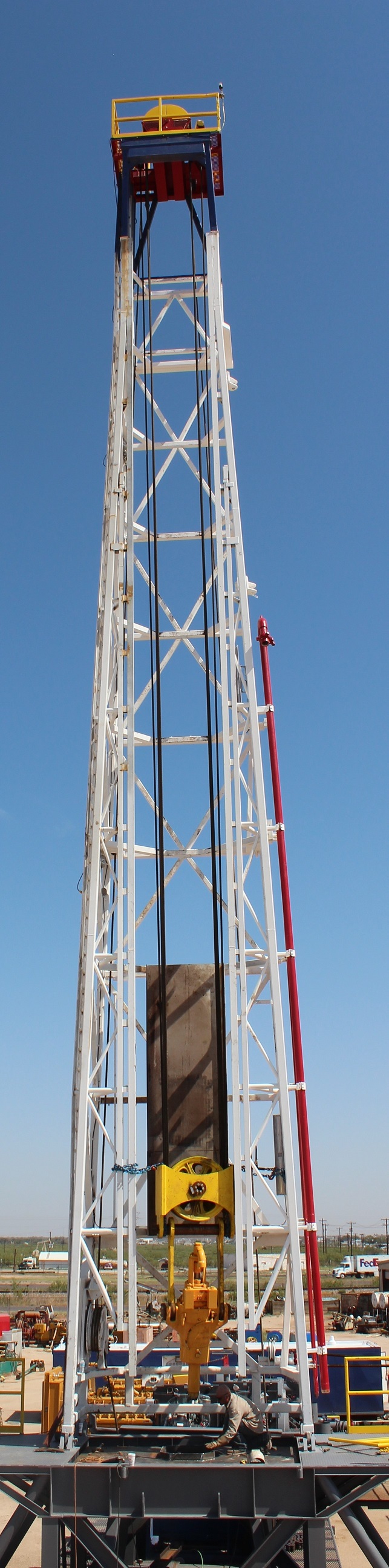

Mast

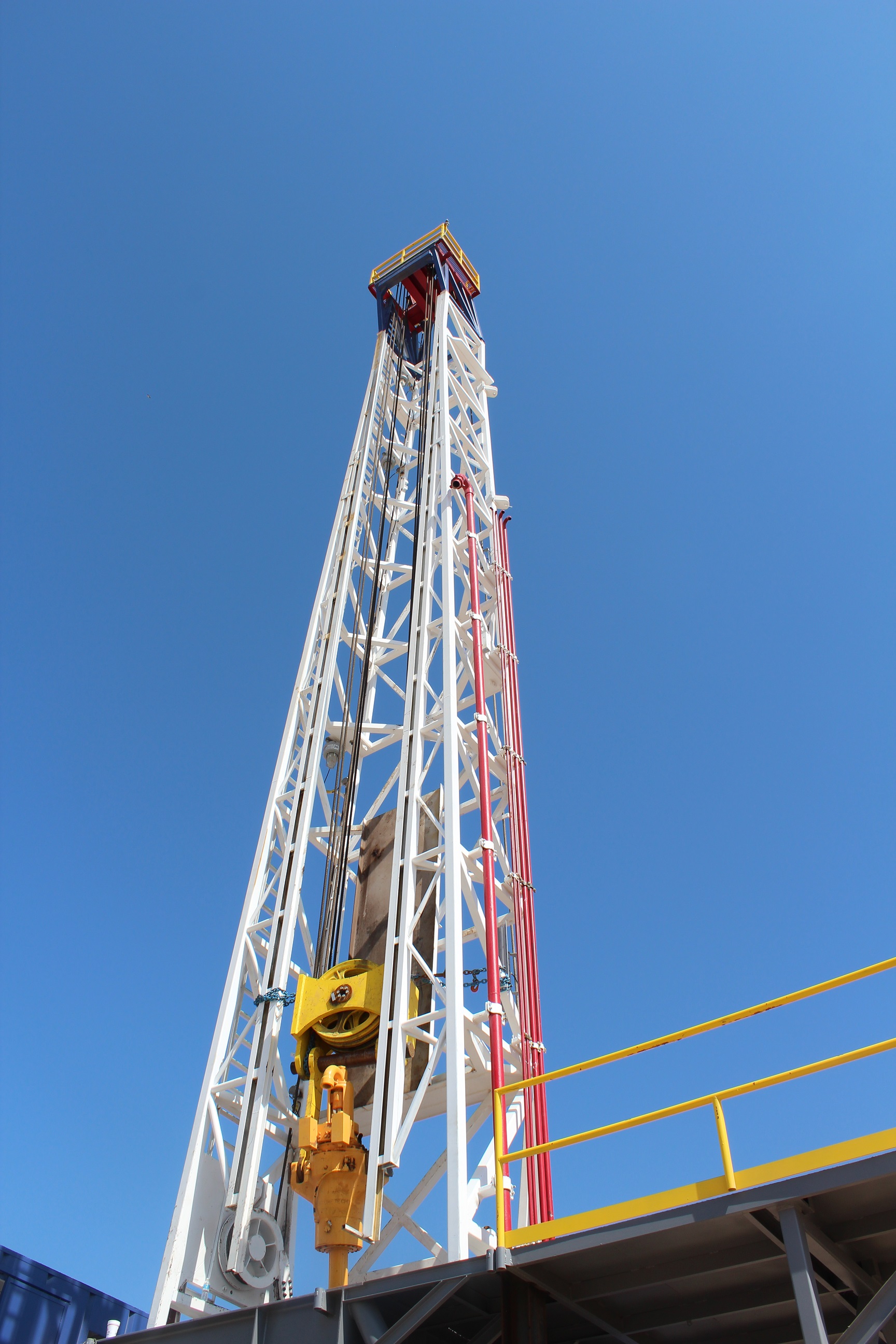

IRI 74’ Stiff Mast, 500,000# Static Hook Load with Hydraulic Raising Cylinders, 4” Standpipe & Manifold.
Rotary Top Drive- 250 Ton
Venturetech XK- 250, 500,000 lbs. of Static Pull with 24,000 ft.-lbs. of torque, Rotary 160 RPM powered by a Caterpillar C-18 with Hydraulic Pump attached to Custom Built 10 Line , 5 Sheave Blocks and Link Assembly, Operating on a Custom Roller Track Assembly.
Substructure
IRI- 750,000 lb. Skidded Substructure (39’6”L x 9’2”W x 14’3”H) with False Rotary Table with 27.5” Split Master Bushings.
Pipe Handling System
GT Hydraulic Drill Pipe Handling System with Two Remote Controls, all Skid Mounted. Iron Roughneck Mounted in the Derrick.

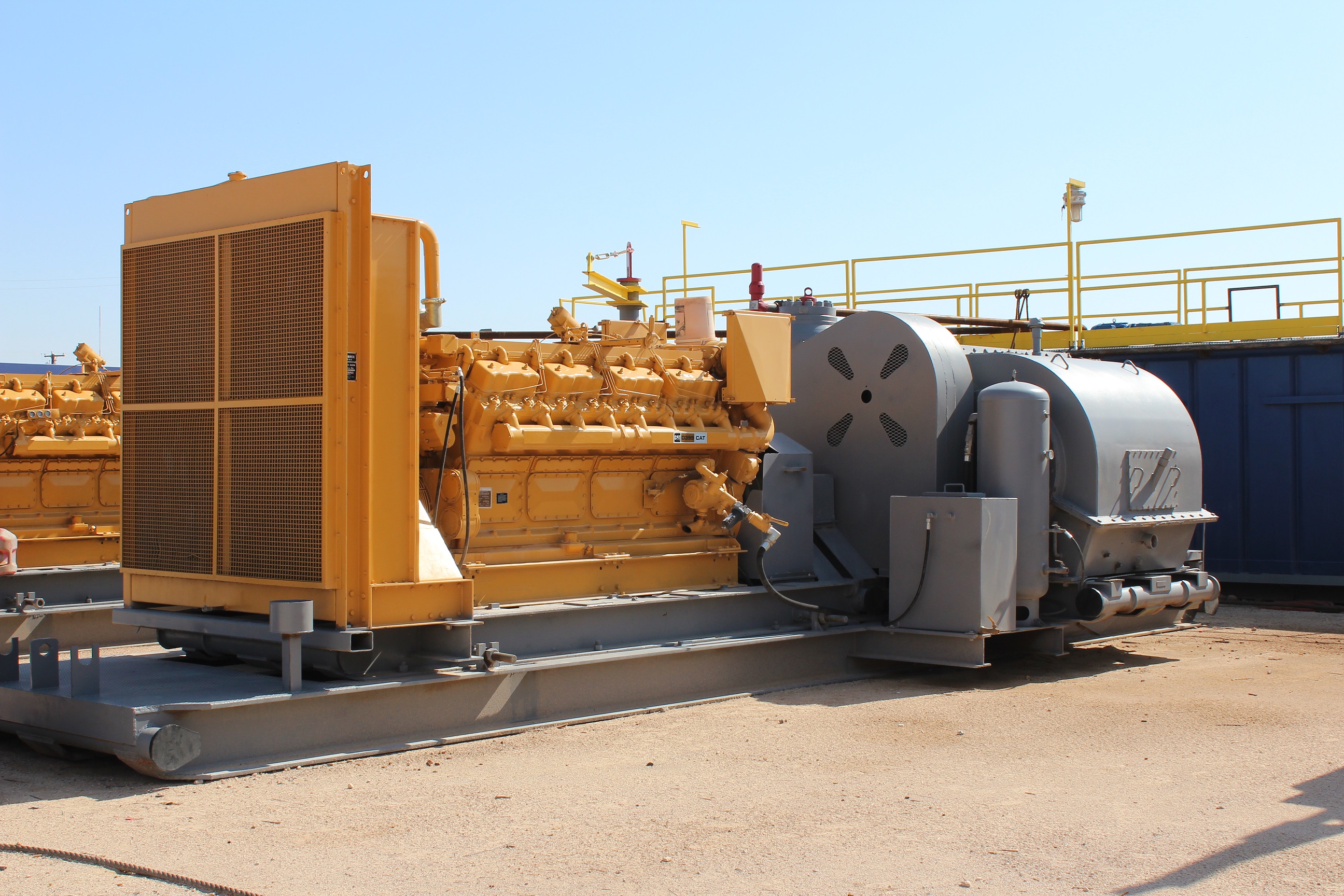

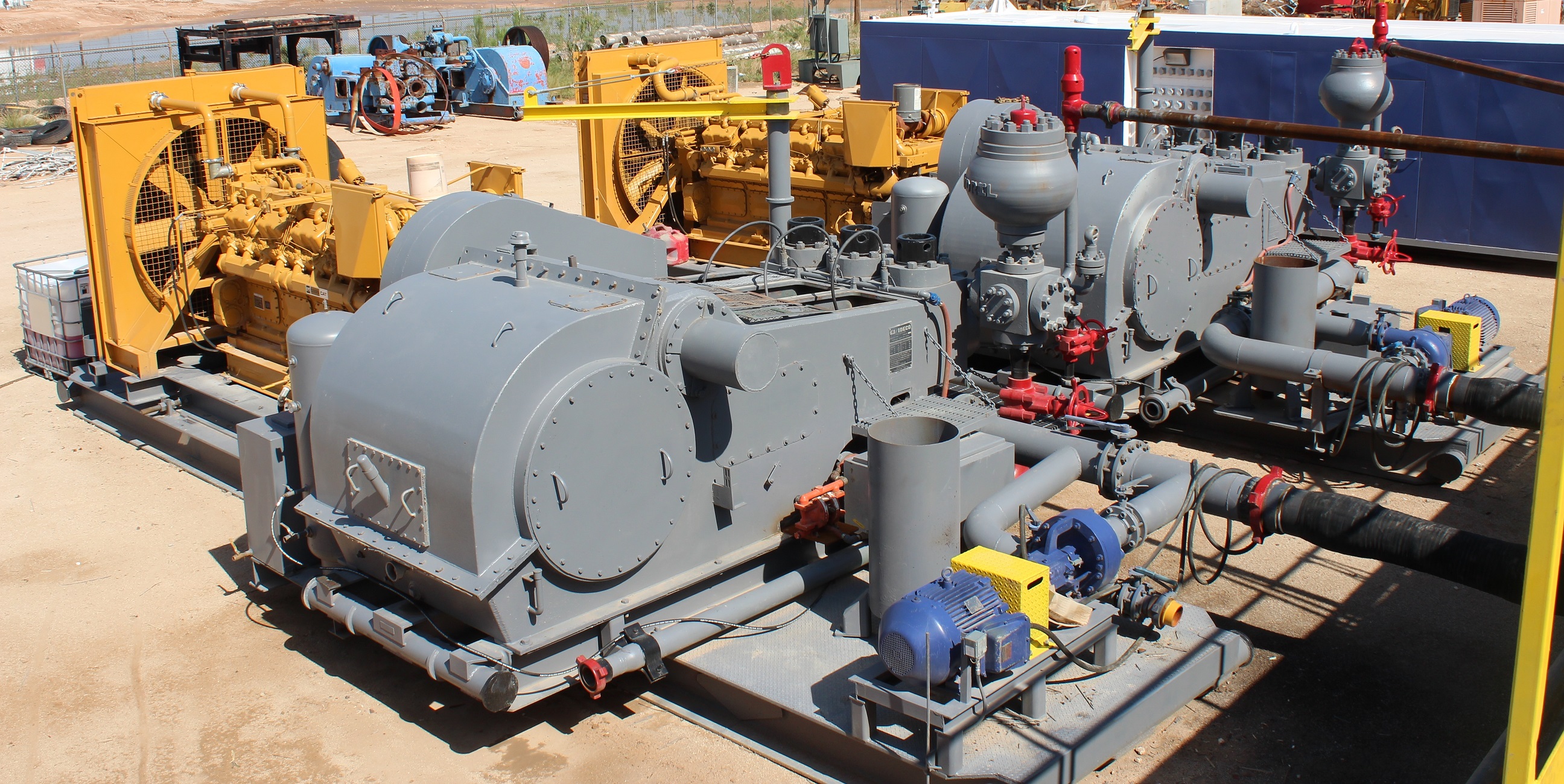

Mud Pumps
(2)- IDECO T-1300 Triplex Mud Pumps, 1300HP with 5”x 6” Centrifugal Charging Pumps 50HP Electric Motors, Oteco 3” Shear Relief Valve, IDECO 5,000PSI Pulsation Dampener. Skid Mounted with Caterpillar D-399 Engine Power.
Mud System

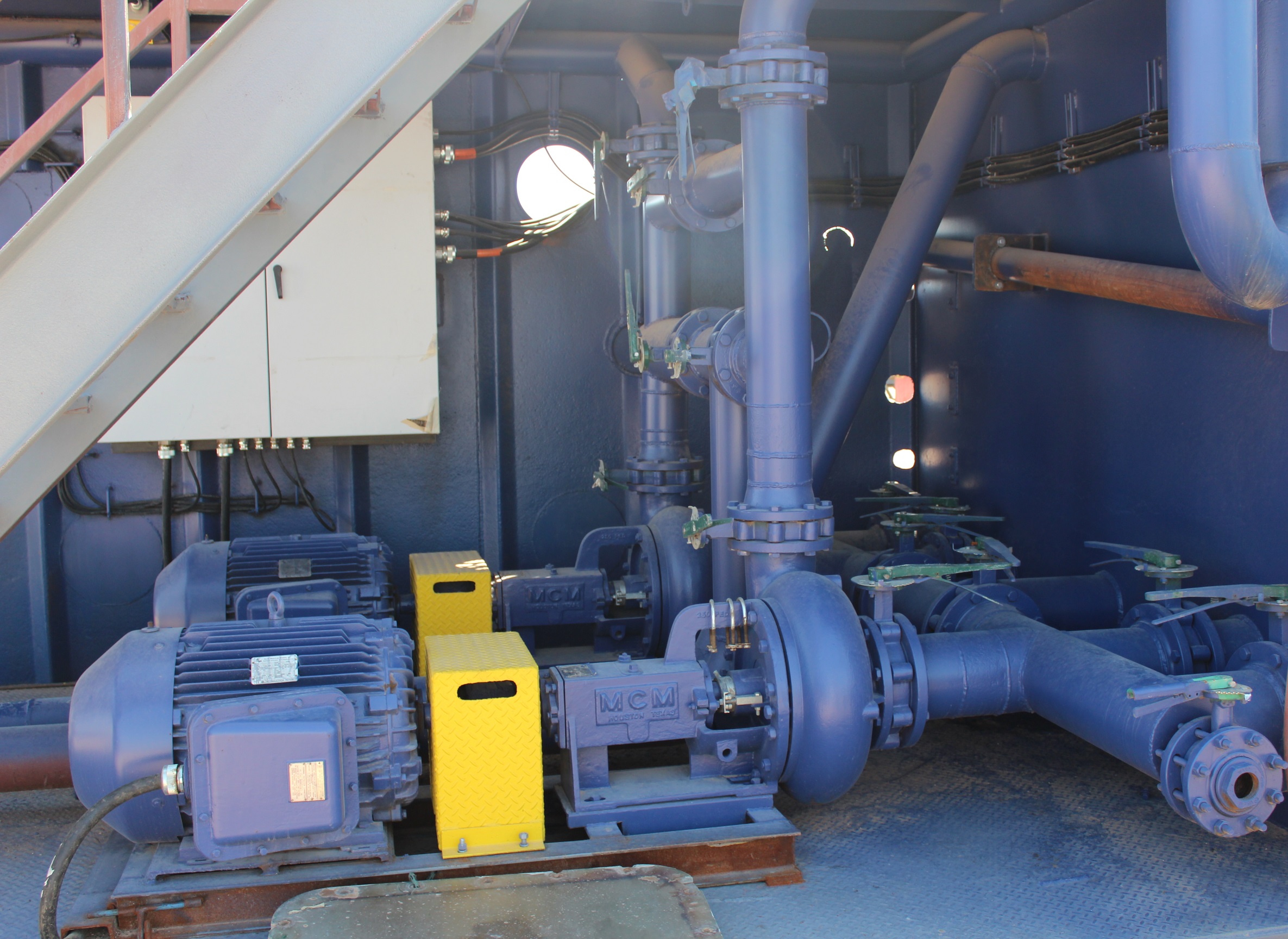

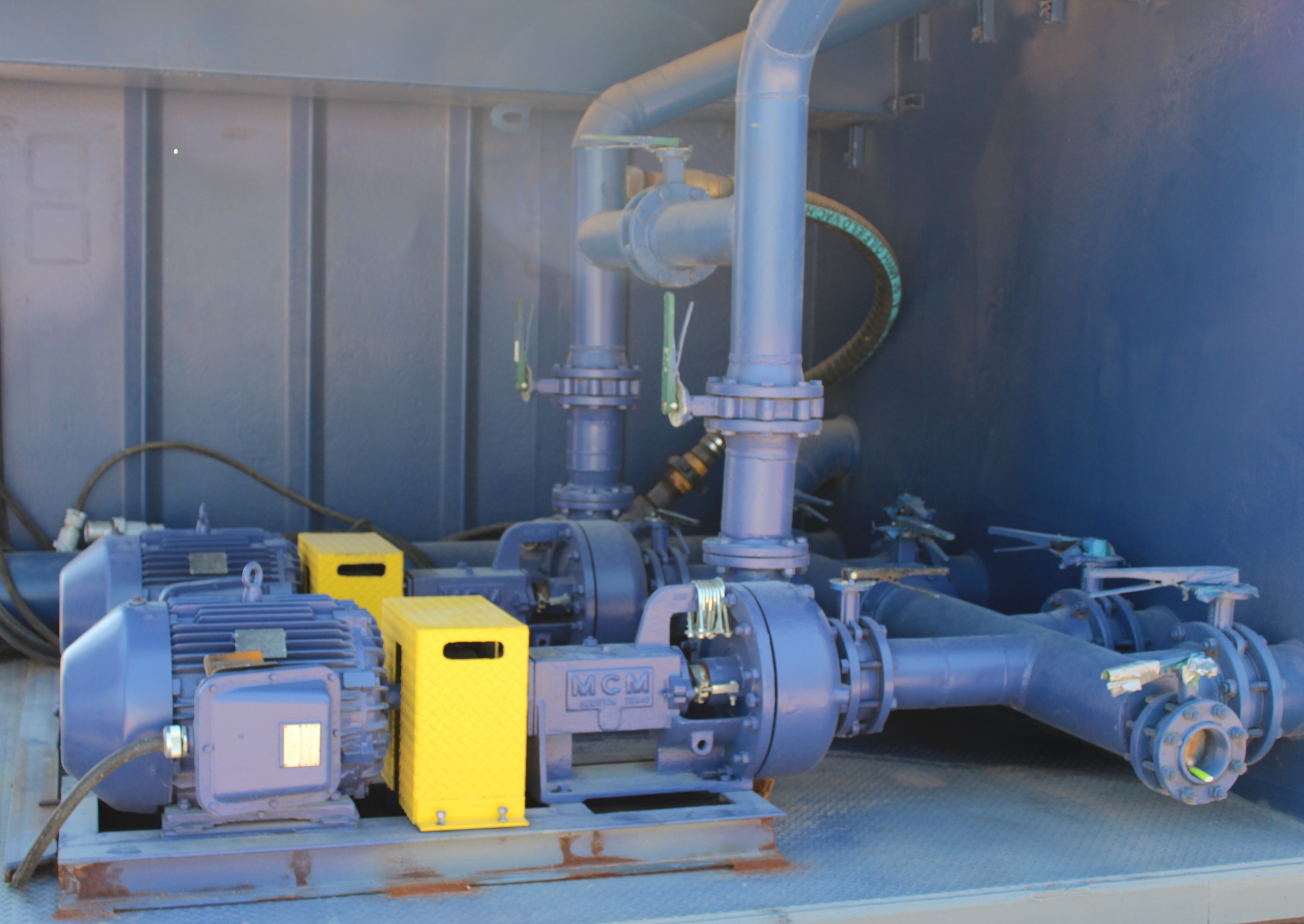

1000 bbl Pit System with interior coating, (2)- 75HP 6 x 8 Centrifugal Pumps, (2)- 50HP 5 x 6 Centrifugal Pumps, (4)-
15HP Agitators and Jet System, Vortex 650 GPM Shale Shaker.
Well Control Equipment
11” X 5M Annular Blowout Preventer Shaffer Type.
11” X 5M Double Blowout Preventer Shaffer Type LWS.

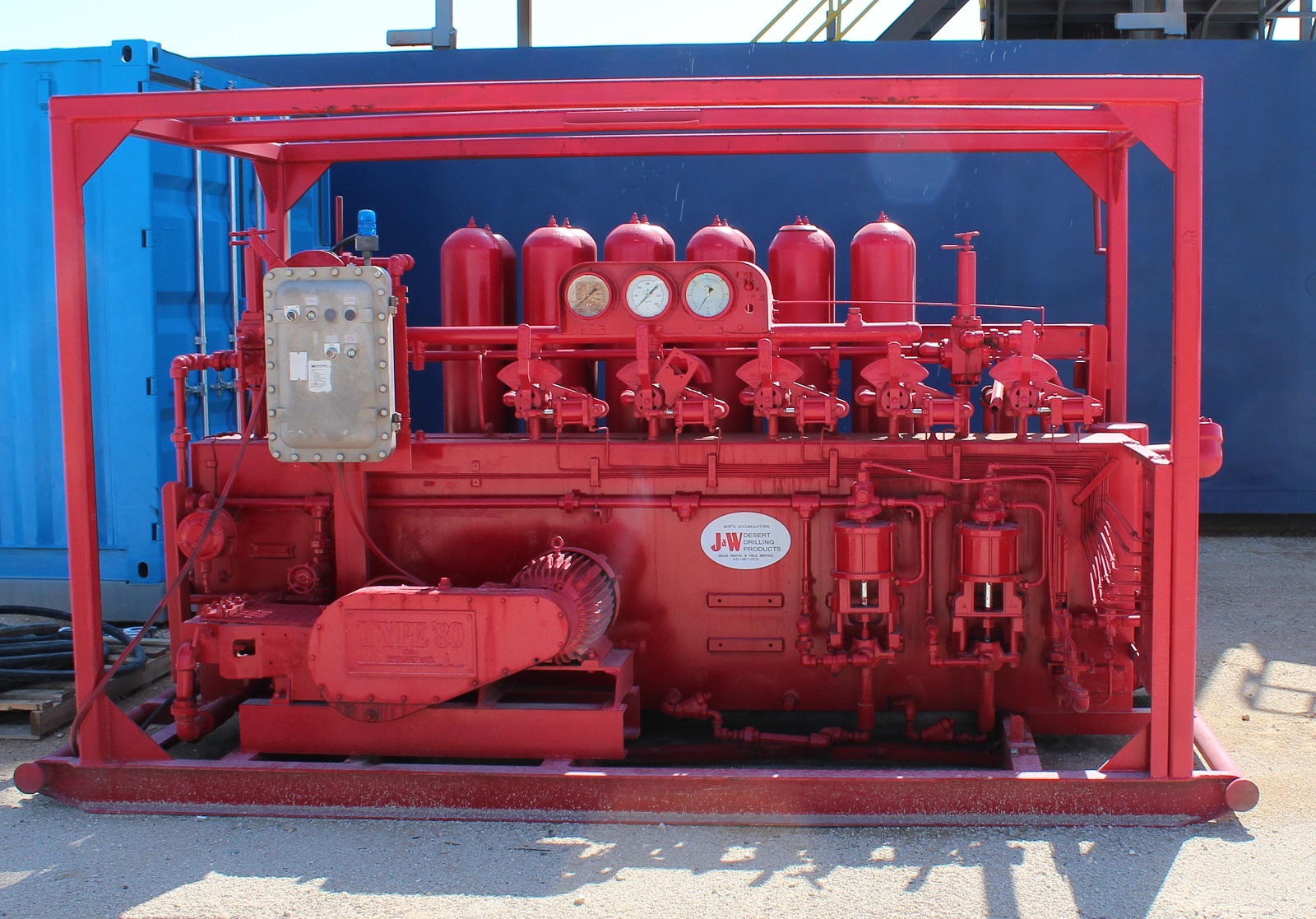

Koomey 5 Station Accumulator

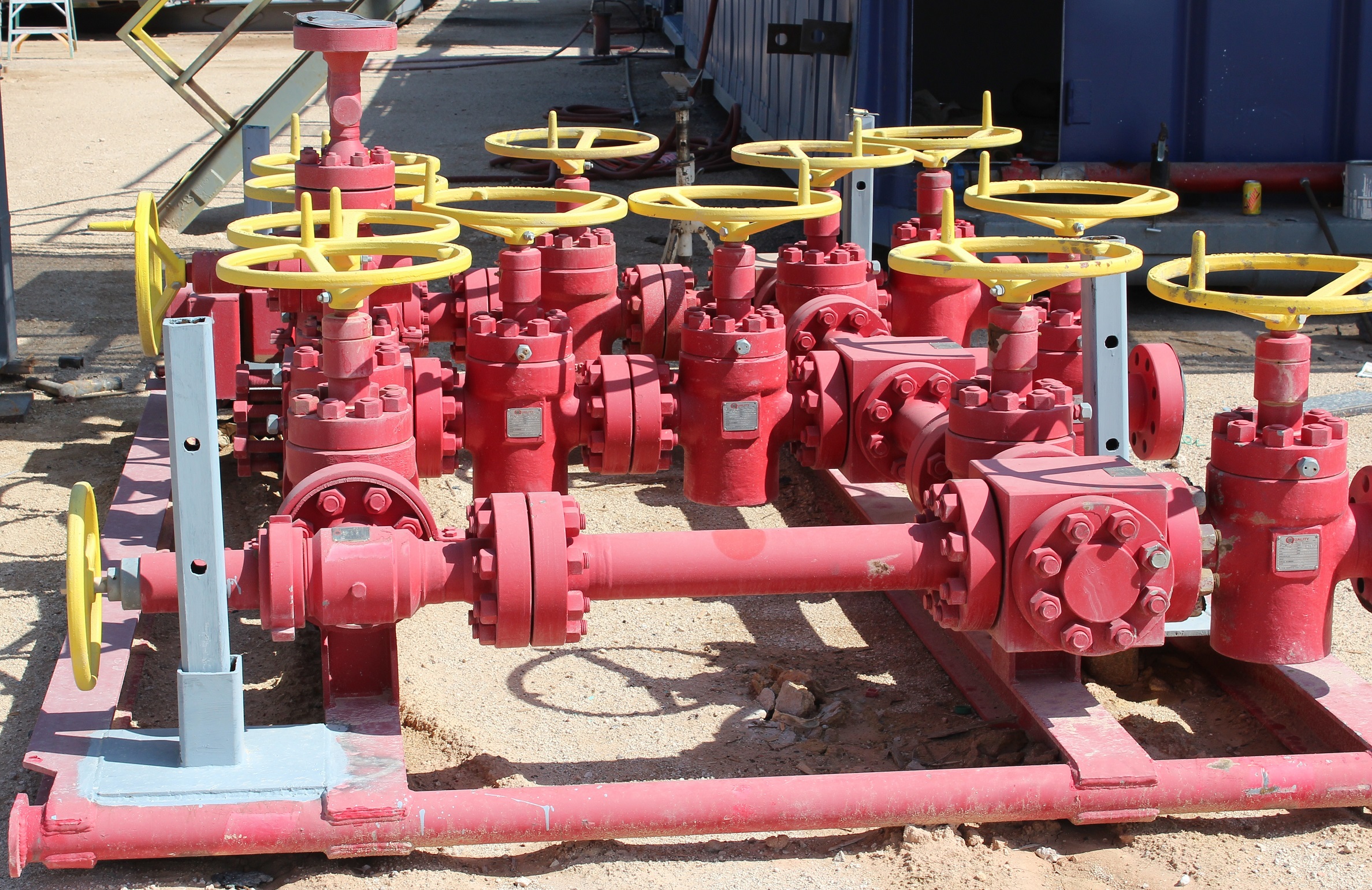

5,000 PSI Choke Manifold, mounted on Adjustable Skid.
Generators
(2)- Caterpillar 3408 Engines, Air Starters, Radiator Gauges, 350 KW AC Generators.
Rig Houses
Top Doghouse (8’10”H x 8’W x 19’7”L) collapses into Water Tank for Transport.

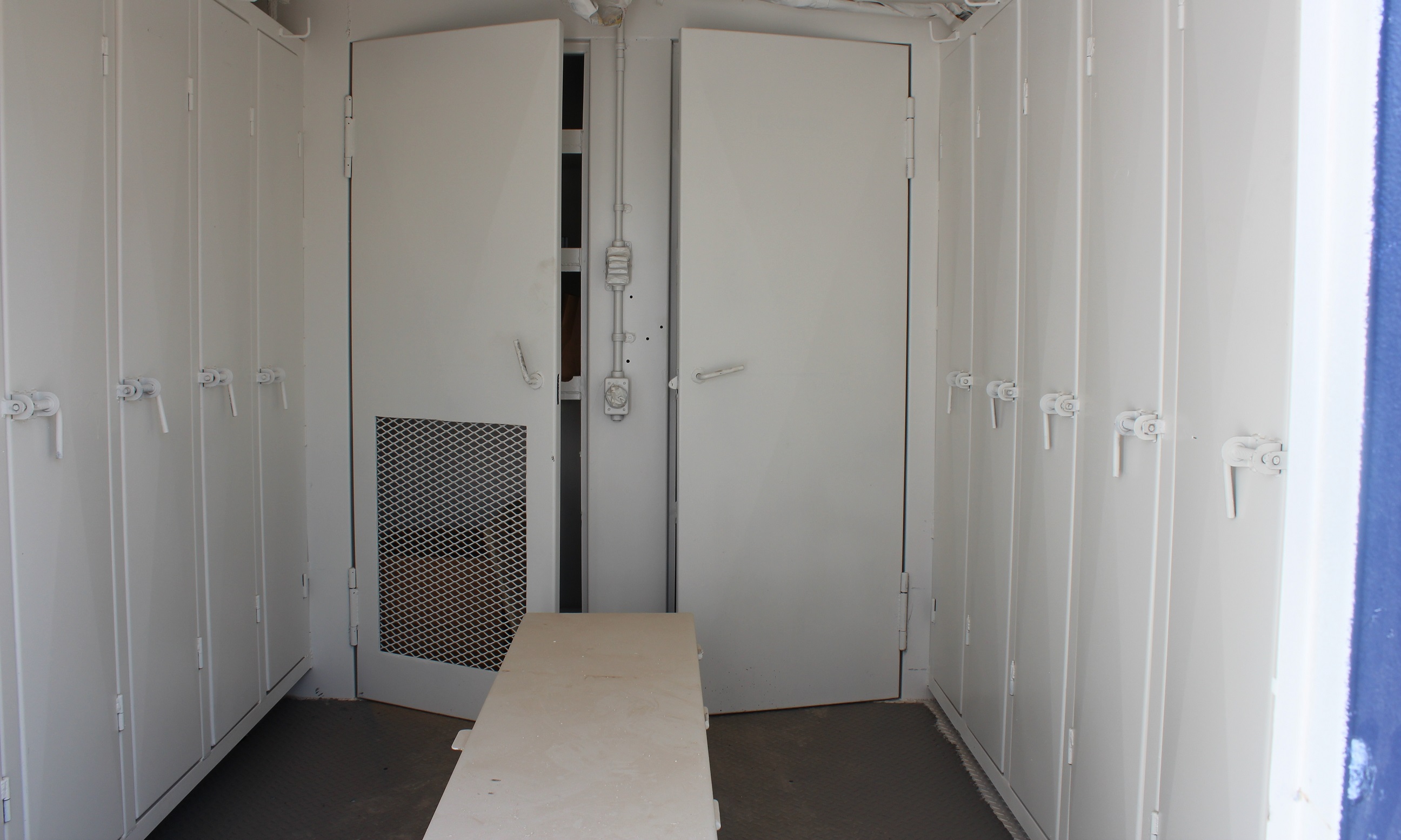

Gen House, Changing Room, Parts House Combination Skid (44’L x 12’1”W x 9’3”H).
Hydraulic Power Unit House (20’L x 8’W x 9’H).
Water/Fuel Tanks
695 bbl Water Tank Interior Coated, Skid Mounted (44’1”L x 10’W x 9’10”H).
3000 Gallon Fuel Tank Skid mounted with portable 50HP Electric Trash Pump.
Ancillary Equipment
500,000# AOI Weight Indicator
Driller’s Console
(2) Hydraulic Hoists

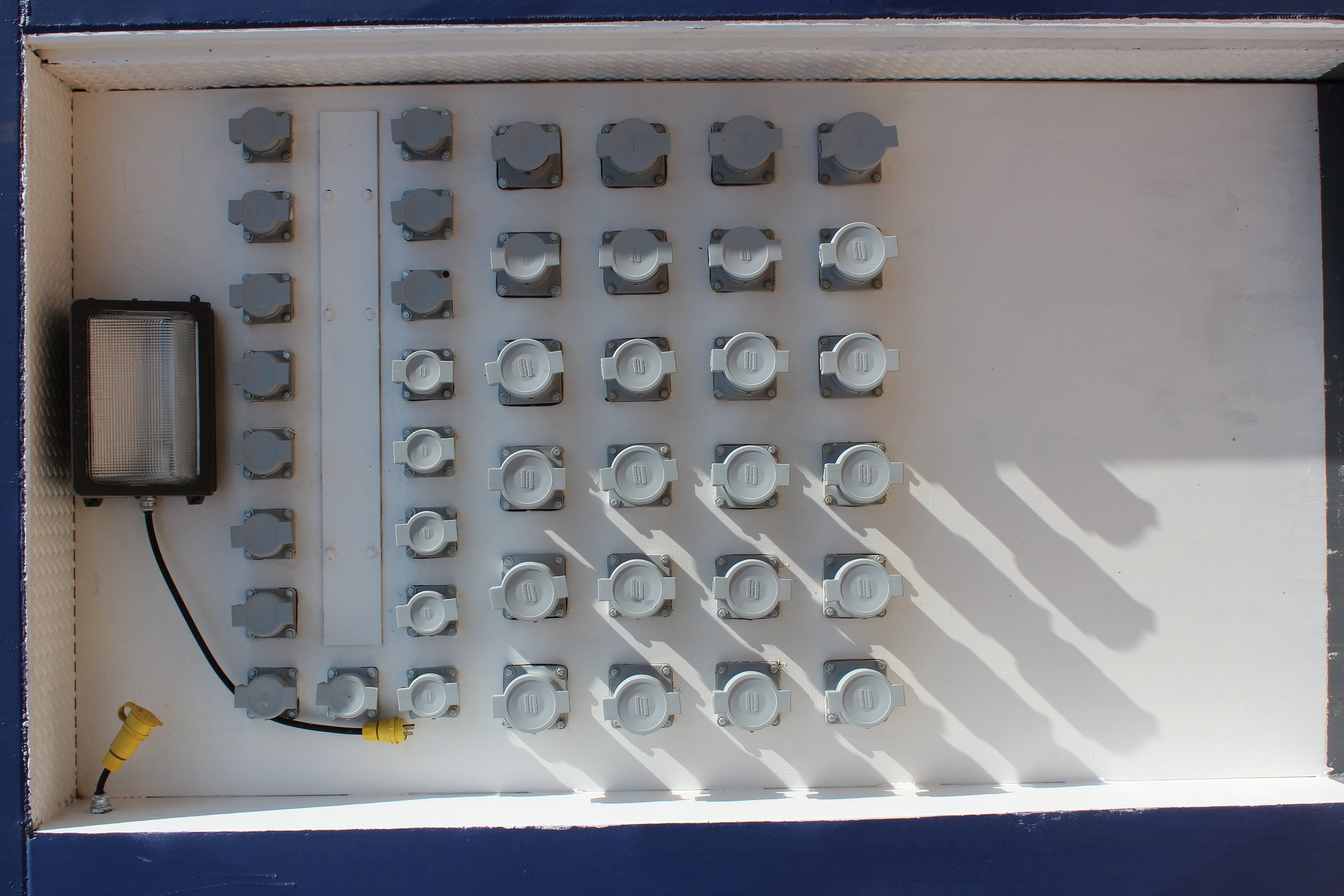

Suitcase for Electric, Diesel, Water and Air Lines.
All Miscellaneous Hoses and Valves to Connect Systems.
5000’ of 1-1/8” Drill Line
(4) Sets of Stairs
Lighting
Miscellaneous Tools and Supplies
(2) Pipe Bins (50’L x 8’W x 5’H).
(2) Sets of Pipe Racks.
For more information, please e-mail jrobinson@kruseasset.com
|
