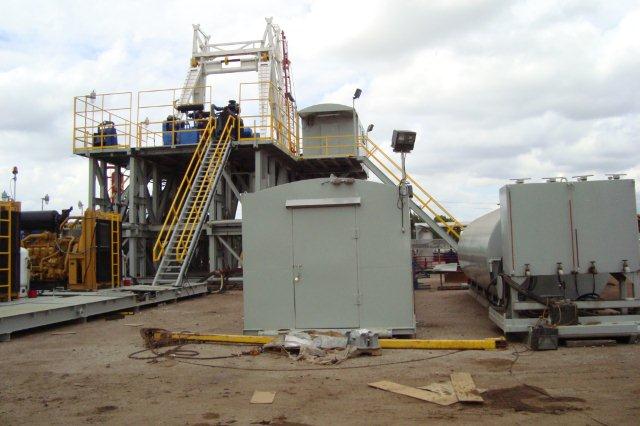

2013 "NEW/REBUILD" SKYTOP BREWSTER N-46, 1000HP MECHANICAL DRILLING RIG
(Listing No. D-207)
Click on Above Images for Larger Viewing

RIG NO. 17

CLASSIFICATION:
1000 HP MECHANICAL

DRAW WORKS:

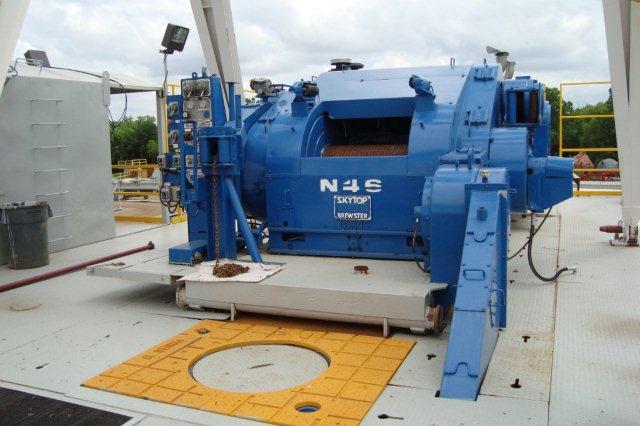

          Skytop Brewster N-46 with Parmac V-80 Brake
          Two (2) Engine Compound

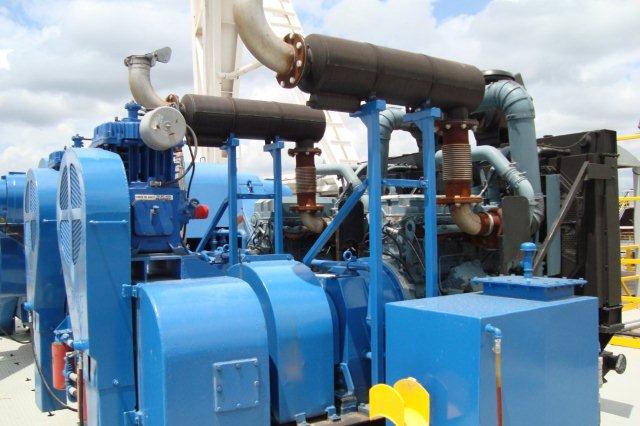

POWER SYSTEM:
Two (2) Detroit 60 Series 14.0L with Allison 955 Torque Converters

DRILLING DEPTH CAPACITY:
          13,500’ W 4-1/2”dp

MAST:
          DSI 136’ 500,000 SHL

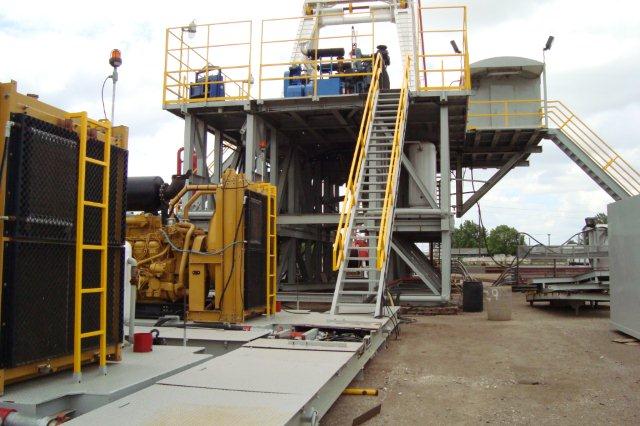

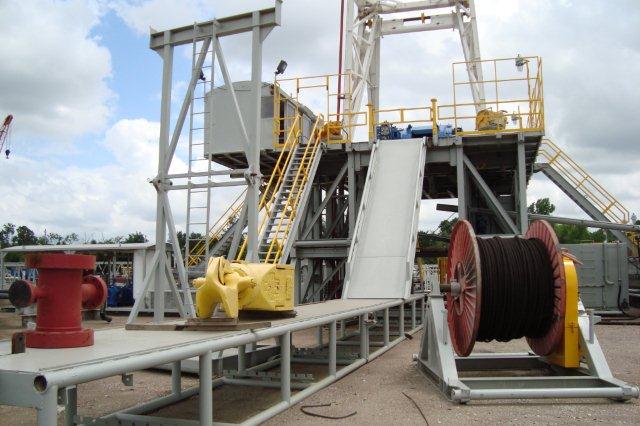

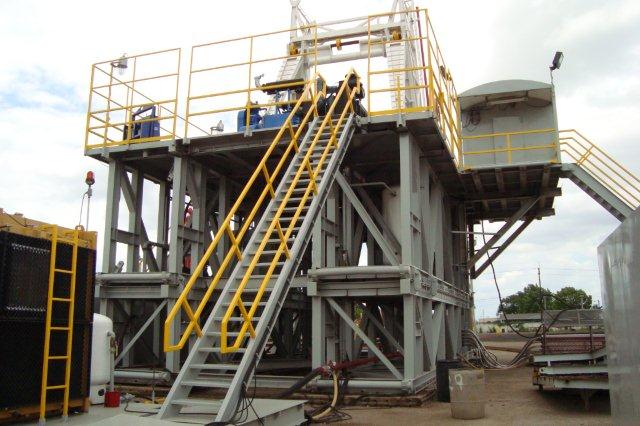

SUBSTRUCTURE:
          20’ Box on Box
          16’ Clear height below rotary beams

DRILL LINE:
          1-1/4”

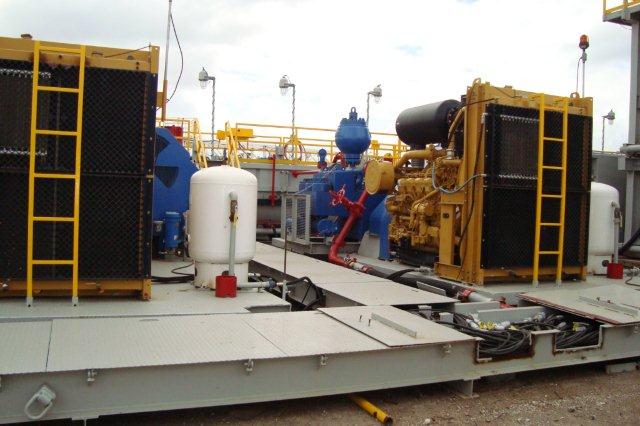

MUD PUMPS:

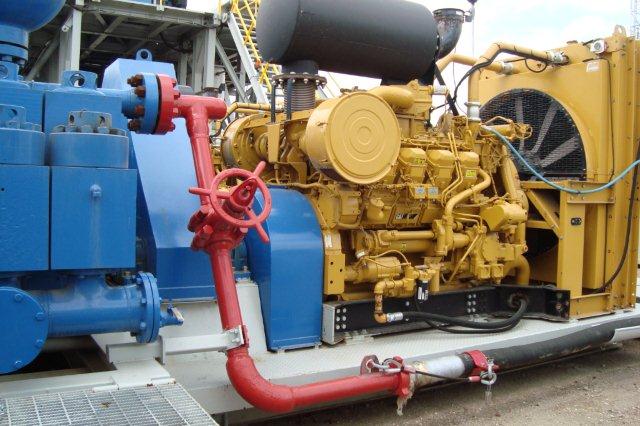

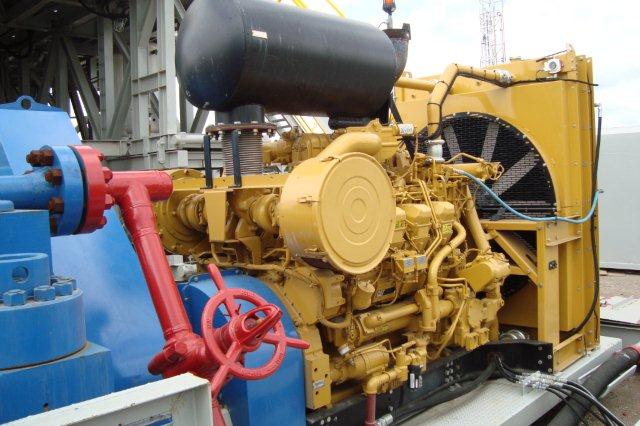

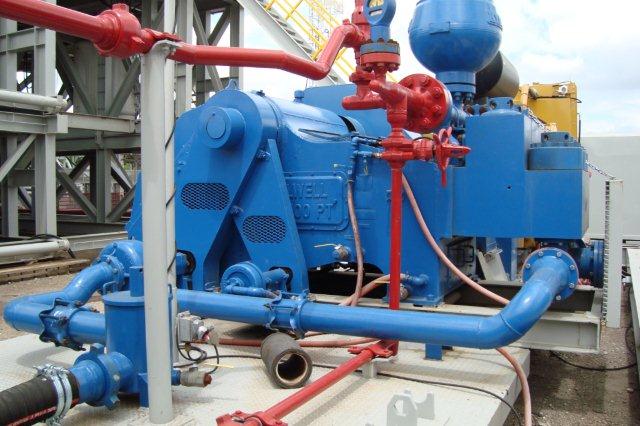

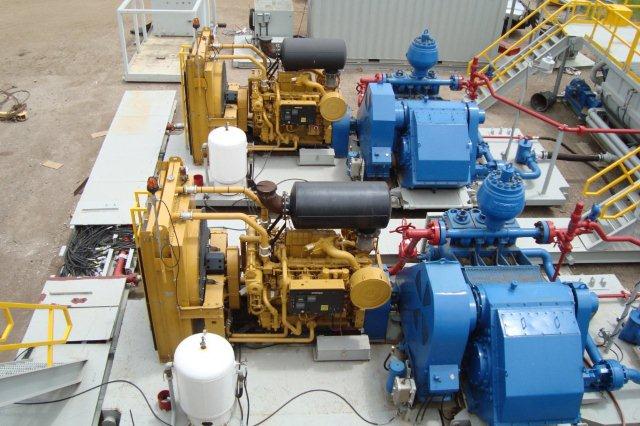

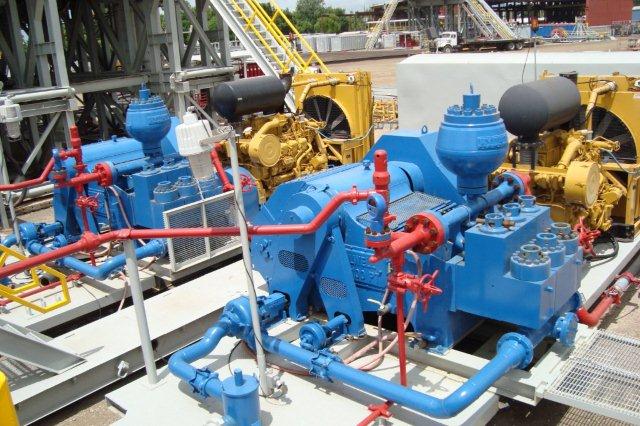

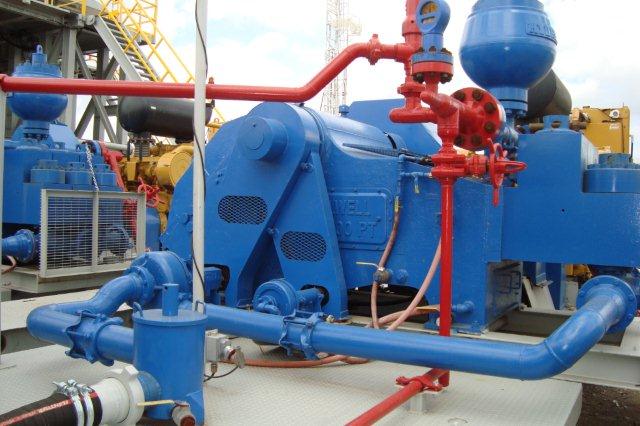

          Two (2) Oilwell 1100 PT pumps each powered by a caterpillar 3508C

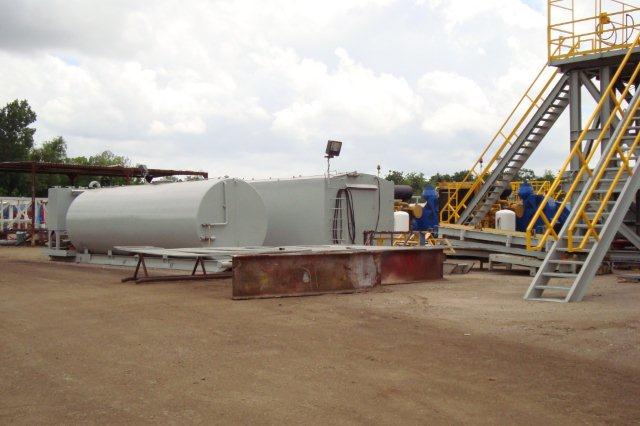

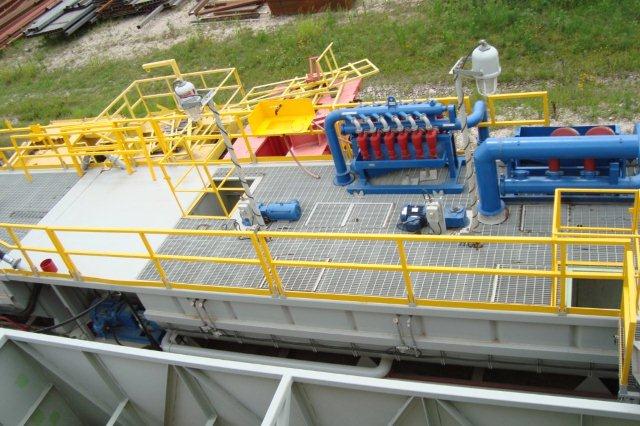

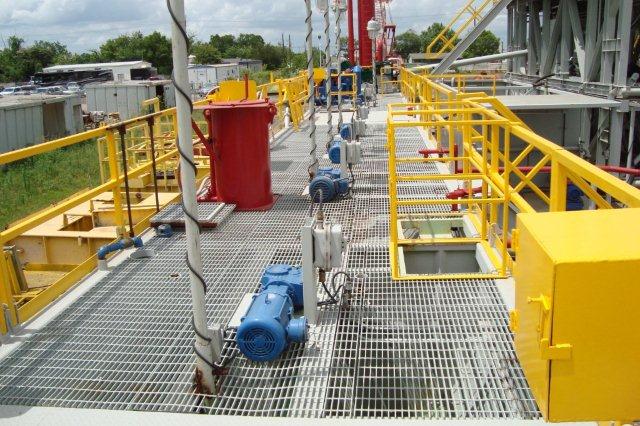

MUD SYSTEM:
Two (2) Tank system 750 BBL

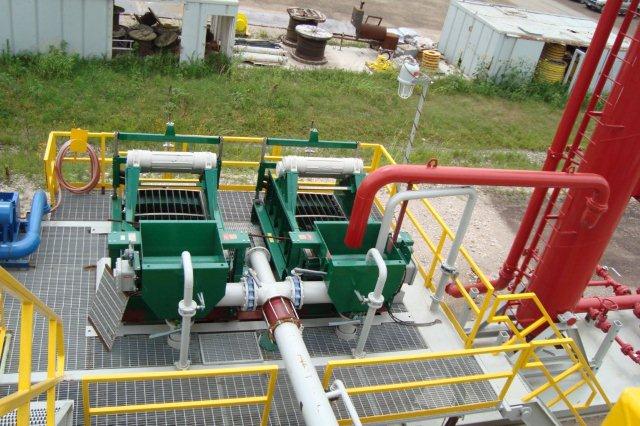

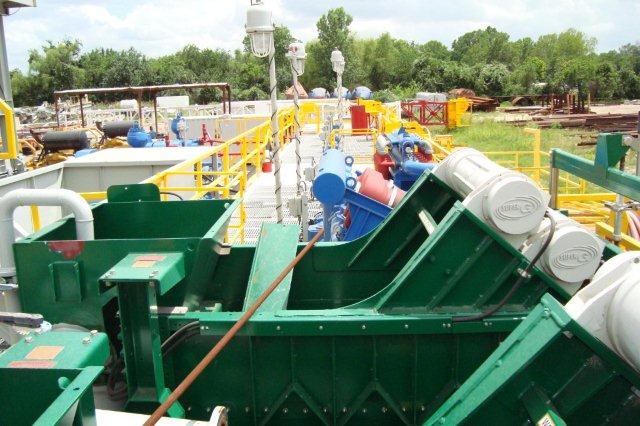

Total two (2) Derrick 503 Flowline Cleaners
Derrick 2 cone desander
Derrick 12 cone desilters

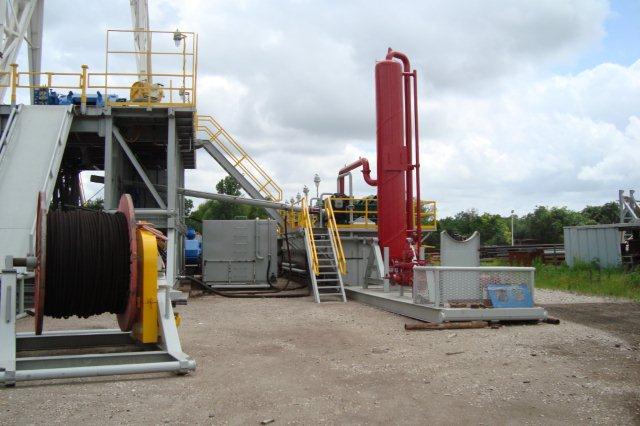

See-Flow Drilco type degasser

ROTARY:
          Ideco 23 E w/ 53 ¼” center

BLOCK AND HOOK:
250 Ton Skytop Brewster block and hook

SWIVEL:
Ideco TL-300

ANNULAR PREVENTER:
11” 5000 WP Shaffer Type Spherical

RAM PREVENTERS:
11” 5000 psi Cameron Type U Double

CHOKE MANIFOLD:
4-1/16” X 2-1/6” 5000 psi WP

ACCUMULATOR SYSTEM:

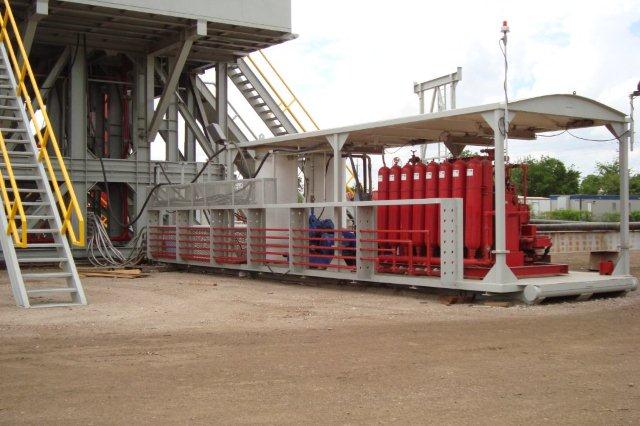

Chiles with five (5) station 180 gal. with remote control

AUXILLARY EQUIPMENT:
Toolpusher and crew quarters
One 450 BBL water tank
Automatic Driller
Pipe Spinner

Sits in Houston, Texas
