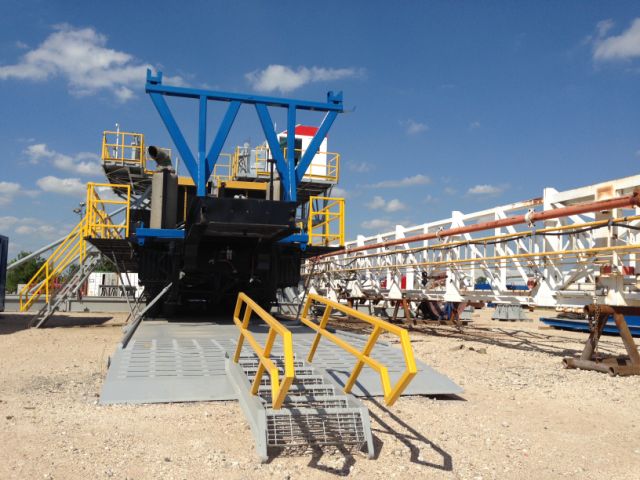

2007 RG-PETRO, 1300HP 5-AXLE MECHANICAL DRILLING RIG
(Listing No. D-210)
Click on Above Images for Larger Viewing
$1,300,000
RIG NO. 71
CLASSIFICATION: 1300 H.P. Land Rig rated to 13,500’
Manufacturer: RG – Petro
Delivery date: August 29, 2007 (New)

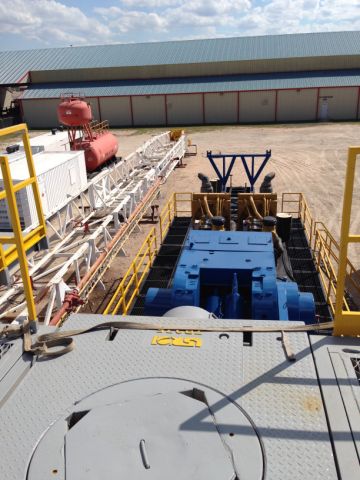

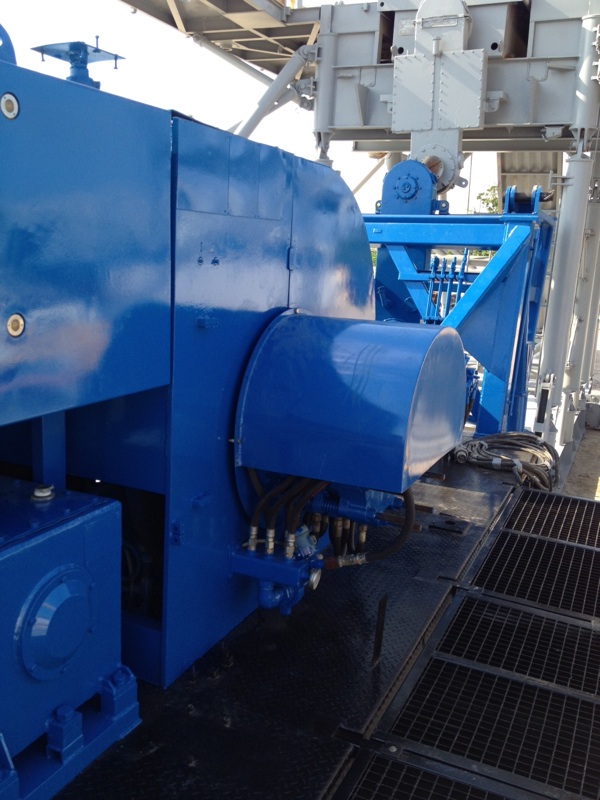

I-DRAWWORKS
RG Model JC28E, max speed 450 rpm – API spec 7K
Rated @ 1300 HP
Fast line pull 62,107 lbs
Diameter: 40 inch x 25 inches

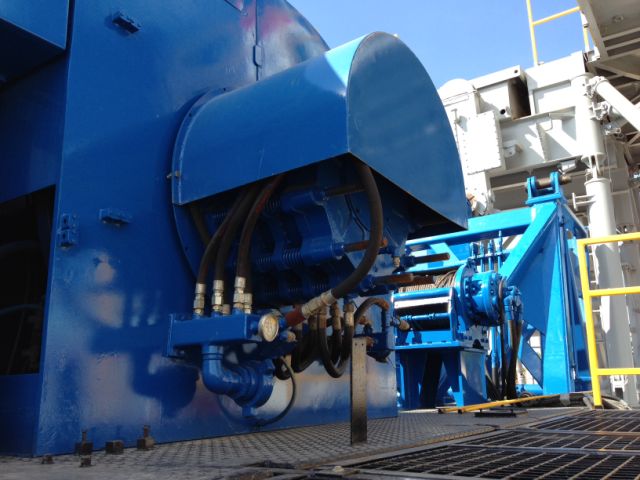

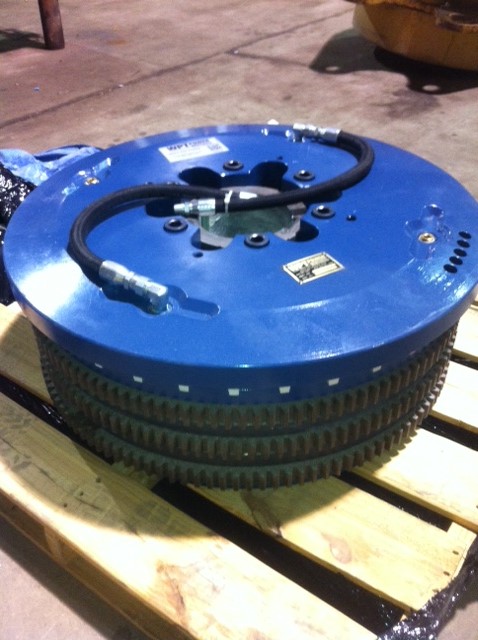

ATD 330H axial thrust disc clutch (New from WPT 2nd Qtr. 2013)
Drawworks fitted with disc brakes – 14,330 lbs positive pressure per rim (Function tested by 3rd party by TCM-Offshore).
Disc brakes have separate hydraulic system that has been function tested by 3rd party (TCM-Offshore).
Eaton model 324 auxiliary brake – water cool – separate tankage (16’ L x 8’6” W) appx 100 gls
1 1/4” drill line – 6 x 5 traveling system – 0.65 fps to 3.94 fps hoisting speeds
Crown-O-Matic toggle valve crown saver (Rebuilt by TCM-Offshore and function tested).

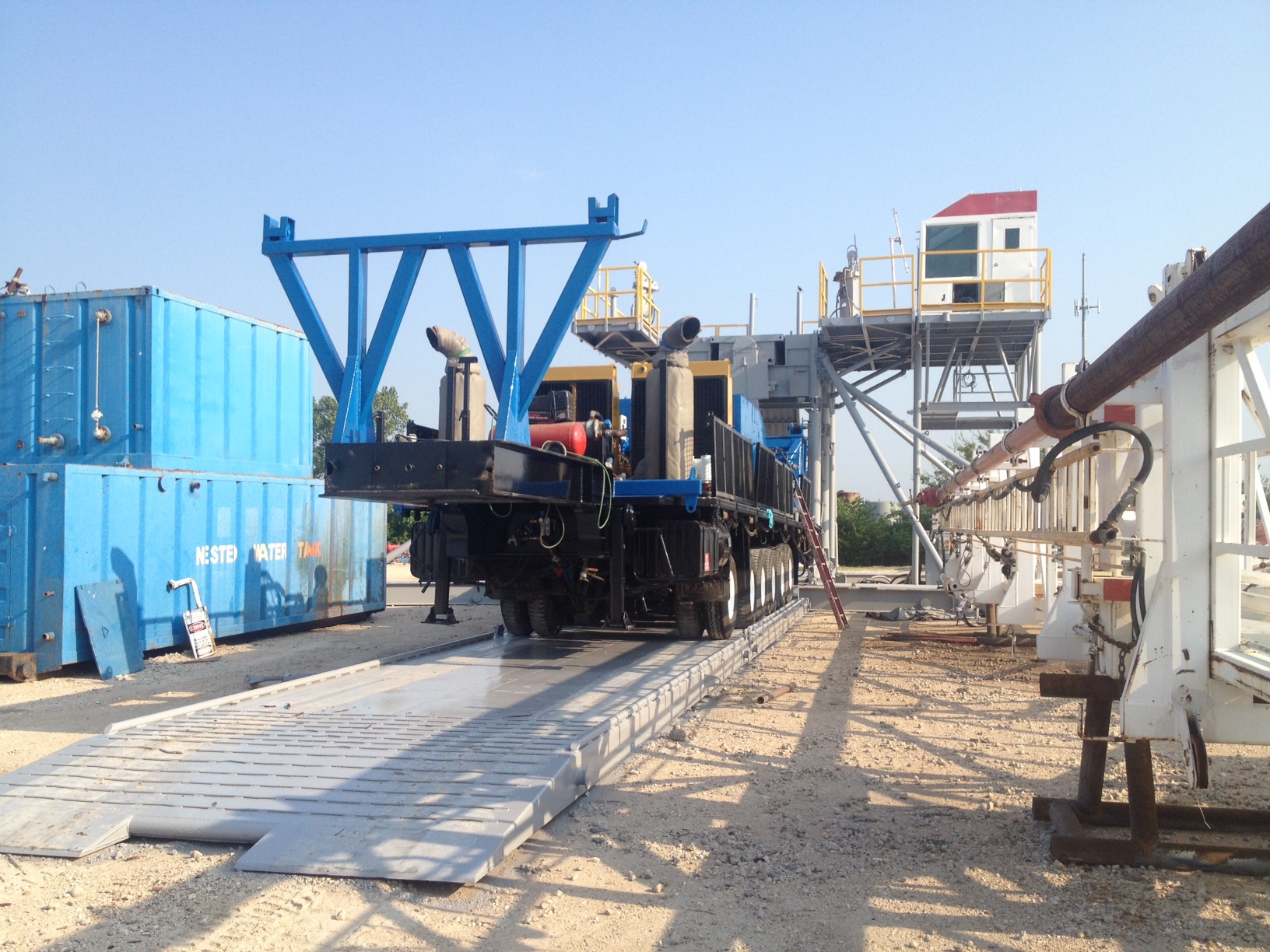

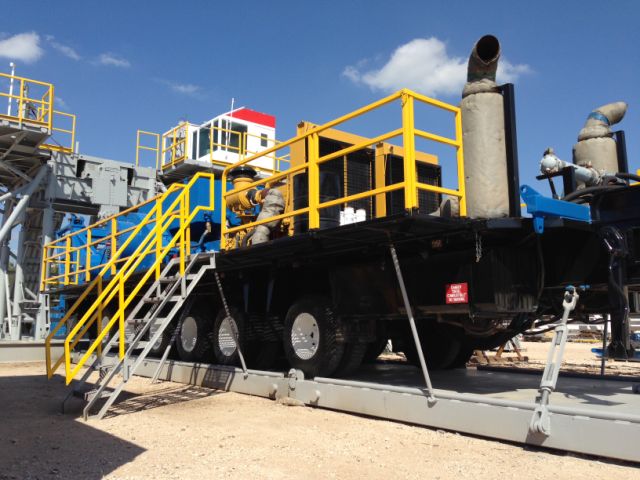

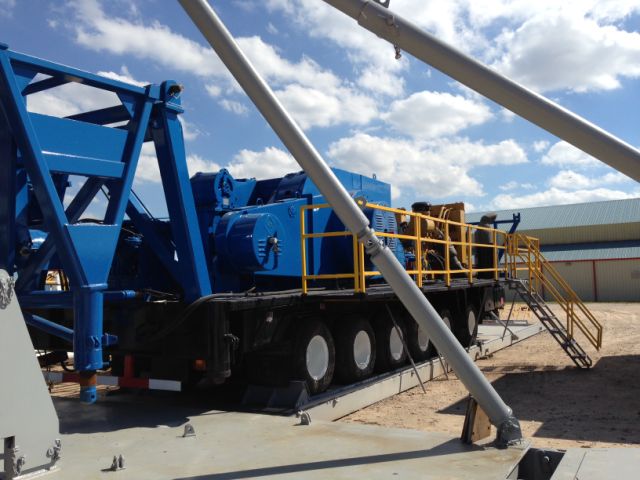

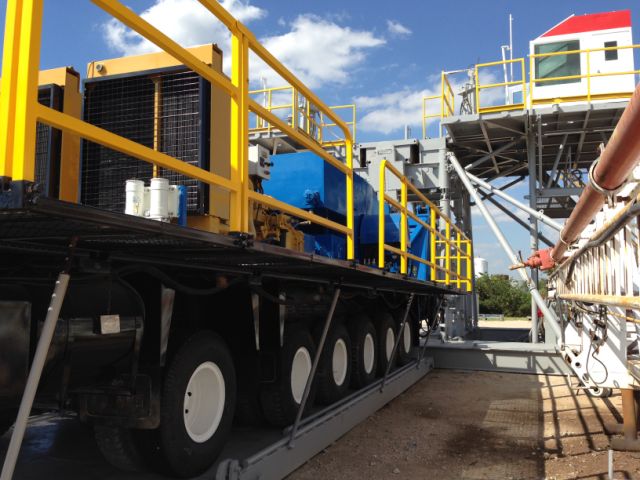

II-TRAILER
Model ES 9660 with Mast Crown and Standpipe
(6) axle, triple steel board, balanced suspension. (3) Air lift (3) Spring, 12 x 20 double tires
OAL 55’ L x 11’8” W x 18’ H with Mast on
Back overhang 5’4”
Axle spacing 4’6”
(6) x 26,000 lbs. axles

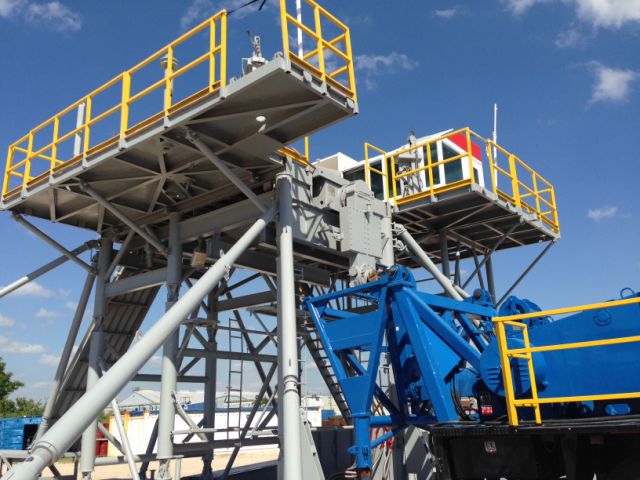

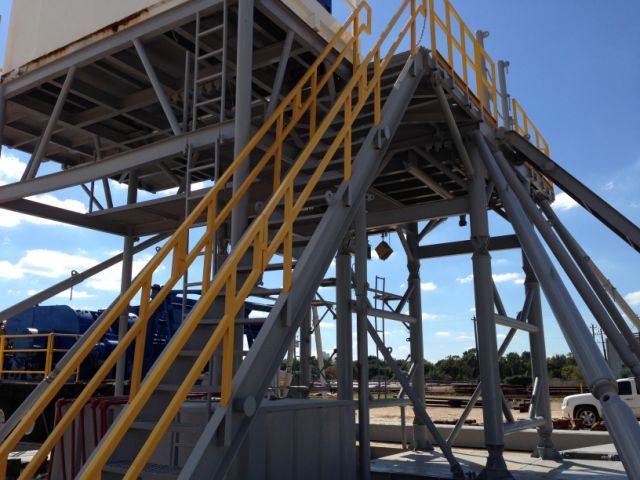

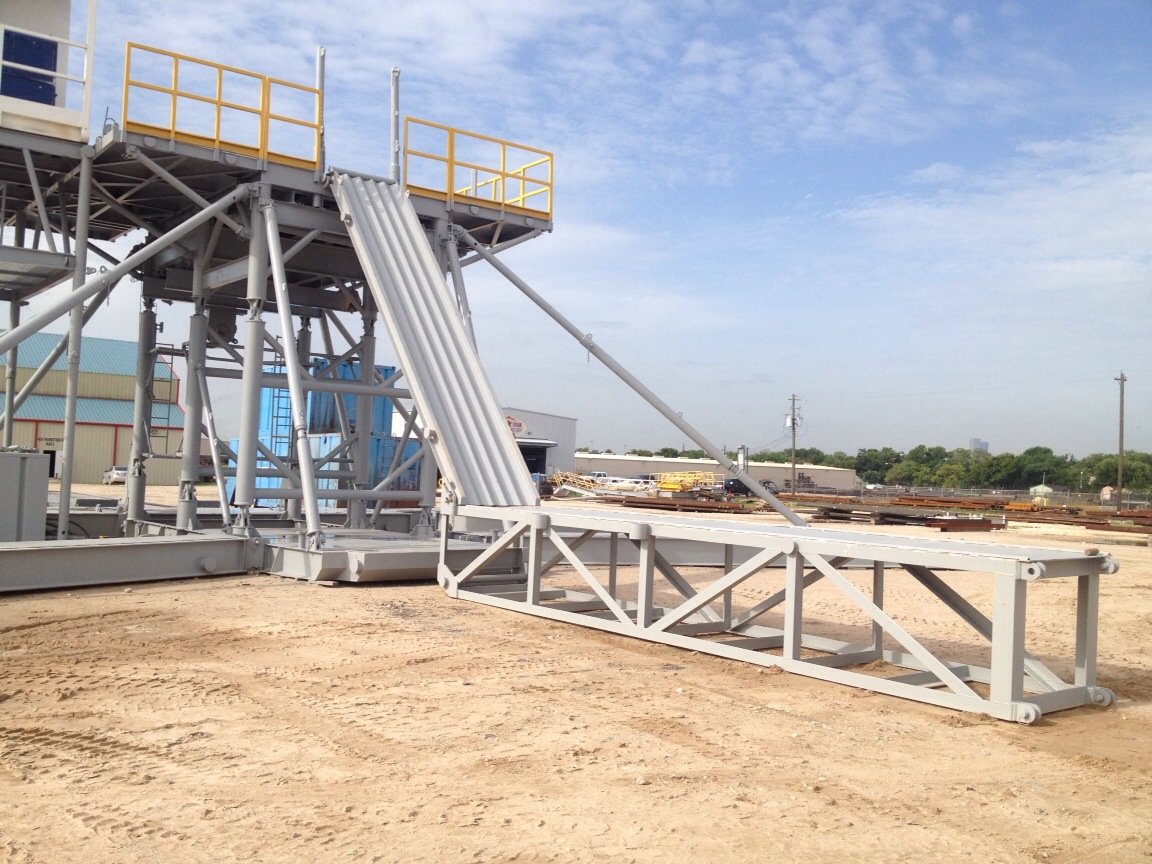

III-SUBSTRUCTURE
Model ZZ225 rated at 500,000 lbs – pull test 580K
Floor Height – 19’ 8-1/2” (scoped up)
11’6” W x 30’ L x 10’3” H (scoped down)
Under Rotary 17’ 6”
Mechanical raise with adjustments for uneven locations

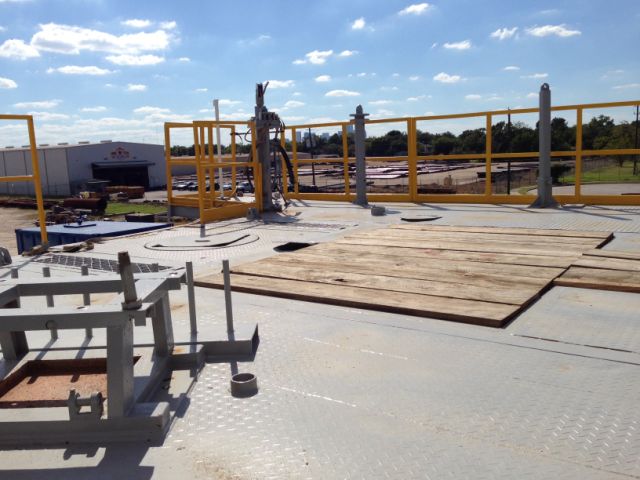

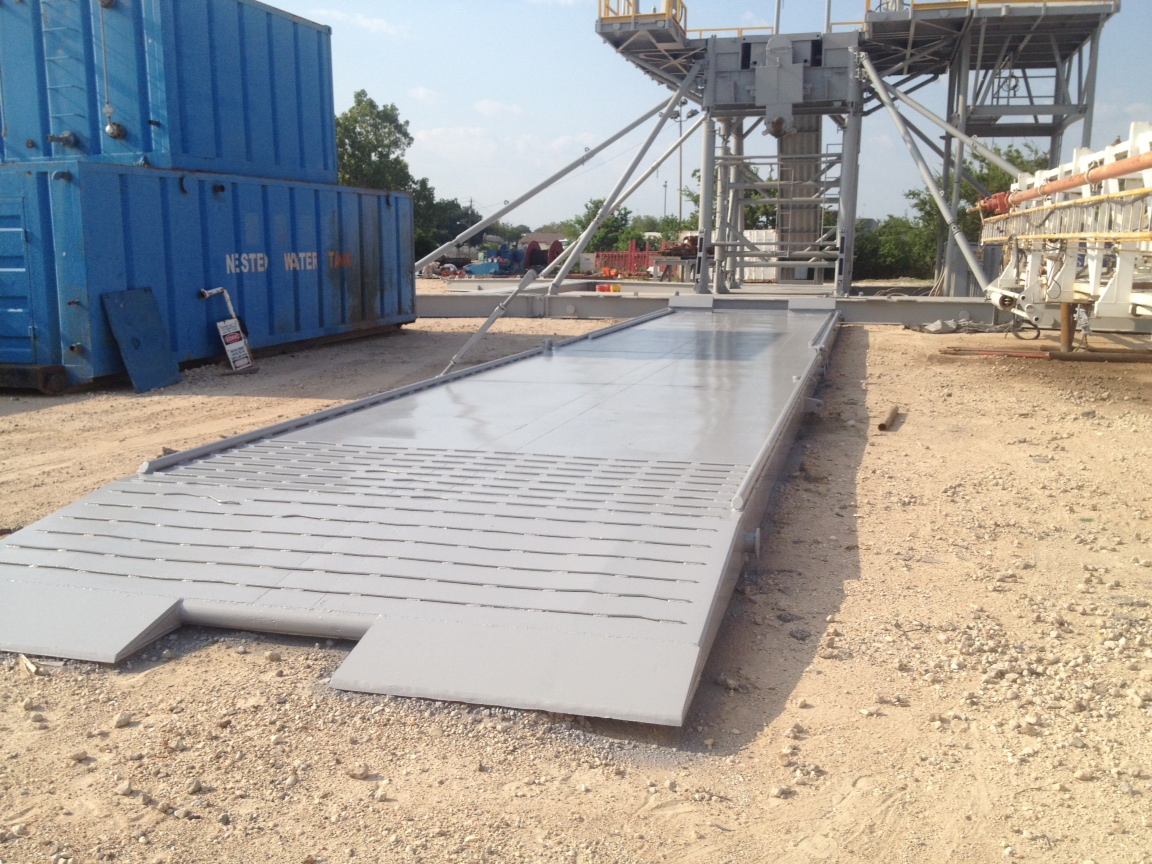

Floor – 24 feet x 20 feet Complete with 2 walkways, and trailer walkway ladder (All new 2 Qtr. 2013).

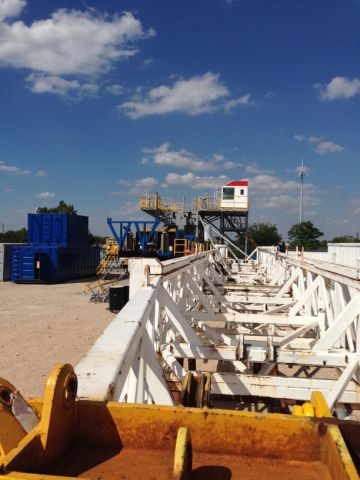

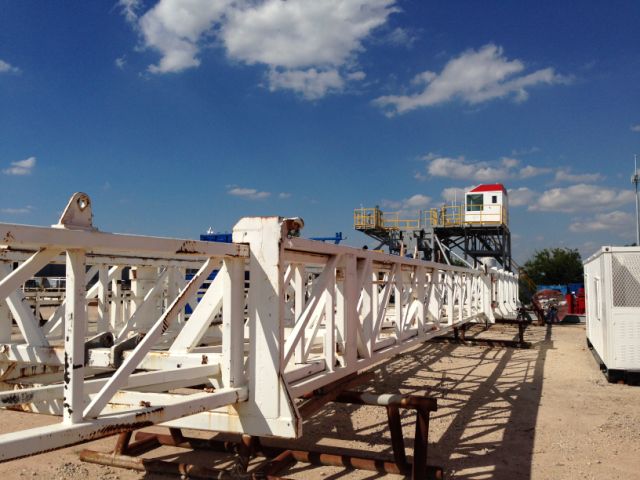

IV-DERRICK AND TRAVELING EQUIPMENT
Model JJ32 – API 4F Triple 151’ x 505,000 lbs (Clear Height 134’)
68’5” (scoped in)
Board heights – 86.5 feet/ 88 feet/ 89.2 feet
Raising speed – 14 minutes from horizontal

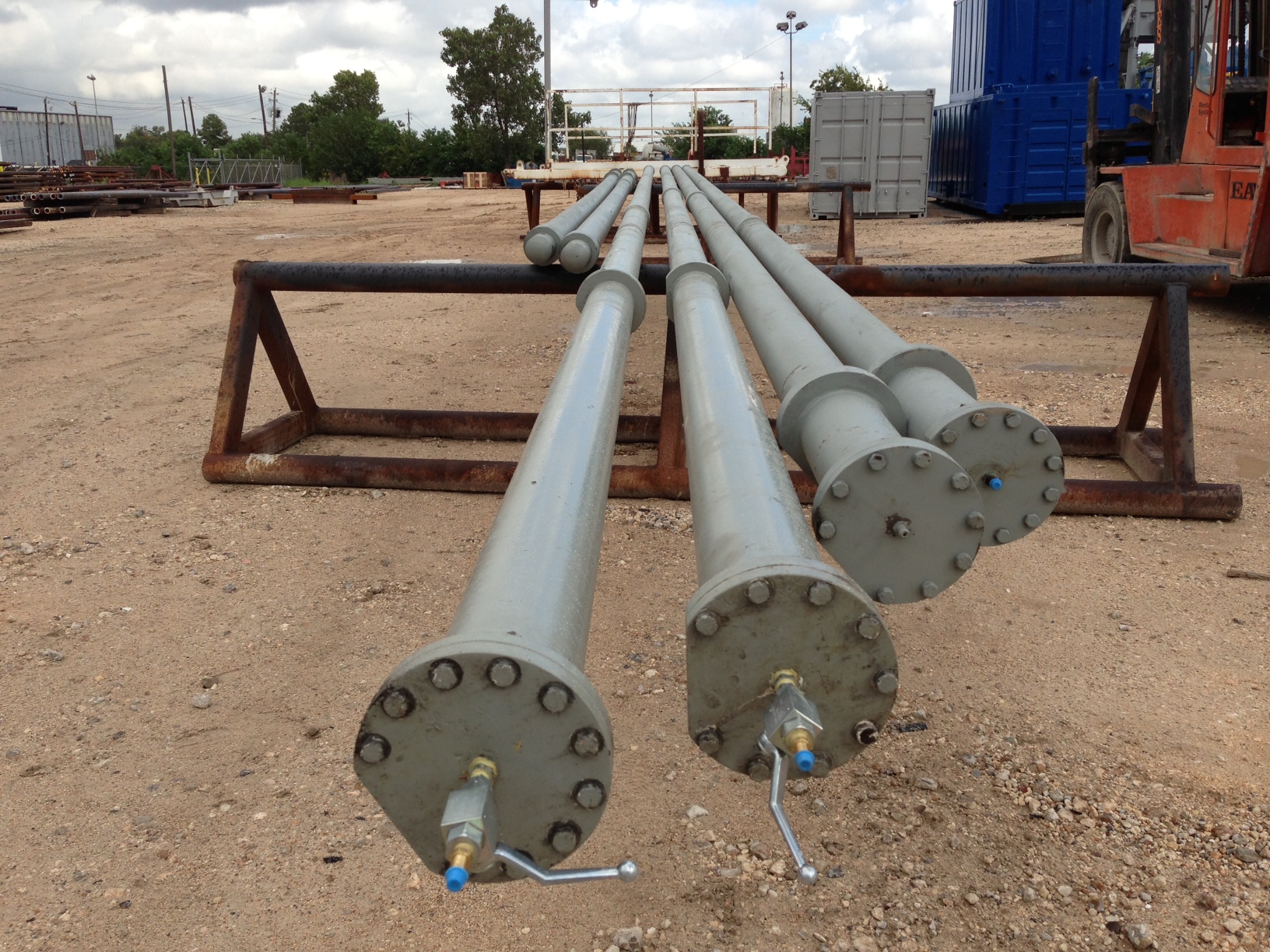

Hydraulically scoped (All cylinders fully repaired & Tested by Texas Hydraulics 2 Qtr. 2013).
13,500 feet 4 ½” pipe racking capacity
Wind resistance – 110 km/hr
Complete with explosion-proof lighting / parameter lighting repaired in 2 Qtr. 2013.

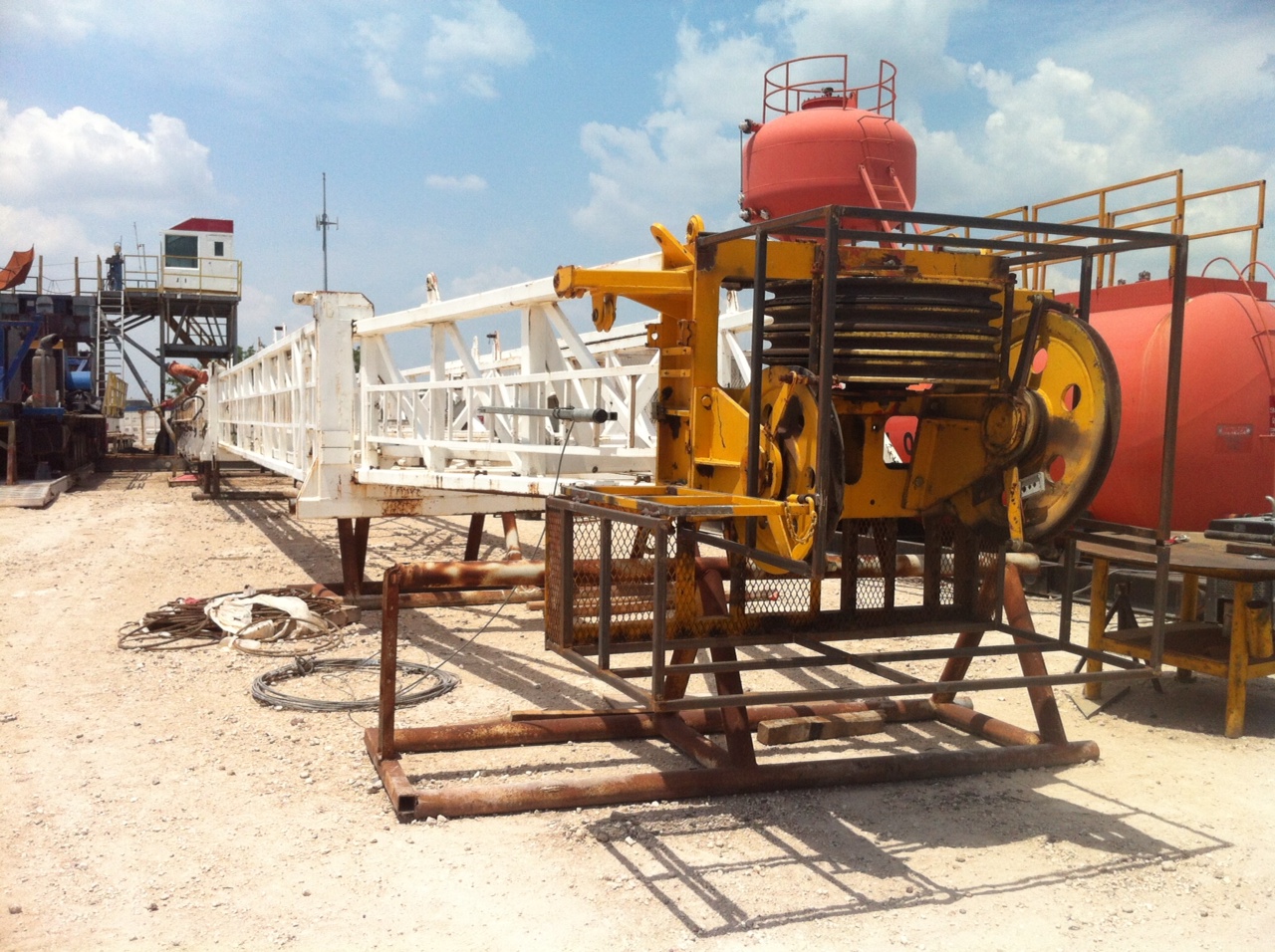

Complete with Geronimo line, sala block, tong cylinders and 3st rack winch
4” x 5000 psi standpipe (removed, blasted, primed, painted and tested to 7500 psi by 3rd party). And 3” ID x 60’ kelly hose

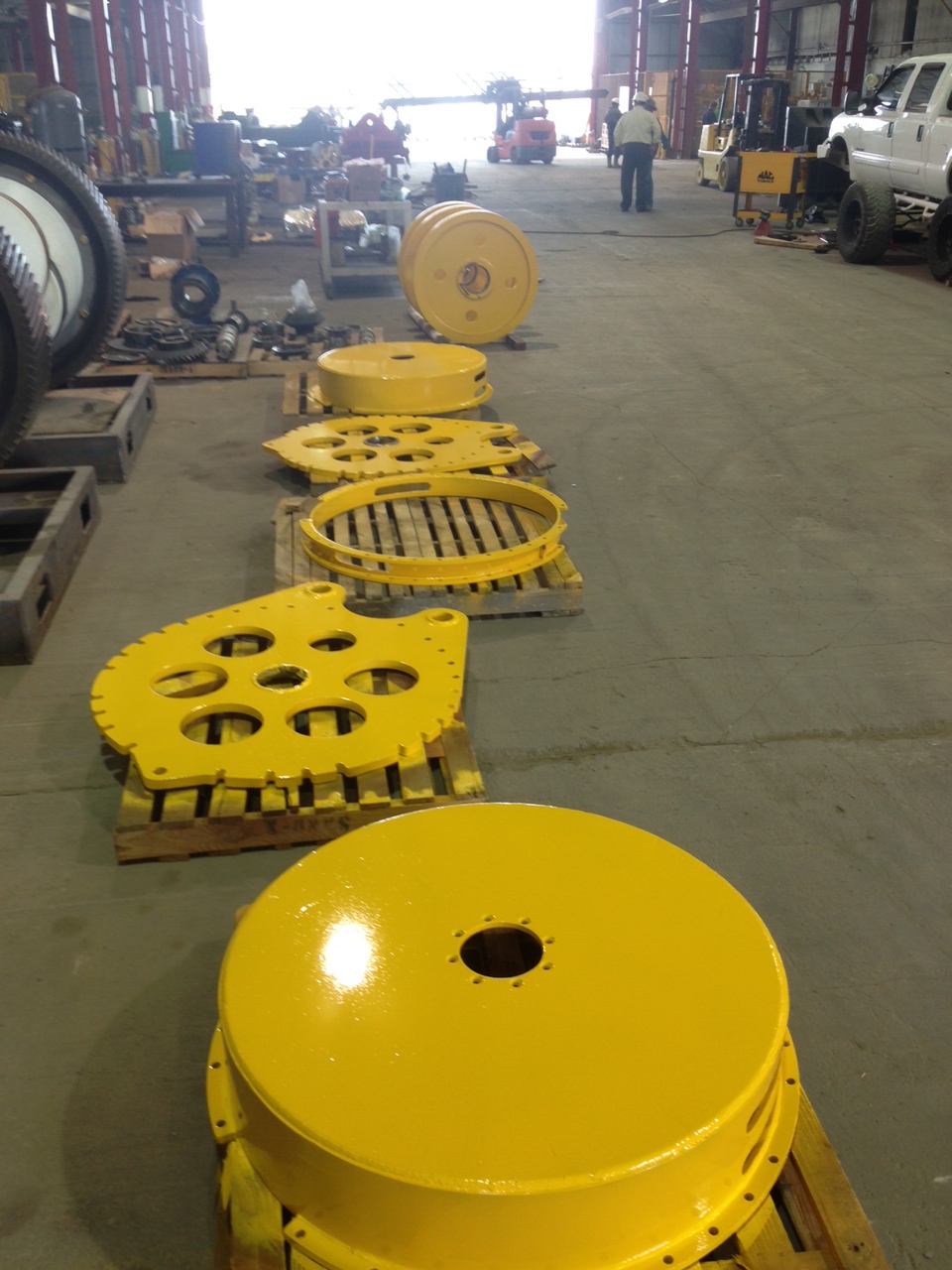

Crown Model TC-225 API (F40052 Crown), 250-Ton capacity, 10 lines, (5) 36” x 1-1/4” sheaves. (All sheaves have been removed, MPI’d by 3rd party and bearings replaced).
V-ROTARY DRIVE SYSTEM
Model ZP 275 – 27 ½ inch opening rated @ 500Ton– API 7K removed from floor, shopped, cleaned and bearings replaced by TCM-Offshore 2nd Qtr. 2013.
Max speed – 300 rpm
Static loading – 1,000,000 lbs
Torque – 20,265 foot lbs
Complete with 1, 2, and 3 bowls
Pin or square bushing drive available
Right Angle Gear Box Driven (Shopped, mopped and Function tested by TCM-Offshore 2 Qtr. 2013).
Permanent and ratcheting type locking systems
Rotary torque sensor
Master bushing rated for 500 Tons with API #3 interior – Pin drive

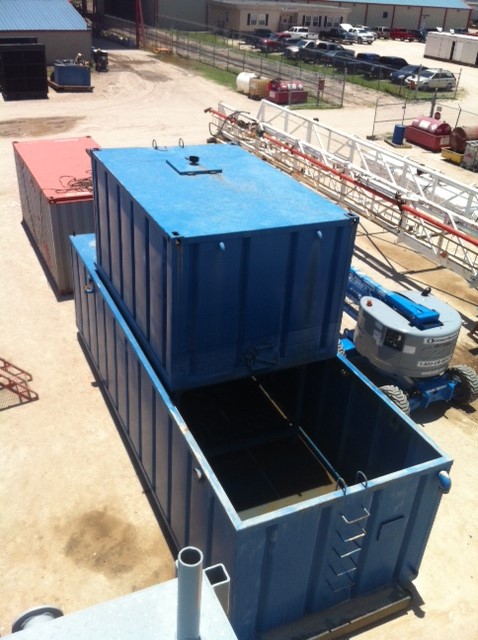

VI-CAPACITIES
Fuel Oil: 10,000 gallons 34’ L x 8’ W x 10’ H skidded c/w loading hitches
Liquid mud: 930 barrels
Process tank: 70 barrels
Drill Water: 18,000 gallons 30’ L x 10’ W x 10’ H skidded c/w loading hitches
VII-RIG POWER
Two each Caterpillar C-18 (AR# 237-1955), (SN# WJH01603), (AR# 237-1955), (SN# WJH01604) electronic engines complete with Alison 6061 transmissions. (All above have been function tested and serviced according to Caterpillar and Stewart & Stevenson recommendations, by TCM-Offshore 2nd Qtr. 2013).
Two redundant hydraulic pumps mounted on transmissions for raising/lowering Mast
Compound box Model BXJ, input speed max 2500 rpm, output torque 19,176 foot lbs
Rotary transmission – Model ZX140, 2100rpm max, input torque 10,360 foot lbs

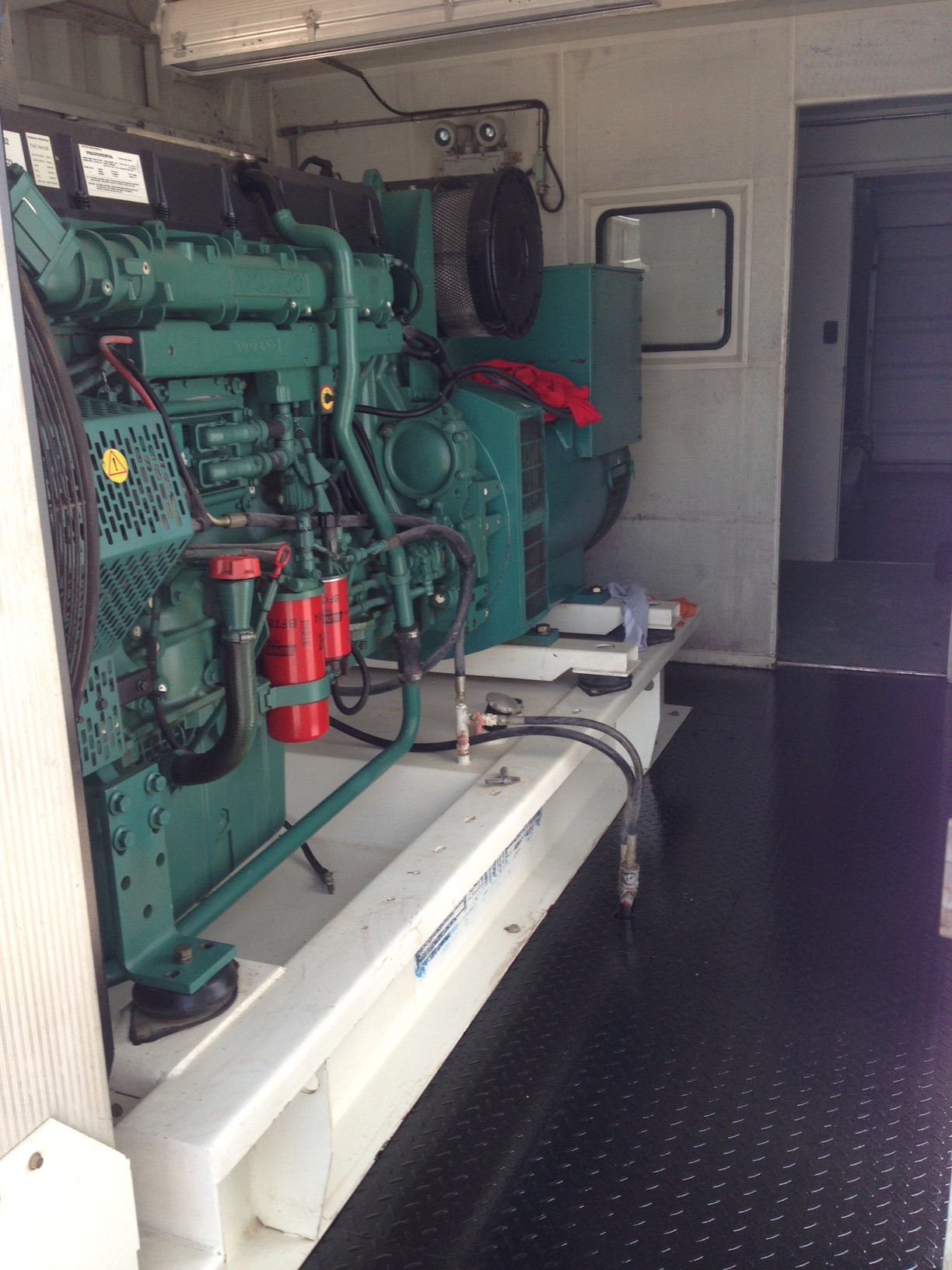

VIII-GENERATOR HOUSE
Two Volvo diesel engines (Model TAD1641GE) 1800 RPM, 565Kw (Serviced by TCM-Offshore 2nd Qtr. 2013).
Two Samford generators 400 Kw, 60 Hz, 3Ph, 1800 RPM (Serviced by TCM-Offshore 2nd Qtr. 2013).
Electronic engine control panels (2) (Serviced by TCM-Offshore 2nd Qtr. 2013).
Fully enclosed house 31’ L x 9’7” W x 10’6” H c/w loading hitches
Engines covered, Generators covered and house was sandblasted, primed and painted 2 qtr. 2013.
IX-MCC HOUSE
RG System – 3 gen cubicles – 4 MCC cubicles (All new wiring was run, receptacles changed to Appleton, and all Telemecanique and Merlin Gerin breakers and switch gear was installed 2 Qtr. 2013, and supplied by Grainger Supply in Houston.
500 kva 480 to 240/110 VAC transforms
480 vac MCC panel
Air conditioned house c/w work desk, interior lighting, outside plug in receptacle panel
MCC House 31’3” L x 9’ W x 10’6” H c/w loading hitches was professionally vacuumed, all contacts were cleaned and new flooring replaced 2 qtr. 2013.
Soft Start Cabinet #1
Merlin Gerin – NSC 160S 125A breaker (x4)
Telemecanique – LCID115 Magnetic Contactor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor Controller SMC 135 amp 480 Vac 150-A135NBD
Soft Start Cabinet #2
Merlin Gerin – NSC 160S 125A breaker (x4)
Telemecanique – LCID115 Magnetic Contactor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor Controller SMC 135 amp 480 Vac 150-A135NBD
Merlin Gerin – NSC 160S 125A breaker (x4)
Telemecanique – LCID115 Magnetic Contactor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor Controller SMC 135 amp 480 Vac 150-A135NBD
Feeder Cabinet 02-A
A1 thru A8: ABB S1 breakers
A9-A10: ABB Breaker MS 325 690V
A11-A12: ABB S2 Breaker I4= 160A UE=690V
A13: ABB S3 Breaker I4= 250A UE=690V
Incoming Cabine 480V
ABB S1-I4=125A 4E=500V (x2) Breaker
ABB SACE F1-IN=1250A UE=415V (x2)
CHNT Transformer – 480V/240V NDK (BK) – 300 50/60 HZ (x2)
RT14-20-IEC=269 GB=13529 20A 380V
Lighting Cabinet – C
C1,C2,C3,C6,C11,C12,C13,C14: ABB S1 Breaker, IU= 125A 4E=500v
C4,C5,C7,C8,C9,C10,C15,C16,C17,C18,C19,C20: S252S Breaker C25, IEC-30898, GB-10963
Feeder Cabinet 01-B
B1 thru B8: ABB S1 Breaker, IU= 125A UE=500V
B9-B10: ABB Breaker MS 325, 690V
B11-B12: ABB S2 Breaker, I4= 160A UE=690V
B13: ABB S3 Breaker, IU=250A UE=690V
X-AIR COMPRESSOR HOUSE
All compressors, switchgear and volume tanks were serviced by McKenzie Compressors 2nd. Qtr. 2013.
Sullair (2) 220 CFM screw compressors Model LS12-50HHAC SULL
(2) 400-gallon air receivers ASME approved
125 gallon air receiver drawworks motors
SRC 200 Dryer refrigerant
SRC 220 dryer
Two each 50HP Model LS12-50H helical air compressors, 50 HP, 37 Kw, 187 cfm
Separator and volume tanks
Fully enclosed house 32’ L x 9’9” W x 10’ H c/w loading hitches
XI-BLOW OUT PREVENTION SYSTEM
One (1) Accumulator System Burnsco 5 Station 3000psi working pressure, with 2 each 60:1 air pumps and 1 each 15hp electric motor driven triplex pump with 7/8” plungers – 11 gallon bladder type bottles – ASME vessels. Drillers Control Panel – API compliant unit, master skidded c/w loading hitches.
BOP Handling system was totally replaced by TCM-Offshore with new Certex overhanging gear.
10-Ton hand operated chain hoist with 10’ of falls was totally replaced by Certex 2013.
XII-AUXILLIARY EQUIPMENT

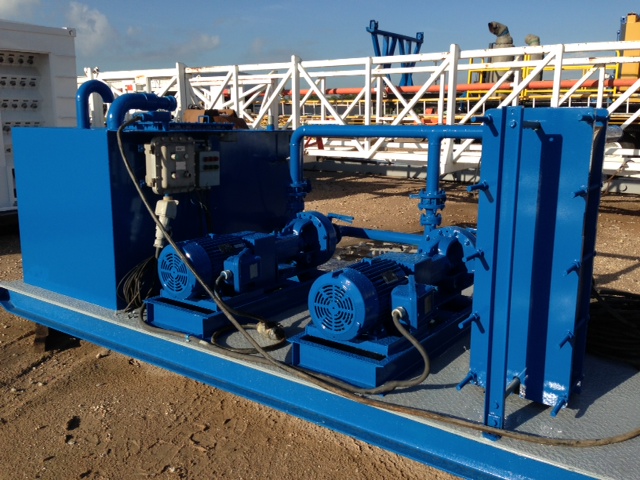

Brake cooling tank with pumps and heat exchanger (below Drill House – one skid)

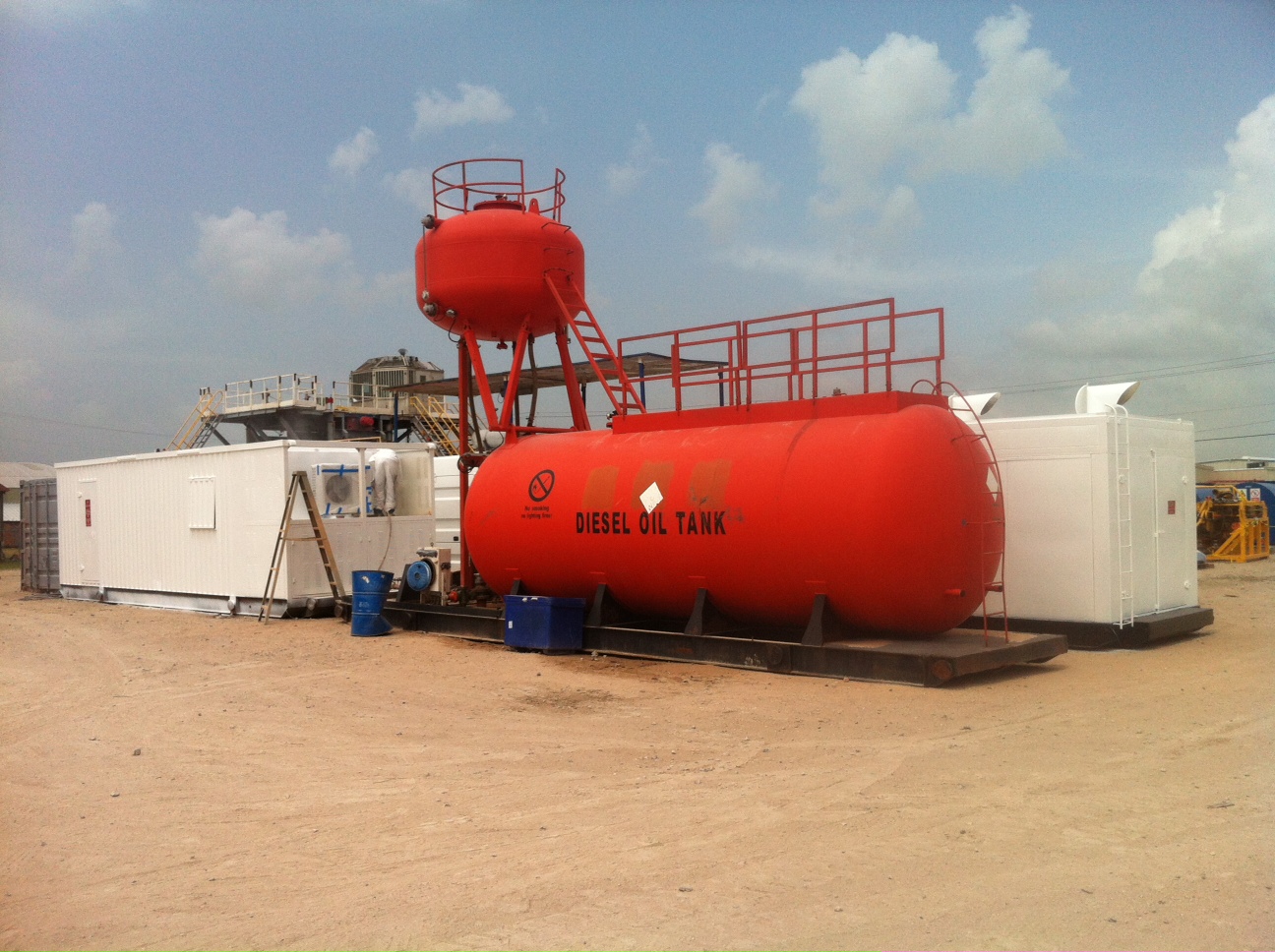

One x 8,000 gallon fuel tank – skidded – with transfer pumps c/w loading hitches (All switch gear replaced w/new).
One 16,000 gallon water tank – skidded – with transfer and fire pump c/w loading hitches
(2) 20’ containers with associated spare parts/components for deck engines, drawworks and drive lines.
Two hydraulic cathead cylinders – 33,708 lbs pull
Two drawworks winches – 3 short tons and 5 short tons replaced with new Certex wire 2013.
One swivel Model Oilwell PC – 250-Ton x 5000 psi x 6 5/8 Regular LH connection
One McKissick 250-Ton B/H Combo c/w BJ Hook (Rebuilt/Certified 2013). 5 sheaves grooved for 1-1/4”
International Kelly Spinner
Global Safety valves (2) NC46 Grey inside BOPS with releasing tools, (2) NC46 one piece Hydril Style lower Kelly Valves, (1) 6-5/8” LH API Reg Upper Kelly Cock
Misc. Subs: Ace Machine (3) NC46 wear subs 10” OAL, NC46 x 6-5/8” reg bit subs, (2) NC46 x 4-1/2” reg bit subs, (2) NC46 Rubber Kelly Saver Subs

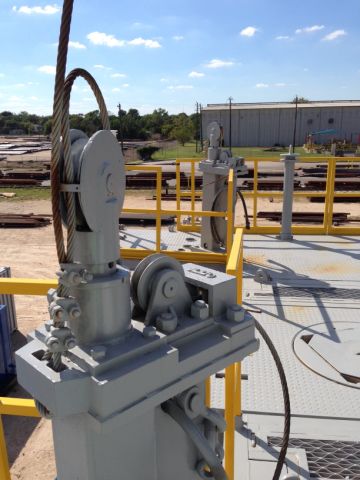

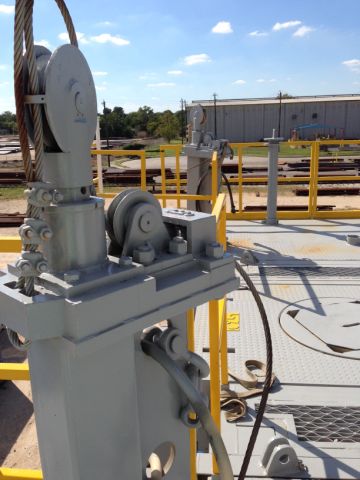

Deadline Anchor with E-80 sensator – Type D Style
Oteco Mud bucker dressed for 4-1/2” drill pipe
Fire fighting/Safety extinguishes 10 to 30 lbs
Sala blocks
Lad Safety system for Mast Handling Tools

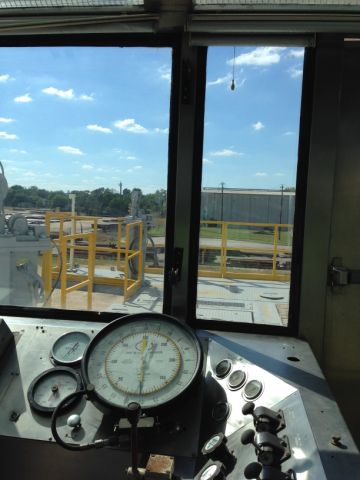

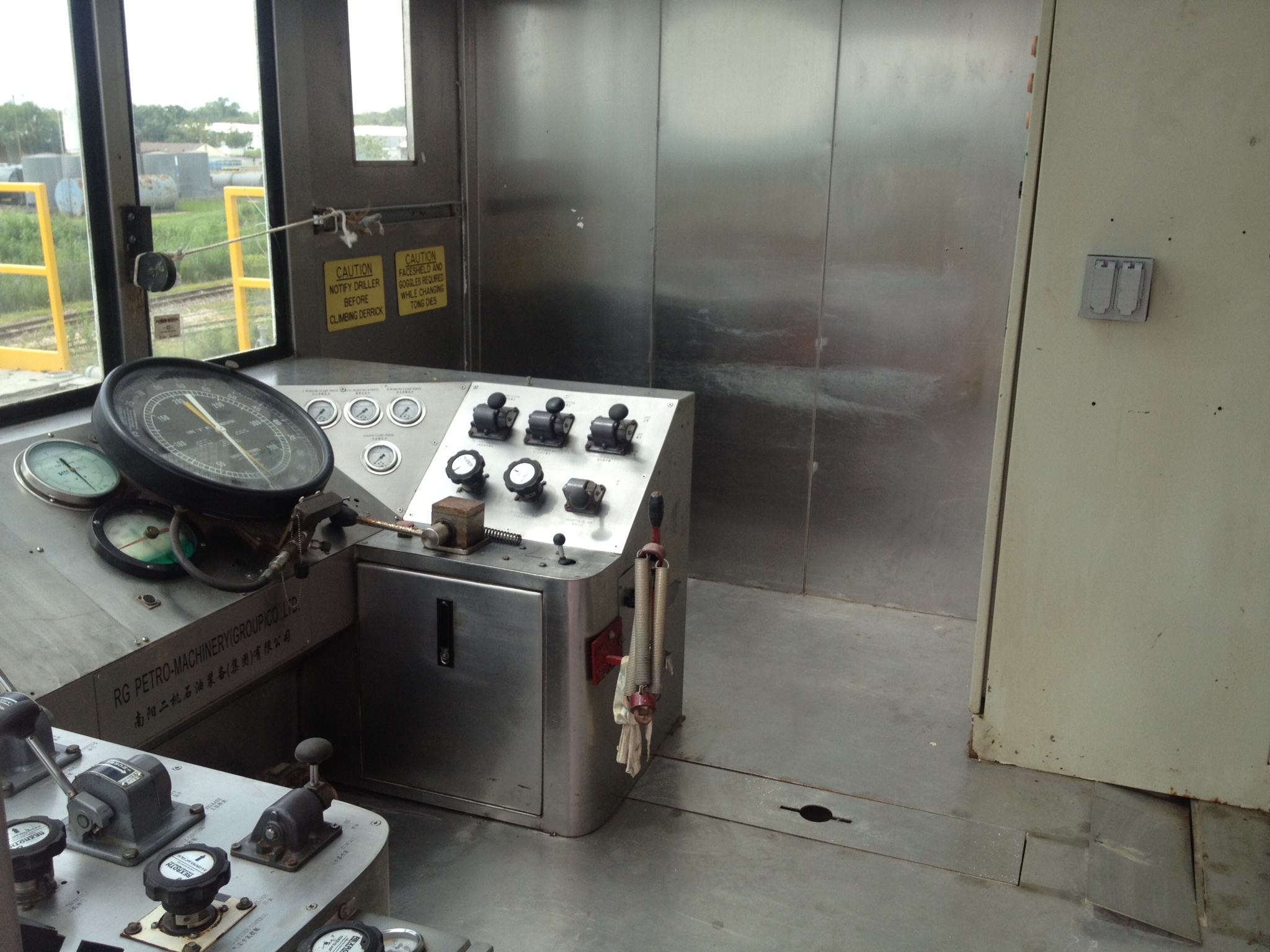

XIII-DRILLERS CONTROL STATION AND CONTROL HOUSE
All to be replaced with Wagner Instrumentation 2nd. Qtr. 2013.
Fully enclosed with explosion proof A/C
Joystick control of drawworks – 6 speeds
Full instrumentation package – hook, pump pressure, torque, rpm, tong torque and strokes
Electronic package for pit volumes
FS Type Weight indicator system
(2) Type D and F threaded and flanged psi gauge for mud and choke systems
|
