SKYTOP BREWSTER N-95 S/D, 500HP DRILLING RIG
(Listing No. D-216)
Click on Above Images for Larger Viewing

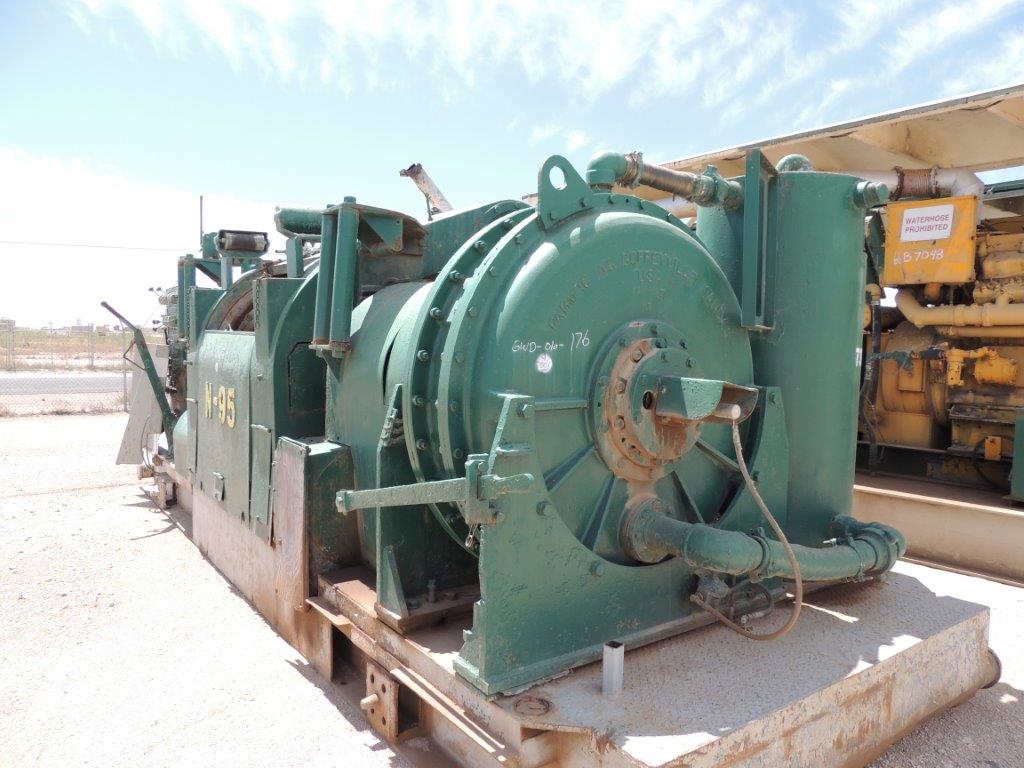

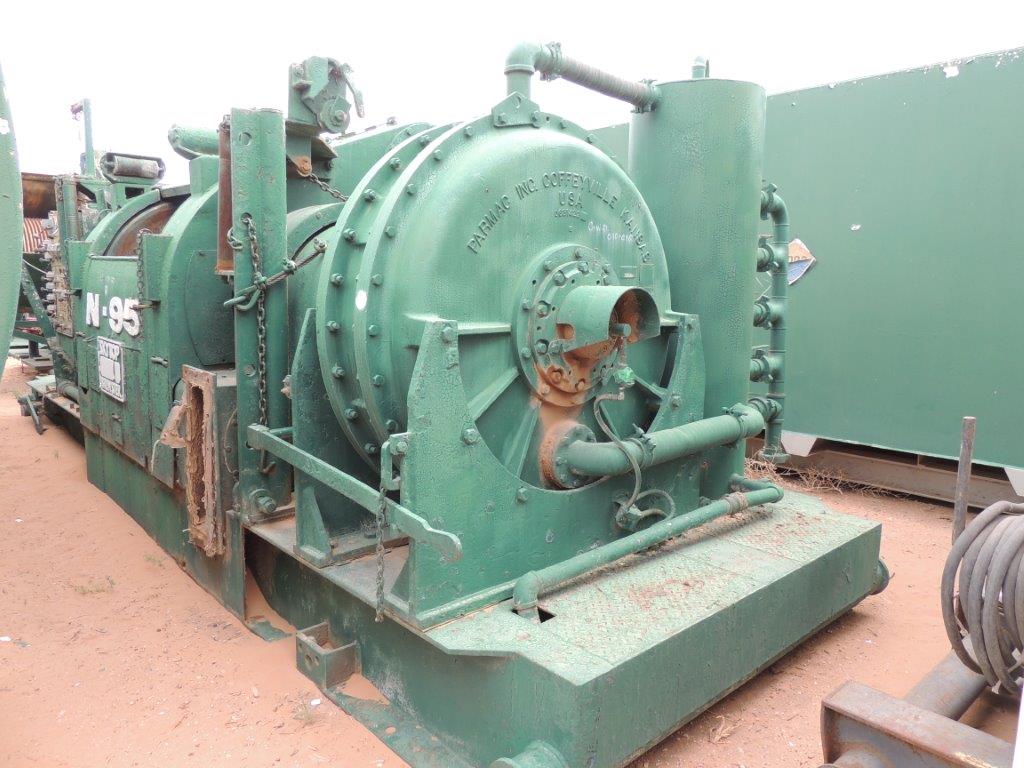

· SKYTOP BREWSTER N-95 S/D DRAWWORKS SERIAL #95D001,500HP, GROOVED FOR 1-3/8” FOSTER CATHEADS, OVERRUNNING CLUTCH, DRILLERS CONTROL CONSOLE, DUAL CHAIN TURNBACKS, PARMAC 481 BRAKE SERIAL #57365 WITH CRADLE AND WATER TANK SKIDDED

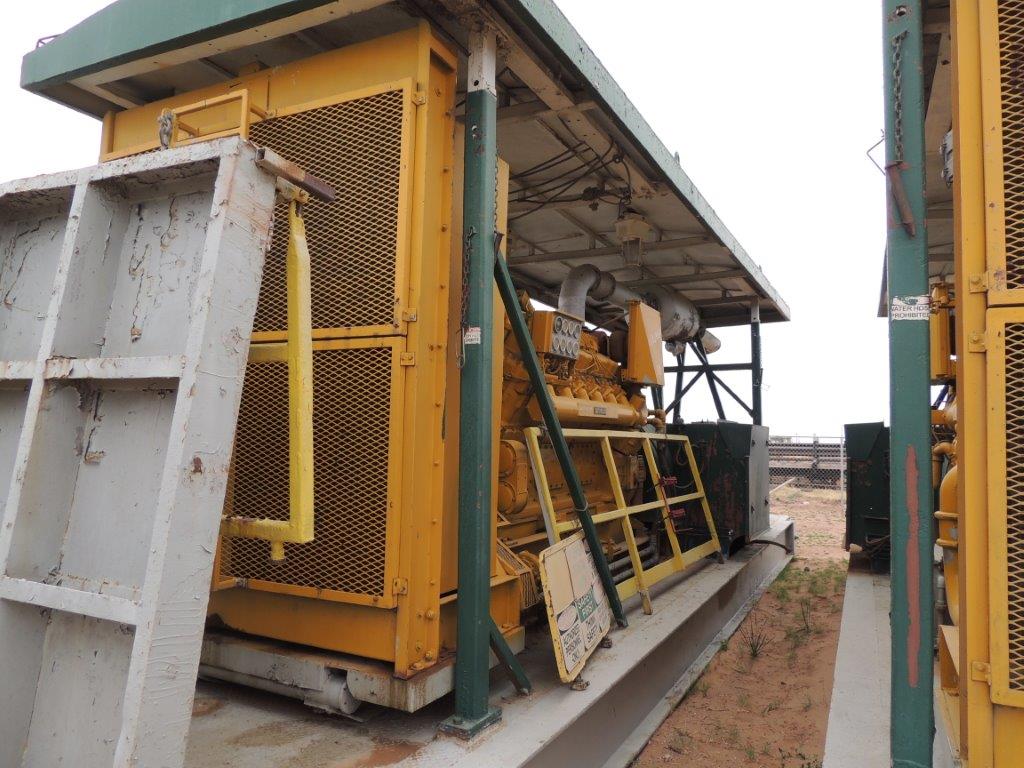

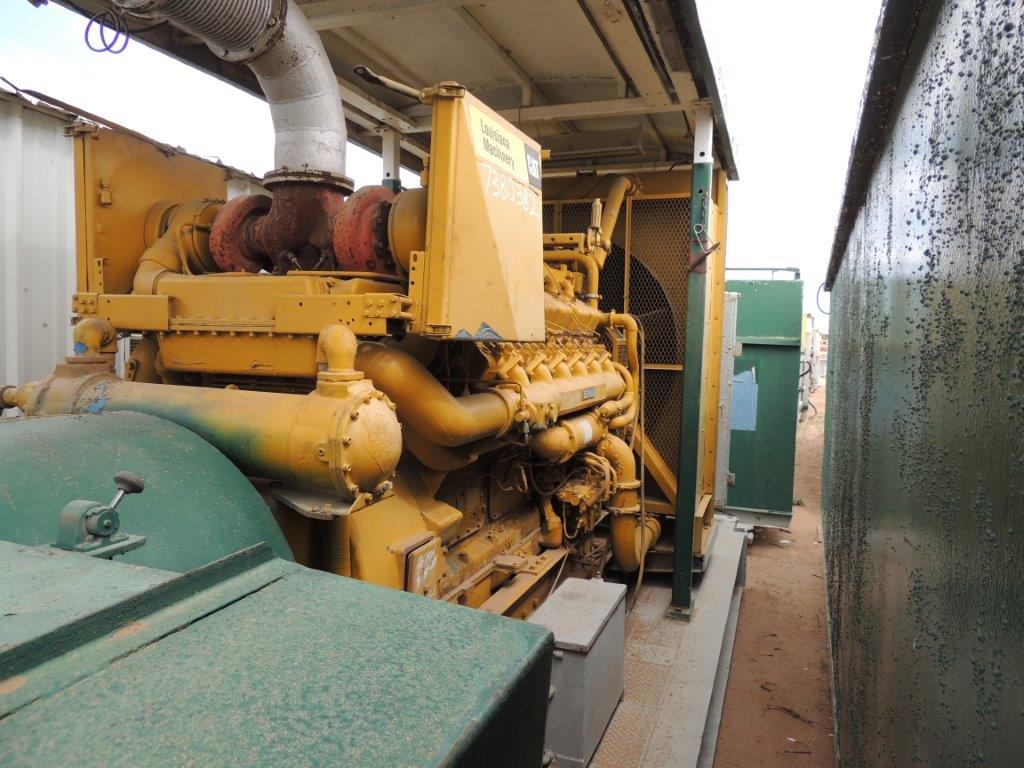

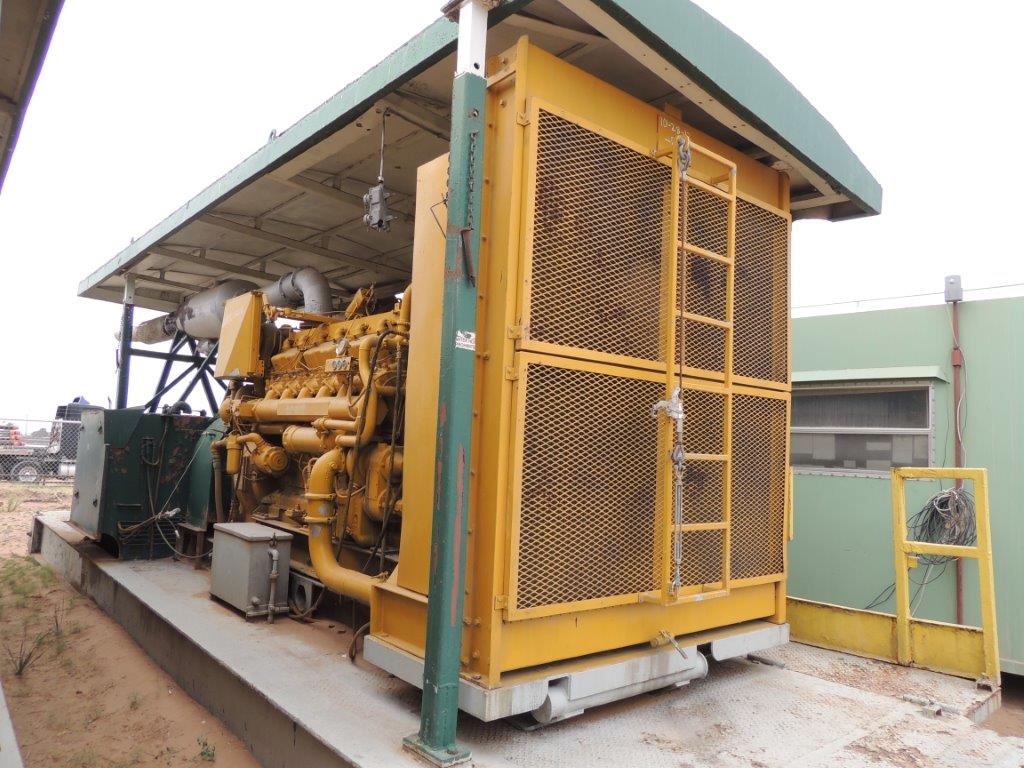

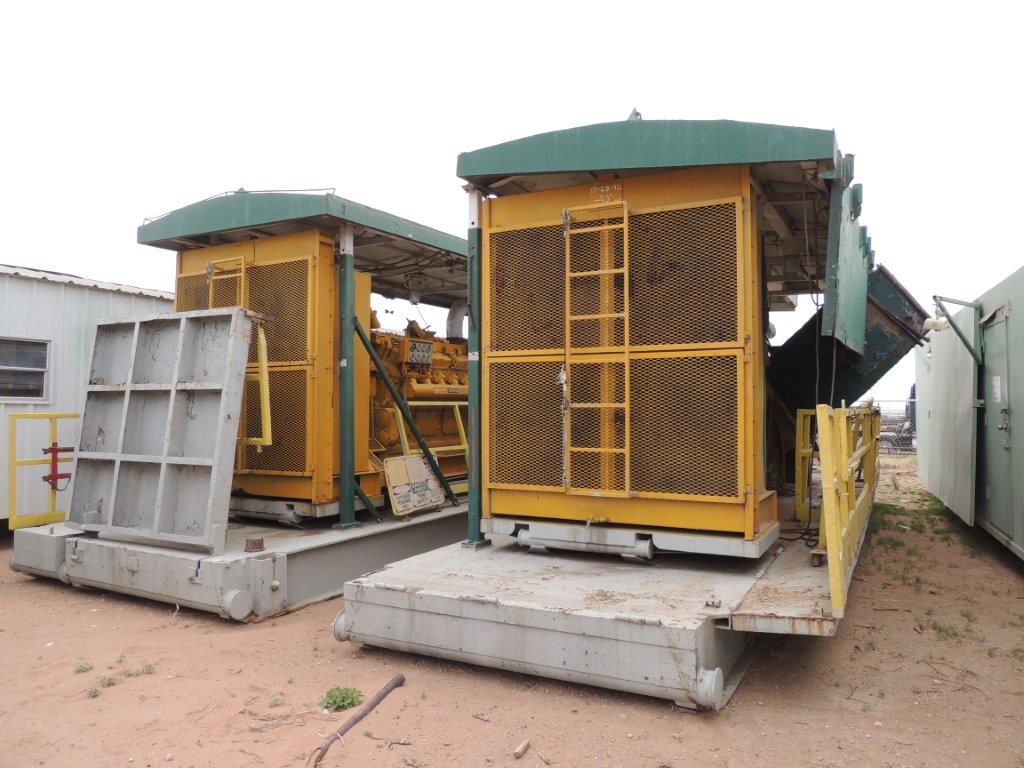

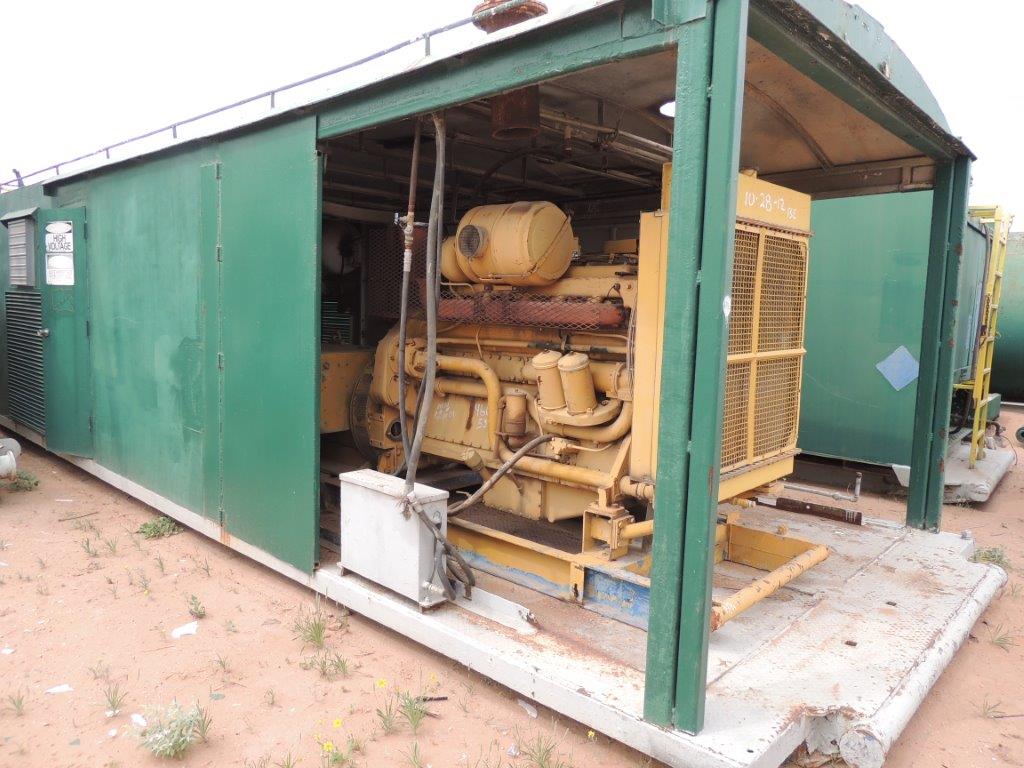

· CAT 398TA DIESEL ENGINE SERIAL #66B09340 WITH AIR STARTER, RADIATOR, PREMIUM GAUGE PANEL, NATIONAL OILWELL C-300-64 TORQUE CONVERTER, SKYTOP BREWSTER SECTIONAL COMPOUND WITH DUAL PUMP DRIVE, MOUNTED ON 10’WX33’4” LONG COVERED SKID

· CAT 398TA DIESEL ENGINE SERIAL #66B09218 WITH AIR STARTER, RADIATOR GAUGES, NATIONAL OILWELL C-300-64 TORQUE CONVERTOR SKYTOP BREWSTER SECTIONAL COMPOUND WITH DUAL PUMP DRIVE, MOUNTED ON 10’Wx33’4”L COVERED SKID

· CAT 398TA DIESEL ENGINE SERIAL #73B0382 WITH AIR STARTER, RADIATOR, PREMIUM GAUGE PANEL, NATIONAL OILWELL C-300-64 TORQUE CONVERTER, SKYTOP BREWSTER SECTIONAL COMPOUND MOUNTEDON 10’Wx33’4”L COVERED SKID

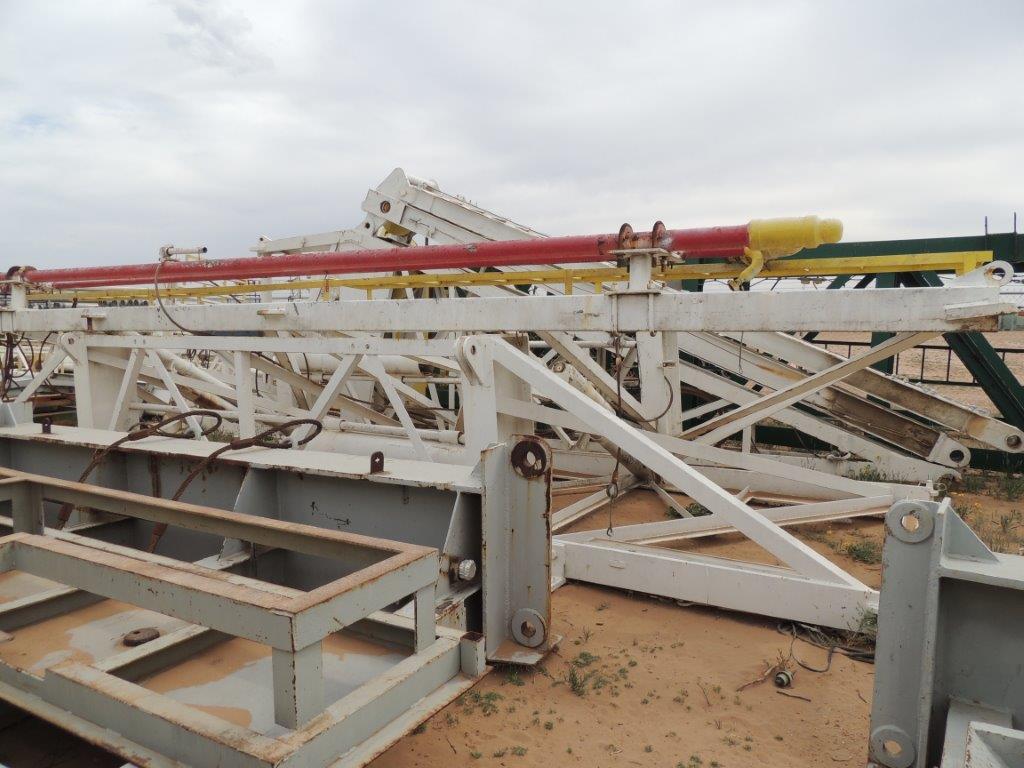

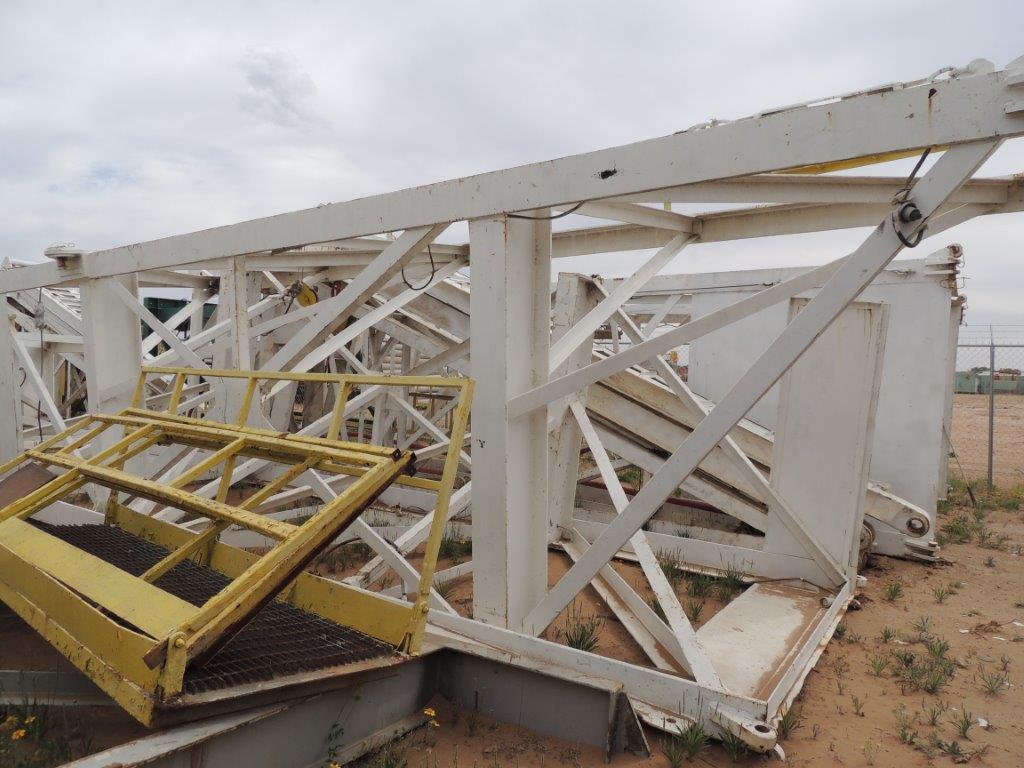

· DRILLING STRUCTURES 142’HX25’W CANTILEVER MAST, 850,000@SHL, PIN TYPE (6) 48” SHEAVES, (1) 48” FASTLINE SHEAVE 1-3/8” LINE, 4-1/2” STANDPIPE, SAFETY PLATFORM, PACKING BOARD, LADDER, STANDPIPE MANIFOLD WITH OTECO 4” AND DEMCO 2” VALVES

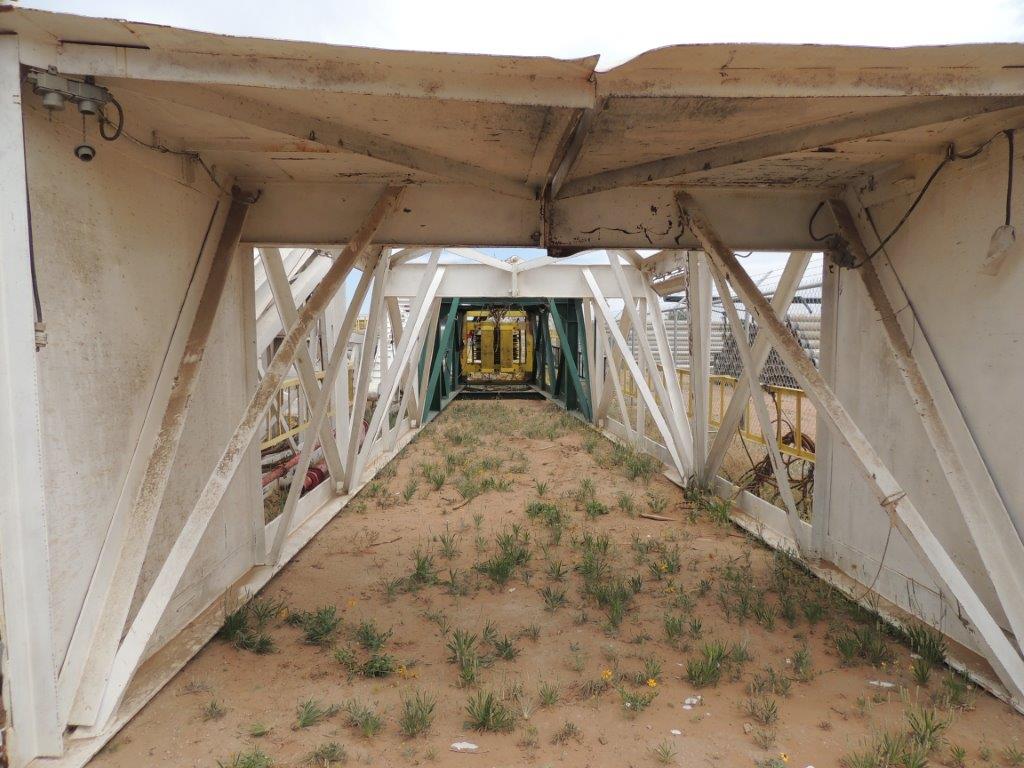

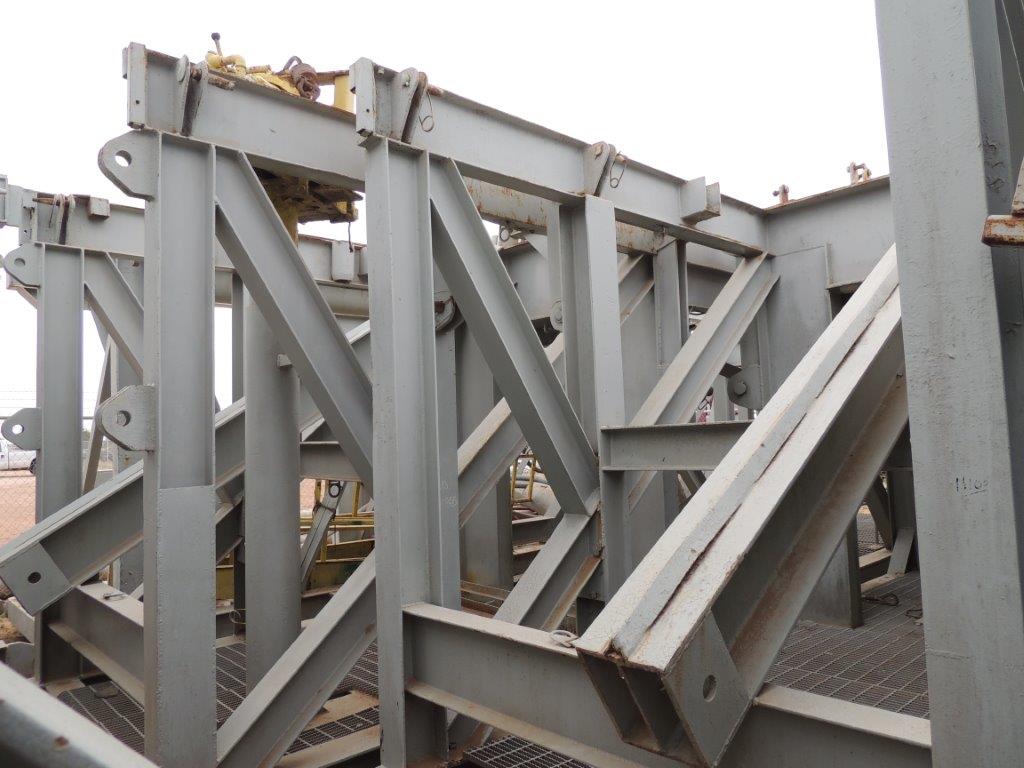

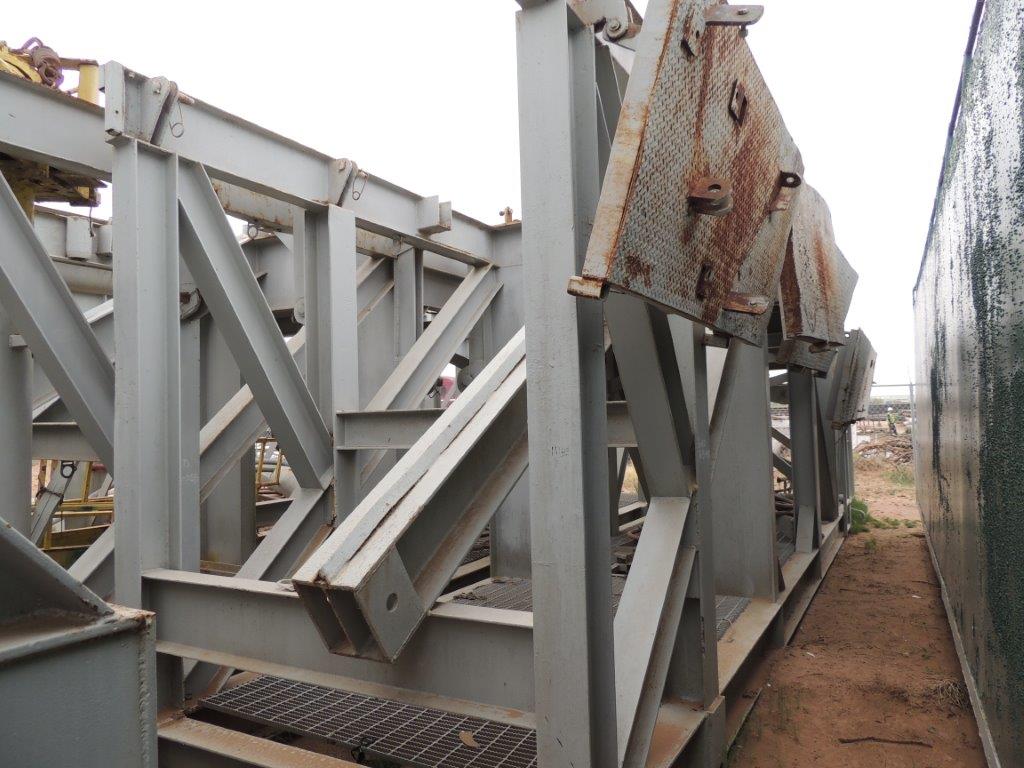

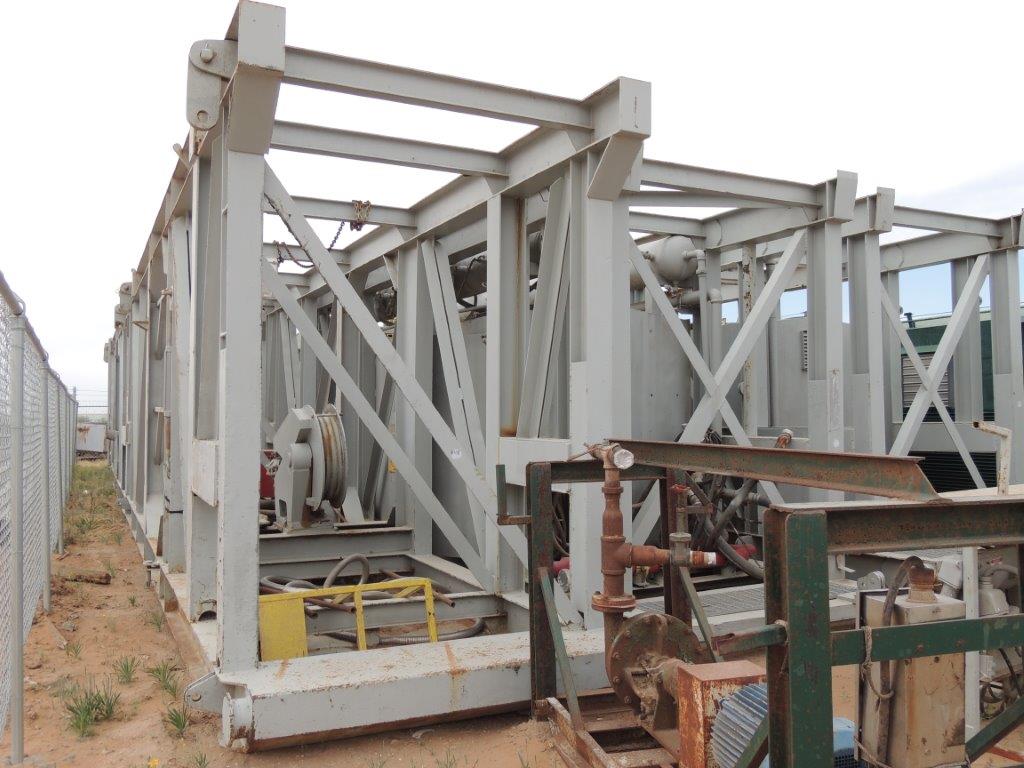

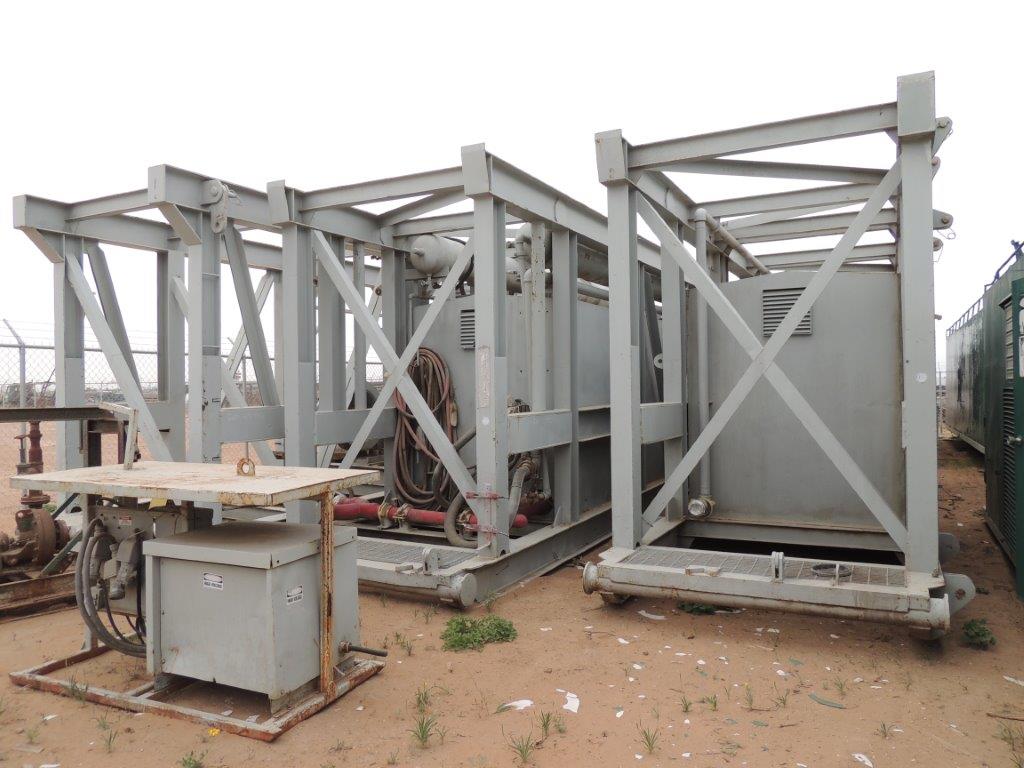

· DRILLING STRUCTURES 21’H BOX-ON-BOX STEPDOWN SUBSTRUCTURES, 400,000# SETBACK, 17’ CLEAR HEIGHT, DEADLINE ANCHOR, (2) BUILT-IN PARTS ROOMS, 2” SS HYD BOPHOSE SKIDDED

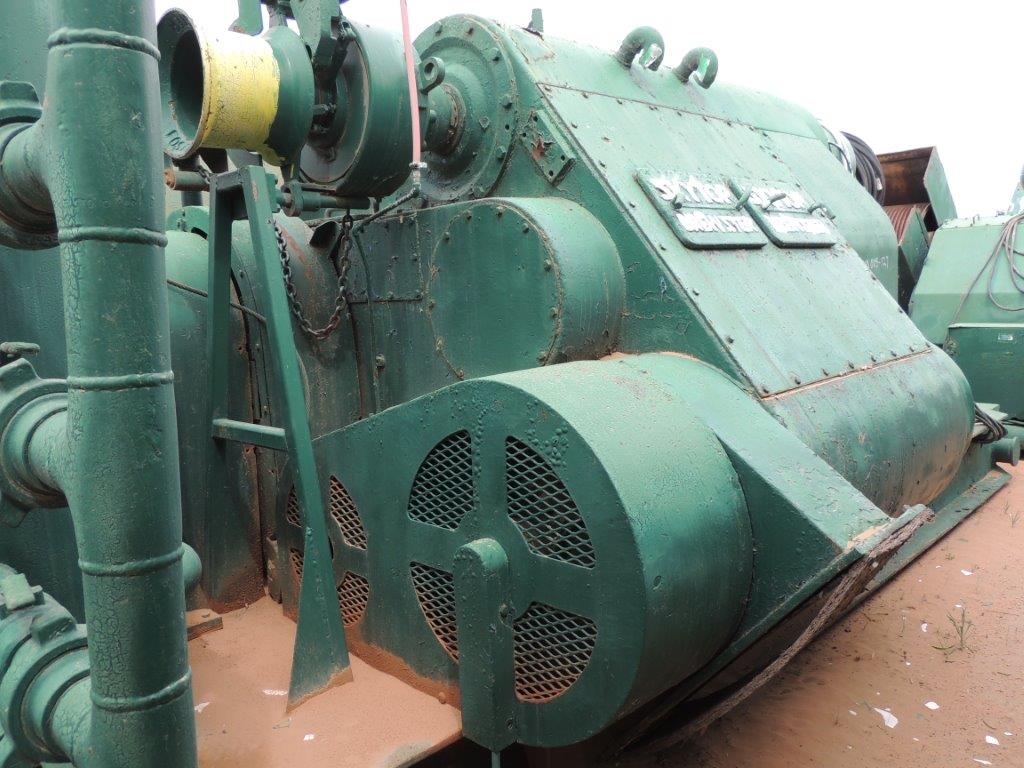

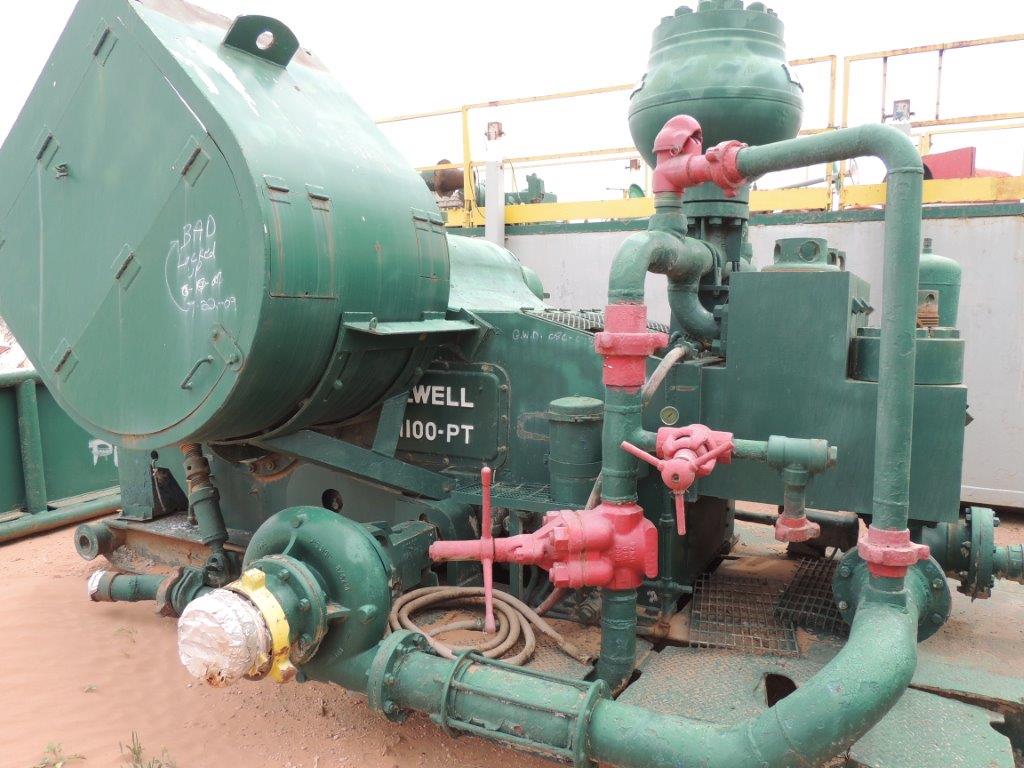

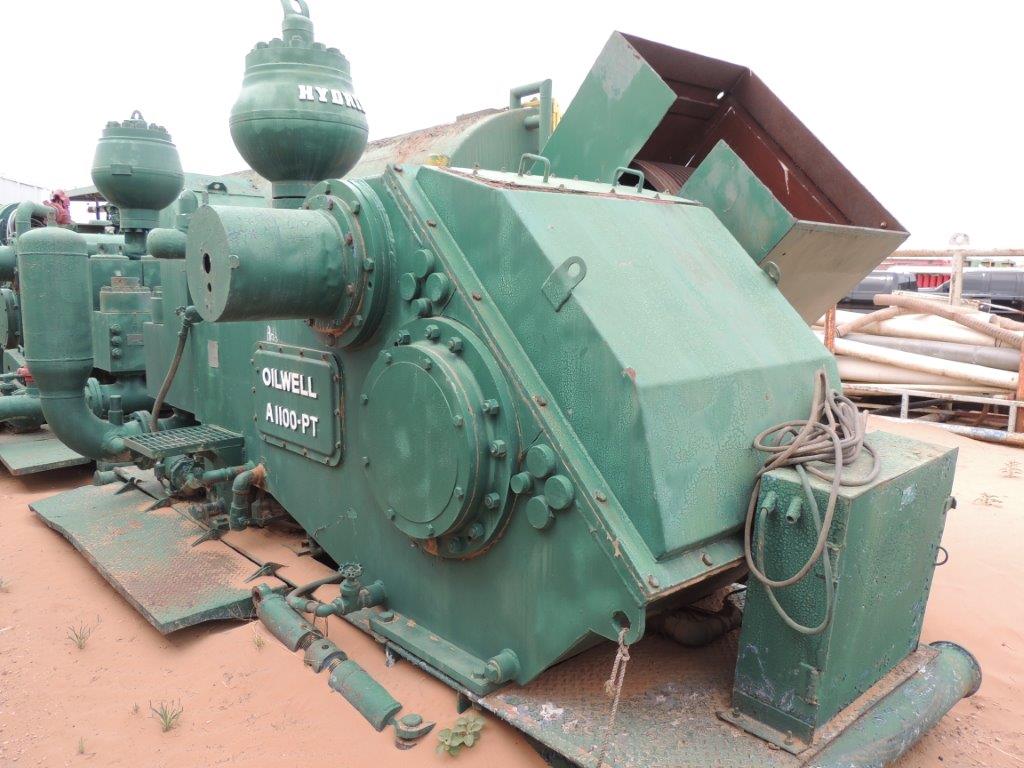

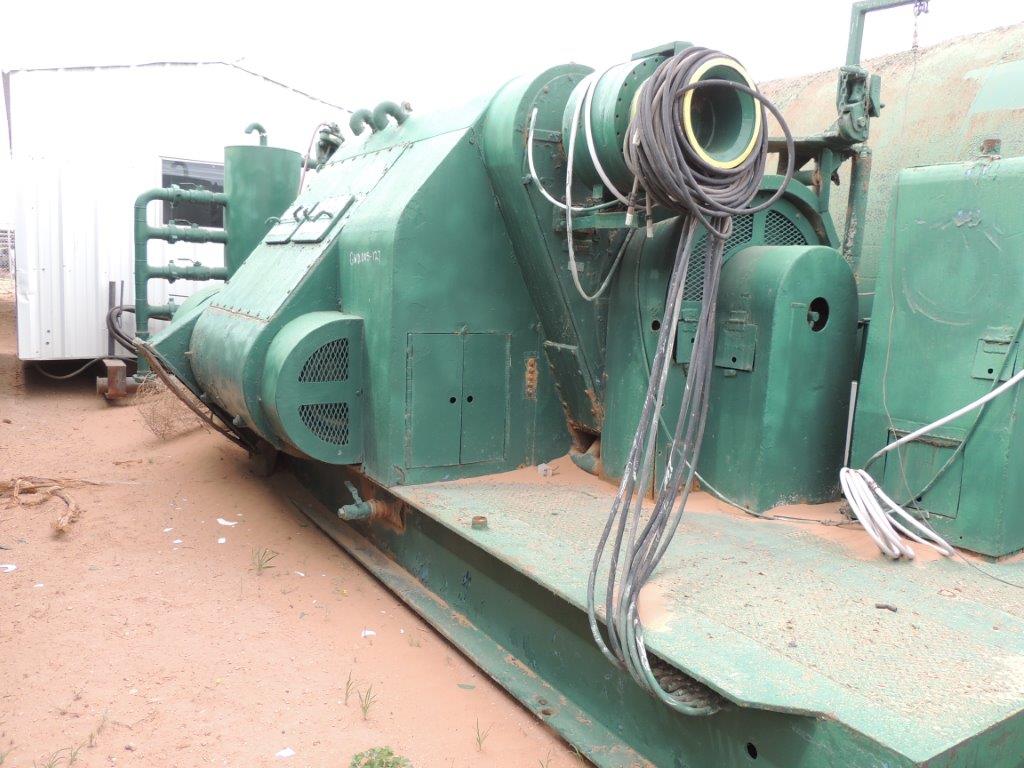

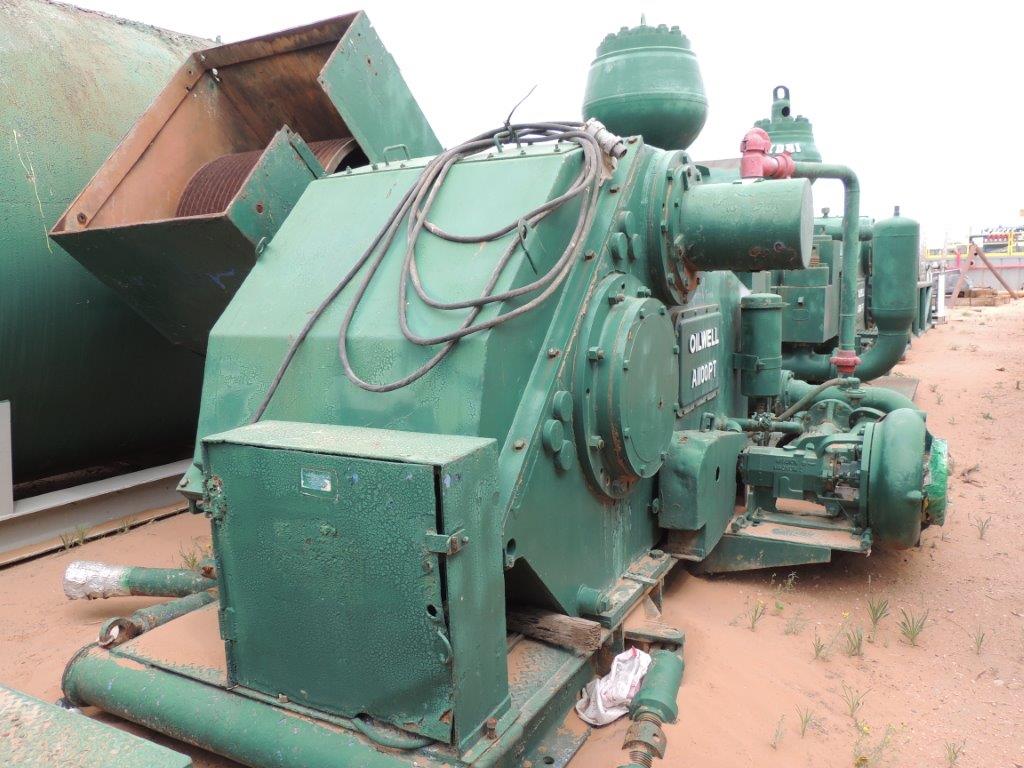

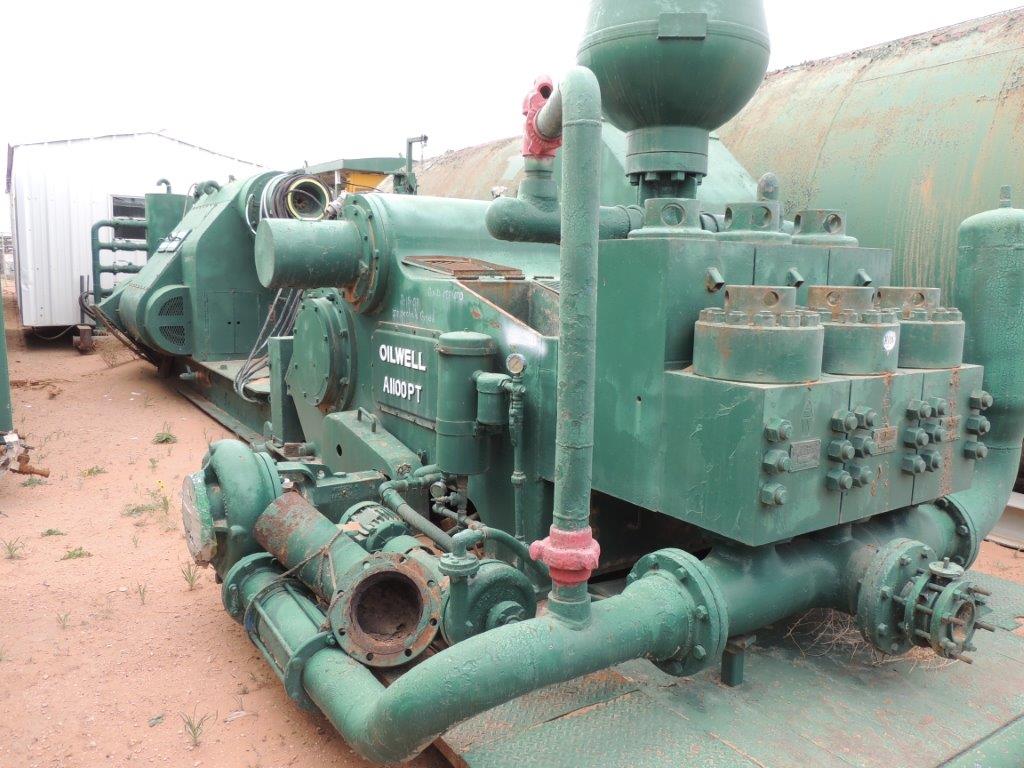

· OILWELL A1100-PT TRIPLEX PUMP FORGED STEEL FLUID END WITH QUICK CHANGE CAPS, HYDRIL K-250-5000 PULSATION DAMPNER, SURGE CHAMBER, OTECO 3” RELIEF VALVE, MISSION MAGNUM 5”x6” CENTRIFUGAL PUMP, BELT DRIVE, OTECO 4” & DEMCO 2” VALVES, DRIVE ASSEMBLY, SKIDDED

· OILWELL A1100-PT TRIPLEX PUMP SERIAL #BP199A118, FORGED STEEL FLUID END WITH QUICK CHANGE CAPS, HYDRIL K-20-5000 PULSATION DAMPNER, SURGE CHAMBER, OTECO 3” RELIEF VALVE, MISSION MAGNUM 5”x6” CENTRIFUGAL PUMP, BELT DRIVE OTECO 4” AND DEMCO 2” VALVES SKIDDED

· JOY 500-TON HOOK SERIAL #85

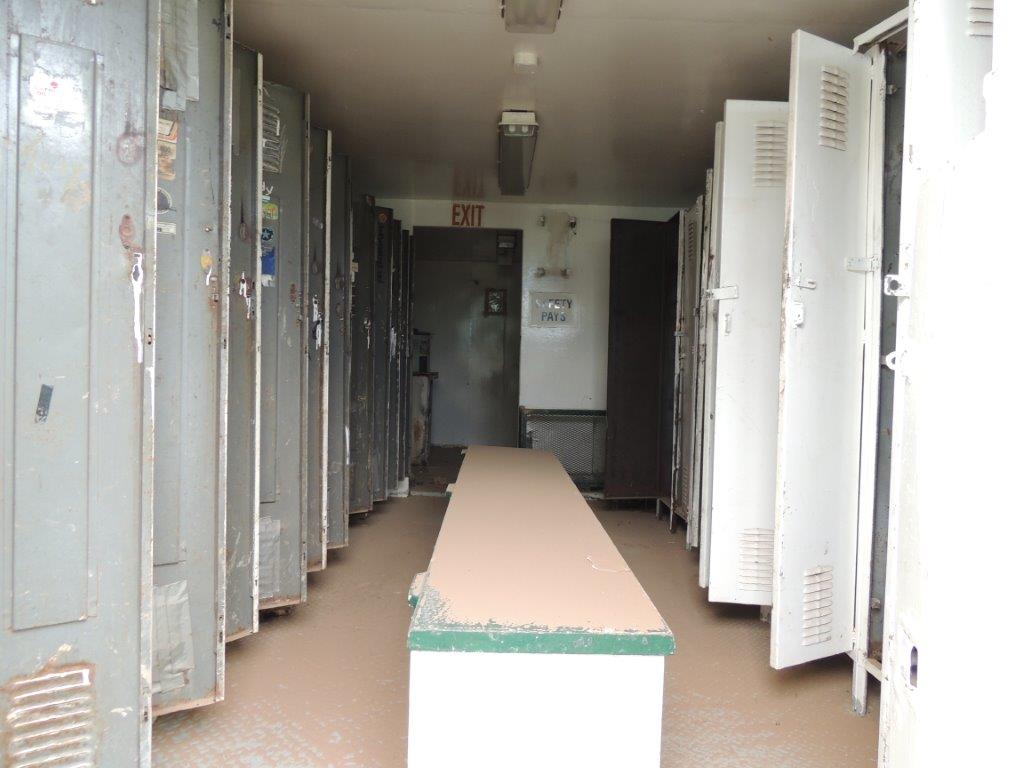

· 10’6”Wx38’L STEEL CHANGE HOUSE WITH ROUND ROP, (24) METAL LOCKERS, BENCH,

CABINETS, WASHER, DRYER, SINK, HOT WATER HEATER, SKIDDED

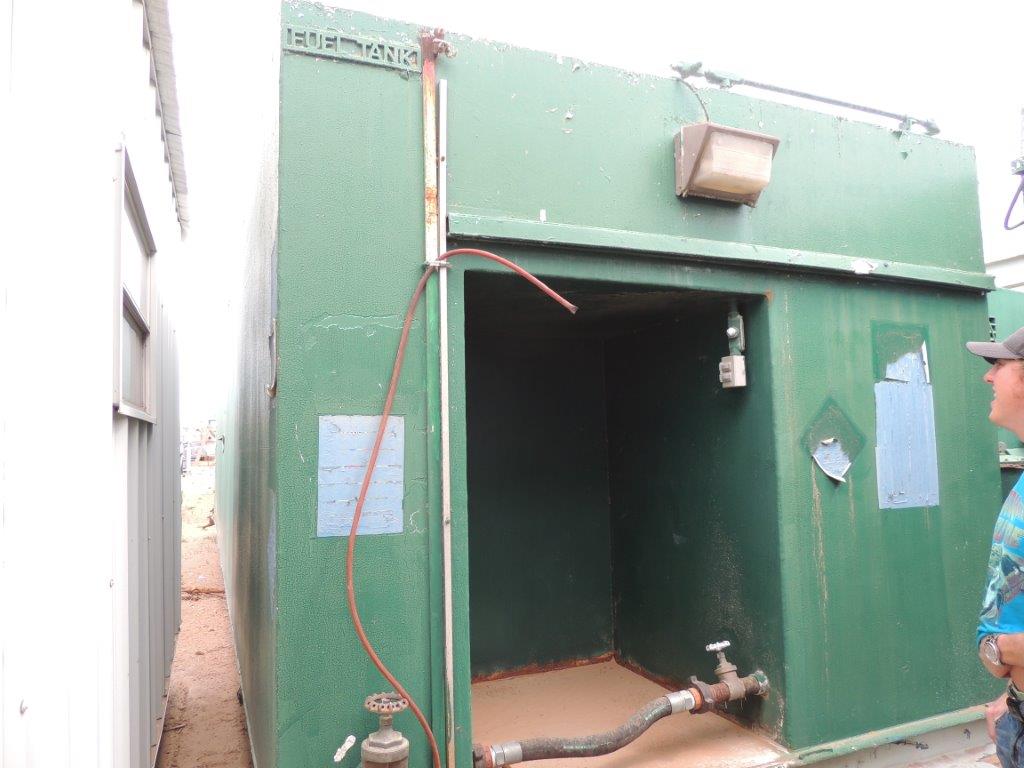

· 10’Wx33’L 20,000 GALLON FUEL TANK WITH 4’x4’x9’L 4-COMPARTMENT LUBESTER SKIDDED

· 10’DIAx36’L 500-Bbl WATER TANK, SKIDDED

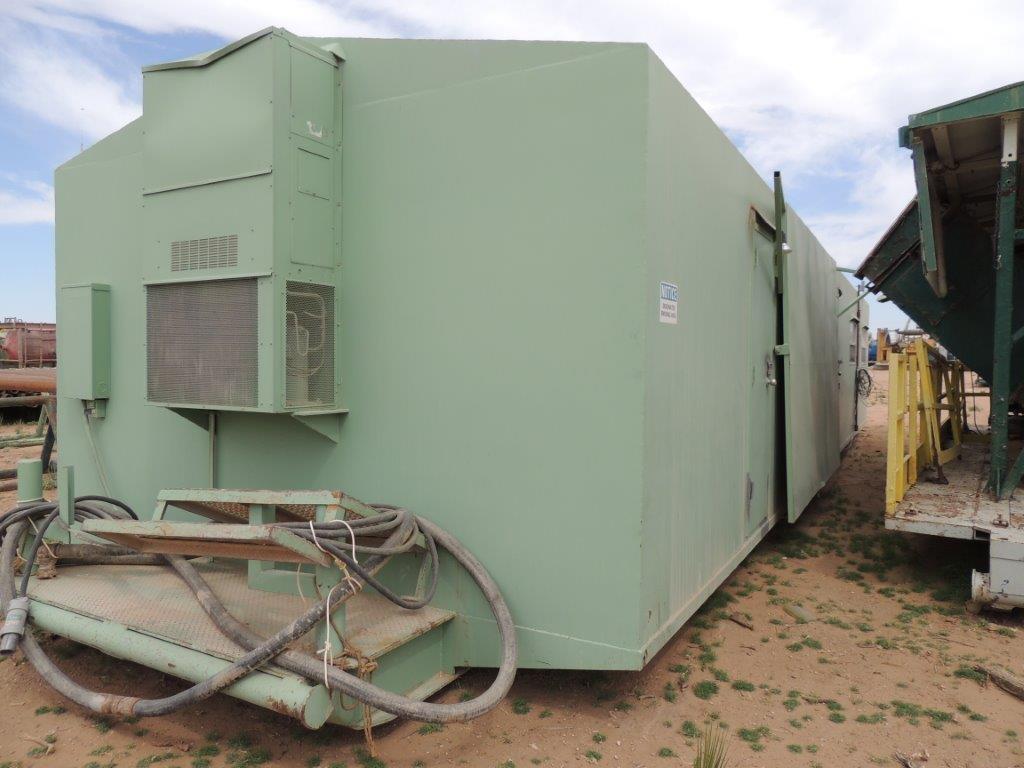

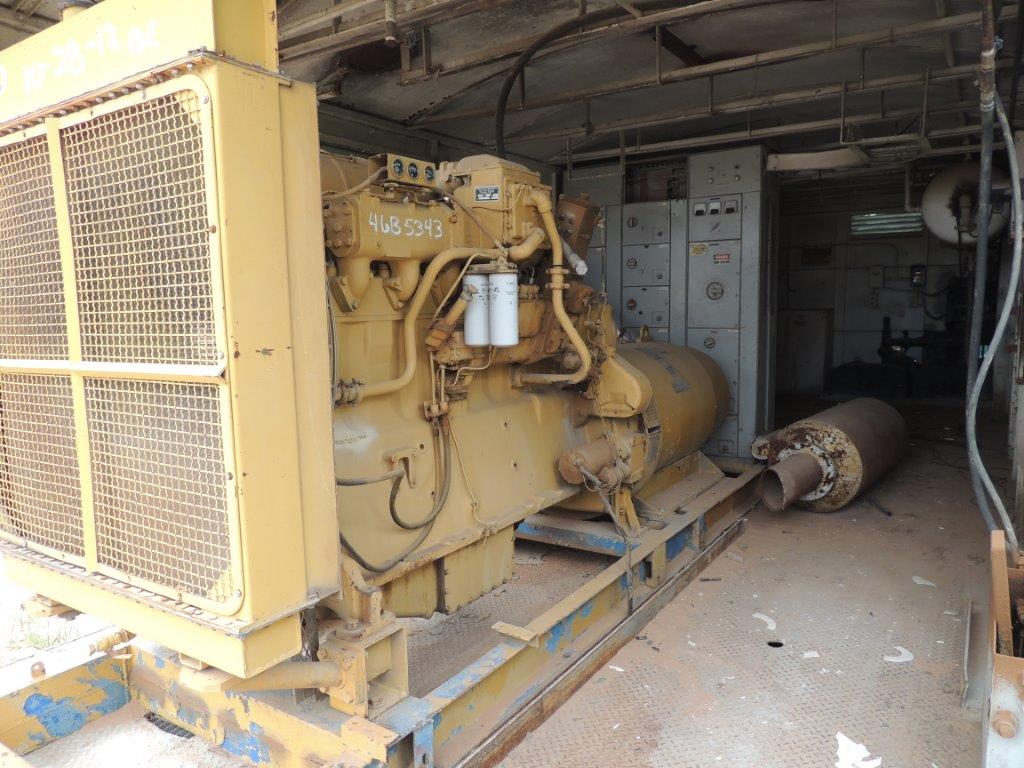

· KATO 350 KW AC GEN SERIAL #11462, 277/780 POWERED BY A CAT 353TAC DIESEL ENGINE SERIAL #46B5343 WITH ELECTRIC STARTER, RADIATOR, GAUGES, SKIDDED, QUINCY Q&B-50 AIR COMPRESSOR POWERED BY ELECTRIC MOTOR (2) MISSION 3”x4” CENTRIFUGAL PUMPS POWERED BY ELECTRIC MOTORD, (2) FUEL TRANSFER PUMPS 75KVA TRANSFORMER, ELECTRICAL CONTROLPANEL, MOUNTED IN 10’Wx38’L UTILITY HOUSE WITH ROUND TOP SKIDDED

· MUD SYSTEM PACKAGE

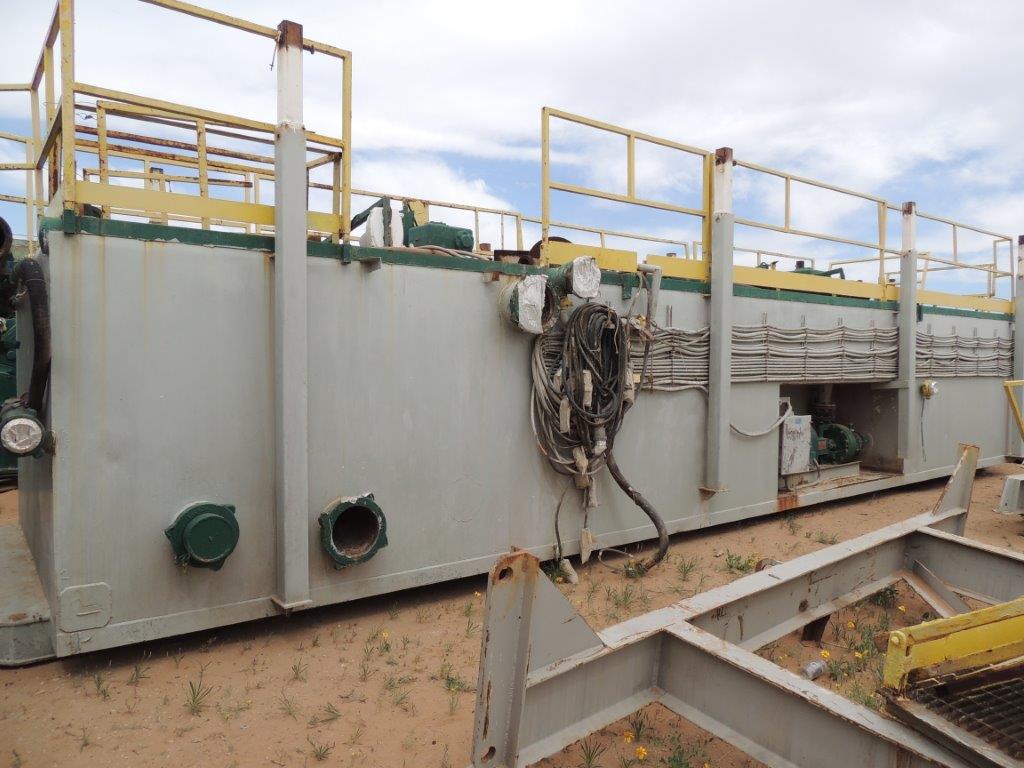

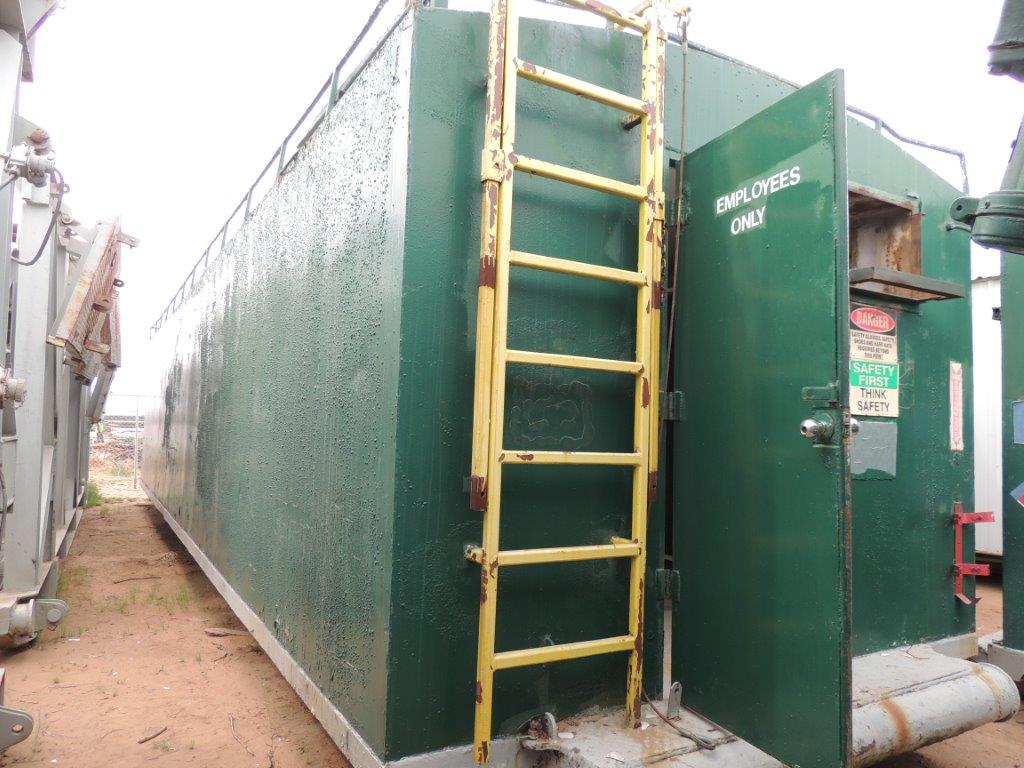

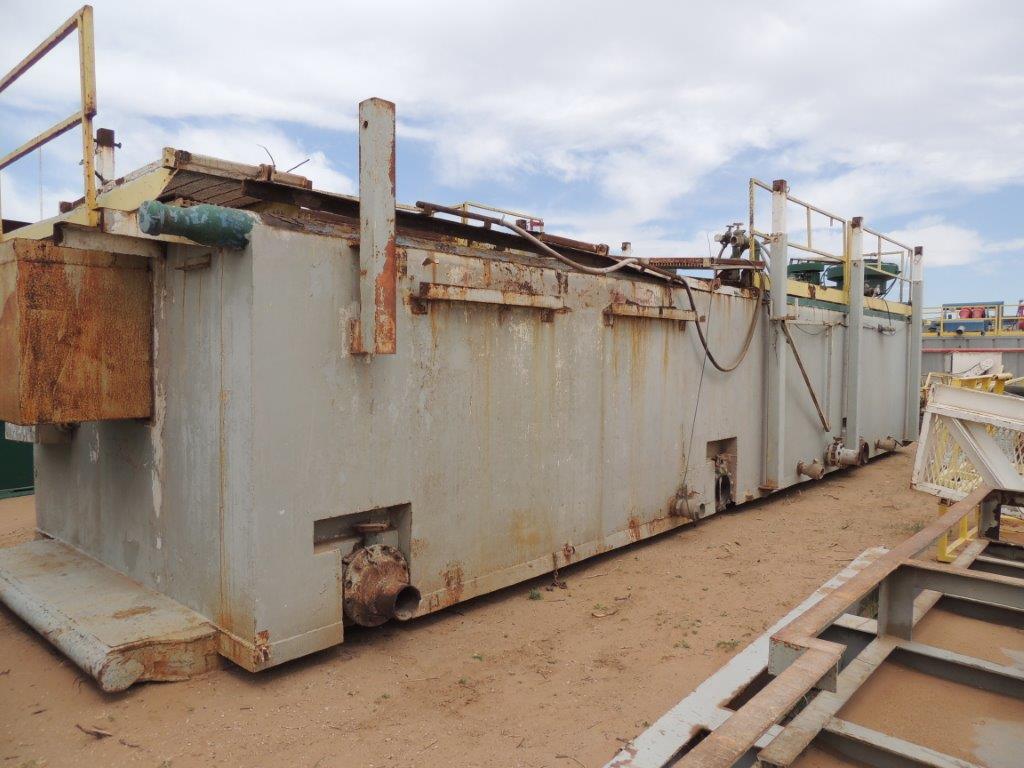

· 6’Hx10’Wx37’L SUCTION TANK WITH 15’L COVERED EXTENSION, MUD HOPPER, EMERGENCY SHOWER STATION, (2) DERRICK 5”x6” CENTRIFUGAL PUMP POWERED BY 75HP MOTORS, ELECTRIC PLUG IN LINES (3) 10HP AGITATORS, TOP MOUNTED WALKWAYS, HANDRAILS, SKIDDED WITH SHED

· 6’Hx10’Wx40’L VOLUME TANK (2) AGITATORS, DERRICK 5”x6” CENTRUFUGAL PUMP POWERED BY 60HP (SIDE MOUNT) TOP-MOUNTED WALKWAYS, HANDRAILS, SKIDDED WITH SHED

· 6’Hx10’Wx40’L SHAKER TANK VACUUM DEGASSER, DERRICK 5”x6” CENTRIFUGAL PUMP POWERED BY 60HP MOTOR, TOP-MOUNTED WALKWAYS, HAND RAILS SKIDDED WITH SHED

· DERRICK DUAL FLC-503 SUPER SHALE SHAKERS

· (2) QUINCY AIR COMPRESSOR, BELT DRIVEL POWERED BY GM 2-71 DIESEL ENGINE WITH ELECTRIC STARTER, RADIATOR, PTO, (2) AIR RECEIVER TANKS SKIDDED

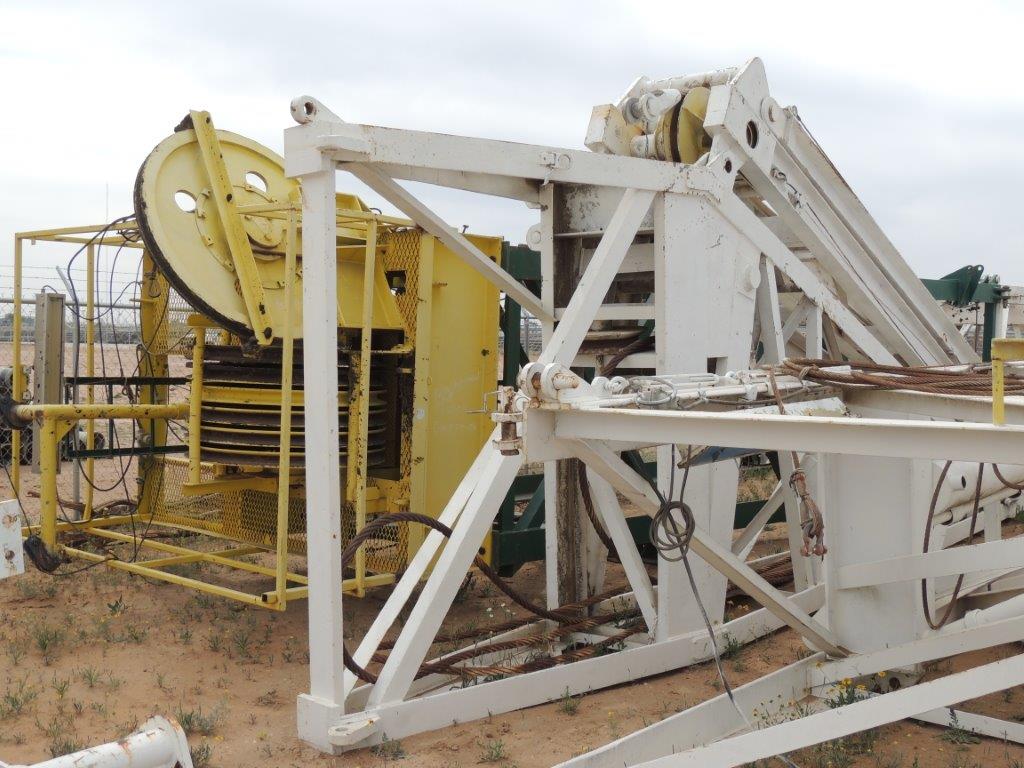

· POWER DRILL LINE SPOOLER WITH APPROX 3000’ OF 1-3/8” LINE, INGERSOLL-RAND HG40 AIR WINCH, SKIDDED

· MATHEY JR SURVEYOR HYDRAULIC WIRELINE MEASURING UNIT WITH STAND

· MISSION 2”X3” CENTRIFUGAL PUMP POWERED BY ELECTRIC MOTOR SKIDDED

· SPLIT BUSHING FOR 27 ½” ROTARY TABLE BECKET STORAGE BOX WITH ABS PIPE, FLOOR PLATE, SUITCASE WITH 2” SS HYDRAULIC BOP LINE, 7’6”Wx5’Hx16’L SCOPING PLATFORM,SKIDDED WHITCO PRESSURE WASHER

· 2-CONE DESANDER AND 9-CONE DESILTER WITH STANDS

· 48” BUG BLOWER WITH STAND

· 3’Hx7’10”Wx36’L JUNK BOX SKIDDED

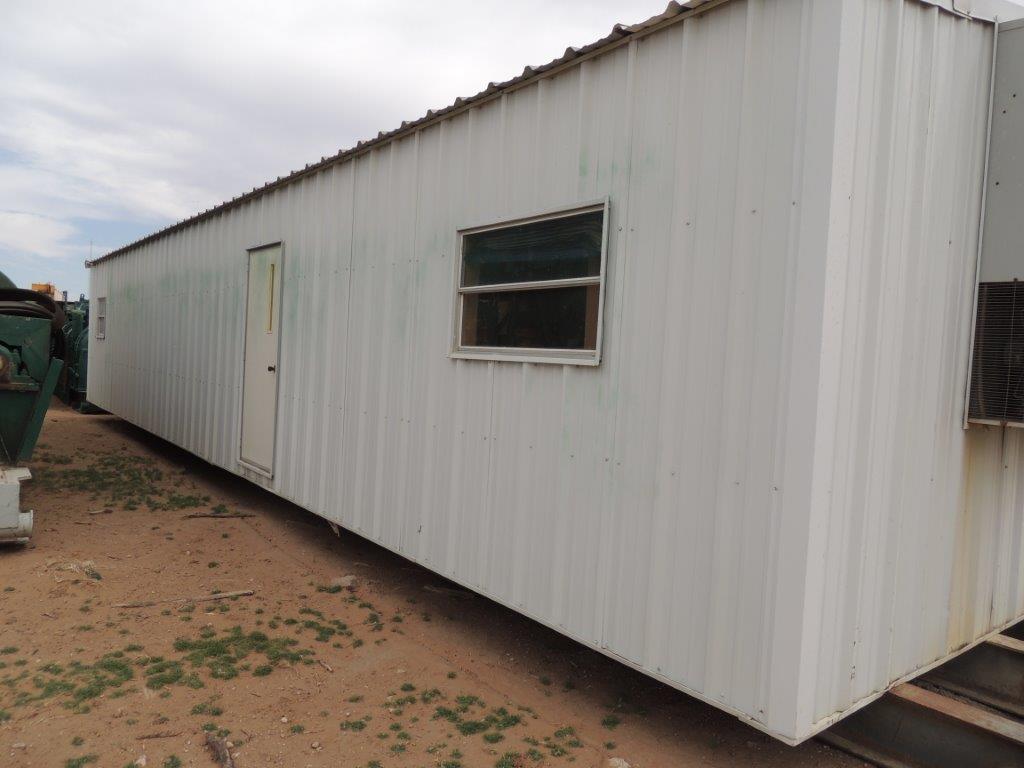

· 12’Wx52’L PUSHER HOUSE, DECK, FILE CABINETS, BUNK BEDS, SHOWER, SINK, WASHER, DRYER, REFRIGERATOR, STIVE,SOFA, CENTRAL AIR
