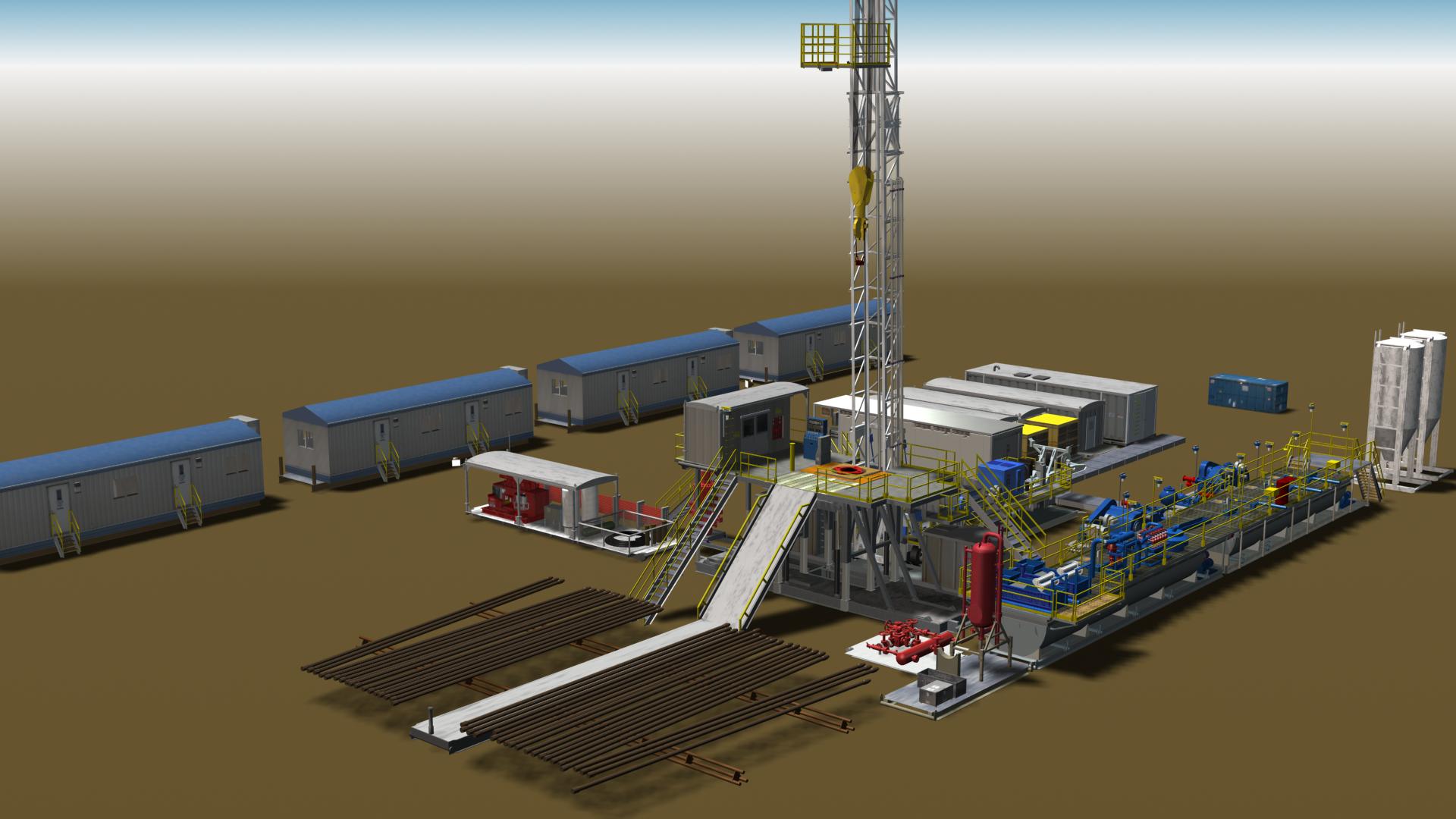

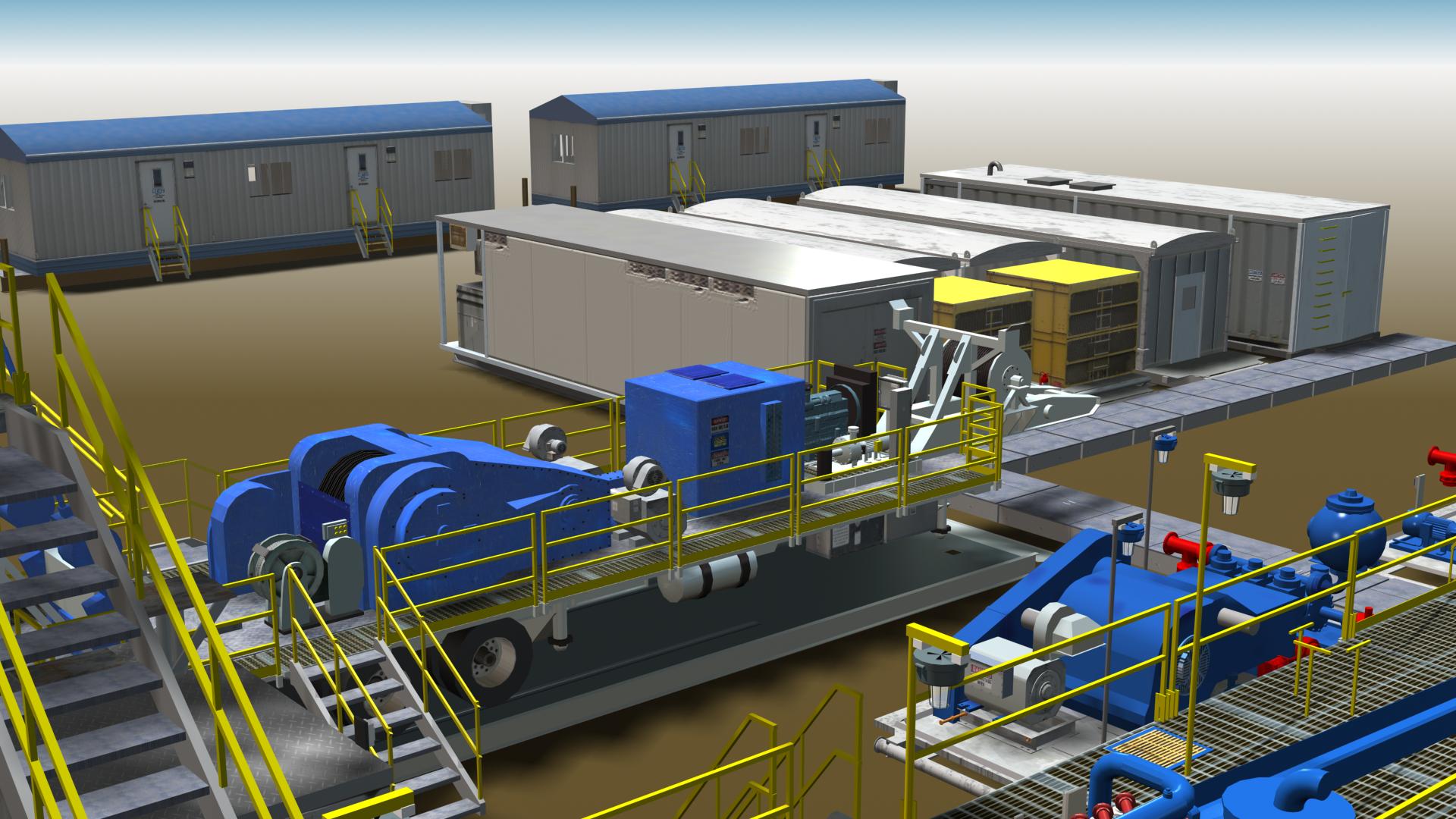

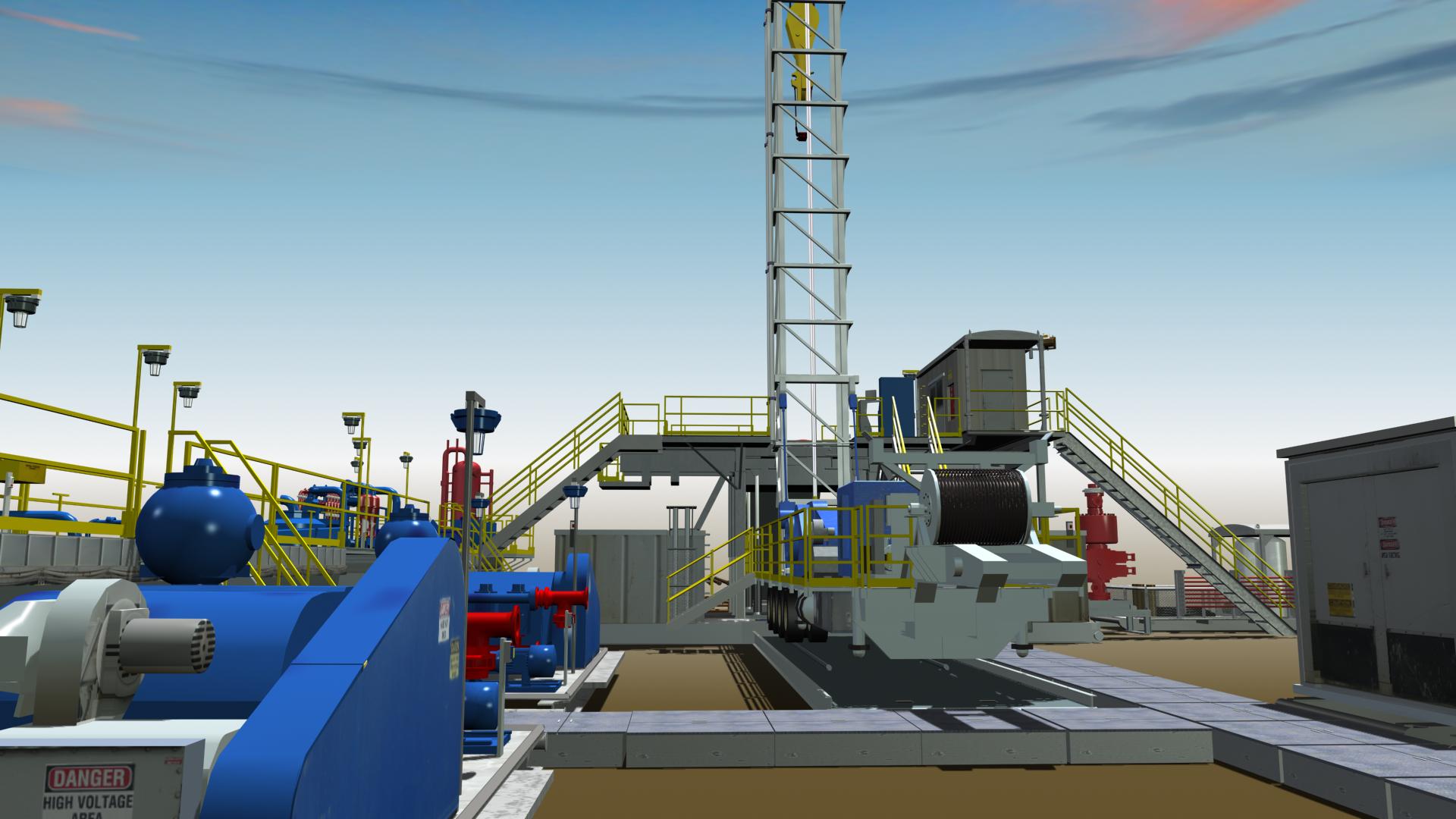

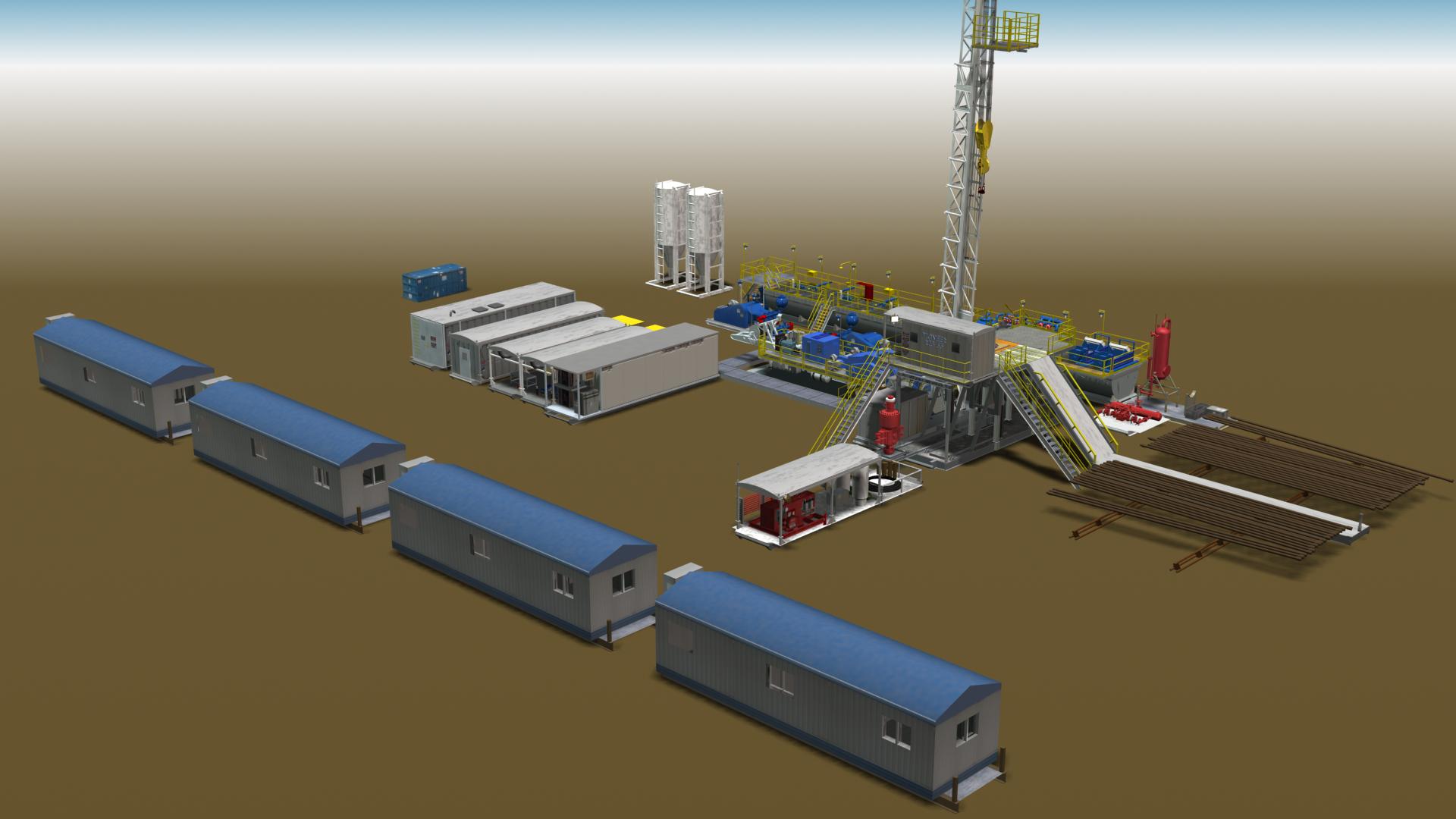

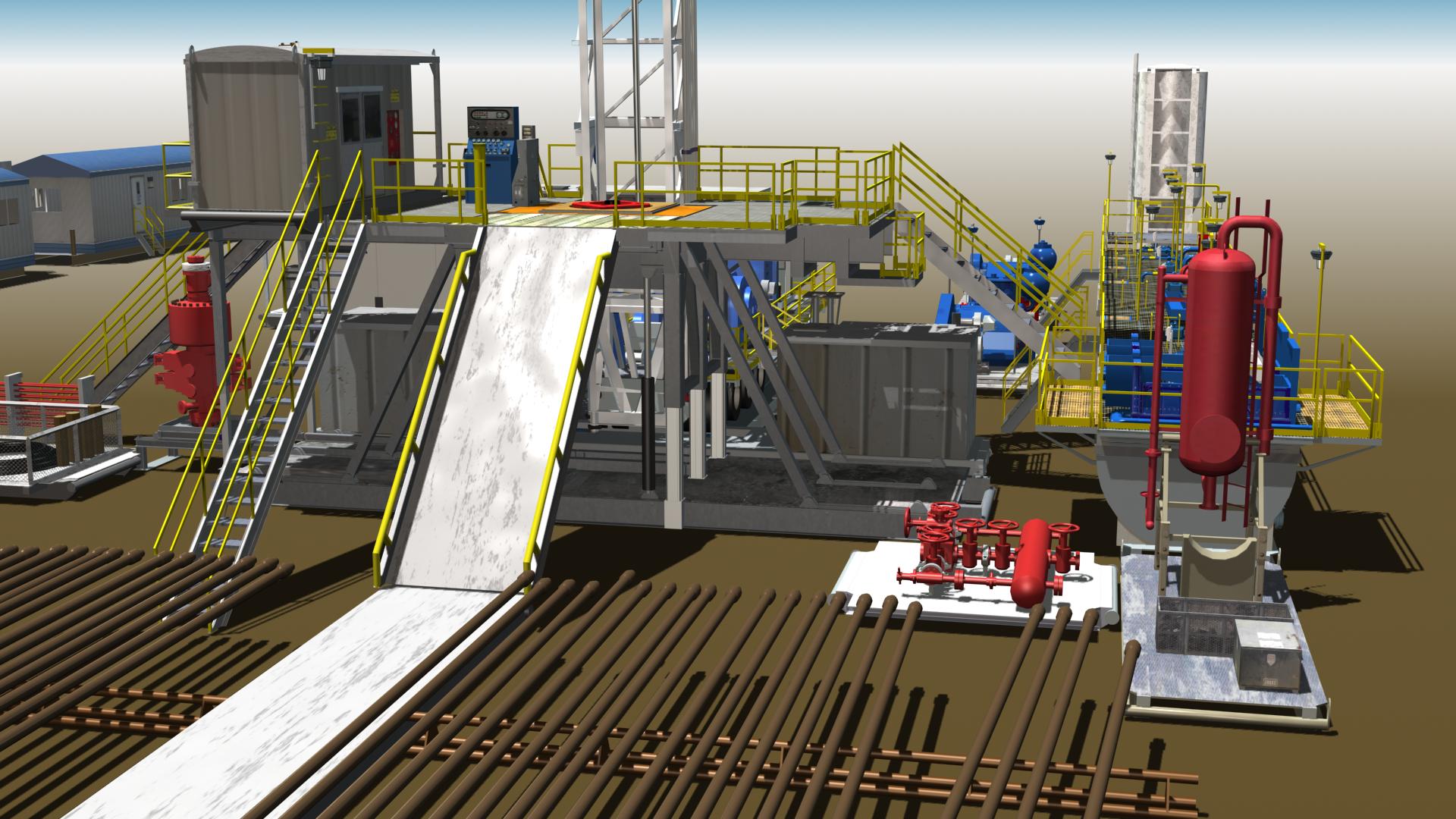

(2) 2008 HRI-1000E, 1,000HP TRAILER-MOUNTED ELECTRIC DRILLING RIGS
(Listing No. D-225)

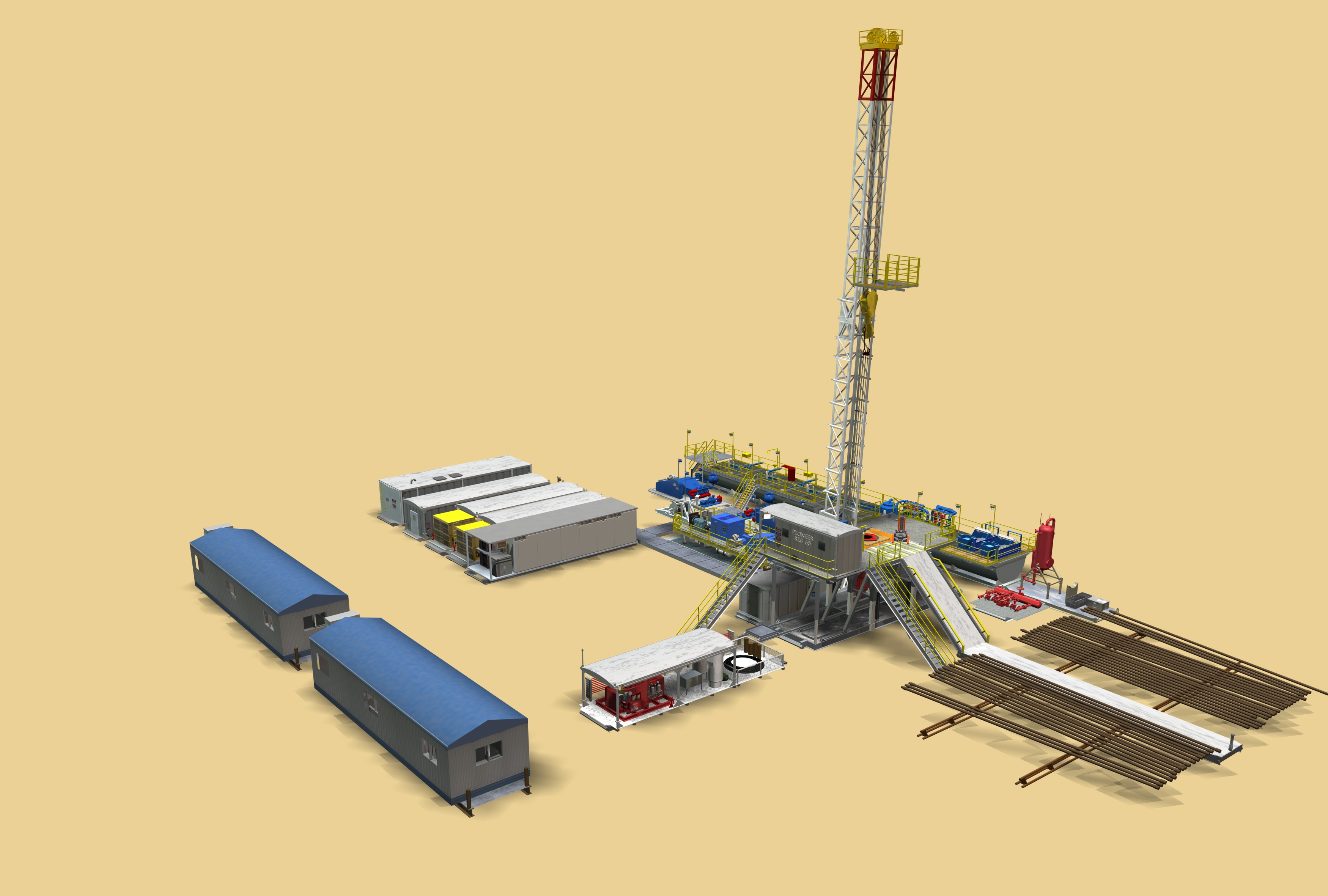

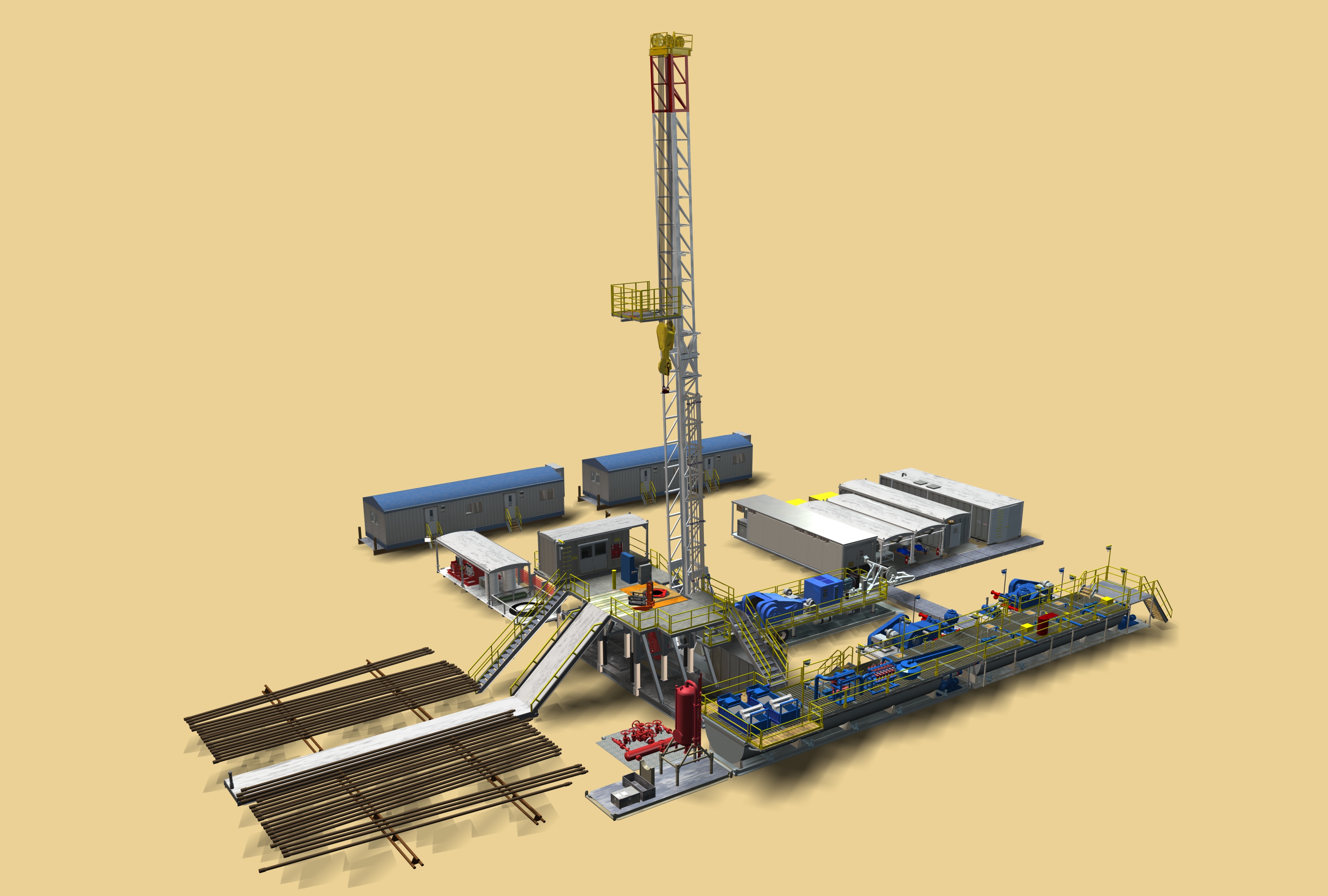

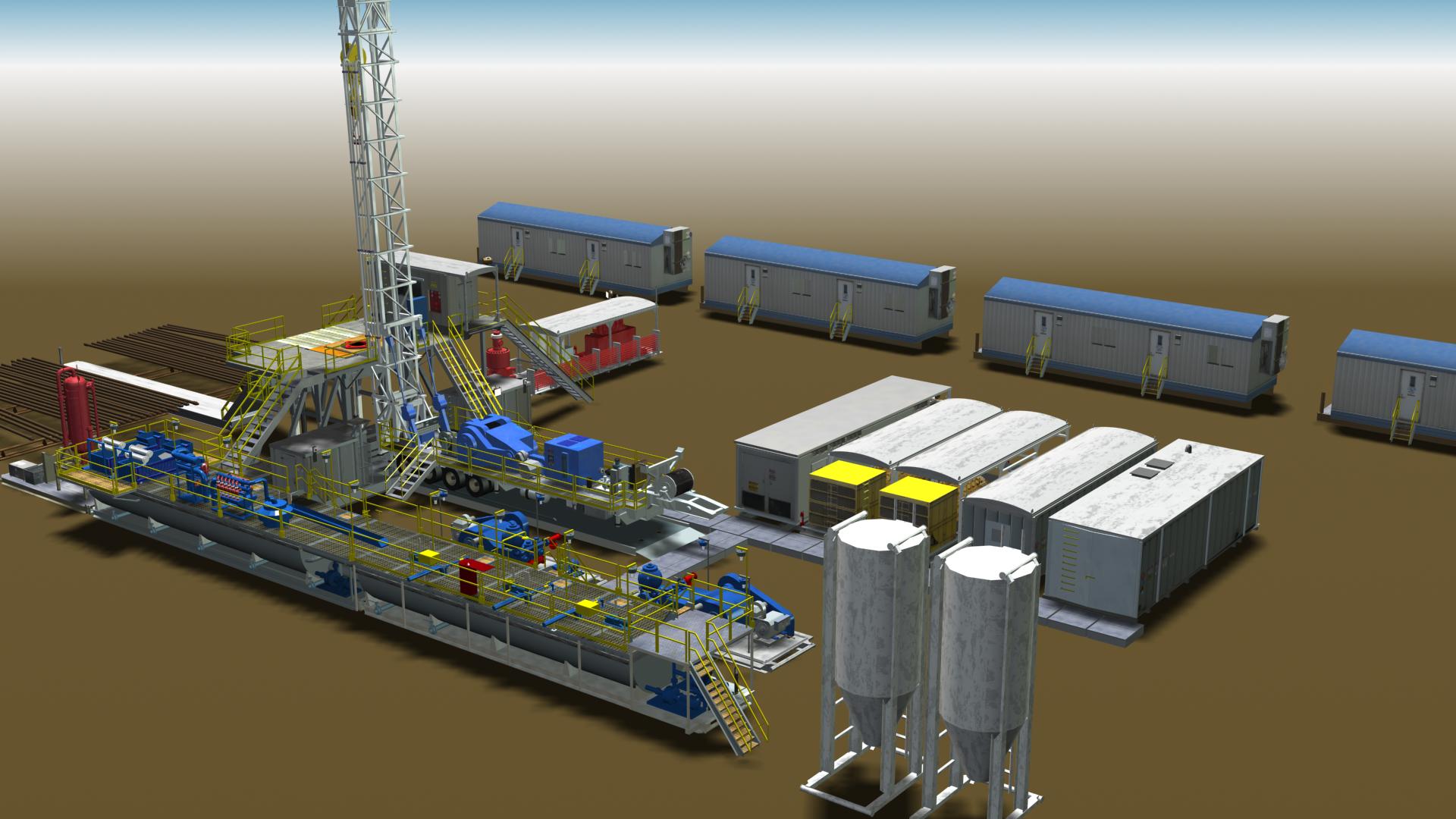

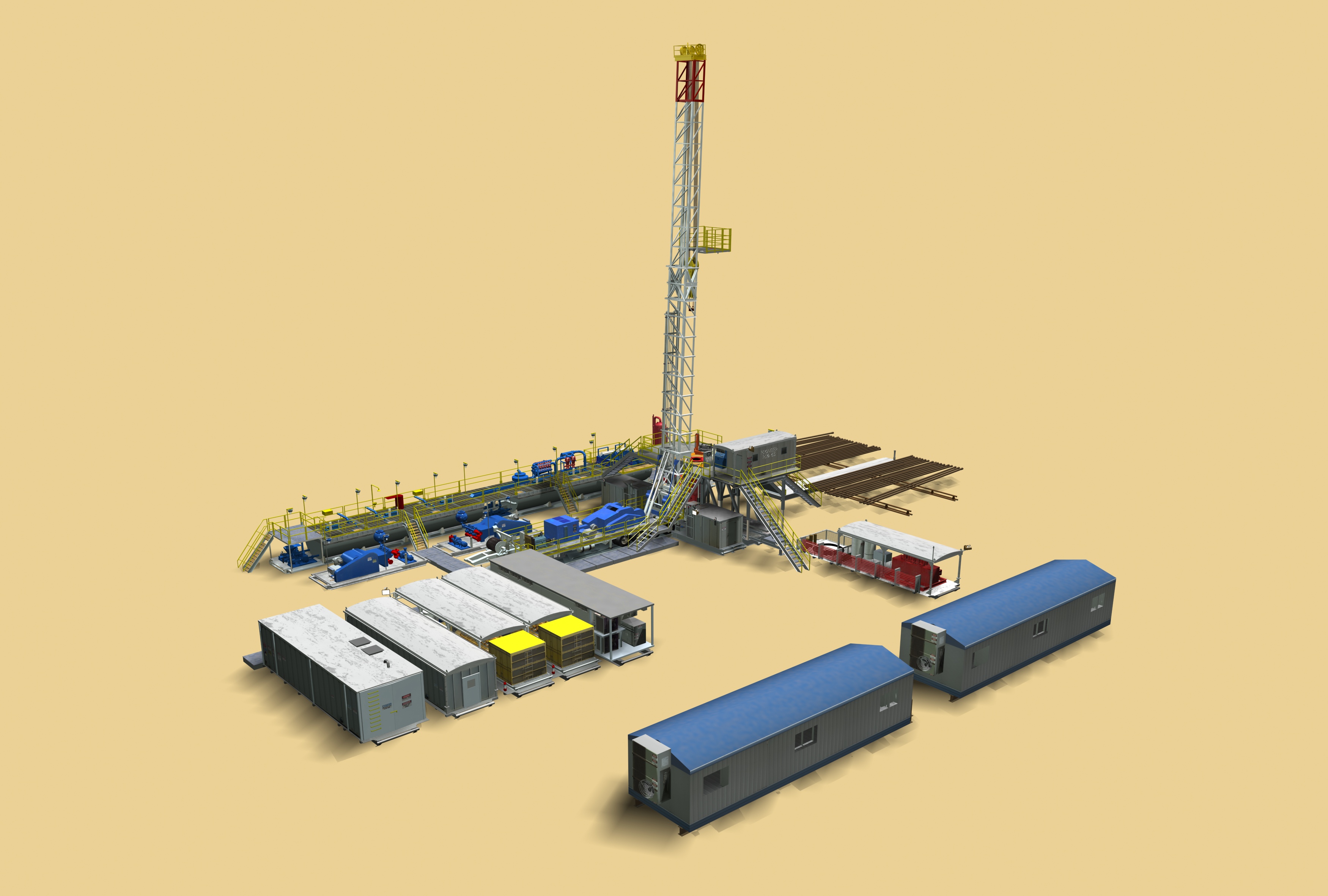

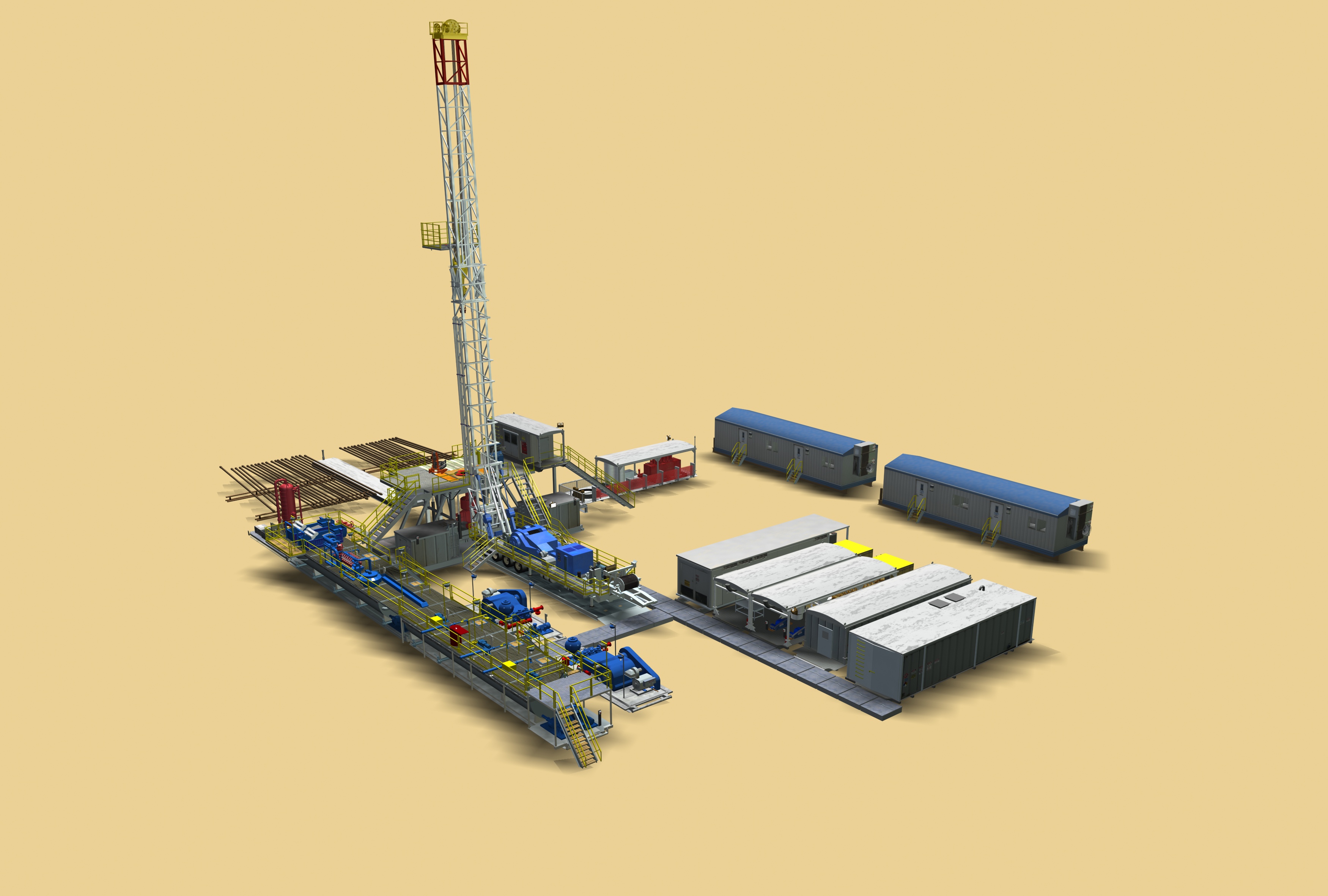

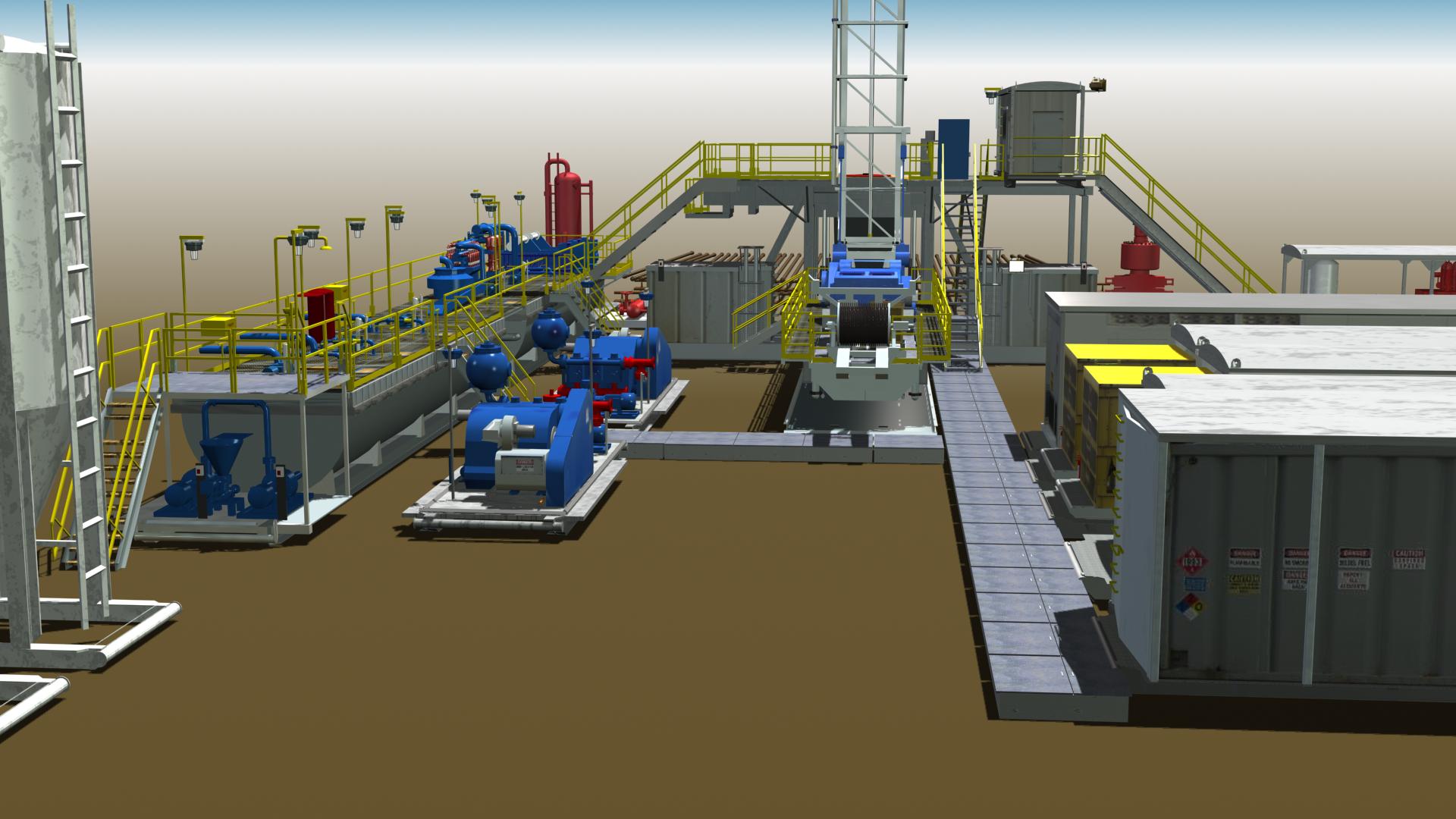

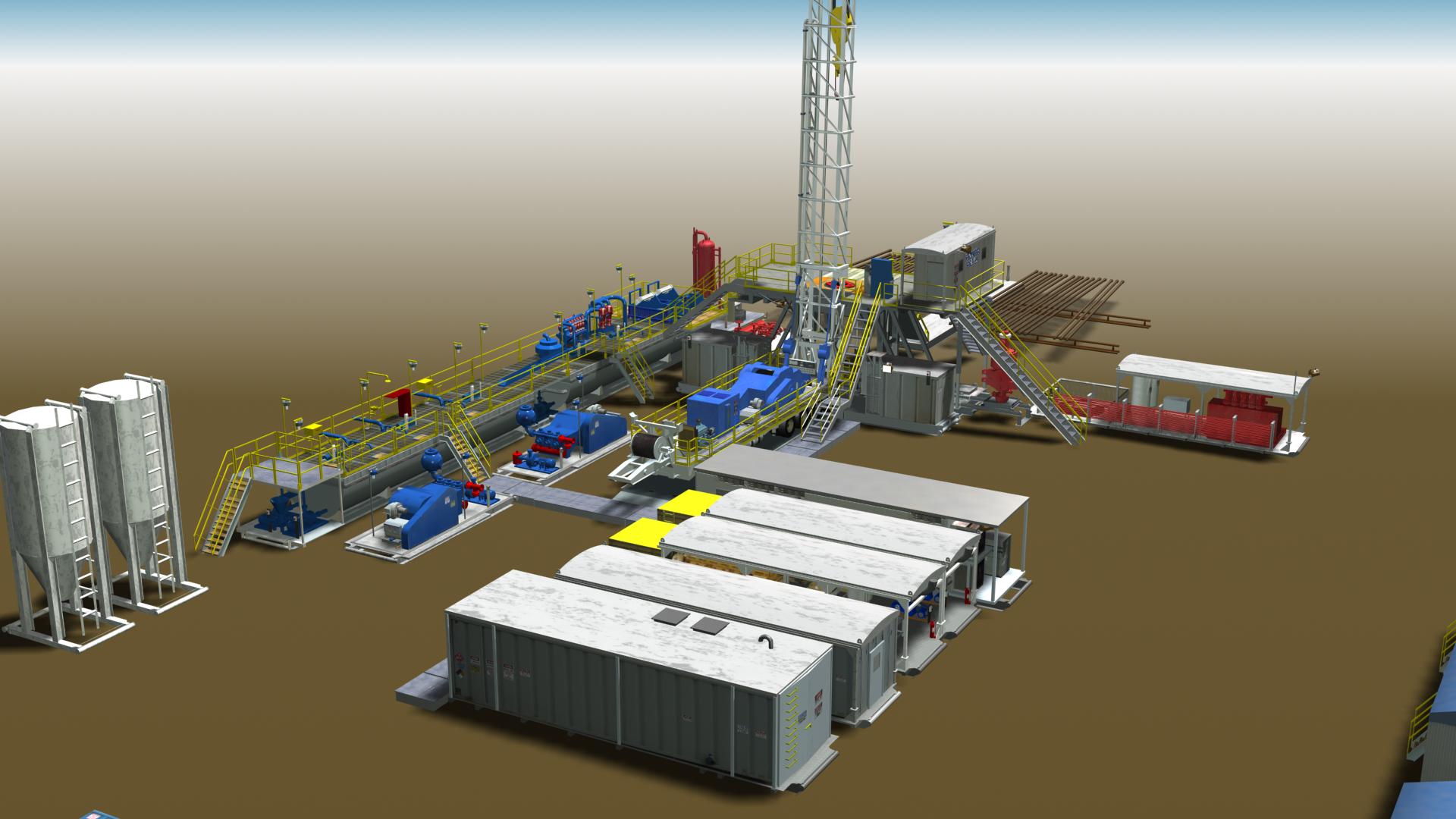

Click on Above Images for Larger Viewing
$6,450,000
(2) HRI-1000E Electric Drilling Rigs
Each "Sister Rig" includes:
CLASSIFICATION: 1000 HP Trailer Electric
DRILLING DEPTH CAPACITY: 13,000’ w/5” DP (not supplied)
DRAW WORKS: HRI 1000-E Single Drum with Wichita 3-25 KKB disk brake powered by two (2) GE 761 Traction motors
MAST: DSI 118' with 425,000# SHL
SUBSTRUCTURE: DSI 17' telescoping with 425,000 rotary capacity with a setback capacity of 300,000# 15' clear height from bottom of rotary to ground
POWER SYSTEM: Three (3) CAT 3512B Diesel Engines with (2) CAT 1225 KW AC Generators and IEC SCR I Drive, 4 Bays to power Drawworks, Pumps, Lighting and Hotel Load
MUD PUMPS: Two (2) RS-F1600 each powered by two (2) GE 752

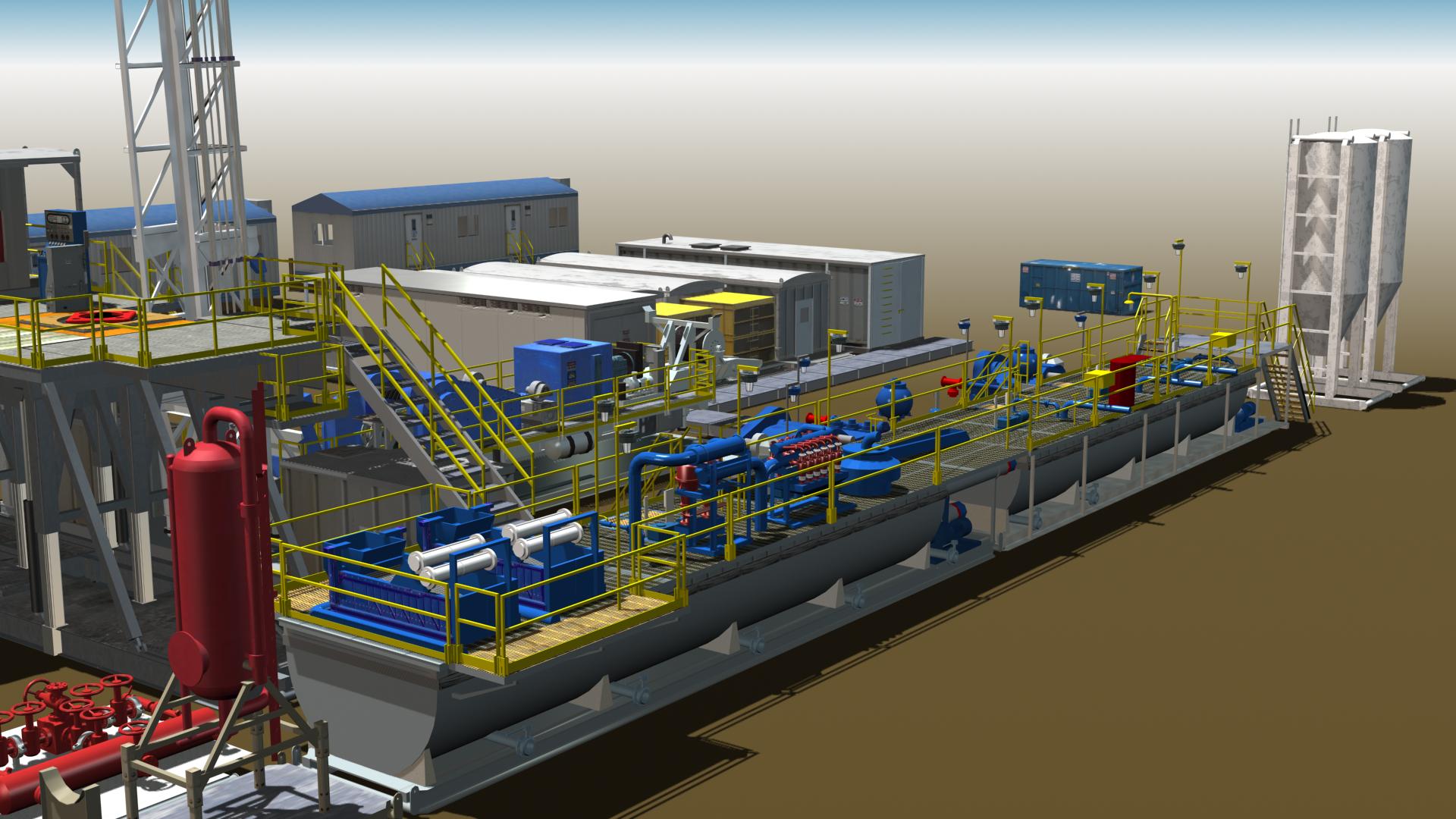

MUD SYSTEM: Two (2) Tank 750 BBL System, Two (2) Derrick High "G" Shakers Derrick, 2 cone desanders, Derrick 16 cone desilter, Drilco style degasser
ROTARY: AB 27-1/2" with 53-1/4" center powered by GE 752
BLOCK AND HOOK: 250 Ton American Block
SWIVEL: American Block 200 Ton
ANNULAR PREVENTER: Townsend Type 84, 11" 5000 psi WP
RAM PREVENTERS: Townsend Type 82, 11" 5,000 psi WP double ram
CHOKE MANIFOLD: 4" x 2" 5,000 psi WP
ACCUMULATOR SYSTEM: Chiles (5) station 180 gal. with remote control
DRILL PIPE: N/A
DRILL COLLARS: N/A
DRILL LINE: 1-1/8” EIPS
AUXILLARY EQUIPMENT: Toolpusher and crew quarters, One 300 BBL water tank, Automatic driller, Pipe spinner, Kelly spinner, 0-7 degree drift indicator, 200 BBL Fuel Tank, Complete Air Package |
