(6) DRILLING RIGS FOR SALE - SEPARATELY, OR AS A PACKAGE!
(Listing No. D-227)

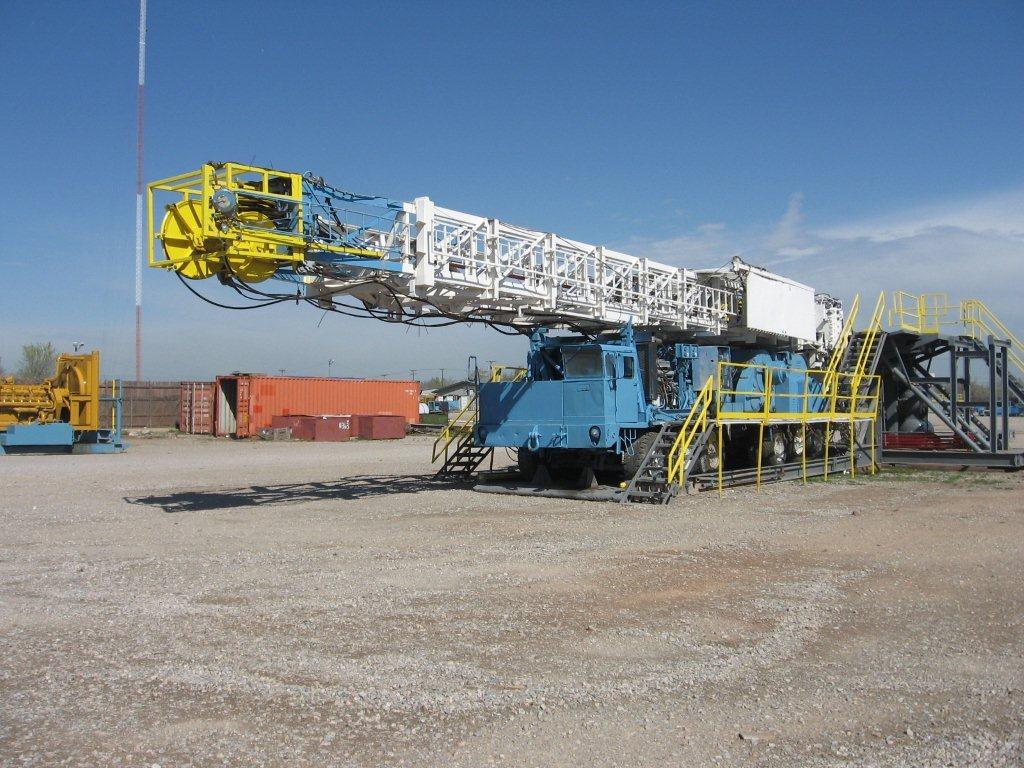

Click on Above Images for Larger Viewing
Buy separately, or as a package!
(6) DRILLING RIGS FOR SALE - SEPARATELY, OR AS A PACKAGE!
(Listing No. D-227)
RIG #5 INVENTORY
DRAWWORKS:
IDECO H-1000 Single Drum Drawworks S/N AL.92, 900 HP, Lebus Grooved f/1-1/8" Line, Makeup & Breakout Catheads, Hydromatic Brake, Air Drillers Control Console, Crown-0-Matic.
MAST:
IDECO KM-112-358-AH 112'H Telescoping Mast S/N AL.1857, 358,000 Lb. Static Hook Load, Crown Block w/ Sheave Cluster & Fastline Sheave,(2) 3-Stage RaiS/Ng Rams, Crown Safety Platform, Racking Board, Tong Counterweights, Ladder, Derrick Climber, Standpipe & Manifold.
SUBSTRUCTURE:
SHOPBUILT 11'W x 12'4"H x 35'L T-Type Substructure w/BOP Trolley, Rotary Beams, V-Door Ramp, (2) Air Receiver Tanks, Stairs, Safety Rails, Skidded.
CARRIER:
All Above Mounted IDECO BIRB055 Tri-Axle Front, Tri-Axle Rear Carrier S/N AL.1036 p/b (2) DETROIT Series 60 Diesel Engines S/N's 6RE211960 & 6RE611884 w/Electric Start, Radiators, Electronic Motor Controls, ALLSION 5860 Transmissions, PARKER Hydraulic Pumps, IDECO 2-Engine Compound, Right Angle Gear Box, (6) Hydraulic Leveling Jacks, Single Man Cab, Fuel Tank, Air Receiver Tank, 2'W x 30"H x 5'9"L Hydraulic Tank, Deadline Anchor, 18R22.5 Front Tires,11R22.5 Rear Tires. SHOPBUIL T 9'6"W x 48'8"L Mud Boat.
PUMP: (Primary)
NATIONAL 8-P-80 Triplex Mud Pump. 800 HP w/Forged Steel Fluid Ends, Quick Change Caps, HYDRIL 5,000 PSI Pulsation Dampener, FIVE STAR 5" x 6" Centrifugal Charging Pump S/N 11404 p/b WEG 50 HP Electric Motor, M&F GAUGE Type D 5,000 PSI Pressure Gauge S/N 45820, OTECO 3" Shear Relief Valve, Master Skidded w/ Engine.
PUMP POWER:
CATERPILLAR D-398 Diesel Engine S/N 6682404 w/Air Start, Radiator, Electronic Control Panel, Mounted Pump Master Skid.
PUMP: (Standby)
NATIONAL 8-P-80 Triplex Mud Pump, 800 HP w/Forged Steel Fluid Ends, Quick Change Caps, HYDRIL 5,000 PSI Pulsation Dampener, FIVE STAR 5" x 6" Centrifugal Charging Pump S/N 11405 p/b WEG 50 HP Electric Motor, M&F GAUGE Type D 5,000 PSI Pressure Gauge S/N 45821, OTECO 3" Shear Relief Valve, Master Skidded w/Engine.
PUMP POWER:
CATERPILLAR D-398 Diesel Engine S/N 6681726 w/Air Start, Radiator, Electronic Control Panel, Mounted Pump Master Skid.
ROTATING EQUIPMENT:
IDECO 205-B 20-1/2" Rotary Table w/ Split Master Bushings. 150 Ton Swivel. 5-1/4" x 38'L Hex Kelly. VARCO HD Kelly Drive Bushing. INTERNATIONAL TOOLS Kelly Spinner. Upper Kelly Valve. Lower Kelly Valve.
TRAVELING EQUIPMENT:
GARDNER-DENVER 300-Ton Block S/N 2551-01, w/WEB WILSON 250-Ton Hook S/N 2501. 96"L, 250 Ton Elevator Links.
WELL CONTROL EQUIPMENT:
SHAFFER Annular Blowout Preventer S/N W019012, 11" x 5M. SHAFFER LWS Double Blowout Preventer, 11" x 5M. 11" Dia. x 5M Drilling Spool. KOOMEY Type 80 4-Station Accumulator S/N 3741 w/Hydraulic Reservoir, (12) 11-Gallon Bottles, Triplex Pump p/b EMERSON 15 HP Electric Motor, (2) Air Pumps, Gauges, Mounted 6'W x 11'L Skid. KOOMEY Type 80 4-Station Remote Control Panel S/N3412. 3" x 5,000 PSI Choke Manifold. Choke Line: (2) 2-1/16” x 5M Gate Valves, (1) 2-1116" x 5M Check Valve. Kill Line: (1) 4-1/16" x 5M Gate Valve, (1) 4-1/16" x 5M HCR Valve.
HOUSES:
SHOPBUIL T 7'3"W x 18'5''L Doghouse w/ (2) 4'L Covered Porches, (4) Lockers, Knowledge Box, Bench Storage, Electric Heater, Lights, Skidded. DAN BUTLER 7'6'W x 20'L Change House S/N 1281 w/ (14) Lockers, Bench Storage, Lights, Skidded.
GENERATOR/UTILITY HOUSES:
No.1 - CAT SR-4 400 Kw. AC Generator p/b CATERPILLAR 3412 Diesel Engine w/Air Start, Radiator, Gauges. No.2 - CAT SR-4 400 Kw. AC Generator S/N 15NA03960 p/b CATERPILLAR 3412 Diesel Engine w/Electric Start, Radiator, Gauges. QUINCY 5120 Air Compressor p/b BALDOR 20 HP Electric Motor. INGERSOLL-RAND 2475 Air Compressor S/N 182486 p/b 7-1/2 HP Electric Motor. ALLEN BRADLEY Electrical Control Panel. 112 Kva. Transformer. Above Mounted SHOPBUILT 12'5"W x 38'L Utility House w/Lights, Skidded.
MUD SYSTEM: (1,234 Total Bbls.)
SHOPBUILT 1O'W x 8'6"H x 19'L, 277 Bbl. Pre-Mix Tank w/9'8"L Porch, (2) MOBILGEAR Mud Agitators p/b (2) 10 HP Electric Motors, Mud Hopper, Internal Plumbing, Flat Bottom, Top Mounted Walkways, Safety Rails, Stairs, Lights, Skidded. PINNACLE 5" x 6" Centrifugal Mixing Pump p/b TECO 75 HP Electric Motor. SHOPBUILT 12'W x 5'8"H x 42'L, 490 Bbl., Suction Tank w/8'L Covered Porch, (3) MOBILGEAR Mud Agitators p/b BALDOR 7-1/2 HP Electric Motors, Mud Hopper, Internal Plumbing, Flat Bottom, Top Mounted Walkways, Safety Rails, Stairs, Lights, Skidded. MCM 5” x 6" Centrifugal Mixing Pump S/N 16908 p/b BALDOR 50 HP Electric Motor. MCM 5" x 6" Centrifugal Mixing Pump S/N 12123 p/b BALDOR 50 HP Electric Motor. SHOPBUILT 12'W x 5'8"H x 40'L, 467 Bbl., Shaker Tank w/ (4) Compartments, (1) MAXX 2000 Mud Agitator p/b TECO 6 HP Electric Motor, Internal Plumbing, Flat Bottom, Top Mounted Walkways, Safety Rails, Stairs, Lights, Skidded. MCM 5" x 6" Centrifugal Desilter Pump p/b ALLIS-CHALMERS 50 HP Electric Motor. NOV Mini-Cobra Tandem, Single Screen, Linear Motion Shale Shaker. BRANDT Desilter w/ (12) Cones. DRILLCO Vacuum Degasser p/b 5 l-Ip. Electric Motor. SHOPBUIL T 30" Dia. x 22'H Atmospheric Degasser w/Stand, Skidded. SHOPBUILT 7'6"W x 6'H x12'L, 93 Bbl., Trip Tank w/ (1) Compartment, Internal Plumbing, Flat Bottom, Skidded. FIVE STAR 2" x 3" Centrifugal Mixing Pump S/N 11183 p/b WEG 30 HP Electric Motor.
WATER/FUEL TANKS:
SHOPBUILT 7'1O"W x 8'H x 30'L, 330 Bbl. Water Tank w/7'L House, Shelves Liqhts, Skidded. MCM 2" x 3" Centrifugal Pump S/N 15083 p/b BALDOR 20 HP Electric Motor. MCM 2" x 3" Centrifugal Pump S/N 15084 p/b SEIMENS 25 HP Electric Motor. SHOPBUILT 6' Dia. x 34'L, 7,200 Gallon Fuel Tank w/ (2) Fuel Transfer Pumps, Skidded. SHOPBUILT 5'W x 44"H x 5'L, 4-Compartment Lubester w/ GRACO Fireball Air Transfer Pumps, Mounted Fuel Tank Skid.
INSTRUMENTATION:
MARTIN-DECKER Type FS 400,000 Lb. Weight Indicator w/Rotary Torque Gauge, Pump Pressure Gauge. Tong Line Pull Gauge. SATELLITE SA100-60-1000 Automatic Driller S/N 286. M&F GAUGE TypeD 5,000 PSI Mud Gauge S/N 45823.
HANDLING TOOLS:
RAUCH 12A Air-Operated Pipe Spinners S/N 6126. WTM Rotary Tongs. 4-1/2", 250-Ton Drill Pipe Elevators. 4-1/2" Drill Pipe Slips. Drill Collar Slips. Safety Clamp. OTECO Mud Bucket S/N MG-600.
ANCILLARY EQUIPMENT:
SHOPBUIL T 5'W x 20"H x 60'L, 2-Section Catwalk w/Steel Deck. INGERSOLL-RAND K5U Air Hoist. INGERSOLL-RAND HU40 Air Hoist. FIVE STAR Measuring Device S/N 1668 w/ Approximately 10,000 Ft. of .092 Wireline. Approximately 3,000 Ft. of 1-1/8" Drill Line. 3-1/2" Dia. x 53'L Rotary Hose. (2) Approximately 15'L Vibrator Hoses. Rathole & Mousehole. Fluorescent & Mercury-Vapor Rig Lights w/Wiring. Miscellaneous Fire Extinguishers, Spare Parts, Hand Tools, Etc.
DRILL PIPE:
10,800 Ft. (348 Jts.) 4-112" Grade G-105, 16.60 Lb. Drill Pipe w/4-1/2"XH Tool Joints.
DRILL COLLARS:
(21) 6-1/2"0D x 30'L Drill Collars w/4-1/2"XH Connections. (6) 8"0D x 30'L Drill Collars w/6-5/8"REG Connections.
RIG #6 INVENTORY
Drawworks:
Sky Top Brewster N-7 (1000 HP), Rated to 14,000' with 4 1/2" drill pipe; drawworks grooved to accept 1 1/8” drilling line, equipped with Parmac V-481 hydromatic brake and Sky Top Brewster two (2) engine compound.
Drawworks Power:
Two (2) Caterpillar C-18 diesel engines, 550HP each.
Mast and Substructure:
IDS, 131'H x 20'W, 500,000# SHL cantilever type mast; Box on Box substructure w/350,000# simultaneous setback 16'H x 24’W x 44’L Crown -1 1/8” x 42” x 5 sheave assembly w/1 1/8” x 50” fastline assembly.
Pump #1:
MZ-9 (1000 HP) triplex pump; powered by one (1) Caterpillar 398 diesel engine (900 HP).
Pump #2:
MZ-9 (1000 HP) triplex pump; powered by one (1) Caterpillar 398 diesel engine (900 HP).
Rotating and Traveling Equipment:
National 27 ½” rotary table. Sentry 250 ton 5 sheave block/hook combo. Gardner Denver 200-ton swivel. Kelly-5 ¼” hex x 37’ w/ 4 ½” IF connection. Crown Block Saver (crown-o-matic).
WELL CONTROL EQUIPMENT:
Spherical, 11" or 13 5/8” 5000# annular BOP. LWS Type, 11" or 13 5/8” 5000# double-gate BOP. Koomey Type 120, 5-station, 120 gallon accumulator w/floor remote panel. 5000# 4” x 2” choke manifold w/two manual chokes.
Generators:
(2) Caterpillar 3412 diesel engines with 450 kW generators both in MCC House W/2-30 HP electric screw air compressors.
Mud System:
(1) 800 barrel (two pit) mud system 2- 10’W X 45’L X 8’H with agitators
(2) Fluid System model 84X linear shale shakers
(1) Fluid System 1000 gpm vacuum type degasser
(1) Fluid Systyem desander 1,000 gpm 12” x 2 cone
(1) Fluid System desilter 1,000 gpm 4” x 10 cone
(4) Mission Magnum 5 x 6 x 50 HP centrifugal mud mixing pumps
(2) Mission Magnum 3 x 2 x 30 HP centrifugal water pumps
Auxiliary Equipment:
(2) 500 bbl. water tanks
(1) 5 Star wireline machine
(2) IR 4HUL air hoists
(1) Oilworks pipe spinner
(1) Oilworks kelly spinner
(1) toolpusher skid mounted house
(1) crew quarter skid mounted house
Drill Pipe and Drill Collars:
12,000’ - 4 1/2" XH “premium” grade G 16.60# drill pipe. (18) 6 1/2"OD x 2 1/4"ID drill collars with 4-1/2" XH connections. (6) 8” x 2 13/16” ID drill collars w/ 6 5/8” R connections.
Rig #7 INVENTORY
Drawworks:
CROWN CE1000SD Single Drum Drawworks S/N 0326-RA102B7-07, 1,000 HP, Lebus Grooved f/1-114" Line, C&H Makeup & Breakout Catheads, Air Drillers Control Console, Crown-0-Matic.
Mast:
CROWN 118'H Telescoping Mast SIN 79-M5249-07 440,000 Lb. Static Hook Load, Crown Block w/Sheave Cluster & Fastline Sheave, (2) 3-Stage Raising Rams, Hydraulic Scoped, Crown Safety Platform, Racking Board, Tong Counterweights, Ladder, Derrick Climber, Standpipe & Manifold.
SUBSTRUCTURE:
CROWN 11'W x 11'H x 36'L Substructure S/N 83-S4897-07, 300,000 Lb. Setback Capacity w/Rotary Beams , V-Door Ramp, Stairs, Safety Rails, Mast Base 7'W x 40'L.
CARRIER:
All Above Mounted CROWN 52'L Four-Axle Trailer VIN: 4C9SM064981 009037 p/b (2) DETROIT Series 60 Diesel Engines S/N's 06R0879302 & 06R0879299, 505 HP w/ Electric Start, Radiator, Gauges, (2) ALLISON Transmissions , CROWN 2-Engine Compound, CROWN Right Angle Gear Box, (2) PARKER Hydraulic Pumps, (4) Hydraulic Leveling Jacks, (4) Manual Leveling Jacks, Fuel Tank, (1) 6'W x 3'6"H x 2'6"L Hydraulic Tank, (2) BRADEN Hydraulic Winches, 9'W x 48'L Mud Boat, CAN-GLOBAL Deadline Anchor. 80R22.5 Tires.
Pump (PRIMARY):
F.E.S. MZ-9 Triplex Mud Pump S/N 07078, 1,000 Hp. w/(3) 7" x 10" Forged Steel Fluid Ends, Quick Change Caps, 5,000 PSI Pulsation Dampener, M&F 6,000 PSI Pressure Gauge S/N 29100, FIVE STAR 5" x 6" Charging Pump SIN 7467 p/b EMERSON 50 HP Electric Motor.
PUMP POWER:
No. 01 - DETROIT Series 60 Diesel Engine S/N 06R0866352 w/Electric Start, Radiator, WPT Transmission. No. 02 - DETROIT Series 60 Diesel Engine S/N 06R0841951 w/Electric Start, Radiator, WPT Transmission.
PUMP (STANDY):
F.E.S. MZ-9 Triplex Mud Pump S/N 0707C, 1,000 HP w/(3) 7" x 10" Forged Steel Fluid Ends, Quick Change Caps, 5,000 PSI Pulsation Dampener, M&F 6,000 PSI Pressure Gauge S/N 29621, FIVE STAR 5" x 6" Charging Pump S/N 7469 p/b EMERSON 50 HP Electric Motor.
PUMP POWER:
No. 01 - DETROIT SERIES 60 Diesel Engine S/N 06R0839436 w/Electric Start, Radiator, WPT Transmission. No. 02 - DETROIT Series 60 Diesel Engine S/N 06R0838667 w/Electric Start, Radiator, WPT Transmission.
Rotating and Traveling Equipment:
HACKER 20-112" Rotary Table S/N 6168 w/44" Centers, Split Master Bushings. NATIONAL 250-Ton Swivel. OILWORKS 1500 Hydraulic Kelly Spinner S/N KS0371B. 5-114" x 42'L Hex Kelly. Kelly Drive Bushing, Square Drive. Upper Kelly. Lower Kelly. McKISSICK 250-Ton Block/Hook Combination. 96"L, 250-Ton Elevator Links.
WELL CONTROL Equipment:
HYDRIL Annular Blowout Preventer, 11" X 5,000 PSI. SHAFFER Double Blowout Preventer. 11" X 5,000 PSI. 11"ID x 36"H x 5M Drilling Spool. KOOMEY 5Station Accumulator S/N 7572 w/(12) Bottles, (1) BEAR Triplex Pump p/b 20 HP Electric Motor, (2) Air Pumps, Gauges, Mounted On Junk Box Porch w/ Steel Flexlines. KOOMEY 5-Station Remote Control Panel. S/N S7572. 5,000 PSI Choke Manifold w/(1) 5-Way Cross, (2) 4 1/6" x 5M Gate Valves, (7) 2-1/6" x 5M Gate Valves, 9' Buffer Chamber, Mounted Adjustable Height Skid. Kill Valves - (2) 2-1/6 x 5M Gate Valves. Choke Valves - (1) 4-1/6 x 5M HCR Valve, (1) 4-1/6 x 5M Gate Valve.
HOUSES:
SHOPBUlLT 9'6"W x 30'L Doghouse w/(6) Lockers, Knowledge Box, (4) Hydraulic Raising Rams, Skidded. SHOPBUlLT 1O'W x 40’L Parts/Change House w/(15) Lockers, Parts Bins, Heater, Lights, Skidded. SHOPBUlLT 8'W x 25'L Mud House w/(2) Lockers, Mud Hopper, Test Sink, Heater, Lights, Skidded.
GENERATOR/UTILITY HOUSES:
No. 1 - MARATHON 572RSL4025 380 Kw. Generator SIN WA-551037-0506 p/b DETROIT Series 60 Diesel Engine S/N 06R0898278 w/ Electric Start, Radiator, Gauges. No. 2- MARATHON 572RSL4025 380 Kw. Generator SIN WA-559870-0607 p/b DETROIT Series 60 Diesel Engine S/N 06R0971340 w/ Electric Start, Radiator, Gauges. SULLAIR 1500E Air Compressor SIN 200709150027 p/b SULLAIR 20 HP Electric Motor, Mounted 120 Gallon Air Receiver Tank. CAMBELL HAUSFELD Air Compressor S/N 1120737 p/b 1.50 HP Electric Motor, Mounted 100 Gallon Air Receiver Tank. GENERAL ELECTRIC E9000 Electrical Control Panel. ACME 75 Kva. Transformer. SHOPBUILT 1O'W x 42'L Utility House w/Lights, Skidded. SHOPBUlLT 3'W x 15"H x 15'L Electric Suitcase. SHOPBUILT 3'W x 15"H x 28'L Electric Suitcase. SHOPBUILT 18"W x 9'L Electric Suitcase.
Mud Systems:
SHOPBUILT 9'10"W x 5'9"H x 39'L, 379 Bbl. Suction Tank w/12'L Covered Porch, (3) Compartment, (3) MAXX 2000 Mud Agitators p/b (3) WORLDWIDE 10 HP Electric Motors, Flat Bottom, Internal Plumbing, Top Mounted Walkways, Stairs, Safety Rails, Lights, Skidded. BAKER 6" x 8" Centrifugal Mixing Pump S/N 5455 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. BAKER 6" x 8" Centrifugal Mixing Pump S/N 5450 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. SHOPBUILT 9'10"W x 5'9"H x 39'L, 379 Bbl. Shaker Tank w/12'L Covered Porch, (4) Compartment, (2) MAXX 2000 Mud Agitators p/b WORLDWIDE (2) 10 Hp. Electric Motors, Flat Bottom, Internal Plumbing, Top Mounted Walkways, Stairs, Safety Rails, Lights, Skidded. BAKER 6" x 8" Centrifugal Desilter Pump S/N 5453 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. COBRA 6" x 8" Centrifugal Desander Pump S/N 1901 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. SWACO Mongoose Single, Single Screen, Linear Motion Shale Shaker S/N MRM0253. SWACO Mongoose Single, Single Screen, Linear Motion Shale Shaker S/N MPM0036. SWACO Desilter w/ (12) 2" Cones. SWACO Desander w/ (2) 10" Cones.
WATER/FUEL TANKS:
SHOPBUILT 1O'W x 8'H x 32'L, 440 Bbl. Water Tank w/8'L Covered Porch, Lights, Skidded. DOUBLE LIFE 2" x 3" Centrifugal Water Pump S/N 8220 p/b WORLDWIDE ELECTRIC 25 HP Electric Motor. DOUBLE LIFE 2" x 3" Centrifugal Water Pump S/N 8221 p/b WORLDWIDE ELECTRIC 25 Hp. Electric Motor. SHOPBUILT 8'Dia. x 30'L, 12,000 Gallon Fuel Tank w/Porch, (2) Fuel Transfer Pump, Skidded.
INSTRUMENTATION:
Type D 500,000 Lb. Weight Indicator. Type D 6,000 PSI Mud Gauge S/N 29099.
HANDLING TOOLS:
OILWORKS 35C7 Pipe Spinners S/N PS0140, Chain Driven. ACT Rotary Tongs. (2) 250-Ton Drill Pipe Elevators. (1) 5" Drill Pipe Slip.10-Segment Drill Collar Slips.11-Segment Safety Clamp. 8-Segment Safety Clamp. Mud Bucket.
ANCILLARY EQUIPMENT:
SHOPBUILT 4'W x 38"H x 45'L, 2-Section Catwalk w/Steel Deck. 6 Sets of (12) 24"H x 28'L Pipe Racks. SHOPBUILT 1O'W x 36"H x 30'L Junk Box w/1O'L Porch, Skidded. (2) 4'W x 4'H x 4'L Baskets w/ Thread Protectors. OILWORKS 1200 Measuring Device S/N 6199 w/15,000 Ft. of .092 Wireline. 2,000 Ft. of 1-1/4" Drill Line. ACME 75 Kva. Camo Transformer. (4) Steel Frame Rio Mats, 8"W x 48'L. EPPS Pressure Washer S/N 20080125. FIVE STAR Bug Fan. 53'L Rotary Hose. Vibrator Hoses. Miscellaneous Spare Parts, Fire Extinguishers, Hand Tools, Etc.
Drill Pipe and Drill Collars:
12,500' 4 1/2? XH, Grade G 16.60# Drill Pipe. (18) -6 1/2?OD x 2 1/4?ID Drill Collars with 4-1/2? XH Connections. (3) – 8” x 2 13/16” ID Drill Collars with 6 5/8” Regular Connections.
Rig #8 INVENTORY
Drawworks:
CROWN CE1000SD Single Drum Drawworks S/N 0326-RA102B7-07, 1,000 HP, Lebus Grooved f/1-1/4" Line, C&H Makeup & Breakout Catheads, Air Drillers Control Console, Crown-0-Matic.
Mast:
CROWN 118'H Telescoping Mast S/N 79-M5249-07 440,000 Lb. Static Hook Load, Crown Block w/Sheave Cluster & Fastline Sheave, (2) 3-Stage Raising Rams, Hydraulic Seeped, Crown Safety Platform, Racking Board, Tong Counterweights, Ladder, Derrick Climber, Standpipe & Manifold.
CARRIER:
All Above Mounted CROWN 52'L Four-Axle Trailer VIN: 4C9SM064981009009 p/b (2) DETROIT Series 60 Diesel Engines SIN's 06R0879297 & 06R0879296, 505 HP w/ Electric Start, Radiator, Gauges, (2) Transmissions, CROWN 2-Engine Compound, CROWN Right Angle Gear Box, (2) PARKER Hydraulic Pumps, (4) Hydraulic Leveling Jacks, (4) Manual Leveling Jacks, Fuel Tank, (1) 6'W x 3'6"H x 2'6"L Hydraulic Tank, (2) BRADEN Hydraulic Winches, 9'W x 48'L Mud Boat, CAN-GLOBAL Deadline Anchor, 80R22.5 Tires.
SUBSTRUCTURE:
CROWN 18'W x 11'H x 36'L Substructure S/N 83-S4897-07, 300,000 Lb. Setback Capacity w/Rotary Beams, V-Door Ramp, Stairs, Safety Rails. Mast Base 8'W x 40'L.
Pump (PRIMARY):
F.E.S. MZ-9 Triplex Mud Pump S/N 0807C, 1,000 HP w/(3) 7" x 10" Forged Steel Fluid Ends, Quick Change Caps, 5,000 PSI Pulsation Dampener, M&F 5,000 PSI Pressure Gauge S/N 31074, FIVE STAR 5" x 6" Charging Pump p/b EMERSON 50 HP Electric Motor.
PUMP POWER:
No. 01 - DETROIT Series 60 Diesel Engine S/N 06R0838670 w/Electric Start, Radiator, Transmission. No. 02 - DETROIT Series 60 Diesel Engine S/N 06R0841948 w/ Electric Start, Radiator, Transmission.
PUMP (STANDBY):
F.E.S. MZ-9 Triplex Mud Pump S/N 0807D, 1,000 HP w/(3) 7" x 10" Forged Steel Fluid Ends, Quick Change Caps, 5,000 PSI Pulsation Dampener, TypeD 6,000 PSI Pressure Gauge S/N 36146, FIVE STAR 5" x 6" Charging Pump S/N 8232 p/b EMERSON 50 HP Electric Motor.
PUMP POWER:
No. 01 - DETROIT Series 60 Diesel Engine S/N 06R0839425 w/Electric Start, Radiator, Transmission. No. 02 - DETROIT Series 60 Diesel Engine S/N 06R0838675 w/Electric Start, Radiator, Transmission.
Rotating and Traveling Equipment:
HACKER 20-1/2" Rotary Table S/N 0131 w/ 44" Centers, Split Master Bushings. BREWSTER Swivel. OILWORKS 1500 Hydraulic Kelly Spinner S/N KS0369B. 5-1/4" x 42'L Hex Kelly. VARCO Kelly Drive Bushing, Square Drive. 5,000 PSI Upper Kelly. 5,000 PSI Lower Kelly. AMERICAN 250-Ton Block/Hook Combination. 250-Ton Elevator Links.
WELL CONTROL Equipment:
HYDRIL Annular Blowout Preventer, 13-5/8" x 5,000 PSI SHAFFER Double Blowout Preventer, 13-5/8" x 5,000 PSI 13-5/8"1D x 36"H x 5M Drilling Spool. KOOMEY 5-Station Accumulator S/N 8532 w/(12) Bottles, (1) BEAR Triplex Pump p/b 20 HP Electric Motor, (2) Air Pumps, Gauges, Mounted On Junk Box Porch. KOOMEY 5-Station Remote Control Panel S/N 88532. 5,000 PSI Choke Manifold w/(1) 5-Way Cross, (2) 4-1/6" x 5M Gate Valves, (7) 2-1/6" x 5M Gate Valves, 9'L Buffer Chamber, M&F 6,000 PSI Pressure Gauge S/N 81078, Mounted Adjustable Height Skid. Kill Valves - (2) 3-1/6" x 5M Gate Valves. Choke Valve - (1) 4-1/6" x 5M Gate Valve.
HOUSES:
AMERITECH 10'3"W x 30'6"L Toolpusher's House, Fully Furnished, Skidded. AMERITECH 14'W x 48'3"L Crew Quarters, Fully Furnished, Skidded. SHOPBUILT 9'6'W x 30'L Doghouse w/(6) Lockers, Knowledge Box, (4) Hydraulic Raising Rams, Skidded. SHOPBUILT 1O'W x 40'L Parts/Change House w/(15) Lockers, Parts Bins, Lights, Skidded. SHOPBUlLT 8’W x 25'L Mud House w/(2) Lockers, Mud Hopper, Test Sink, Heater, Lights, Skidded.
GENERATOR/UTILITY HOUSE:
No. 1 - MARATHON 572RSL4025 380 Kw. Generator S/N WA 5520210706 p/b DETROIT Series 60 Diesel Engine S/N 06R0971382 w/ Electric Start, Radiator, Gauges. No. 2 - MARATHON 572RSL4025 380 Kw. Generator S/N WA 555919 0107 p/b DETROIT Series 60 Diesel Engine S/N 06R0971399 w/ Electric Start, Radiator, Gauges. SULLAIR 15120E/A Air Compressor S/N 200709110077 p/b SULLAIR 20 Hp. Electric Motor, Mounted 120 Gallon Air Receiver Tank. INDUSTRIAL AIR Air Compressor S/N G11710022A p/b BALDOR 5 HP Electric Motor, Mounted 100 Gallon Air Receiver Tank. GENERAL ELECTRIC E9000 Electrical Control Panel. ACME 75 Kva. Transformer. SHOPBUILT 12'W x 42'L Utility House w/ Lights, Skidded. SHOPBUILT 3'W x 15"H x 15'L Electric Suitcase. SHOPBUILT 3'W x 15"H x 28'L Electric Suitcase. SHOPBUlLT 18"W x 9'L Electric Suitcase.
Mud Systems:
SHOPBUILT 9'10"W x 5'9"H x 39'L, 379 Bbl. Suction Tank w/12'L Covered Porch, (3) Compartment, (3) MAXX 2000 Mud Agitators p/b (3) WORLDWIDE 10 HP Electric Motors, Flat Bottom, Internal Plumbing, Top Mounted Walkways, Stairs, Safety Rails, Lights, Skidded. BAKER 6" x 8" Centrifugal Mixing Pump S/N 5645 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. BAKER 6" x 8" Centrifugal Mixing Pump S/N 5646 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. SHOPBUILT 9'10"W x 5'9"H x 39'L, 379 Bbl. Shaker Tank w/12'L Covered Porch, (4) Compartment, (2) MAXX 2000 Mud Agitators p/b WORLDWIDE (2) 10 HP Electric Motors, Flat Bottom, Internal Plumbing, Top Mounted Walkways, Stairs, Safety Rails, Lights, Skidded. BAKER 6" x 8" Centrifugal Desilter Pump S/N 5644 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. BAKER 6" x 8" Centrifugal Desander Pump S/N 5641 p/b WORLDWIDE ELECTRIC 75 HP Electric Motor. SWACO Mongoose Single, Single Screen, Linear Motion Shale Shaker S/N MRM0427. SWACO Desilter w/(6) 2"Dual Cones. SWACO Desander w/(2) 10" Cones.
WATER/FUEL TANKS:
SHOPBUILT 10'W x 8'H x 32'L, 440 Bbl. Water Tank w/8'L Covered Porch, Lights, Skidded. MCM 2" x 3" Centrifugal Water Pump S/N 1301 p/b WORLDWIDE ELECTRIC 25 HP Electric Motor. MCM 2" x 3" Centrifugal Water Pump S/N 1302 p/b WORLDWIDE ELECTRIC 25 HP Electric Motor. SHOPBUILT 8’Dia. x 30'L, 12,000 Gallon Fuel Tank w/Porch, Fuel Transfer Pump, Skidded.
INSTRUMENTATION:
500,000 Lb. Weight Indicator. Mud Gauge.
HANDLING TOOLS:
OILWORKS 35C7 Pipe Spinners S/N 0289, Chain Driven. FOLEY Rotary Tongs. BYRON JACKSON Drill Pipe Elevators. 3-Segment Drill Pipe Slips.(2) 10-Segment Drill Collar Slips. 10-Segment Safety Clamp. Mud Bucket.
ANCILLARY EQUIPMENT:
SHOPBUILT 4'W x 38"H x 45'L, 2-Section Catwalk w/Steel Deck. 5 Sets of (1O) 24"H x 28'L Pipe Racks. SHOPBUILT 10'W x 36"H x 30'L Junk Box w/1O'L Porch, Skidded. (2) 4'W x 4'H x 4'L Baskets w/ Thread Protectors. FIVE STAR Measuring Device S/N 1308 w/15,000 Ft. of .092 Wireline. 2,500 Ft. of 1-1/4" Drill Line. ACME 75 Kva. Transformer. (4) 8'W x 48'L Wood Rig Mats w/ Steel Frame. JOHN DEERE AC-165 Diesel Heater. CHAPPELL Pressure Washer SIN 15045021. 53'L Rotary Hose. 8'L Vibrator Hose. Miscellaneous Spare Parts, Fire Extinguishers, Hand Tools, Etc.
Drill Pipe and Drill Collars:
11,500' 4 1/2? XH, Grade G 16.60# Drill Pipe. (18) -6 1/2?OD x 2 1/4?ID Drill Collars with 4-1/2? XH Connections. (3) – 8” x 2 13/16” ID Drill Collars with 6 5/8” Regular Connections.
Rig #9 INVENTORY
Drawworks:
Sky Top Brewster N-46 (900 HP), Rated to 13,500' with 4 1/2" Drill Pipe, Drawworks grooved to accept 1-1/4" drilling line.
DRAWWORKS Power:
(2) Caterpillar D3408 engines, 505 HP Each @ 2100 RPM.
Mast and Substructure:
Skytop, 131' H x 20' W, 400,000# SHL Mast; Box on box substructure 16' H x 24' W x 38' L w/10' Floor Extension.
Pump #1:
Emsco F-1000 (1000 HP) Triplex Pump; powered by one (1) Caterpillar D-399.
Pump #2:
Emsco F-1000 (1000 HP) Triplex Pump; powered by one (1) Caterpillar D-399.
Rotating and Traveling Equipment:
Gardner Denver 22" x 44" Rotary Table. Skytop 7SX 250-Ton Swivel. Skytop 250-Ton Block Hook Combo. Crown Block saver.
WELL CONTROL Equipment:
Shaffer Spherical, 11" 5000 PSI Annular BOP. Shaffer LWS, 11" 5000 PSI Double BOP. Koomey Type 120, 5-Station, 80 Gallon Accumulator w/Remote Panel. 4" x 2" 5000 PSI Choke Manifold.
Generators:
Two (2) Caterpillar 3406 Engines with 350KW Generators. Both in Utility House W/Quincy 395 Air Compressor.
Mud System:
(1) 900 Barrel (Two Pit) Mud System complete with agitators
(2) Brandt King Cobra Linear Motion Shale Shakers
(1) Desander (1,OOOGPM)
(1) Desilter (1,OOOGPM)
(3) 75 HP x 6 x 8 centrifugal mud mixing pumps
(1) 500 bbl. water tank with two (2) 25 HP centrifugal pumps
Drill Pipe and Drill Collars:
13,500 - '4 1/2" XH, Grade G 16.60# Drill Pipe. (24) -6 1/2"OD x 2 1/4"ID Drill Collars with 4-112" XH Connections. (10)- 8" x 2 13116" ID Drill Collars with 65/8" R Connections.
Rig #10 INVENTORY
Drawworks:
Sky Top Brewster N-46 (1000 HP), Rated to 14,500' with 4 1/2" Drill Pipe
DRAWWORKS Power:
(2) Caterpillar D3408 engines, 505 HP Each @ 2100 RPM.
Mast and Substructure:
DSI, 136' H x 20' W, 550,000# SHL Mast; Box on box substructure 15' H x 24’ W x 38’ L w/10’ Floor Extension.
Pump #1:
HT-1000 (1000 HP) Triplex Pump; powered by one (1) Caterpillar 3508 Engine (900HP)
Pump #2:
HT-1000 (1000 HP) Triplex Pump; powered by one (1) Caterpillar 3508 Engine (900HP)
Rotating and Traveling Equipment:
Sky Top Brewster 18-1/2" x 44" Rotary Table. Gardner Denver 250-Ton Block, Sky Top Brewster 250-Ton Swivel. Crown Block saver.
well control Equipment:
Shaffer Spherical, 11" 5000 PSI Annular BOP. Shaffer LWS, 11" 5000 PSI Double BOP. Koomey Type 120, 5-Station, 80 Gallon Accumulator w/Remote Panel. 5000 PSI Choke Manifold.
Generators:
Caterpillar 3408 Engine w/(1) 300 KW Generator & Caterpillar 3412 Engine w/(1) 425 KW Generator. Both in Utility House W/Quincy 395 Air Compressor.
Mud System:
(1) 750 Barrel (Two Pit) Mud System
(1) 10’ X 30’ X 6’4” with agitators (1) 10’X40’X6’4”
(2) Brandt Mini-Cobra Linear Shale Shakers
(1) Desander (1,000GPM)
(1) Desilter (1,000GPM
Drill Pipe and Drill Collars:
13,500 -' 4 1/2" XH, Grade G 16.60# Drill Pipe. (24) -6 1/2"OD x 2 1/4"ID Drill Collars with 4-1/2" XH Connections. (4) – 8” Drill Collars with 6 5/8” R Connections.
|
