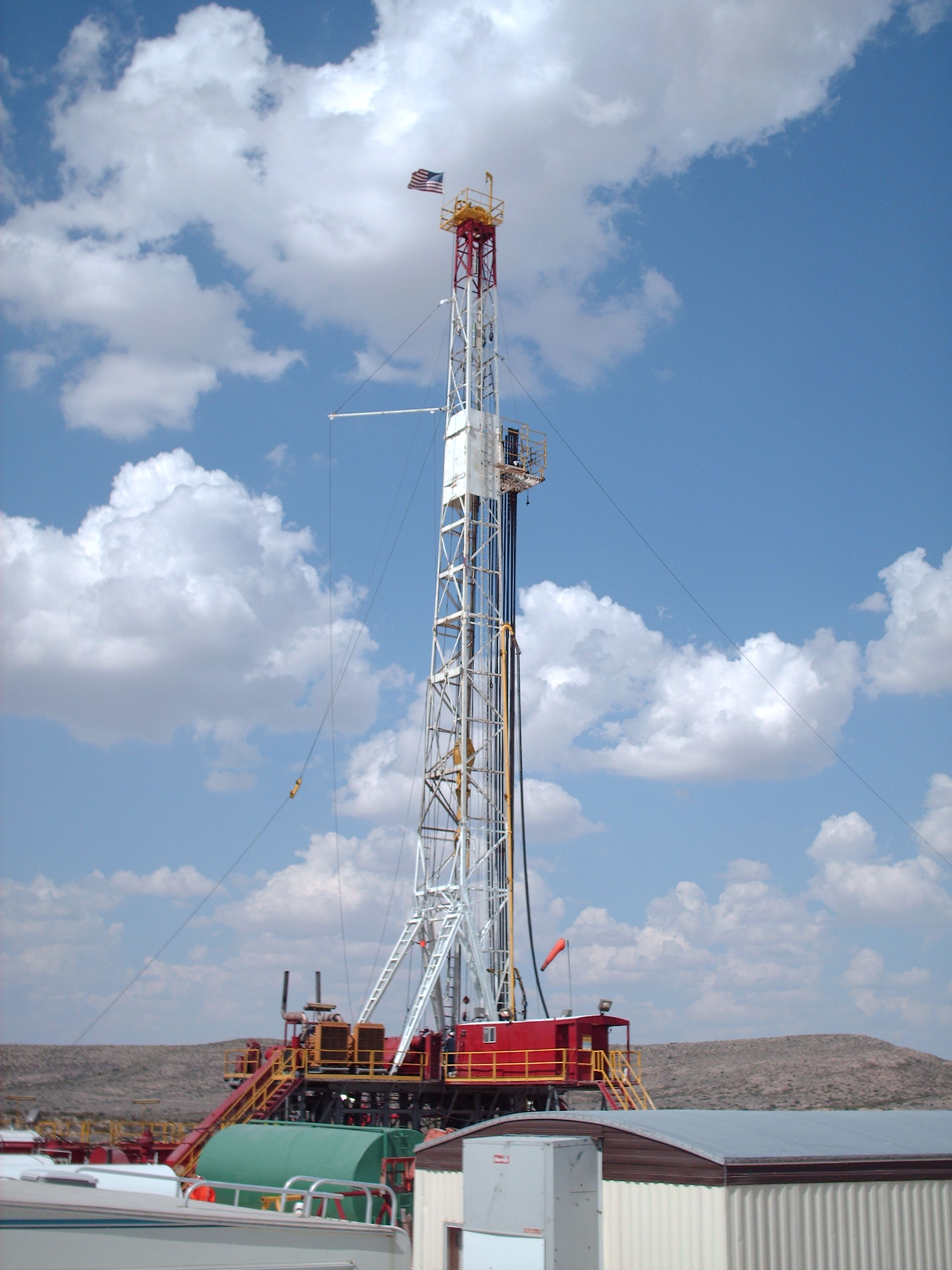

NATIONAL T-45, 800HP MECHANICAL DRILLING RIG
(Listing No. D-241)
Click on Above Images for Larger Viewing
$700,000
CLASSIFICATION:
National T-45 Mechanical 800 HP
DRILLING DEPTH:
10,700'

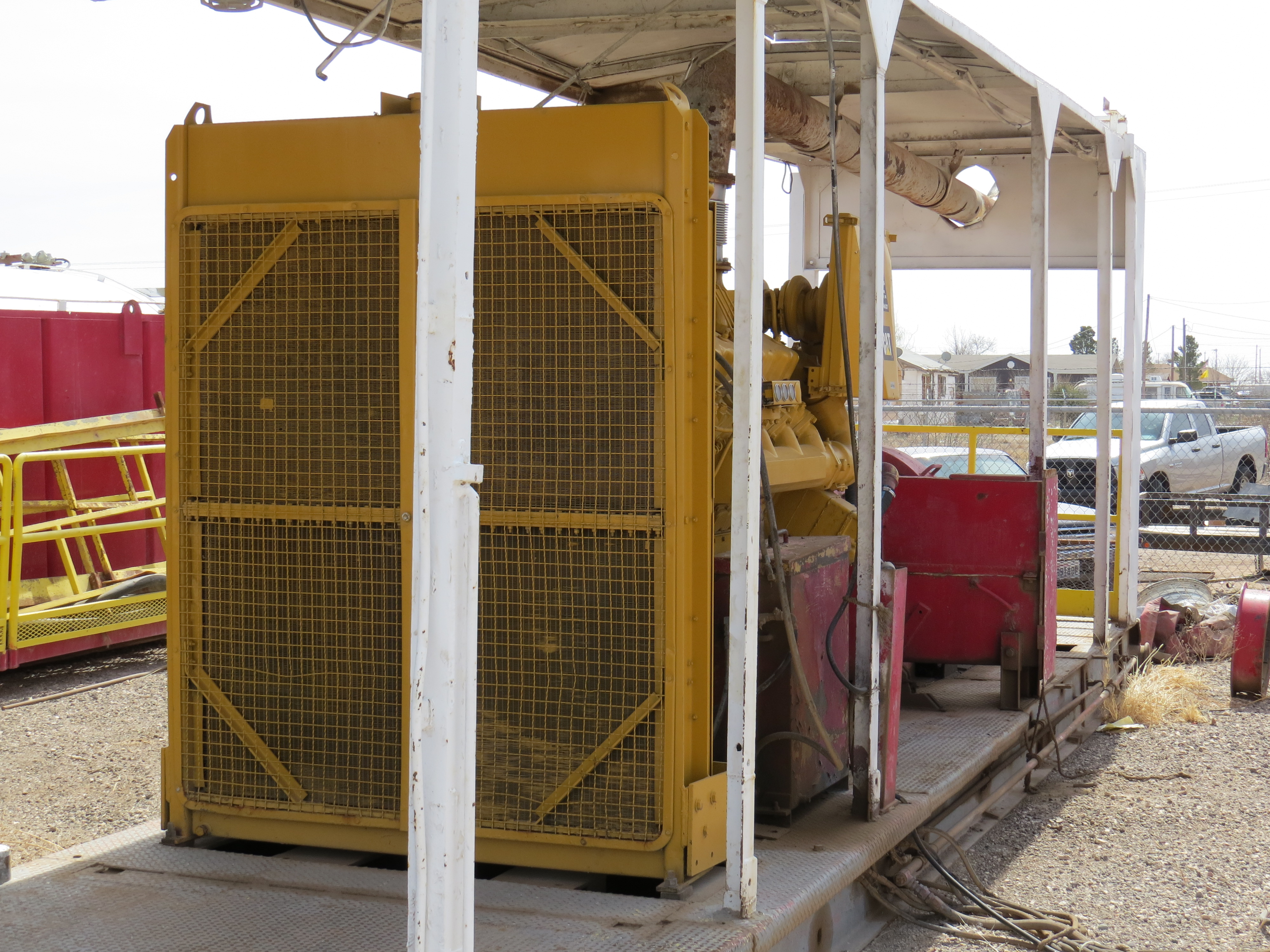

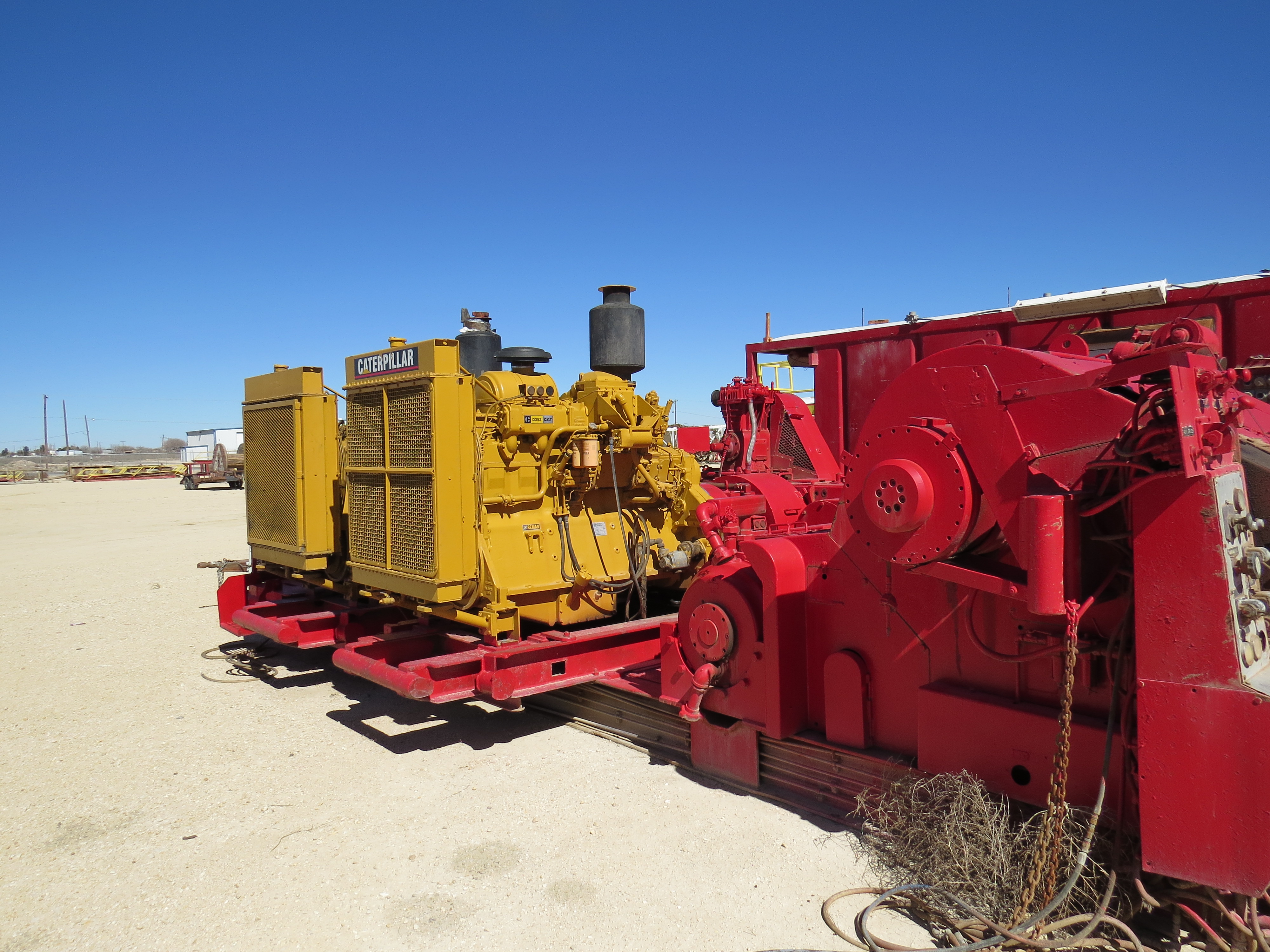

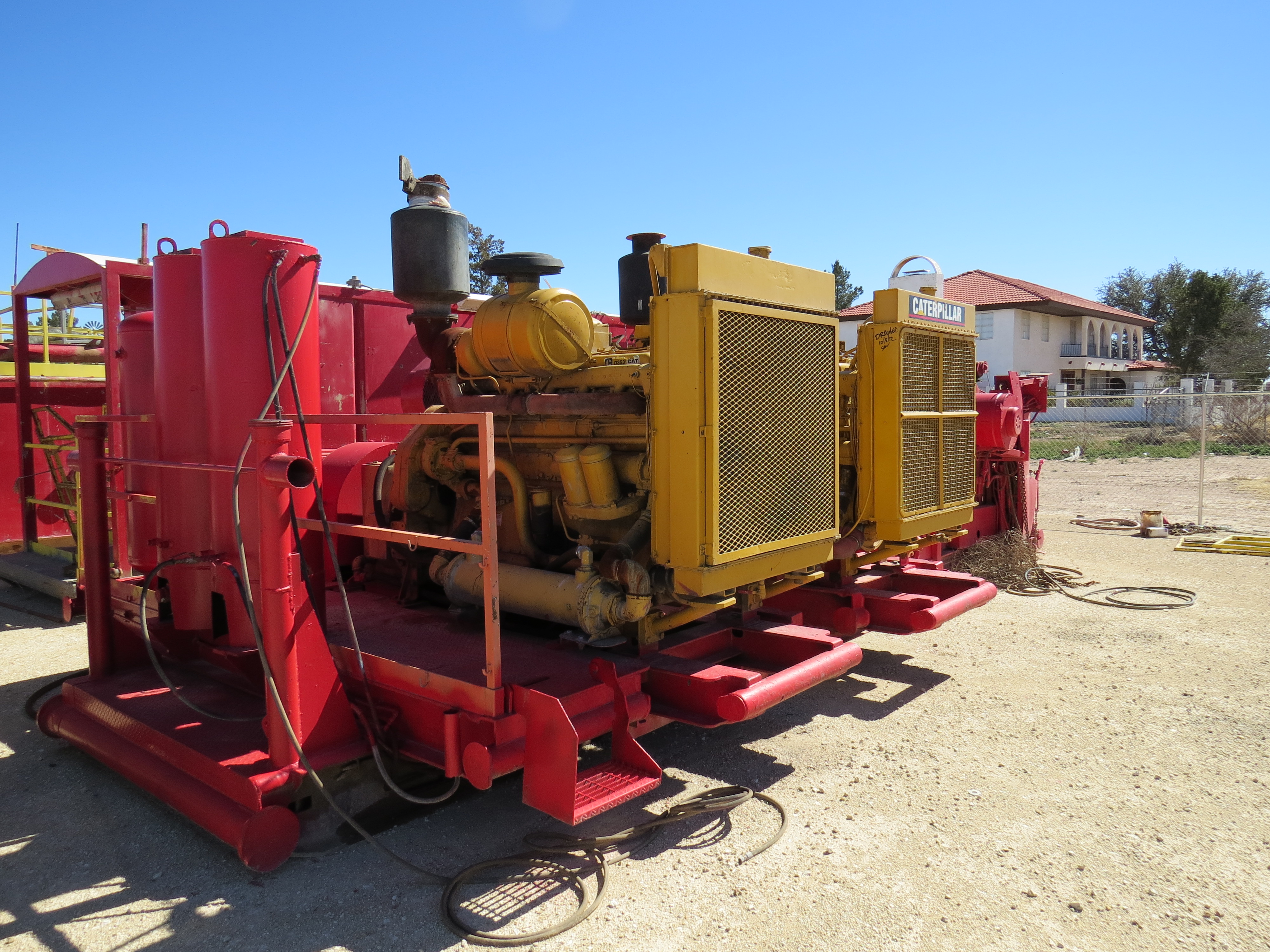

POWER SYSTEM:
Two (2) Caterpillar D353 engines each with
National Torque converters driving an

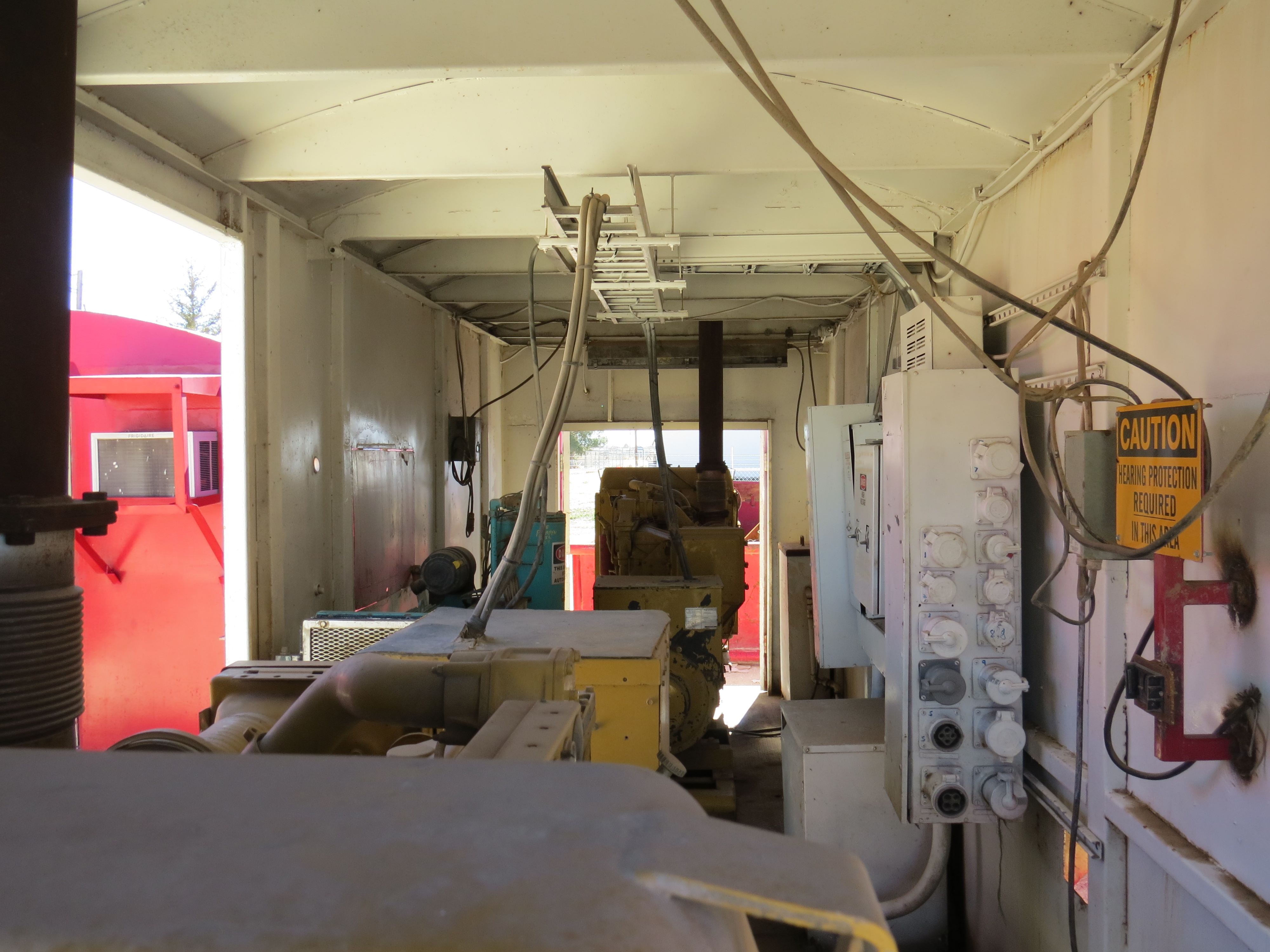

engine inline compound and Two (2) Caterpillar
D3406 engines with 185 KW AC generators

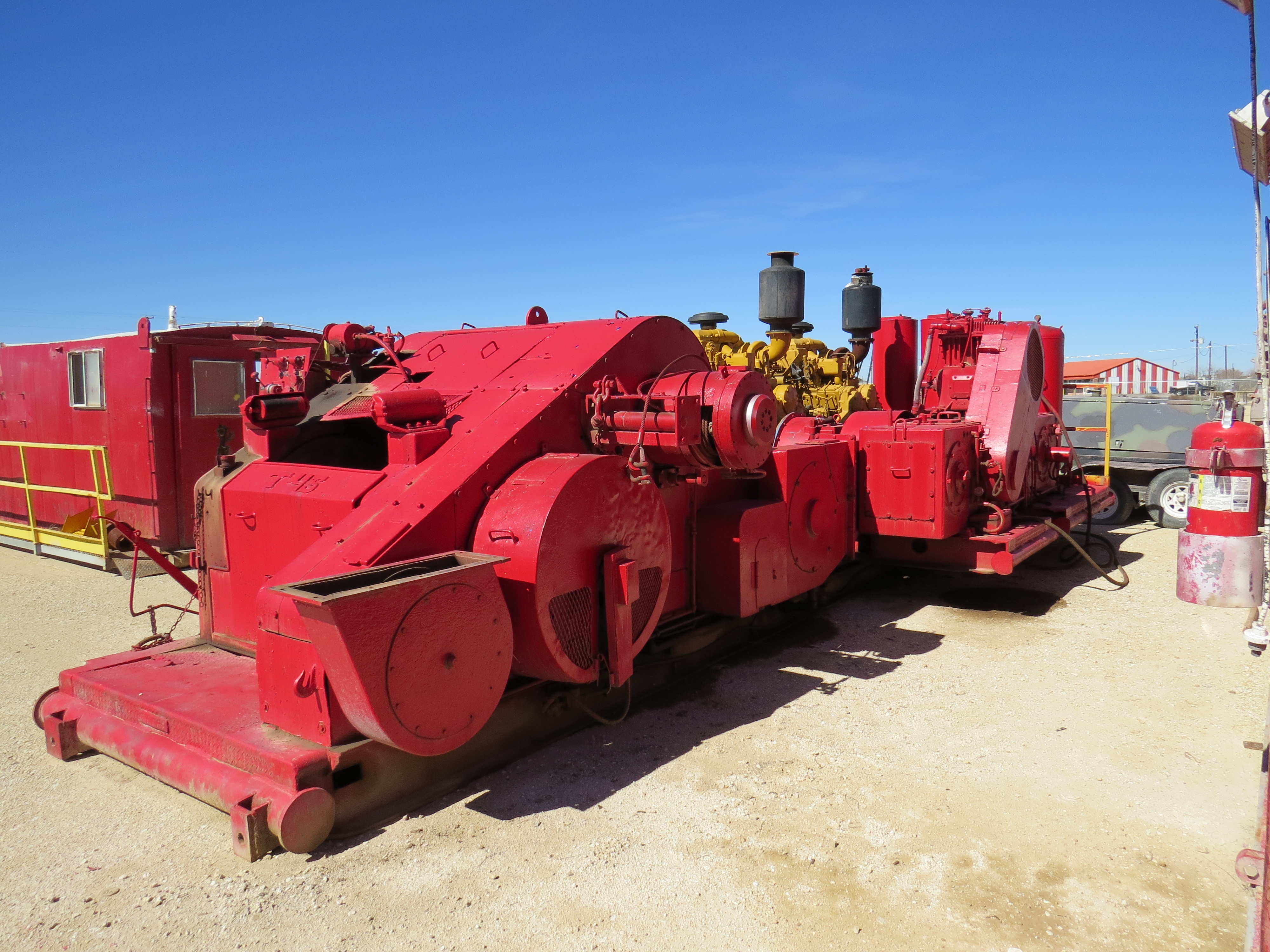

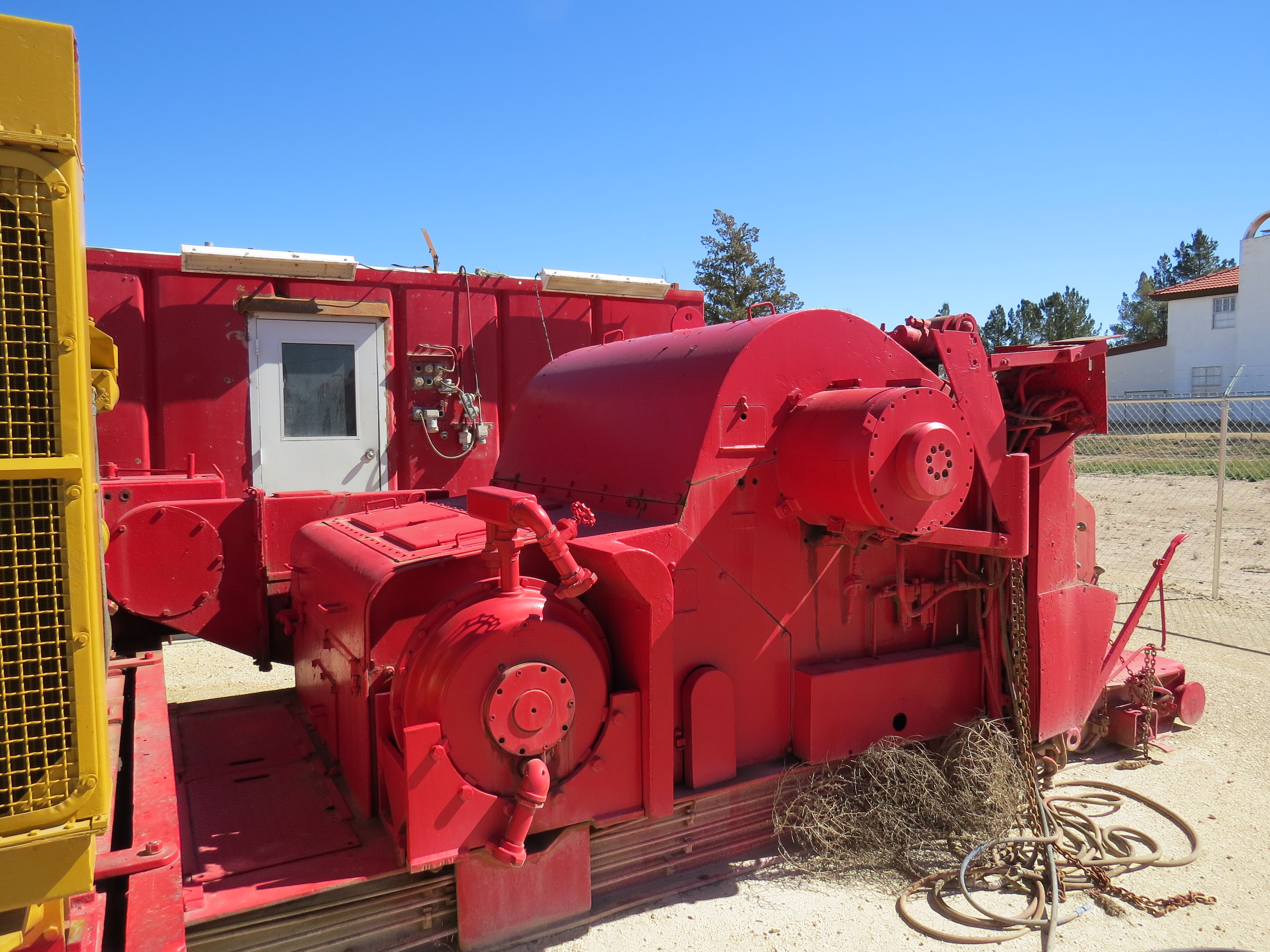

DRAWWORKS:

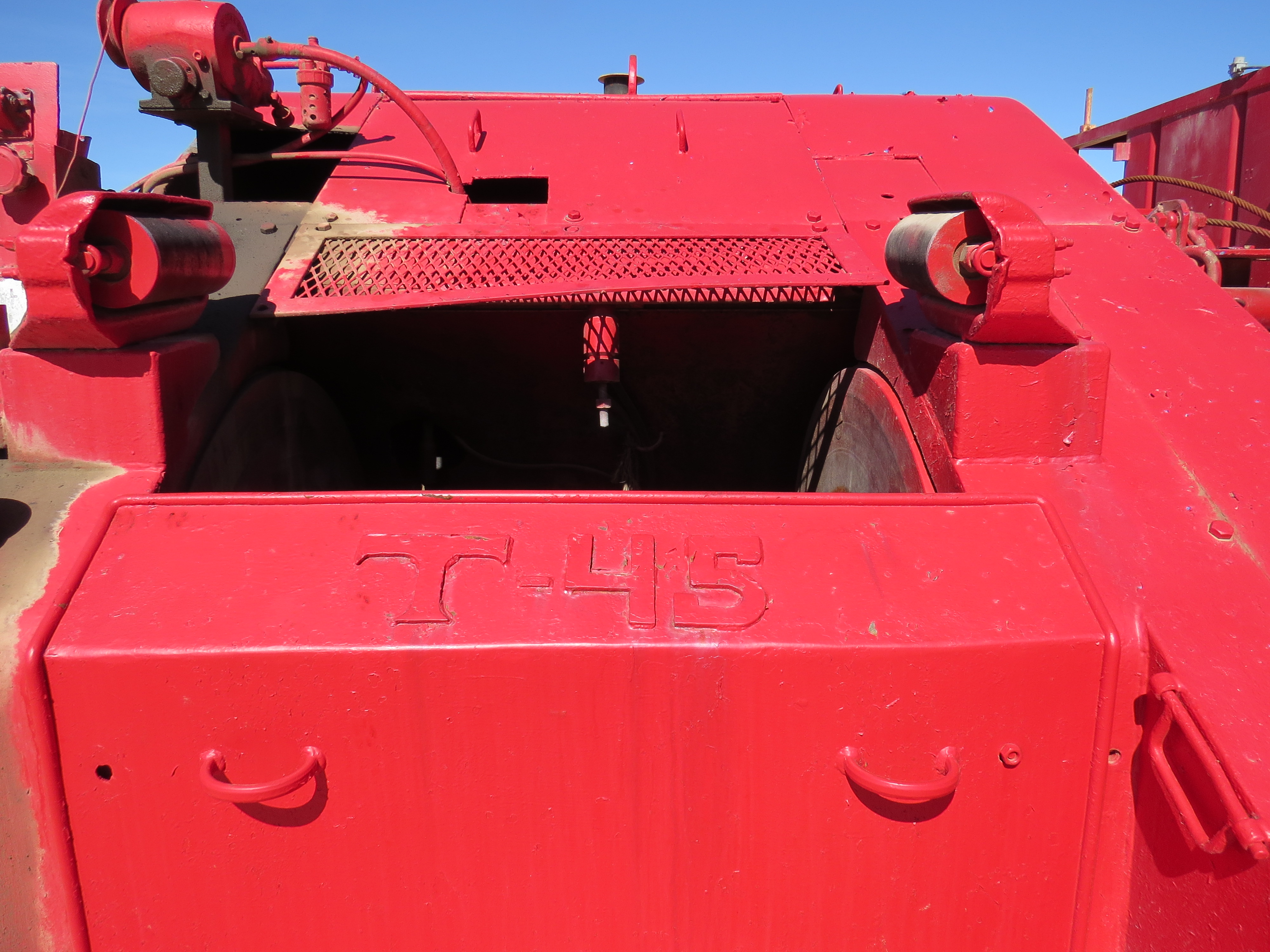

National T-45
Two (2) Engine Inline Compound with Splitter
and Pump Drive

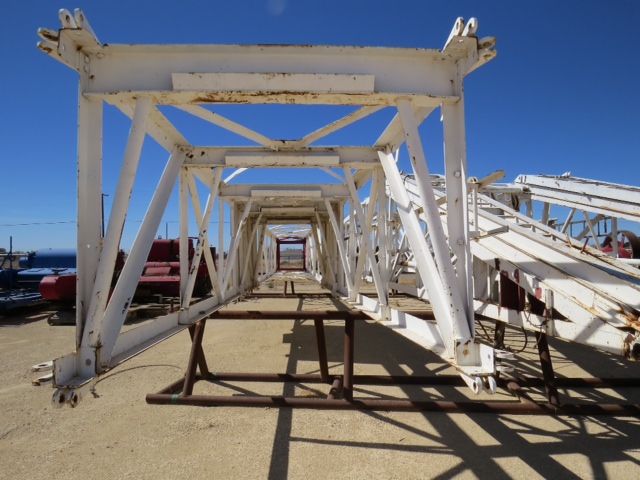

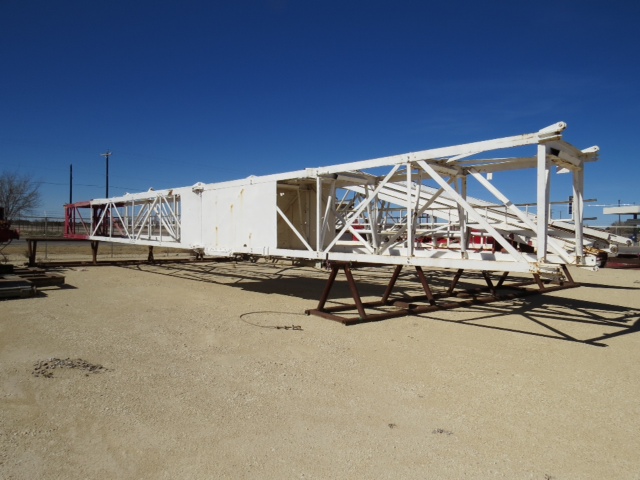

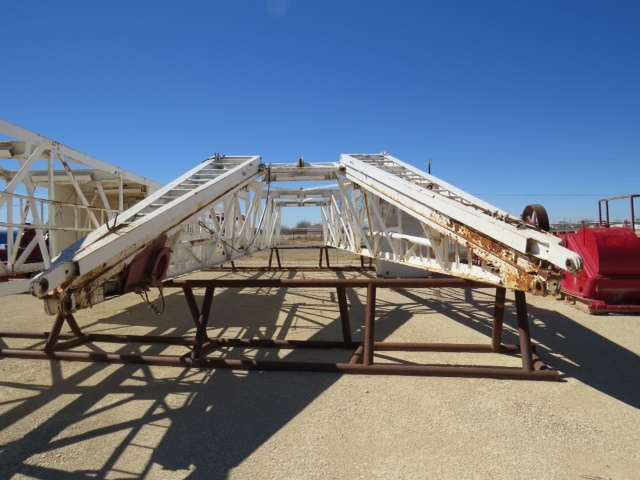

MAST:
Lee C. Moore 127' x 14' base, 370,000#
Static Hook Load
DRILL LINE:
1-1/8 KWR

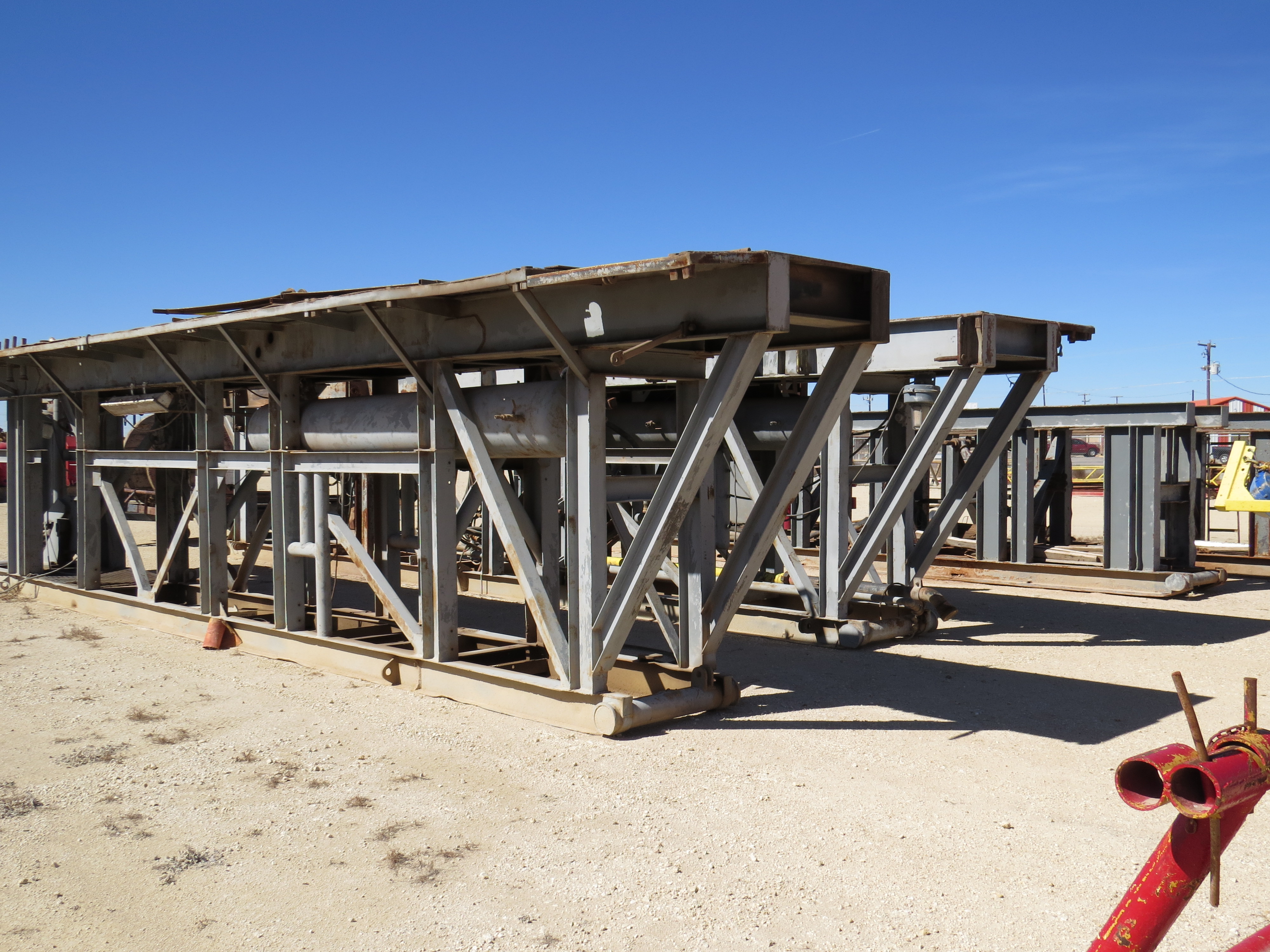

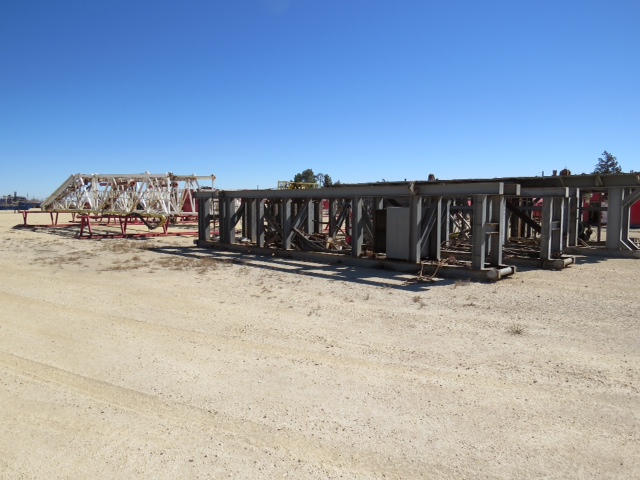

SUBSTRUCTURE:
Lee C. Moore 16.3' high, 350,000 rotary
capacity with 300,000# setback capacity, 14.3'
clear height from rotary beam to ground level

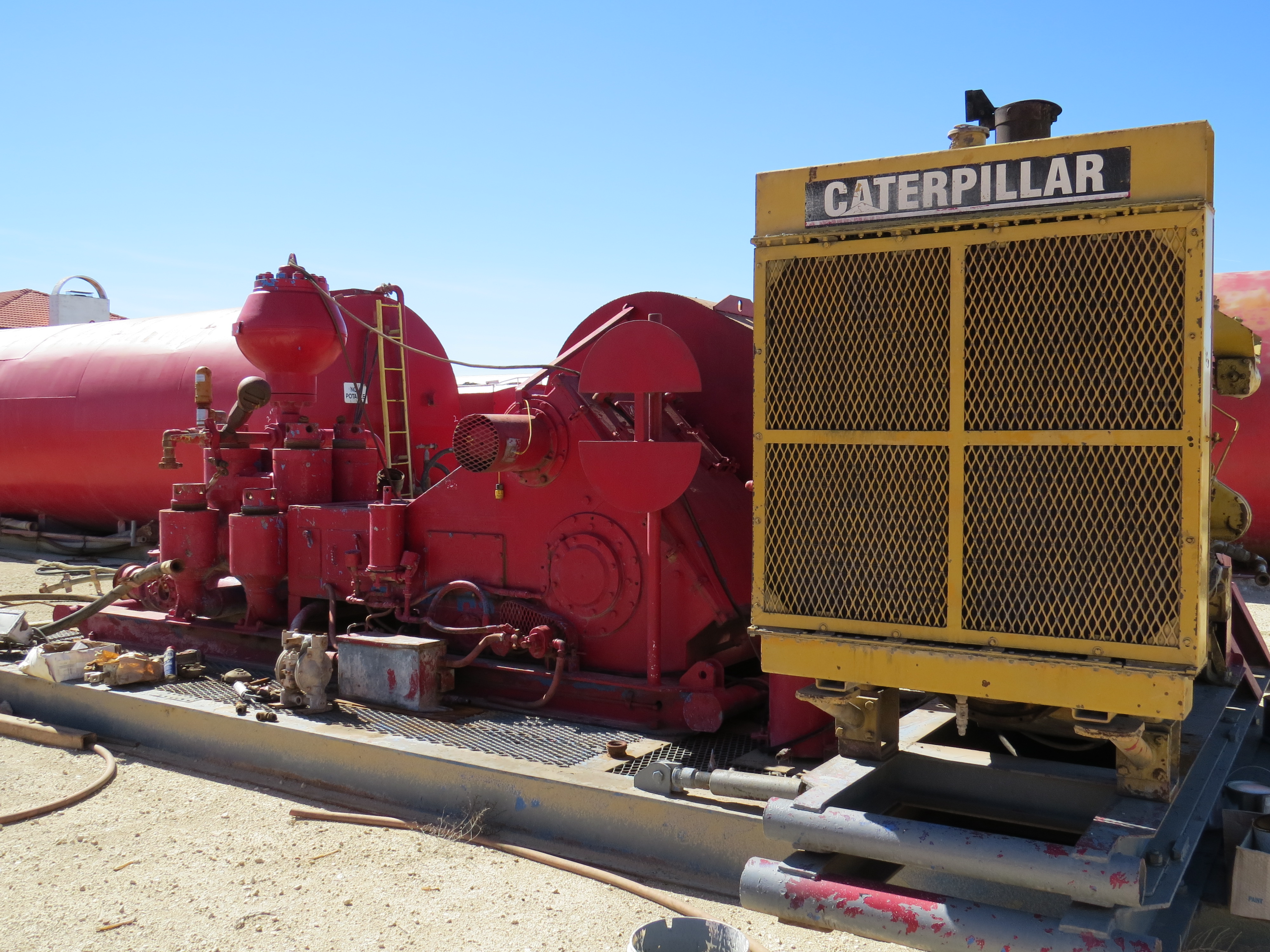

MUD PUMPS:
H & H Triplex 1000 HP with
398 Cat 750 HP Engine
Wilson 600 p/b Cat 353
ROTARY:
Ideco 17.5" RSH
TRAVELING BLOCK:
Brewster TL200 Ton Block
BJ 4200 Hook
SWIVEL:
Brewster 7SX Swivel, 250 Ton
KELLY:
5 1/4" Hex X 40'
ANNULAR PREVENTER:
Cameron "U" 13-3/8" 5,000# Annular
RAM PREVENTERS:
Cameron "U" 13-3/8" 5,000# Double
ACCUMULATOR SYSTEM:
Valvcon five (5) station, 80 gallon capacity
with dual air pumps and one (1) electric pump
Cameron Station

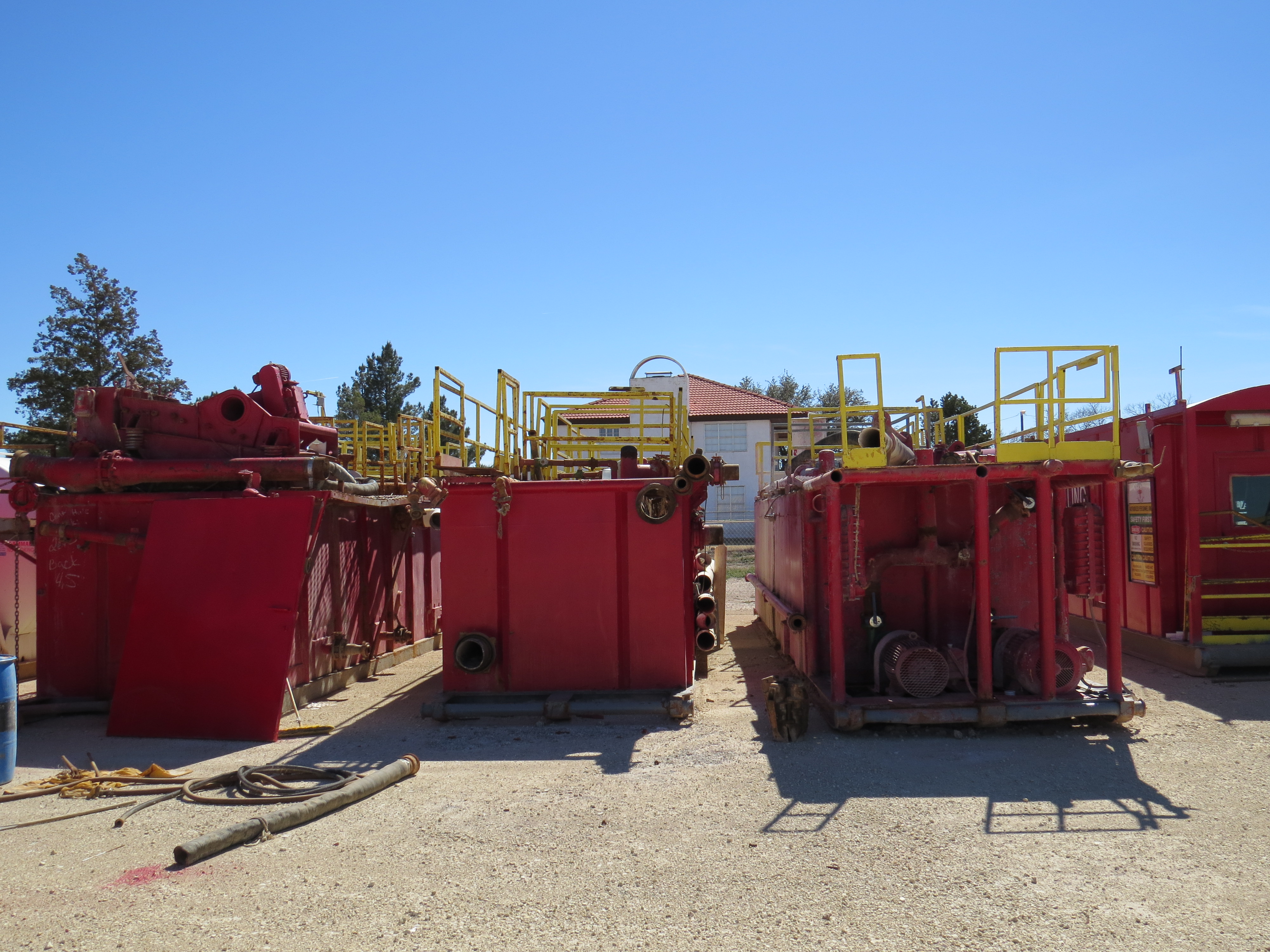

MUD TANK SYSTEM:
Three (3) tank 610 BBL total - 80 BBL slugging
pit, Totco ALS Shaker
MUD MIXING PUMPS:
Two (2) 6 x 8 centrifugal pumps, each driven
by 60 HP electric motors
AUXILLIARY EQUIPMENT:

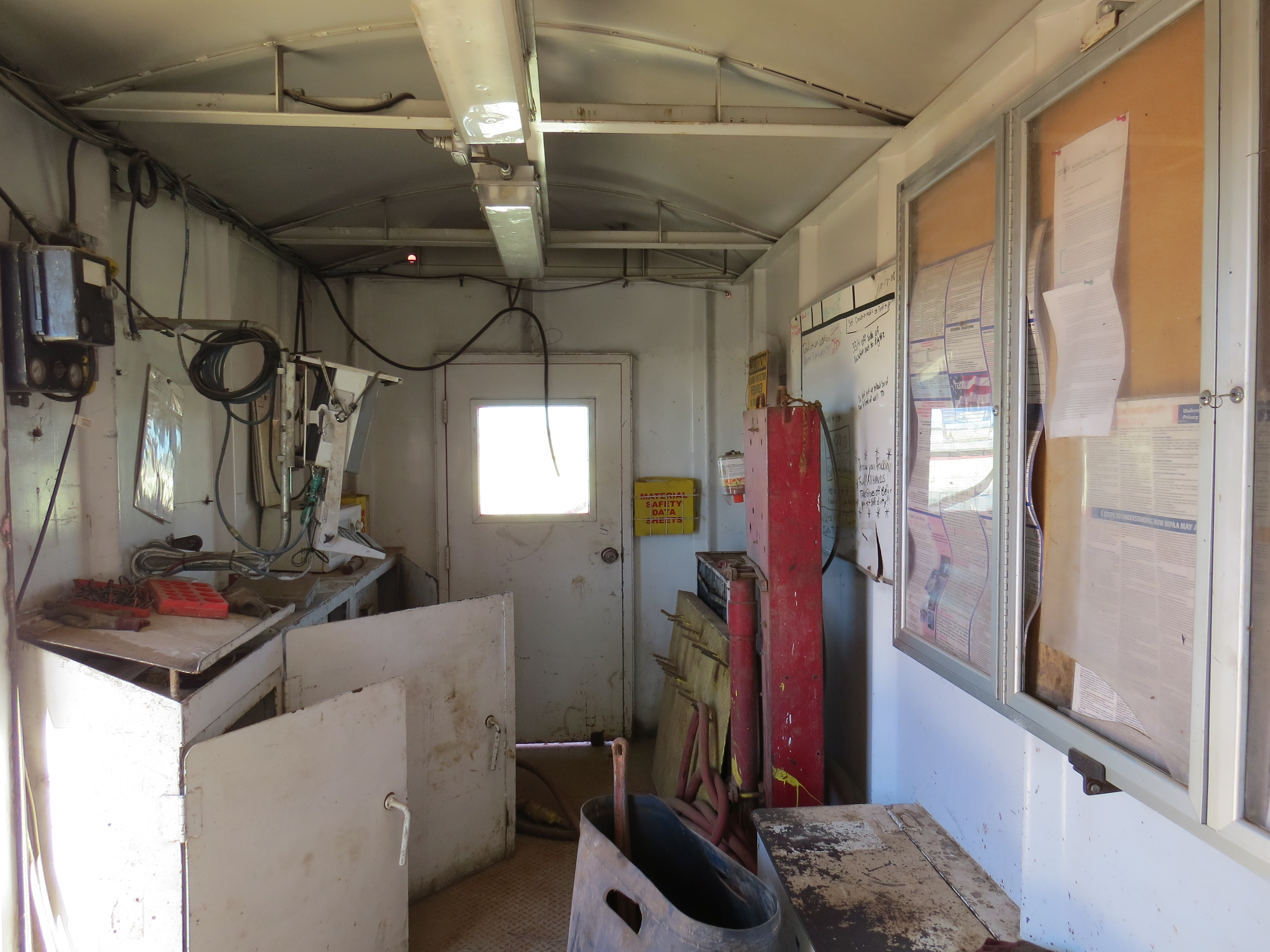

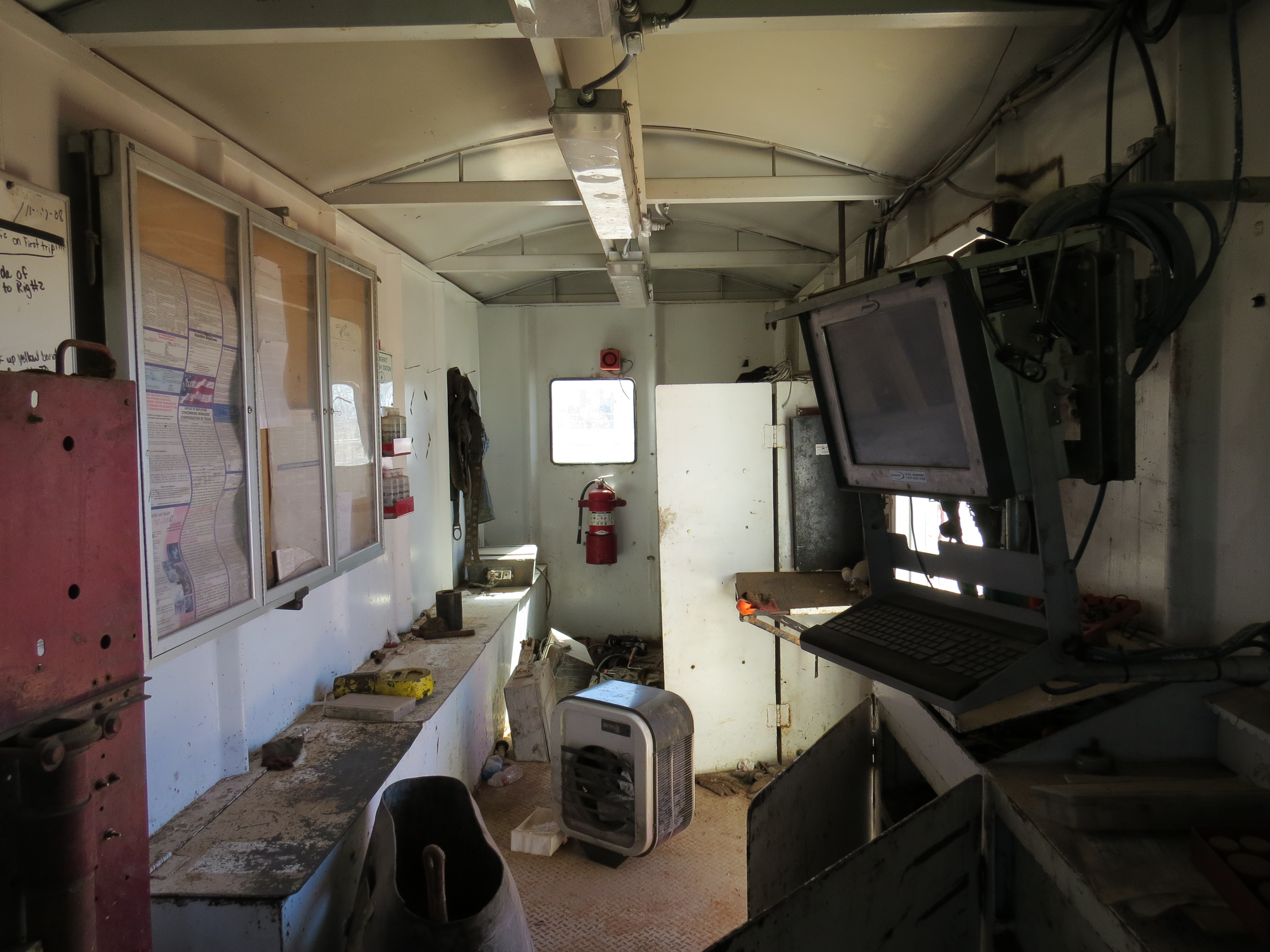

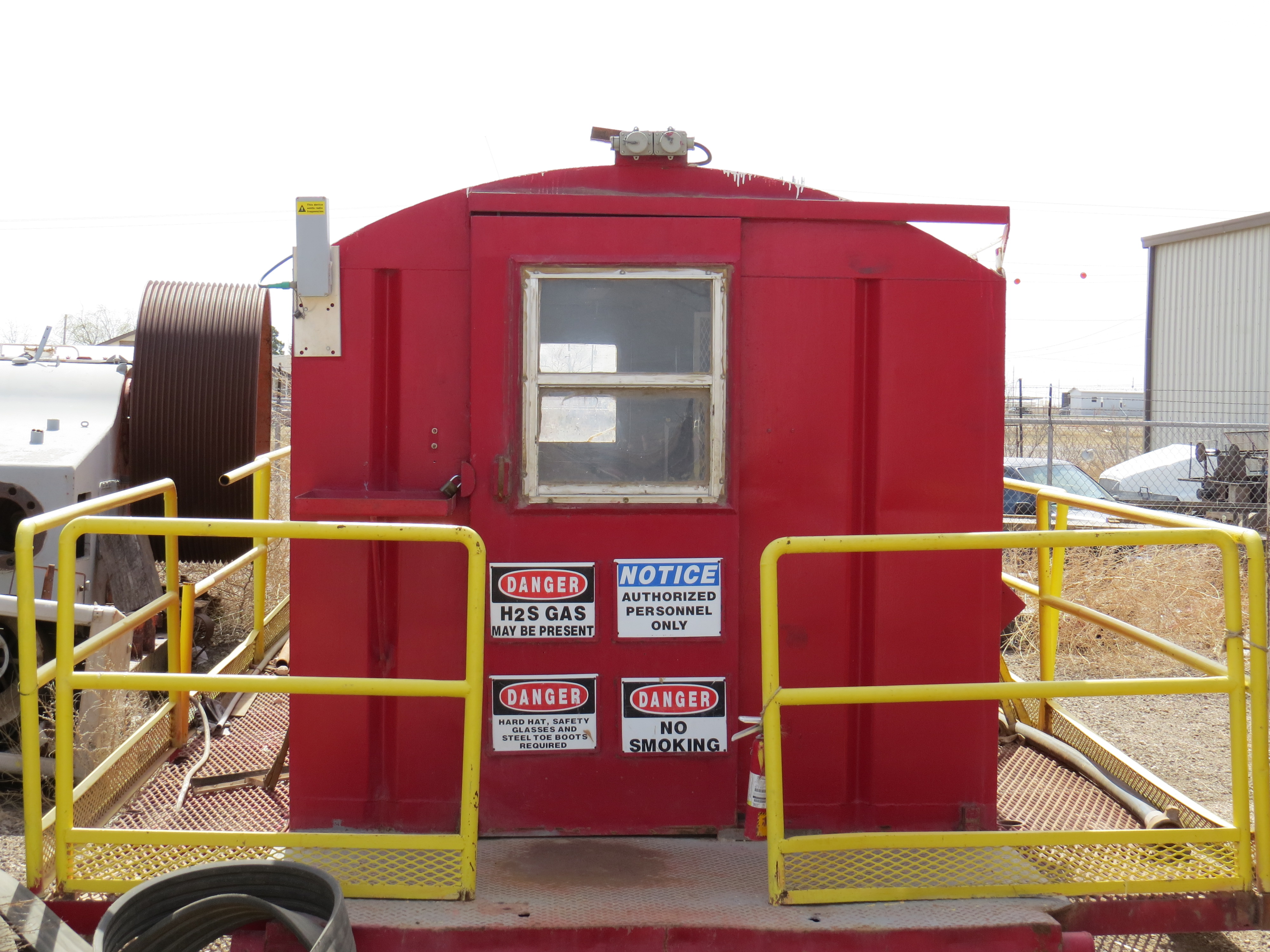

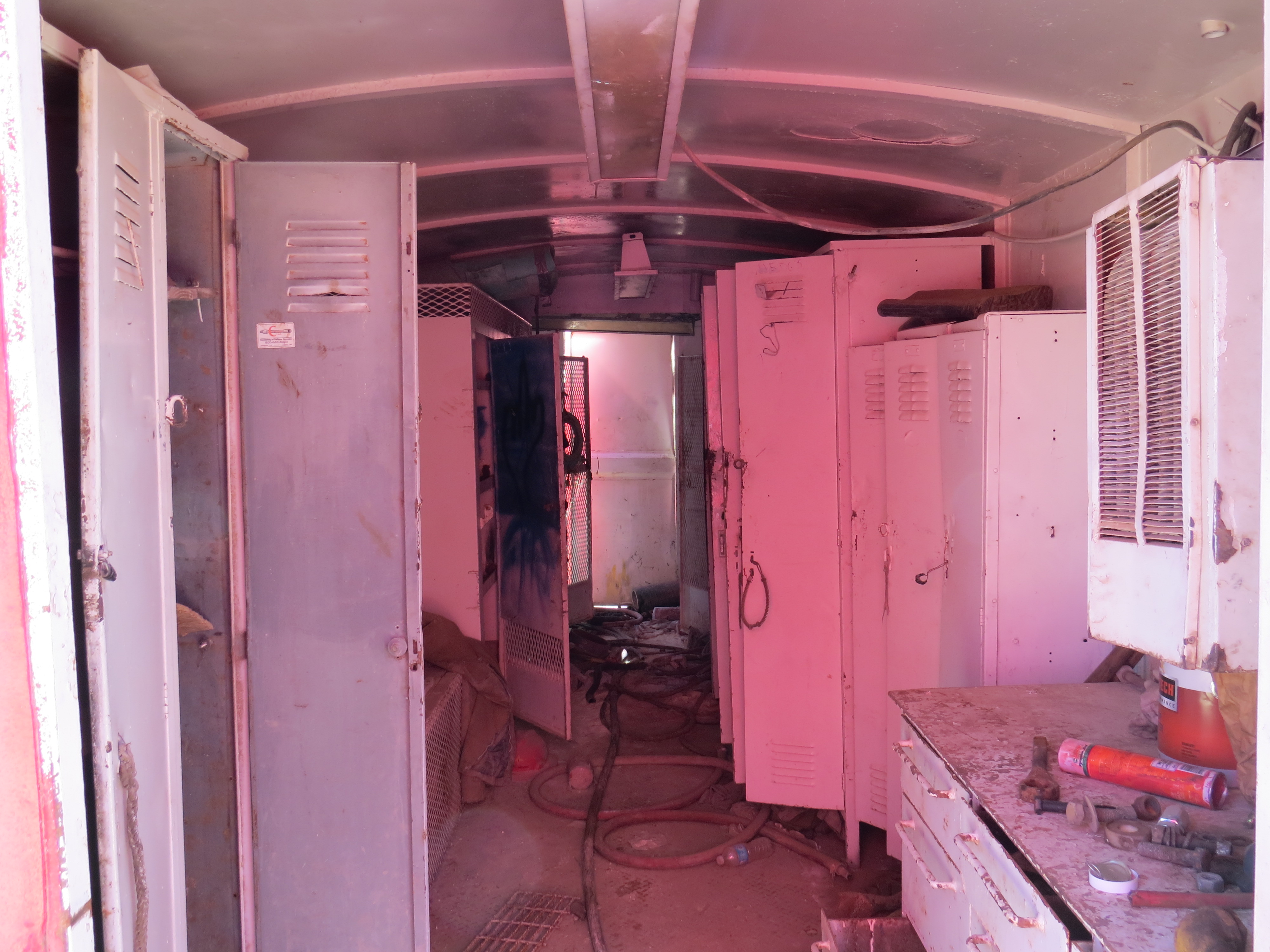

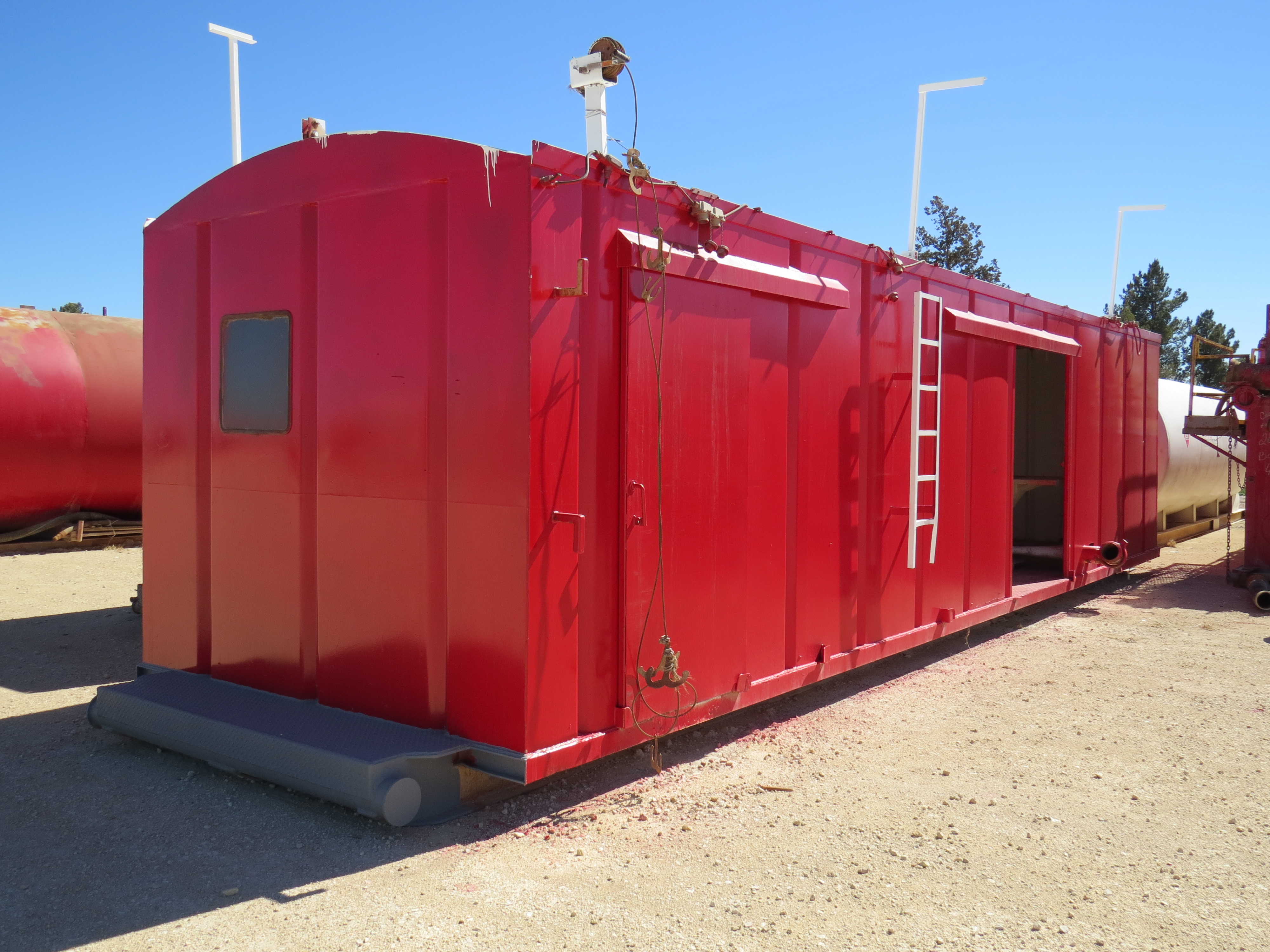

One (1) Tool Pusher and Crew Quarters

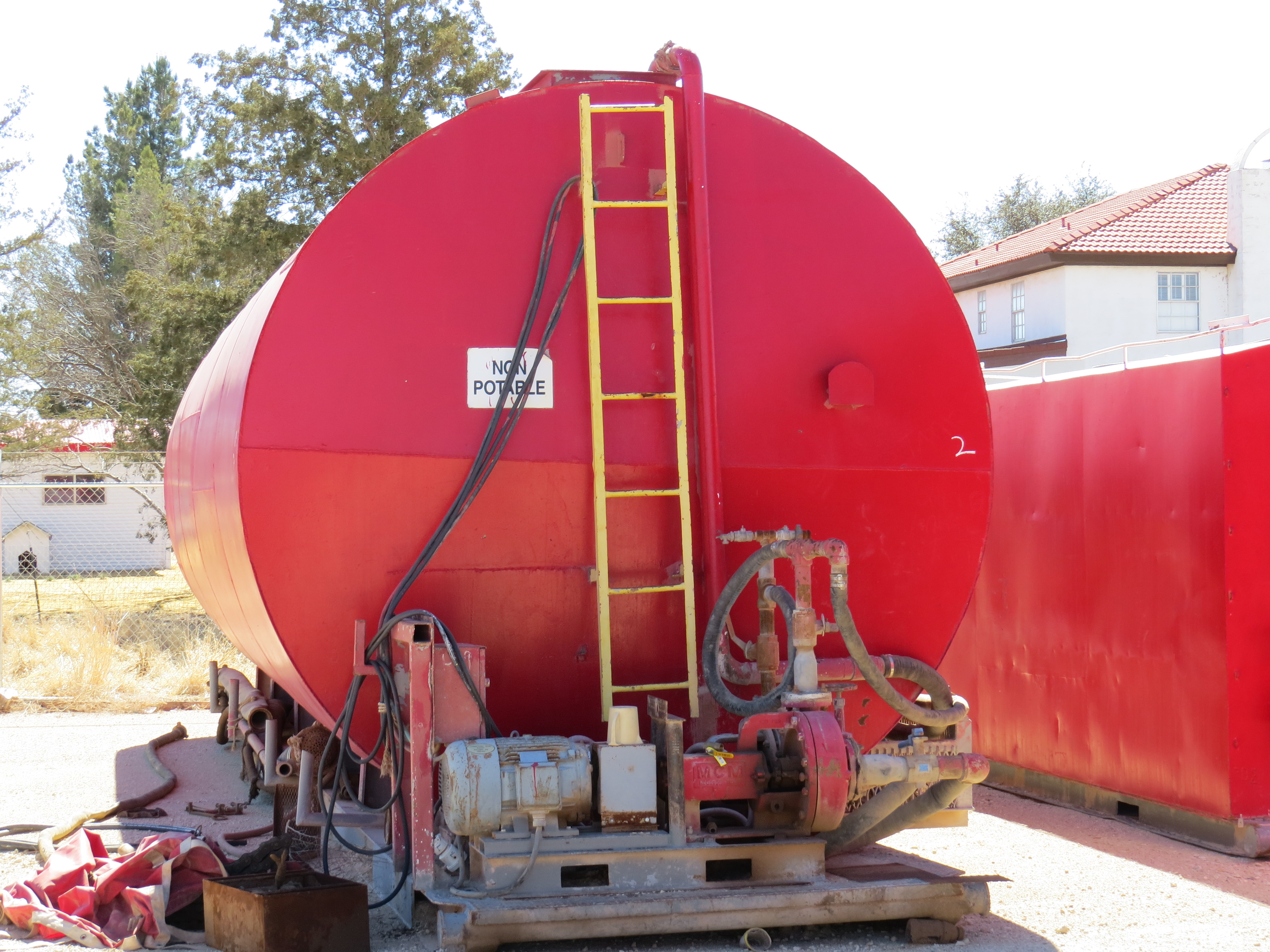

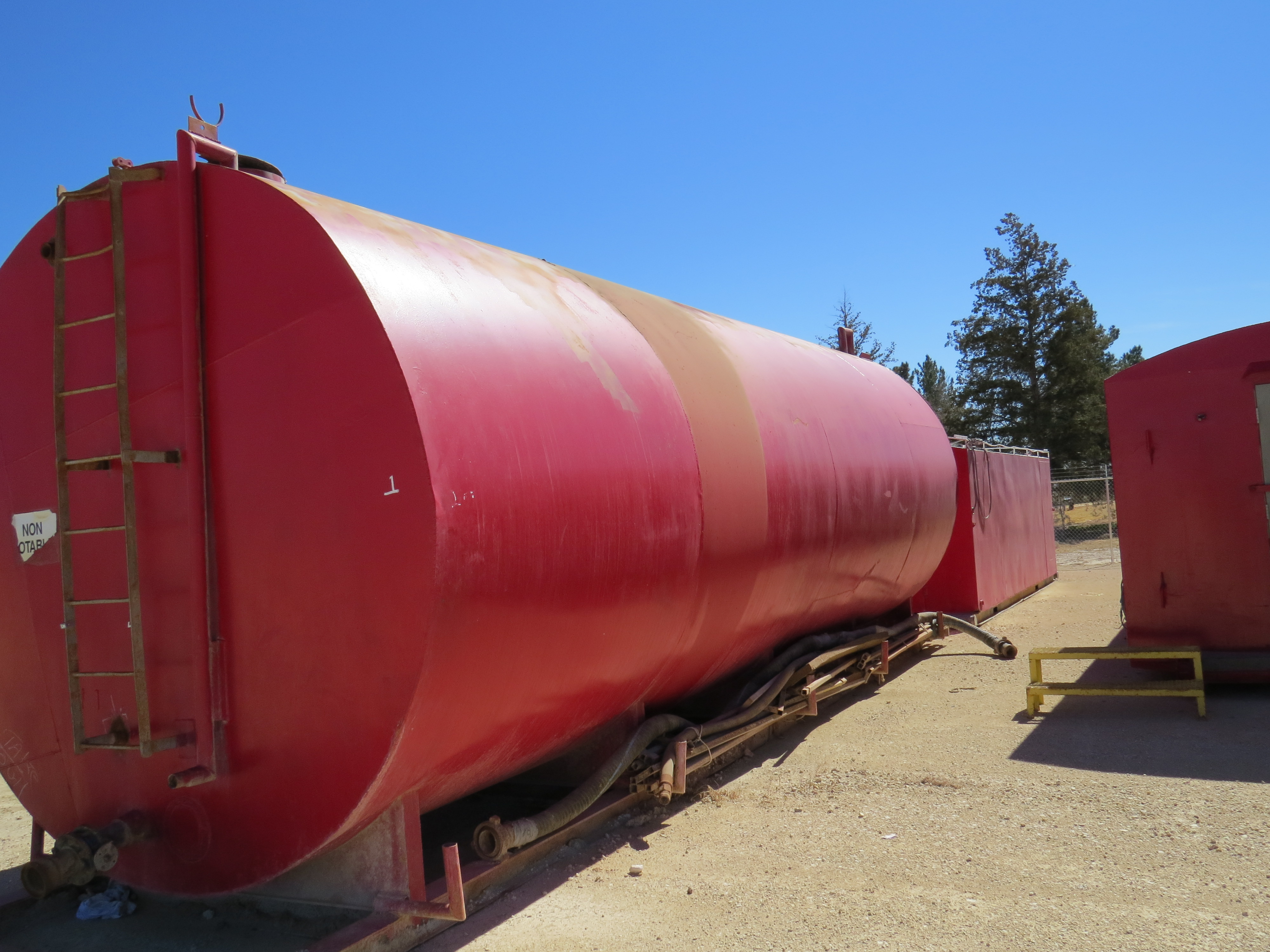

Two (2) 500 BBL Water Tank
One (1) 8,000 gal Fuel Tank

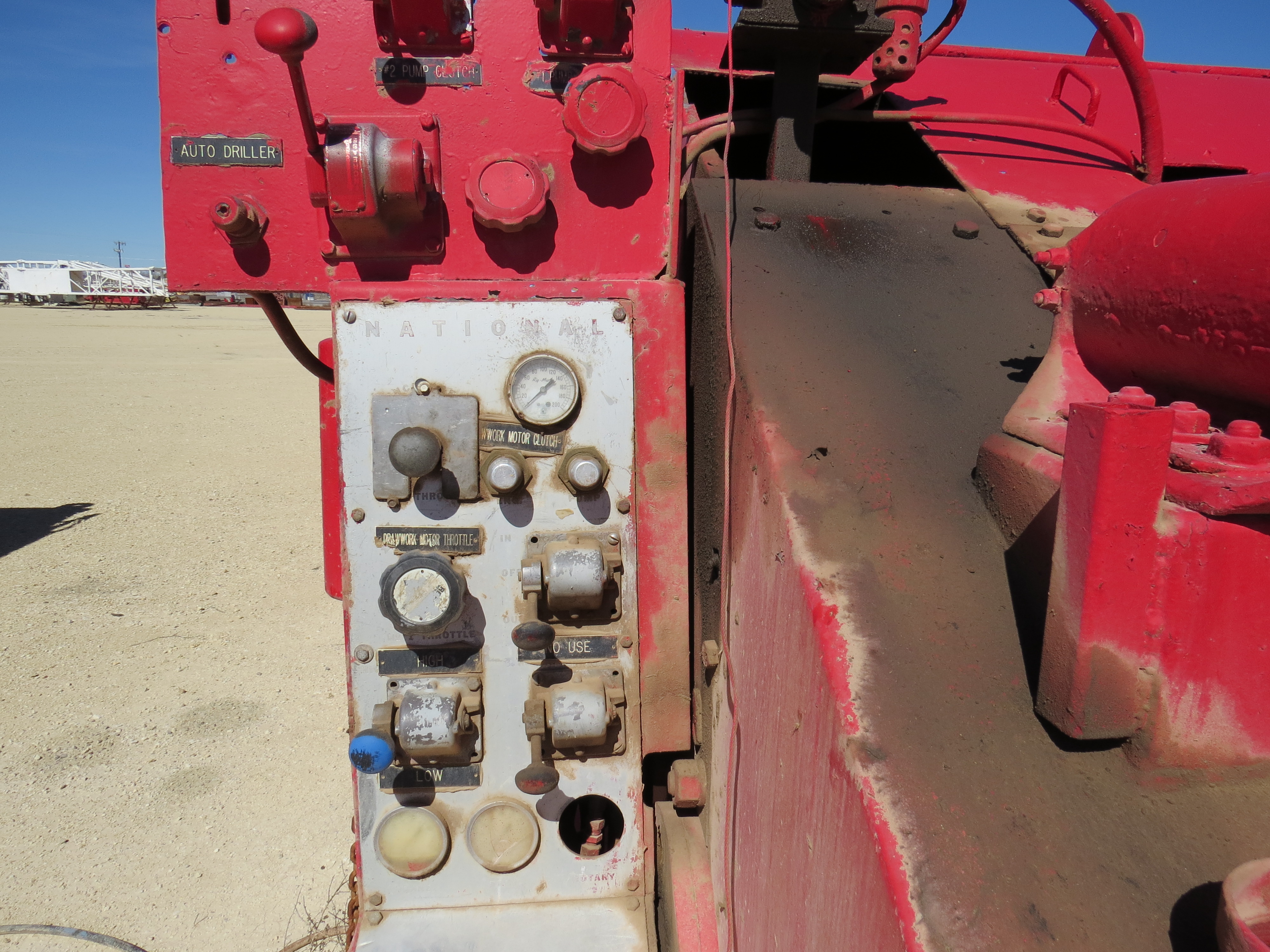

One (1) Automatic Driller
Two (2) Air Hoists
One (1) Drilling Recorder
0 -7 Drift Indicator
|
